User Manual
CONTENTS
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and
other working environments;
–by clients in hotels, motels, bed & breakfast and other
residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery basket
with the points down or in a horizontal position.
•Do not keep the appliance door open without supervision to
prevent to fall on it.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the appliance.
•The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
2
SAFETY INFORMATION
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door when
it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
3
SAFETY INFORMATION
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA (BS
1362).
Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to new
pipes or pipes not used for a long time,
let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.

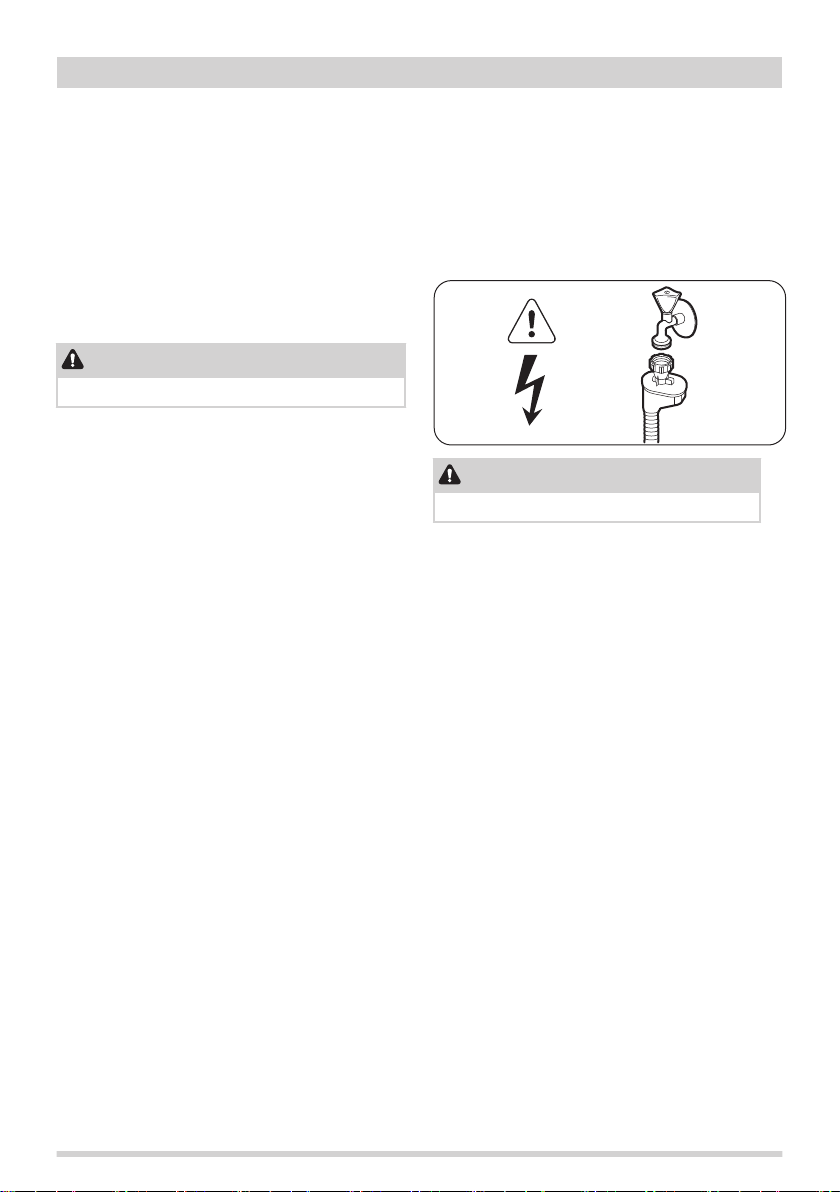

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace the
water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Service
• Contact the Authorised Service Centre
to repair the appliance. We recommend
only the use of original spare parts.
4
SAFETY INSTRUCTIONS
• When you contact the Authorised
Service Centre, ensure that you have
the following information that is available
on the rating plate.
Model :
PNC :
Serial Number :
Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
5
SAFETY INSTRUCTIONS
1 2 3
456
1On/off indicator
2Programme marker
3Indicators
4Delay button
5Start button
6Programme knob
Indicators
INDICATOR DESCRIPTION
Washing phase. It comes on when the washing phase operates.
Drying phase. It comes on when the drying phase operates.
End indicator.
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme operates.
6
CONTROL PANEL
PROGRAMME
DEGREE OF
SOIL
TYPE OF
LOAD
PROGRAMME
PHASES
CONSUMPTION VALUES
1)
DURA-
TION
(MIN)
ENERGY
(KWH)
WATER
(L)
2) Normal soil
Crockery
and cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
195 1.039 11
Normal soil
Crockery
and cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
100 - 120 1.2 - 1.5 15 - 17
3) Heavy soil
Crockery,
cutlery, pots
and pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
140 - 160 1.3 - 1.5 13 - 15
4) Fresh soil
Crockery
and cutlery
• Wash 60 °C or
65°C
• Rinse
30 0.9 9
5) All • Prewash 14 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change
the values.
2) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.
(This is the standard programme for test institutes).
3) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at
70 ° for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
5) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out
from the appliance. Do not use detergent with this programme.
7
PROGRAMMES
Programme selection mode
The appliance must be in Programme selection mode to start a programme. If the control
panel does not show this condition, do the Reset.
Reset
With Reset you can cancel the running programme or the delay start. The appliance goes
back to the Programme selection mode.
1. Press and hold the start and delay button until the start indicator start to flash.
The water hardness table
GERMAN DE-
GREES
(°DH)
FRENCH DE-
GREES
(°FH)
MMOL/L CLARKE DE-
GREES
WATER SOFT-
ENER LEVEL
47 -50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting
2) Do not use salt at this level.
Adjusting the water softener
The programme marker must be aligned with .
8
SETTINGS
1. Turn the knob until the programme marker is aligned with . Make sure that the
appliance is in programme selection mode.
2. Press and hold the Delay button until the start indicator and the on/off indicator start to
flash.
3. Press Delay button the start to flash.
• The intermittent flashing of refers to the current set level,, e.g. 5 flashes + pause +
5 flashes = level 5.
4. Press the Delay button again and again to change the setting. Each time you press the
Delay button the level number increases.
5. To confirm the setting and deactivate the appliance, turn the knob until the programme
marker is aligned with the on/off indicator.
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water softener.
Contact your local water authority to
know the water hardness in your
area.
2. Fill the salt container with special salt
for dishwasher.
3. Fill the rinse aid dispenser with special
rinse aid for dishwasher.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
Adding salt
Before first use put one litre of water in the salt container.
Water and salt can come out from the salt container when you fill it. Risk of corrosion. To
prevent it, after you fill the salt container, start a programme.
Adding rinse aid
2
1
4
3
2
1
9
BEFORE FIRST USE
The rinse aid helps to dry the dishes without streaks and stains. It is automatically released
during the hot rinse phase.
1. Open the water tap.
2. Set the correct programme for the type
of load and the degree of soil.
Make sure that the appliance is in
Programme selection mode.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Start the programme.

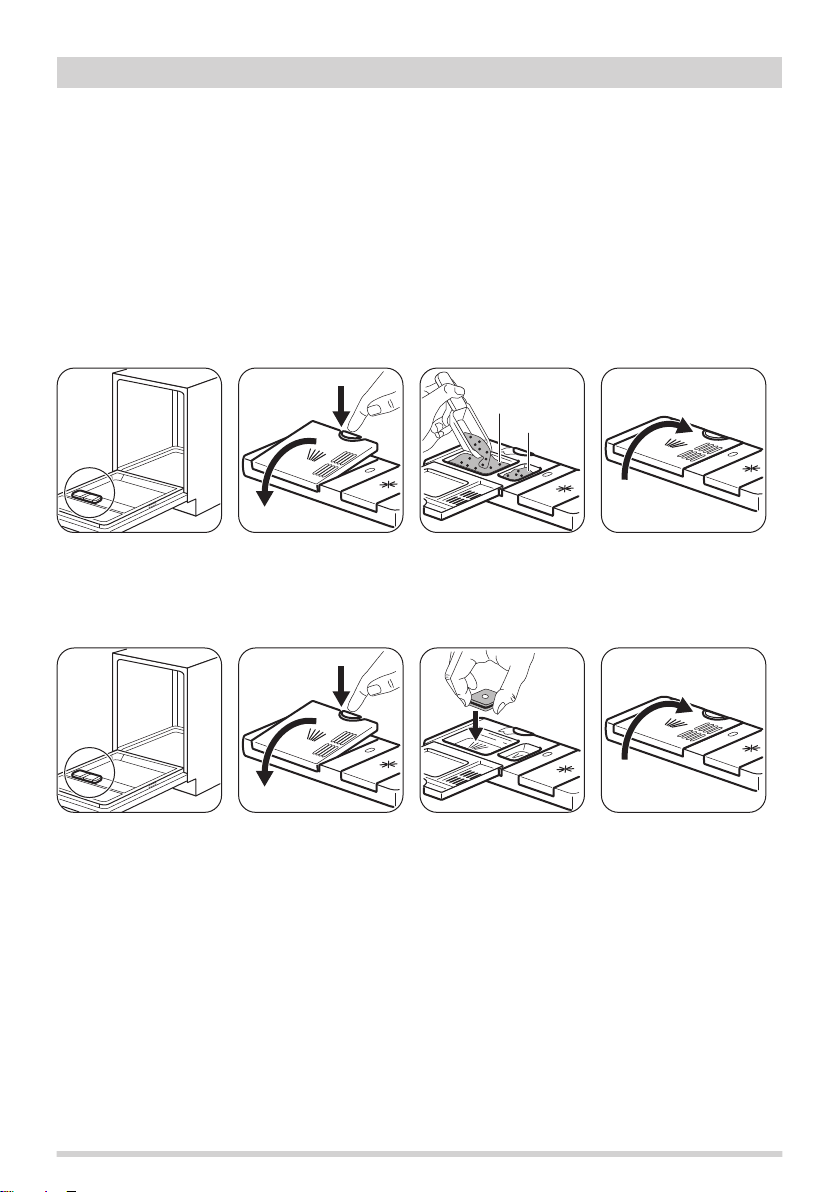

Adding detergent
2
1
2
0
3
0
A
B
If the programme has a prewash phase, put a small quantity of detergent also in
compartment B.
Adding multi-tablets
2
1
2
0
3
0
• Do not fill the salt container and the rinse aid dispenser.
• Adjust the water softener to the lowest level.
• Set the rinse aid dispenser to the lowest position.
Starting a programme
1. Open the water tap.
2. Close the appliance door.
3. Turn the knob until the programme marker is aligned with the symbol of the programme
you want to set.
• On/off indicator comes on.
• Start indicator starts to flash.
4. Press Start to start the programme.
• On/off indicator and start indicator are on.
10
BEFORE FIRST USE
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Frigidaire Spülmaschine Handbücher
Frigidaire
Frigidaire LEDB500FEE0 Bedienungsanleitung
Frigidaire
Frigidaire Gallery FGBD2431K Bedienungsanleitung
Frigidaire
Frigidaire FDB635RF Bedienungsanleitung
Frigidaire
Frigidaire FDB635RB Bedienungsanleitung
Frigidaire
Frigidaire FPHD2491KF Benutzerhandbuch
Frigidaire
Frigidaire FFBD2405KB0 Bedienungsanleitung
Frigidaire
Frigidaire 500 Series Bedienungsanleitung
Frigidaire
Frigidaire FDB2510LC Bedienungsanleitung
Frigidaire
Frigidaire FDB939GFT2 Bedienungsanleitung
Frigidaire
Frigidaire FDB345LB Bedienungsanleitung
Frigidaire
Frigidaire FFBD1821M S Bedienungsanleitung
Frigidaire
Frigidaire FDB884RB Bedienungsanleitung
Frigidaire
Frigidaire Gallery FGBD2432K Bedienungsanleitung
Frigidaire
Frigidaire FDB1100RHB - Precision Select 24 Bedienungsanleitung
Frigidaire
Frigidaire FDB1500LFS0 Bedienungsanleitung
Frigidaire
Frigidaire FDSP4401AS Bedienungsanleitung
Frigidaire
Frigidaire LGID2475QF3A Bedienungsanleitung
Frigidaire
Frigidaire GLD2350RC Bedienungsanleitung
Frigidaire
Frigidaire PLD4555RFC - Full Integrated Dishwasher Bedienungsanleitung
Frigidaire
Frigidaire PLD4460REC Bedienungsanleitung
