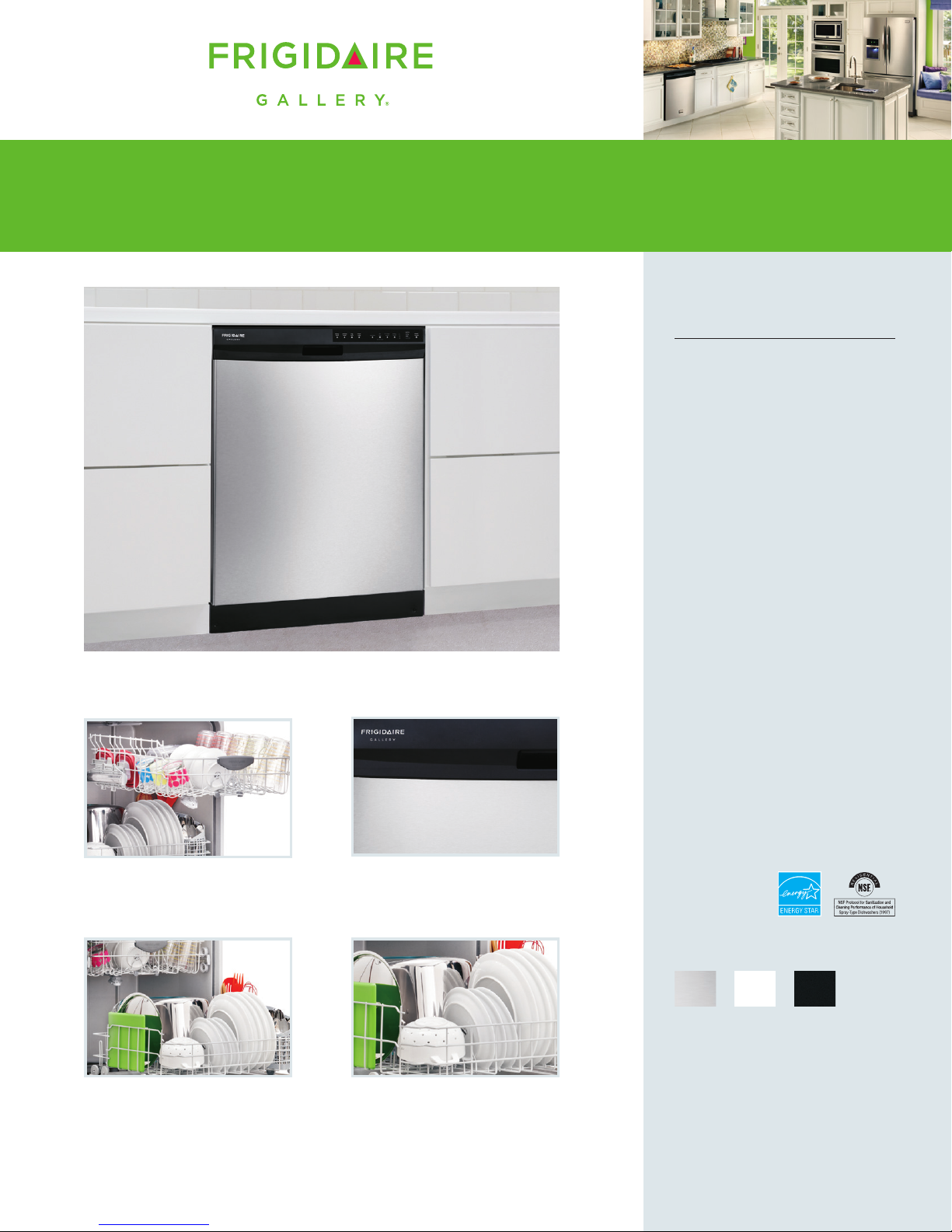

Signature Features

24" Built-In

Product Dimensions

Height (Adjustable) 33-1/2"– 35"

Width 24"

Depth (Including Door) 25"

More Easy-To-Use Features

Built With American Pride

Appliances that are high-performing,

more accessible, and more innovative

than ever — designed, built and

engineered in the U.S.A.

SpaceWise®

Organization System

Our SpaceWise® Organization system

features adjustable racks and the

Largest Silverware Basket2so there’s

a place for virtually anything.

Delay Start

Most adaptable delay start (1- to 24-

hour options).

Smudge-Proof Stainless Steel3

Real Stainless Steel with a protective

coating reduces fingerprints and

smudges so it’s easy to clean.

NSF® Certiﬁed

Sanitize cycle removes 99.9% of

common household bacteria.

Express-Select® Controls

Easily select options with the touch

of a button.

Multiple-Cycle Options

Features easy-to-use cleaning cycle

options including Top Rack, Rinse Only

and Heavy Wash.

ENERGY STAR®

NSF® International

Certiﬁcation

Available in:

1 In its class based on published manufacturer

speciﬁcations for similar MSRP models.

2 Among leading brands.

3 Select model only.

Outstanding Cleaning

Performance

BladeSpray™ Arm provides more water

coverage for better cleaning.

Quietest Dishwasher in

Its Class1

Quietest dishwasher, so it won’t

interrupt your time at home.

DishSense™ Technology

Sensors select the cycle for you based

on your cleaning needs.

Eortless™ Dry

Get outstanding drying performance

with Effortless™ Dry.

Dishwashers

FGBD2438P F/ W/ B

Stainless

(F)

White

(W)

Black

(B)

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwashers

FGBD2438P F/ W/ B 24" Built-In

Product Dimensions

A - Height (Adjustable)

B - Width

C - Depth (Including Door)

D - Depth (To Tub Flange)

Depth with Door Open 90˚

33-1/2"-35"

24"

25"

22-1/2"

49-1/4"

Cutout Dimensions

Height (Min.)

Height (Max.)

Width (Min.)

Depth (Min.)

34-1/4"

35"

24"

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Meets requirements

of ASSE 1006

1 For use on adequately wired 120V, dedicated circuit having 2-wire service

with a separate ground wire. Appliance must be grounded for safe operation.

Features

Control Design

Digital Display

Door Latch / Stay-Put Door Hinge Design

Low Rinse-Aid Indicator Light

Interior Design / Interior Color

Wash System

Wash Levels / Wash Speeds

DishSense™ Technology

AquaSurge™ Technology

Sound Package

Filter / Filter Trap

Soft Food Disposer

dB Level

Drying System

Cycles

Number of Cycles

Heavy

Normal

Light

Quick

Favorite

China Crystal

Rinse Only

Energy Saver Plus

Upper Rack Wash Only

Cycle Indicator Light / Control Lock

Options

Heat / No Heat Dry

Hi-Temp Wash

NSF® Certiﬁed Sanitize Rinse

Delay Start

Rack System

Rack Design

Rack Coating

Upper Rack –

Rack Handles

Stemware / Champagne Glass Holders

Fold-Down Tines

Cup Shelves

Versa-Tray™

Adjustable Racks

Lower Rack –

SpaceWise® Silverware Basket

Fold-Down Tines

Small Items Cover

Certiﬁcations

ENERGY STAR®

NSF® International Certiﬁcation

Speciﬁcations

Water Inlet Location

Water Usage (Gallons)

Water Pressure (PSI)

Integral Air Gap on Supply

Leveling Legs

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @ 120 Volts 1

Amps @ 120 Volts

Shipping Weight (Approx.)

Slimline Express-Select®

Yes / Yes

Yes

Tall Tub / GraniteGrey™

BladeSpray™ Arm

5 / 1

Yes

UltraQuiet™ 2

S. Steel / Removable

Yes

Eortless™ Dry

Yes

No / Yes

Yes / Yes

Yes

2-4-6 Hour

Deluxe

Nylon TufRacks™

Yes

Ultra 1

Yes

Left Bottom Front

4.9 – 8.5

20 – 120

Yes

Right Bottom Front

120V / 60 Hz / 15A

1.44

24" Built-In Dishwasher

w/Slimline Controls (SC) and no vent

Frigidaire Gallery

Specifications

subject to change.

Meets

requirements of

ASSE 1006

24" Built-In Dishwasher w/Slimline Controls (SC)

Gallery

Dishwasher Specifications

•Product Shipping Weight (approx.) – 72 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if

connected with disposer)

•Connected Load (kW Rating) @ 120 Volts = 1.44 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•Amps @ 120V = 10 Amps

•Always consult local and national electric & plumbing codes.

Meets requirements of ASSE 1006 — integral air gap on supply.

•Water Pressure – Hot water line to dishwasher must provide

between 20 and 120 pounds per square inch (psi).

•Make sure location has right drain, water and electrical outlets

to make connections.

•Keep back free of drain, water & electrical supply.

•Electrical and water supplies should enter cabinet opening on floor,

or through back or side walls, as shown in shaded areas.

•Connections preferably located toward left side of dishwasher. Do not

cross drain, water or electrical lines in front of motor, blower or frame.

•When installing adjacent to wall, cabinet or other obstruction that

extends beyond front edge of unit, allow 2" minimum clearance

between opened door and obstruction.

•When installing at end of cabinet line, sides must be fully enclosed.

•Do not install unit under a cooktop, damage will occur.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwashers

FGBD2438P F/ W/ B 24" Built-In

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

General Installation Guidelines

with French Door Refrigerator
