Frigidaire GLD2355RD Bedienungsanleitung

Product No. GLD2355RDB0 GLD2355RDC0 GLD2355RDC1 GLD2355RDQ0 GLD2355RDS0

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless stainless bisque white

Wiring Diagram 154476701 154476701 154476701 154476701 154476701

Owner's Guide 154482801 154482801 154482801 154482801 154482801

154483301 154483301 154483301 154483301 154483301

154484101 154484101 154484101 154484101 154484101

Service Data Sheet 154476701 154476701 154476701 154476701 154476701

Energy Guide 154485218 154485218 154485218 154485218 154485218

Installation Instructions 154427301 154427301 154427301 154427301 154427301

Market North America North America North America North America North America

P30L0058.eps P30C0143.eps P30B0032.eps P30U0018.eps P30M0035.eps P30F0022.eps

P30R0071.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995402814

04/01/30

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

GLD2355RD

Publication No: 5995402814 GLD2355RD

01/04 2

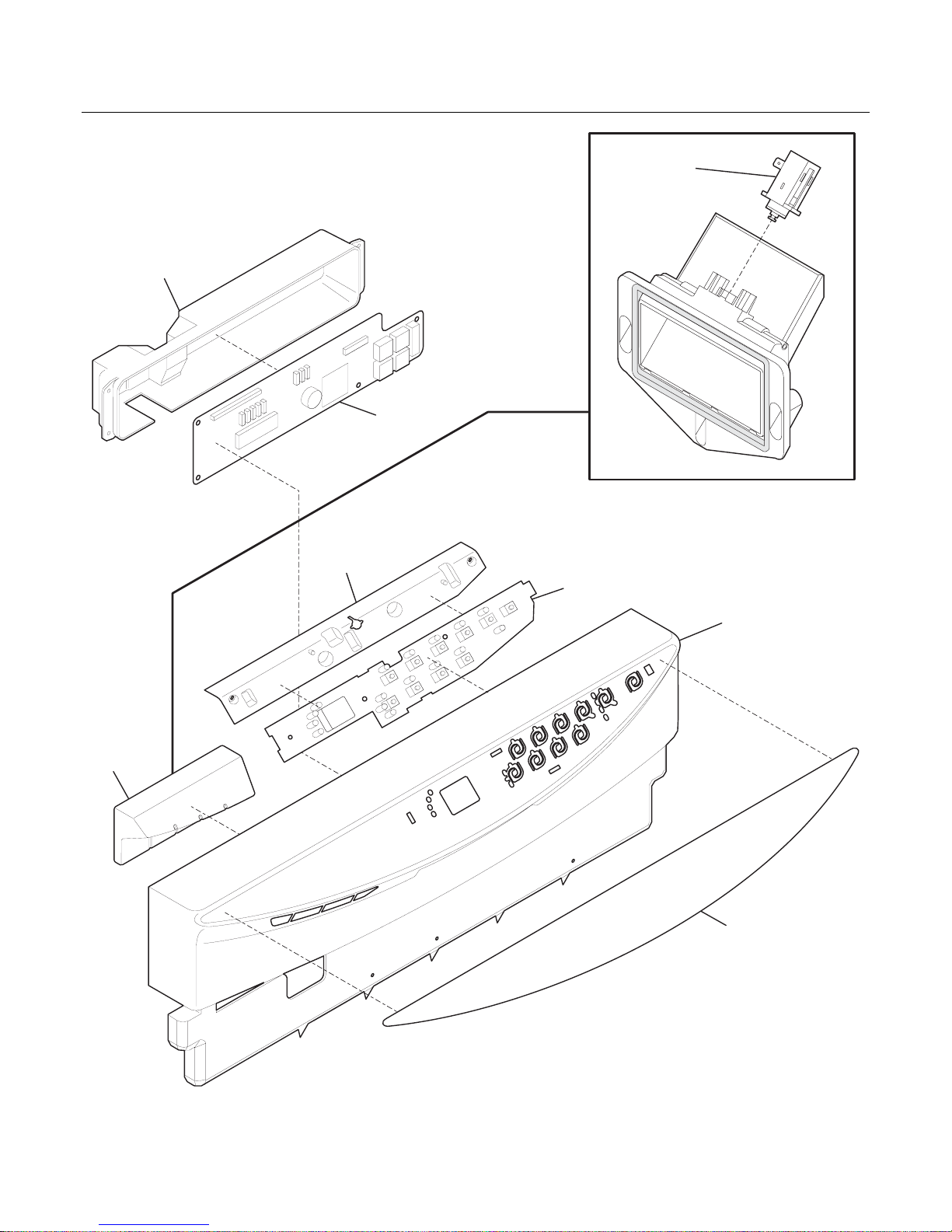

CONTROL PANEL

P30C0143

GLD2355RD Publication No: 5995402814

# Functional Parts 3 01/04

* Non-Ilustrated Parts

CONTROL PANEL

Model Index: AGLD2355RD (GLD2355RDB0)

BGLD2355RD (GLD2355RDC0)

CGLD2355RD (GLD2355RDC1)

DGLD2355RD (GLD2355RDQ0)

EGLD2355RD (GLD2355RDS0)

POS. NO PART NO. DESCRIPTION

1 154454403 A B - - - Panel, control, black

1 154486003 - - C - - Panel, control, black

1 154454404 - - - D - Panel, control, bisque

1 154486001 - - - - E Panel, control, white

2 154483803 A B C - - Insert, control panel, black, 10 pad

2 154483804 - - - D - Insert,control panel,bisque,10pad

2 154483801 - - - - E Insert, control panel, white, 10 pad

3 # 154470604 A B C D E Control, w/display

3* 154200401 A B C D E Screw, 6-10 x 3/8, pan plask

4 154460601 A B C D E Cover, control

4* 154478901 A B C D E Gasket,cover

8 # 154474601 A B C D E Switch, selector, 10 pad

8* 5303318719 A B C D E Screw,mtg.

8A 154477601 A B - D - Cover, switch

8A 154486201 - - C - E Shield, tactile switch

20 154423601 A B C D E Vent assy, active dry, w/actuator

20* 154436201 A B C D E Screw, dry duct, (3)

27 154433501 A B C D E Actuator, active dry vent

28 154474401 A B C D E Adapter, vent

* # 154476901 A B C D E Wiring Harness

* 154485218 A B C D E Energy Guide

Publication No: 5995402814 GLD2355RD

01/04 4

DOOR

GLD2355RD Publication No: 5995402814

# Functional Parts 5 01/04

* Non-Ilustrated Parts

DOOR

Model Index: AGLD2355RD (GLD2355RDB0)

BGLD2355RD (GLD2355RDC0)

CGLD2355RD (GLD2355RDC1)

DGLD2355RD (GLD2355RDQ0)

EGLD2355RD (GLD2355RDS0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D E Spring, door, (2)

1A 154325201 A B C D E Linkage, door spring, (2)

2 154093301 A B C D E Screw, arm assy, (4)

3 154325304 A B C D E Arm Assy, LH

3A 154325303 A B C D E Arm Assy, RH

* 154400601 A B C D E Pin, arm assy

5 154079601 A B C D E Nut, arm assy, and handle mtg.

7 154299004 A B C D E Door, inner assy

9 154230103 A B C D E Dispenser, det/rinse aid, includes #22

9* 154294701 A B C D E Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D E Screw, latch mtg, (2)

12 # 154475103 A B C - - Latch assy, black

12 # 154475104 - - - D - Latch assy, bisque

12 # 154475101 - - - - E Latchassy,white

20 154359007 A - - - - Door, black

20 154481101 - B C - - Door, stainless

20 154359008 - - - D - Door, bisque

20 154359006 - - - - E Door, white

20* 154253201 - B C - - Insulation, door

20* 5304428306 A B C D E Screw,doormtg., (2)

22 154388801 A B C D E Cap, Rinse aid

49 154297603 A B C D E Gasket, door, bottom

50 154211401 A B C D E Support, door hinge

51 154320301 A B C D E Clamp, drip loop, wire

* 154200601 A B C D E Screw, #10-16 x 3/8

Publication No: 5995402814 GLD2355RD

01/04 6

TUB

GLD2355RD Publication No: 5995402814

# Functional Parts 7 01/04

* Non-Ilustrated Parts

TUB

Model Index: AGLD2355RD (GLD2355RDB0)

BGLD2355RD (GLD2355RDC0)

CGLD2355RD (GLD2355RDC1)

DGLD2355RD (GLD2355RDQ0)

EGLD2355RD (GLD2355RDS0)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B C D E Tub assy, w/frame parts

2 154429101 A B C D E Strike, door

3 # 154211801 A B C D E Gasket, tub

4 154200602 A B C D E Screw, 10-16 x 3/8, hex

5 154333902 A B C D E Roller, tub

6 5303943103 A B C D E Screw, w/washer, (8)

22 154239801 A B C D E Tubing, water inlet

23 5303318539 A B C D E Clamp, tubing, (2)

24 # 154411003 A B C D E Hose, drain

25 # 154209701 A B C D E Float

28 154408701 A B C D E Switch assy,float

29 # 154290204 A B C D E Thermostat, re-settable

30 154241101 A B C D E Retainer, thermostat

30* 154297701 A B C D E Screw,retainer-thermo

* 154447102 A B C D E Insulation, blanket

* 154447301 A B C D E Insulation, tub back

* 154041001 A B C D E Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D E Screw, (2), countertop mtg.

Publication No: 5995402814 GLD2355RD

01/04 8

MOTOR & PUMP

GLD2355RD Publication No: 5995402814

# Functional Parts 9 01/04

* Non-Ilustrated Parts

MOTOR & PUMP

Model Index: AGLD2355RD (GLD2355RDB0)

BGLD2355RD (GLD2355RDC0)

CGLD2355RD (GLD2355RDC1)

DGLD2355RD (GLD2355RDQ0)

EGLD2355RD (GLD2355RDS0)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C D E Heater

1* 154106201 A B C D E Nut, heater, (2)

1* 154289801 A B C D E Shield, heater terminal

2 154359701 A B C D E Bracket, heater, (2)

10 154245501 A B C D E Cover, volute

13 154246801 A B C D E Gasket, sump

14 154365901 A B C D E Housing, sump

16 154246502 A B C D E Retainer, sump

24 154414101 A B C D E Spray arm, lower, w/heat shield

24A 154313601 A B C D E Spray arm, center

24A* 154252001 A B C D E Nut,sprayarm, center

32 154406601 A B C D E Tube, delivery

32A 154406401 A B C D E Gasket,delivery tube

40 154348401 A B C D E Clamp, red, pump

40 154348501 A B C D E Clamp, silver, pump

40* 154106801 A B C D E Clamp,hose,(2)

40* 154380601 A B C D E Clamp,hose,(1)

54 154234401 A B C D E Hose, connector

55 154362301 A B C D E Bracket, motor, askoll

55* 5303316032 A B C D E Screw, truss ss, 8 .625

58 154246402 A B C D E Check ball

59 154246901 A B C D E O-ring, rear

59A 154247001 A B C D E O-ring,front

60 154474101 A B C D E Drain PumpAssy

60* 154426201 A B C D E Bracket,motor, drain

61 154406501 A B C D E Nozzle, 3rd level, spray arm

62 154294101 A B C D E Support, spray arm, lower

63 154252201 A B C D E Base, soil director

64 154252301 A B C D E Filter, soil director

65 154283004 A B C D E Filter Assy

66 154252701 A B C D E Trap, glass

70 # 154395403 A B C D E Motor assembly, circulation, w/o o'rings

71 # 154473901 A B C D E Sensor, turbidity

71* 154376001 A B C D E O-ring, turbidity

* 154200601 A B C D E Screw, #10-16 x 3/8

Publication No: 5995402814 GLD2355RD

01/04 10

FRAME
