FREEZER

Model number

FFU14C3AW

FFU17C3AW

FFU21C3AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803200 / 216803100

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803200 / 216803100

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14C3AW0 FFU14C3AW 134A white 115

FFU17C3AW0 FFU17C3AW 134A 115 115

FFU21C3AW0 FFU21C3AW 134A white 115

MARKET

North America

Publication No.

5995357497

010814

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

09/01 2

Publication No FFU14/17/21C3AW

5995357497

DOOR

# = Fast-moving Parts 3 09/01

* = Non-Illustrated Parts

FFU14/17/21C3AW Publication No.

5995357497

DOOR

A = FFU14C3A (FFU14C3AW0)

B = FFU17C3A (FFU17C3AW0)

C = FFU21C3A (FFU21C3AW0)

POS. NO PART NO DESCRIPTION

1 216522306 A - - Gasket-door,white

1 216522309 - B - Gasket-door,white

1 216522312 - - C Gasket-door,white

2 # 5303925107 - B C Lock Assy

5 # 216702900 - B C Key,lock

6 5300158222 A B C Screw-anchor,8-18

9 216527612 A - - Panel-inner door,white ,frzr

9 216527814 - B - Panel-inner door,frzr

9 216528109 - - C Panel-inner door,white

11 5303925476 A - - Panel-outer door,white

11 5303925474 - B - Panel-outer door,white

11 5303925466 - - C Panel-outer door,white

12 216817100 A B C Nameplate

12A 216817001 A B C Insert-nameplate

13 08016354 A B C Door Stop

14 5303313518 A B C Washer,sealing

18 216446900 A B C Handle,white

21A 08005520 A B C Screw-door stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 A B C Bearing

22A 216503200 A B C Bearing-hinge,btm

26 216524300 A - - Gasket,secondary

26 216524200 - B C Gasket,secondary

27 5303212828 A B C Clip,panel

28 216523302 A - - Rack-shelf

28 216523102 - B C Rack-shelf,wide ,white

32 5309950074 A B C Valve-breather

57 3017682 A B C Insert-handle

64 216403700 A B C Plug-button,base door

93 5303161215 A B C Screw

* 5303925098 - B - Insulation

09/01 4

Publication No FFU14/17/21C3AW

5995357497

CABINET

# = Fast-moving Parts 5 09/01

* = Non-Illustrated Parts

FFU14/17/21C3AW Publication No.

5995357497

A = FFU14C3A (FFU14C3AW0)

B = FFU17C3A (FFU17C3AW0)

C = FFU21C3A (FFU21C3AW0)

POS. NO PART NO DESCRIPTION

3 216502600 A B C Plug-drain,interior ,interior

6 216603400 A - - Breaker Kit w/corners,28", top or bottom

6 216604200 - B - Breaker Kit w/corners

6 216604100 - - C Breaker Kit w/corners

7 216603800 A - - Breaker Kit w/corners,lock catch

7 216603600 - - C Breaker Kit w/corners,lock catch

9 216604300 A - - Breaker Kit w/corners

9 216603300 - B C Breaker Kit w/corners,32 , top or bottom

18 216707200 A B C Knob-control cold

20 216707300 A B C Cover-control housing

21 # 216788100 A - - Control-temperature

21 216715100 - B C Control-temperature

22 08037931 A B C Clamp,cap tube ,cold control

23 06594648 A B C Light-signal,amber

24 5300052943 A B C Screw-clamp,truss hd cr ,control

26 216503300 A B C Ramp,closer ,door

27 5303205738 A B C Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 A B C Hinge-bottom

29 216313502 A B C Hose-drain

32 5308005500 A B C Drain

33 216252001 A B C Bracket,signal light

35 216273000 A B C Clip,drain hose

38 5303925086 A B C Hinge-upper

39 5303294372 A B C Nut-insert,hinge

40 5303212912 A B C Cover-hinge

41 5303212937 A B C Screw-top hinge

46 08037851 A B C Screw,PH type AB ,8-32x1/2 , wiring harness

62 131420300 A B C Screw,cr truss head ,8-18AB x 0.750

63 216396900 A B C Foot-adjustable

65 216443500 - B C Drop front

72 216591215 A - - Grille/Kickplate

72 216591110 - B C Grille/Kickplate

81 216571000 - B C Support-drop front,top

83 216571100 - B C Support-drop front,btm

86 216036600 A B C Screw,rwhd (gx-ca) ,8-32 x 1/2

* 09948773 A B C Insulation,drain tube

* 216159800 A B C Cover-indicator light

* 216802800 A B C Owners guide

* 5303305324 - B C Paint,touch-up ,white

CABINET

09/01 6

Publication No FFU14/17/21C3AW

5995357497

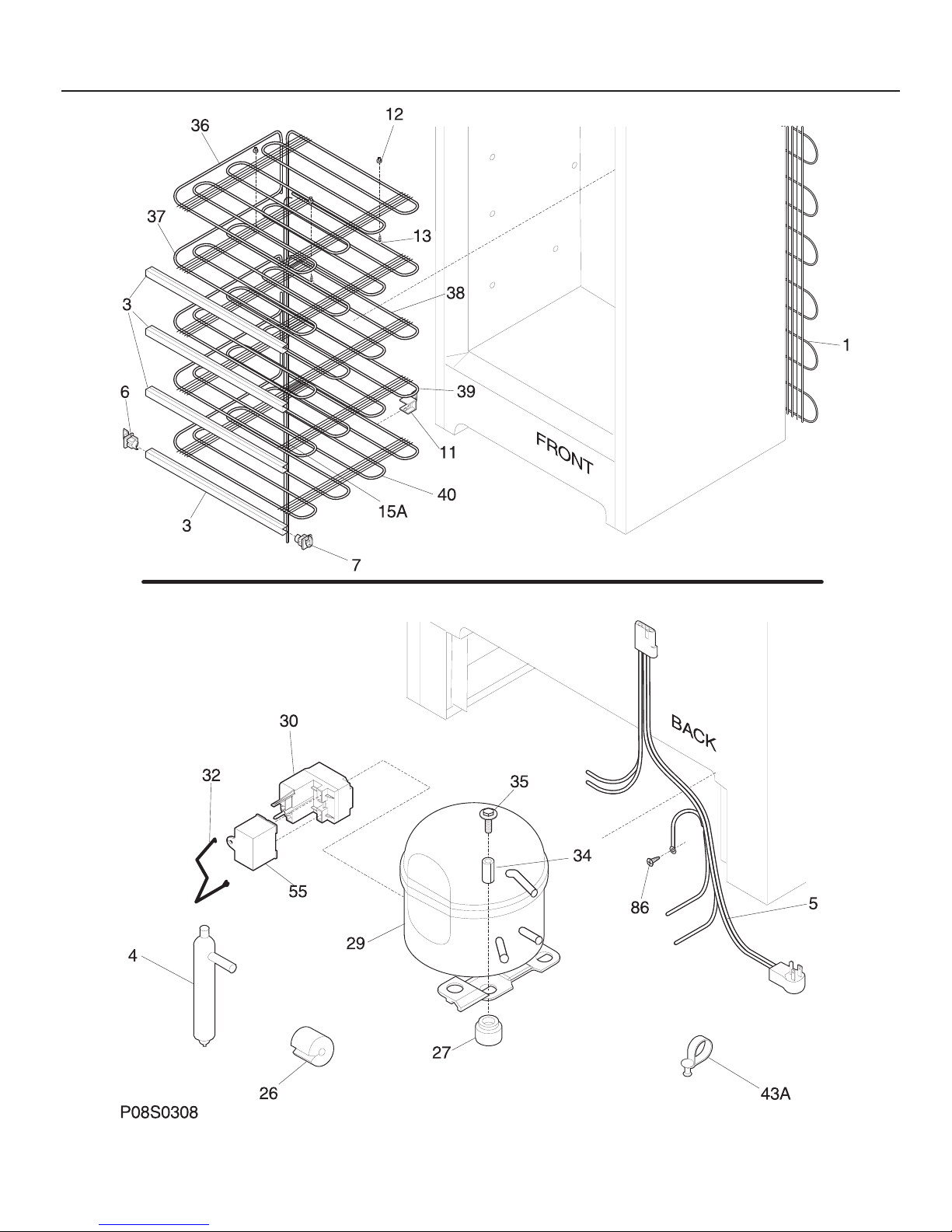

SYSTEM

# = Fast-moving Parts 7 09/01

* = Non-Illustrated Parts

FFU14/17/21C3AW Publication No.

5995357497

SYSTEM

A = FFU14C3A (FFU14C3AW0)

B = FFU17C3A (FFU17C3AW0)

C = FFU21C3A (FFU21C3AW0)

POS. NO PART NO DESCRIPTION

1 # 5300123788 A - - Condenser

1 # 5300083897 - B C Condenser

3 216743000 A - - Trim-shelf,evaporator

3 216743100 - B C Trim-shelf,decorated ,evap

4 216634500 A B C Drier-filter

5 216806700 A B C Harness-main

6 3091418 A B C Support-shelf,front LH

7 08037928 A B C Support-shelf,front RH

11 216474600 A B C Support-rear shelf

12 216225700 A B C Grommet-spacer

13 216138900 A B C Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 A - - Heat Exchanger

15A 216401400 - B - Heat Exchanger

15A# 216401500 - - C Heat Exchanger

26 216511900 - B C Spacer tube,(3)

27 216498900 A B C Grommet,compressor

29 # 216784300 A - - Compressor,w/o electricals

29 # 216784400 - B - Compressor,w/o electricals

29 # 216788300 - - C Compressor,w/o electricals

30 216649313 A - - Controller

30 216649300 - B - Controller-regulator LP

30 216649311 - - C Controller

32 216649200 A - - Clip,controller

32 216649100 - B - Clamp,elec cont mtg ,compressor

32 218740800 - - C Clamp,elec cont mtg ,compressor

34 5306594529 A B C Sleeve-compressor

35 5303272328 A B C Screw,Ind hex sems ,1/4-28 unfx , compressor

36 # 216070100 A - - Grid-top evaporator

36 # 216070500 - B - Grid-top evaporator

36 # 216070900 - - C Grid-top evaporator

37 # 216070200 A - - Shelf-top evaporator

37 # 216070600 - B - Shelf-top evaporator

37 # 216071000 - - C Shelf-top evaporator

38 216070300 A - - Shelf-middle evaporator

38 # 216070700 - B - Shelf-middle evaporator

38 # 216071100 - - C Shelf-middle evaporator

39 # 216071200 - - C Shelf-third evaporator

40 # 216070400 A - - Shelf-bottom evaporator

40 # 216070800 - B - Shelf-bottom evaporator

40 # 216071300 - - C Shelf-bottom evaporator

43A 216629700 A B C Clip-harness

55 # 216787800 A - - Capacitor-run

55 # 218909901 - B C Capacitor-run,220 VAC ,15 microfarad

86 216036600 A B C Screw,rwhd (gx-ca) ,8-32 x ½

* 216502500 A B C Sleeve-tube insert
