Frigidaire FFU14FK0DW Bedienungsanleitung

Product No. FFU14FK0DW0

Series 134A

Color white

Volts 115

Wiring Diagram 216857900

Owner's Guide 216960000

Market North America

Energy Guide 216795309

P08F0009.EPS P08D0374.eps P08C0716.eps P08S0331.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995409470

04/05/06

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU14FK0DW

Publication No: 5995409470 FFU14FK0DW0

05/04 2

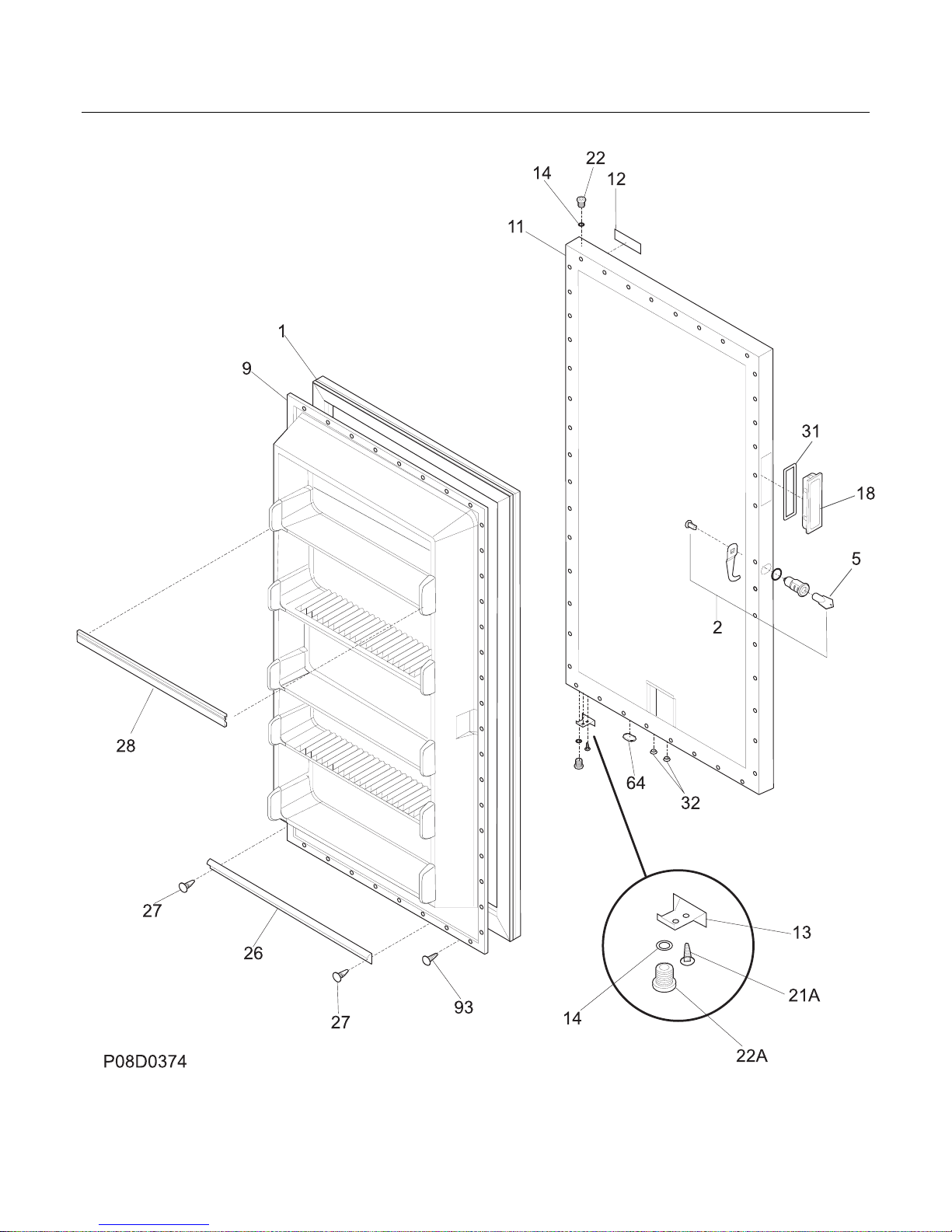

DOOR

FFU14FK0DW0 Publication No: 5995409470

# Functional Parts 3 05/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522306 Gasket, door seal, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216527615 Panel-inner door, frzr

11 216557805 Panel-outer door, complete, w/foam insul

12 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer, sealing

18 216140200 Handle, recessed, white

21A 08005520 Screw, door stop mtg, 4.0 x 0.7-19.7, flat hd, metric

22 216443600 Bearing, hinge, top

22A 216503200 Bearing, hinge, bottom

26 216524300 Gasket, secondary

27 5303212828 Clip, panel mtg

28 216951601 Rack-door, (5)

31 08009392 Gasket, white

32 5309950074 Valve, breather, door base

64 216403700 Plug-button, hole filler, door base

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995409470 FFU14FK0DW0

05/04 4

CABINET

27 28

71A 21

93B

42A

22A

P08C0716

93A

13 5

132

FFU14FK0DW0 Publication No: 5995409470

# Functional Parts 5 05/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604300 Breaker Kit w/corners, 45.13" long, no lock slot

7 216603800 Breaker Kit w/corners, incl lock catch

9 216603400 Breaker Kit w/corners, 22.13" long, top or bottom

13 # 216914200 Motor, fan, 115 V

* 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204900 Gasket, evap cover

20 216230300 Cover, temp control

21 # 216788000 Control, temperature

22 216823500 Clamp, cap tube, cold control

22A 5303916855 Tube, sensor sleeve, plastic, clear

24 5300052943 Screw-clamp, truss hd cr, control

25 216820100 Cover, evaporator

26 216503300 Ramp, door closer

27 5303205738 Screw, hinge, 10 (A) x 0.875, btm

28 216247400 Hinge, bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216816201 Shield-light

35 216629700 Clip

38 216939100 Hinge-upper

40 216809000 Cover-hinge

41 216954400 Screw, 12-24 x.700 hwh, hinge mtg.

42 216546100 Shelf, 16.69 X 23.88 WH, 16.69x23.88, white, (2)

42A 216546200 Shelf, 14.50 X 23.88 WH, 14.50x23.88, white

* 216502400 Grommet-shelf mtg

47 216661600 Plate, baffle, snap fit

49 216937600 Trivet

50 216394000 Bracket, fan motor mount

63 216396900 Screw, leveling foot, plastic, adjustable

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 216952700 Grille/guard, (2)

80 06594601 Bracket, control

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

93B 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

132 5303283898 Screw, 6-20AB x 3/8

* 09948773 Insulation, drain tube

* 216795309 Energy Guide

* 5303305324 Paint, touch-up, white

Publication No: 5995409470 FFU14FK0DW0

05/04 6

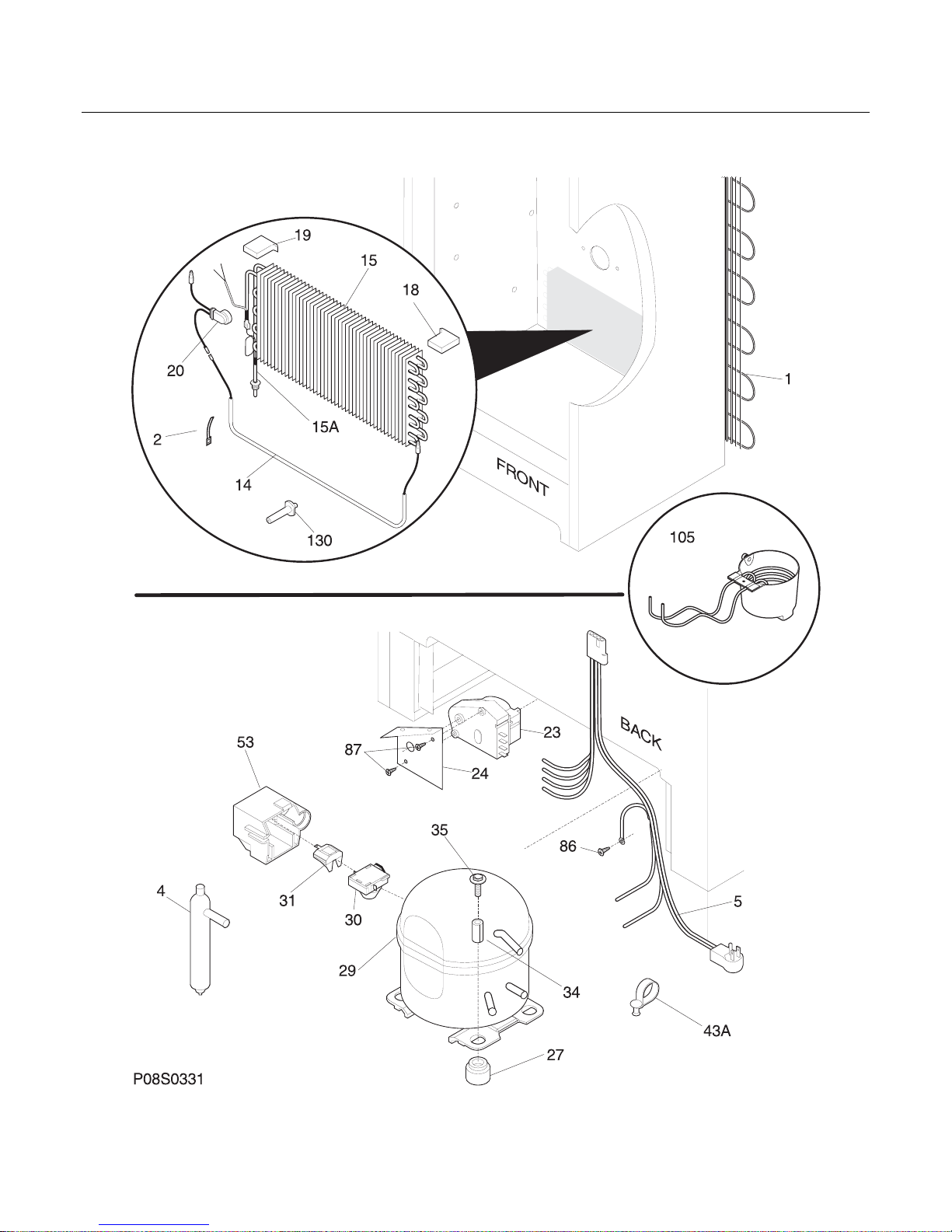

SYSTEM

FFU14FK0DW0 Publication No: 5995409470

# Functional Parts 7 05/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300123788 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216634500 Drier-filter

5 # 216891300 Harness-main

14 216740000 Heater-defrost

15 216737400 Evaporator

15A 216565700 Heat Exchanger

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216731000 Thermostat, defrost

23 # 216744500 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet, compressor

29 # 216888100 Compressor, w/o electricals

30 216596800 Starter, relay

31 # 216100106 Overload Protector

34 5306594529 Sleeve-compressor

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor

43A 216629700 Clip

53 216347800 Cover terminal, cover-comp term

86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

87 08037849 Screw, ph truss head, 6-32(T) x 0.500, thread cutting

105 216854001 Cup-drain

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line
