F IGIDAI E

TABLE OF

Important Safety Instructuons ...................... 2

Features at a Glance ................................... 5

Installation ................................................ 6

Door Removal Instructuons ........................ 10

Instalhng Door Handles ............................. 13

Connecting Water Supply .......................... 16

Controls ................................................... 18

Automabc Ice & Water Dispenser .............. 21

www.fngJdaire.com USA 1-800-944--9044

CONTENTS

Automatuc Ice Maker - Freezer ................... 23

Storage Features ...................................... 24

Stonng Food and Saving Energy ................ 28

Normal Operating Sounds and Sights ......... 29

Changing the Filter ................................... 30

Care and Cleaning .................................... 32

Before you Call......................................... 36

Major Appliance Warranty ......................... 40

www.frigJdaire.ca Canada 1-800-265-8352

Please read all instructions before using this

refrigerator.

For your Safety

• DO NOT store or use gasoline, or other

flammable liquids in the vicinity of this or

any other appliance. Read product labels

for warnings regarding flammability and

other hazards.

• DO NOT operate the refrigerator in the

presence of explosive fumes.

• Avoid contact with any moving parts of

automatic ice maker.

• Remove all staples from the carton. Staples

can cause severe cuts, and also destroy

finishes if they come in contact with other

appliances or furniture.

Definitions

_This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this

symbol to avoid possible injury or death.

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in

death or serious injury.

WARNING indicates a potentially hazardous

situation which, if not avoided, could result

in death or serious injury.

Doors

[] Handles are secure and tight

[] Door seals completely to cabinet on all

sides

[] Freezer drawer is level across the top

Leveling

[] Refrigerator is level, side-to-side and

tilted 1/4"(6 mm) front-to-back

[] Toe grille is properly attached to

refrigerator

[] Cabinet is setting solid on all corners

Electrical Power

[] House power turned on

[] Refrigeratorp uggedin

Ice Maker

[] Housewatersupp,yconnectedto

refrigerator

[] No water leaks present at all

connections - recheck in 24 hours

[] Ice maker is turned ON

[] Ice & water dispenser operates correctly

Final Checks

[] Shipping material removed

[] Fresh food and freezer temperatures set

[] Crisper humidity controls set

[] Registration card sent in

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

Child Safety

Destroy or recycle the carton, plastic bags, and

any exterior wrapping material immediately

after the refrigerator is unpacked. Children

should NEVER use these items to play.

Cartons covered with rugs, bedspreads, plastic

sheets or stretch wrap may become airtight

chambers, and can quickly cause suffocation.

IMPORTANT indicates installation, operation

or maintenance information which is

important but not hazard-related.

Proper Disposal of your

Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suffocation are not

problems of the past. 3unked or abandoned

refrigerators or freezers are still dangerous

- even if they will sit for "just a few days': If

you are getting rid of your old refrigerator or

freezer, please follow the instructions below to

help prevent accidents.

Proper Disposal of Refrigerators/

Freezers

We strongly encourage responsible appliance

recycling/disposal methods. Check with your utility

company or visit www.energystar.gov/recyde for

more information on recycling your old refrigerator.

Before you throw away your old refrigerator/

freezer:

•Remove

doors.

*Leave

shelves in

place so

children

may not

easily climb

inside.

*Have

refrigerant

removed by

a qualified service technician.

Electrical information

The refrigerator must be plugged into its

own dedicated 115 Volt, 60 Hz., 15 Amp,

AC only electrical outlet. The power cord of

the appliance is equipped with a three-

prong grounding plug for your protection

against electrical shock hazards. It must be

plugged directly into a properly grounded

three prong receptacle. The receptacle

must be installed in accordance with local

codes and ordinances. Consult a qualified

electrician. Avoid connecting refrigerator to

a Ground Fault Interrupter (GFI) circuit. Do

not use an extension cord or adapter plug.

*If the power cord isdamaged, it should

be replaced by an authorized service

technician to prevent any risk.

Never unplug the refrigerator by pulling on

the power cord. Always grip the plug firmly,

and pull straight out from the receptacle to

prevent damaging the power cord.

• Unplug the refrigerator before cleaning

and before replacing a light bulb to avoid

electrical shock.

Performance may be affected if the voltage

varies by 10% or more. Operating the

refrigerator with insufficient power can

damage the compressor. Such damage is

not covered under your warranty.

Do not plug the unit into an electrical outlet

controlled by a wall switch or pull cord to

prevent the refrigerator from being turned

off accidentally.

CFClHCFCDisposal

Your old refrigerator may have a cooling system

that used CFCsor HCFCs(chlorofluorocarbons

or hydrochlorofluorocarbons). CFCsand HCFCs

are believed to harm stratospheric ozone if

released to the atmosphere. Other refrigerants

may also cause harm to the environment if

released to the atmosphere.

If you are throwing away your old refrigerator,

make sure the refrigerant isremoved for

proper disposal by a qualified technician. If

you intentionally release refrigerant, you may

be subject to fines and imprisonment under

provisions of environmental legislation.

ii i!

Pressing and holding the On/Off button for

three seconds, located on the temperature

control panel, will disable your refrigerator's

cooling system but does not disconnect the

power to the light bulb and other electrical

components. To turn off power to your

refrigerator you must unplug the power cord

from the electrical outlet.

GrOUnding type Wall receptacle

Do not, under

any circumstances

cut, remove,

or bypass the

grounding prong.

Power cord w

3-prong grounded plug

To avoid personal injury or property

damage, handle tempered glass shelves

carefully. Shelves may break suddenly if

nicked, scratched, or exposed to sudden

temperaturechange

Ice *Fresh Food

Bin Ice Maker

*Can Rack

Flip

Light

*Store-

More TM

Drawer

Adjustable Hinges

*Freezer Ice

Maker

*LED *Dairy

Cluster Lights WaterComp artment *Air

Filter Filter

Spillsafe ®

Shelves

*LED Cluster

Light

Shelf

Cluster

Light

-- Crisper

Drawer

Bin

Freezer Baskets

Ice Bin

Features not purchased with your refrigerator can be purchased at www.frigidaire.com

orbyca,ing1-800-944-9044.

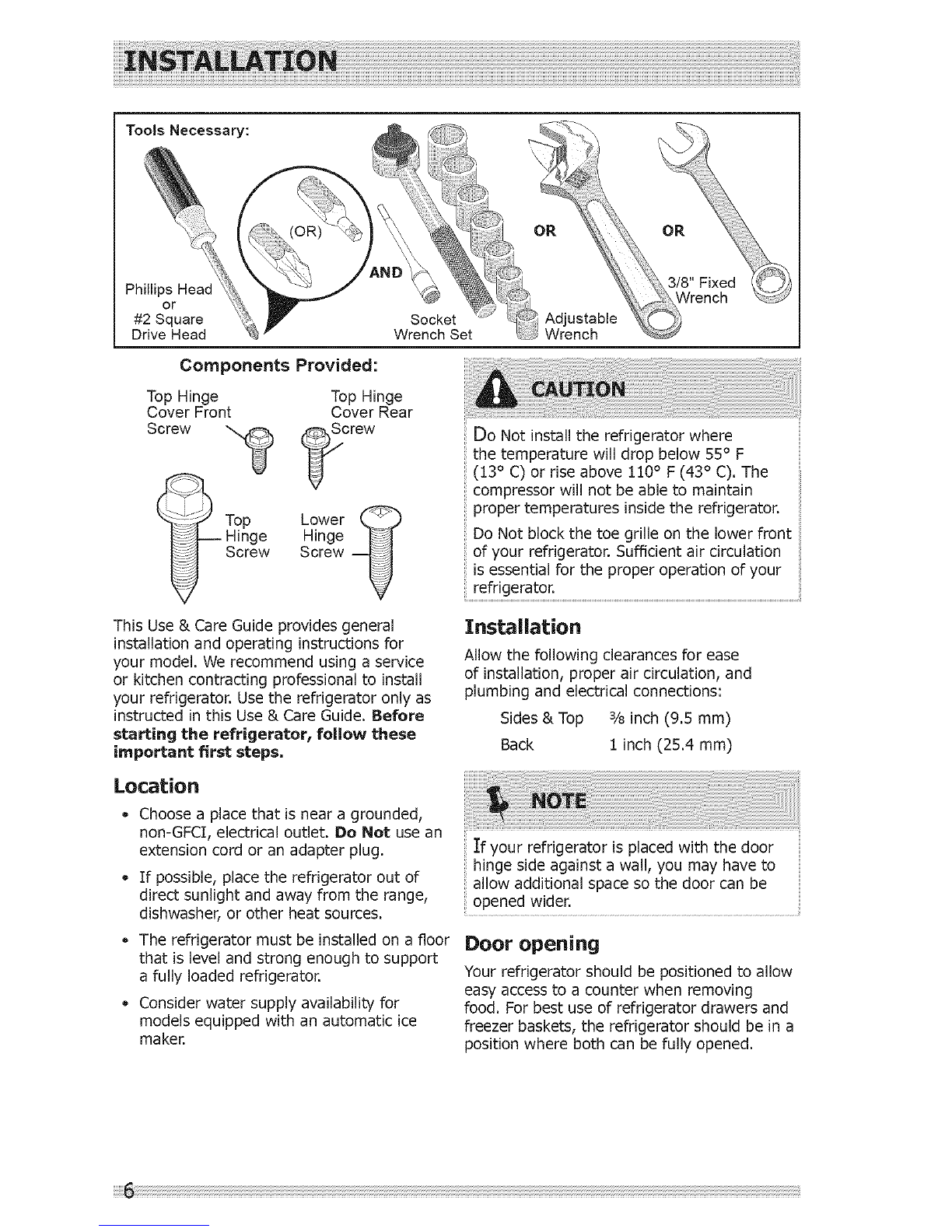

Tools Necessary:

Phillips Head

#2 Square

Drive Head Socket

Wrench Set

Components Provided:

Top Hinge Top Hinge

Cover Front Cover Rear

Screw _ _crew

Top Lower __

Hinge

Screw Screw

This Use & Care Guide provides general

installation and operating instructions for

your model. We recommend using a service

or kitchen contracting professional to install

your refrigerator. Use the refrigerator only as

instructed in this Use & Care Guide. Before

starting the refrigerator, follow these

important first steps.

Location

Choose a place that is near a grounded,

non-GFC]:, electrical outlet. Do Not use an

extension cord or an adapter plug.

If possible, place the refrigerator out of

direct sunlight and away from the range,

dishwasher, or other heat sources.

The refrigerator must be installed on a floor

that is level and strong enough to support

a fully loaded refrigerator.

Consider water supply availability for

models equipped with an automatic ice

maker.

Do Not install the refrigerator where

the temperature will drop below 55° F

(13 ° C) or rise above 110° F (43 ° C). The

compressor will not be able to maintain

proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front

of your refrigerator. Sufficient air circulation

is essential for the proper operation of your

Installation

Allow the following clearances for ease

of installation, proper air circulation, and

plumbing and electrical connections:

Sides & Top 3/8inch (9.5 mm)

Back 1 inch (25.4 mm)

If your refrigerator is placed with the door

hinge side against a wall, you may have to

allow additional space so the door can be

wider.

opened

Door opening

Your refrigerator should be positioned to allow

easy access to a counter when removing

food. For best use of refrigerator drawers and

freezer baskets, the refrigerator should be in a

position where both can be fully opened.

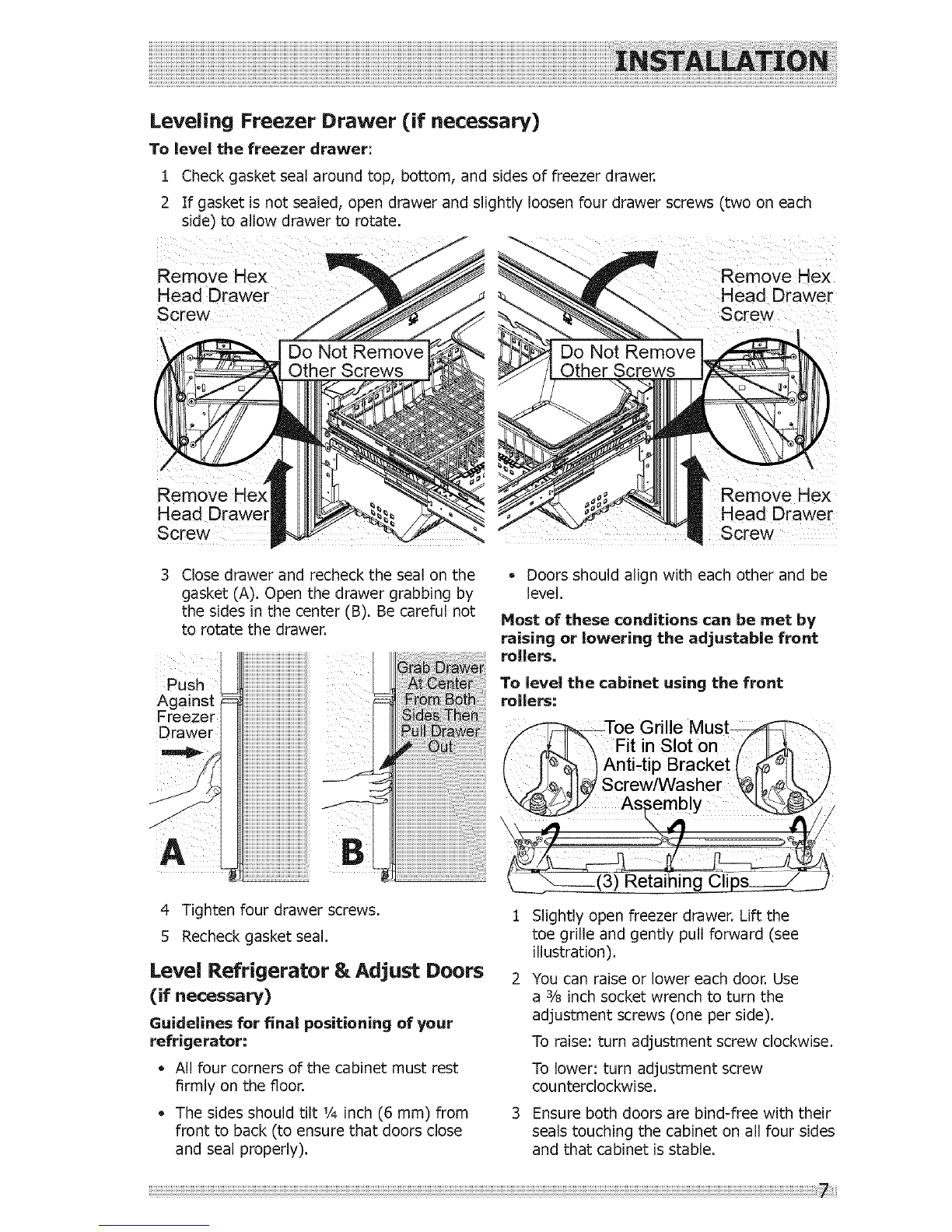

Leveling Freezer Drawer (if necessary)

To level the freezer drawer:

Check gasket seal around top, bottom, and sides of freezer drawer.

Remove Hex

Head Drawer

Screw

If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each

side) to allow drawer to rotate.

Remove Hex

Head Drawer

screw

Remove Hex

Head Drawer

Screw

Remove Hex

Head Drawer

Screw

Close drawer and recheck the seal on the

gasket (A). Open the drawer grabbing by

the sides in the center (B). Be careful not

to rotate the drawer.

Push

Against

Freezer

Drawer

IL_=

4 Tighten four drawer screws. 1

5 Recheck gasket seal.

Level Refrigerator & Adjust Doors 2

(if necessary)

Guidelines for final positioning of your

refrigerator:

= All four corners of the cabinet must rest

firmly on the floor.

The sides should tilt 1/4inch (6 mm) from 3

front to back (to ensure that doors close

and seal properly).

Doors should align with each other and be

level.

Most of these conditions can be met by

raising or lowering the adjustable front

rollers.

To level the cabinet using the front

rollers;

Slightly open freezer drawer. Lift the

toe grille and gently pull forward (see

illustration).

You can raise or lower each door. Use

a 3/8inch socket wrench to turn the

adjustment screws (one per side).

To raise: turn adjustment screw clockwise.

To lower: turn adjustment screw

counterclockwise.

Ensure both doors are bind-free with their

seals touching the cabinet on all four sides

and that cabinet is stable.

4 Afterunitisleveled,loweranti-tipleguntil

itcontactsthefloor.

5 Install the toe grille by fitting into place.

To adjust the door stop:

Door stop is adjustable between 85 to 145

degrees.

View shown is looking up at the bottom of

the refrigerator door.

1 Open door to provide access to screw.

2 Loosen screw.

3 Adjust door to desired location.

Rotate

Door to Desired

Adjusting Door

Rotate door stop until it makes contact

with the lower hinge.

Re-tighten screw.

Re-tighter

Screw

Re=tighten Screw

6 Ensure door stops in desired location

before resuming normal use.

Adjustable DoorStop

To level the doors using the adjustable

lower hinge (select models):

1 Remove all food items from door bins on

door being adjusted.

2 Open doors to 90 degrees.

3 Loosen or remove screw.

LooSen or Remove

Screw

Bottom of Door

Loosen/Remove Screw (where applicable)

AdJoU_t_blveeh_negne _hoe_le_only brel_eSre! after

Lift the door while adjusting the washer.

To raise the door, rotate washer clockwise

(when viewed from the bottom). To lower

door, rotate washer counter-clockwise

(when viewed from the bottom).

poor

€

Raising/Lowering Door

To adjust the flipper mullion:

1 Loosen the screw located on the flipper

mullion hinge.

Flipper "\"

Mullion

Hinge I!

Adjusting Flipper Mullion Screw

2 Adjust flipper mullion height. For proper

connection with the flipper mullion guide,

there should be a separation about the

thickness of a coin (0.060 inches, or

1.5 mm) between the guide and flipper

mullion.

,lion

, Jide

Flipper

Mullion

Thickness

of a Coin

Adjusting Flipper Mullion Height

3 Re-tighten screw.

Getting through narrow spaces

If your refrigerator will not fit through an

entrance area, you can remove the doors.

Check first by measuring the entrance.

To prepare for removing the doors:

1 Make sure the electrical power cord is

unplugged from the wall outlet.

2 Open the freezer drawer and remove the

toe grille (see "Installation" section).

3 Remove any food from the door shelves

and close the doors.

To remove the top hinge covers:

1 Remove the two screws from each cover

over the top door hinges.

2 Lift inside edge of hinge cover and tilt

back.

Front

Cover Screw _ Rear

Top Hinge _"_ _c°vewr

Cover

Hing Ground

Screws_ _ Screw

Multi-

Cables -_ Top

/H: ge

Leave f_ /_[._)]

Hinge/ |1_ J _:_7,/j/i

With "_¢_1_-_ _ _-----I_.W. ater

Door -I\_,![ _ "-_Jne

Rear

Cover

Screw

Front

_p Hinge

Top Ground Hinge

Hinc

Cables

Leave

To remove the refrigerator doors:

1 Trace lightly around the door's top hinges

with a pencil. This makes reinstallation easier.

2 Disconnect the harness by grasping both

sides of the connector firmly, depress the

latch, and pull apart. Remove the two

screws from the top hinge. Lift the door

off of the bottom hinge and set it aside.

3 Detach the water tube from the connector

located behind the refrigerator and pull

the tube back out to the front of the unit.

The connector releases when you press

inward on the outer sleeve while pushing

the tube toward the connector then while

continuing to hold in the sleeve, pull the

tube away.

Use care while pulling the water tube from

the unit to be sure that you do not kink the

tube.

/Door

DO NOT remove the ground screw from hinge.

Inhaltsverzeichnis

Andere Frigidaire Kühlschrank Handbücher

Frigidaire

Frigidaire FRT18ND5A Bedienungsanleitung

Frigidaire

Frigidaire GLHS68EG Bedienungsanleitung

Frigidaire

Frigidaire FRS23ZTJ Bedienungsanleitung

Frigidaire

Frigidaire Refrigerator Bedienungsanleitung

Frigidaire

Frigidaire FRT21IS6A Bedienungsanleitung

Frigidaire

Frigidaire FRS6HR5JMB - FRS6HR5H 26 cu. Ft.... Benutzerhandbuch

Frigidaire

Frigidaire FRT16PRGD2 Bedienungsanleitung

Frigidaire

Frigidaire FRT15LG3A Bedienungsanleitung

Frigidaire

Frigidaire FRT18P6C Bedienungsanleitung

Frigidaire

Frigidaire FRS26KF6DB0 Bedienungsanleitung

Frigidaire

Frigidaire FFHS2322M Q Betriebsanleitung

Frigidaire

Frigidaire FRS26HF5A Bedienungsanleitung

Frigidaire

Frigidaire FRT21G3A Bedienungsanleitung

Frigidaire

Frigidaire GLRT188WDB6 Bedienungsanleitung

Frigidaire

Frigidaire FRS26H5AS Bedienungsanleitung

Frigidaire

Frigidaire FSC23F7DS Bedienungsanleitung

Frigidaire

Frigidaire FRT21G3C Bedienungsanleitung

Frigidaire

Frigidaire FGHC2342L F Bedienungsanleitung

Frigidaire

Frigidaire Gallery FGHN2844L E Bedienungsanleitung

Frigidaire

Frigidaire FRT18NRJ Bedienungsanleitung

Frigidaire

Frigidaire FRT21IL6J Bedienungsanleitung

Frigidaire

Frigidaire FRT17B3A Bedienungsanleitung

Frigidaire

Frigidaire FPUI1888LF Montageanleitung

Frigidaire

Frigidaire FGHS2399K Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
