Frigidaire FRT18TNG Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18TNGD1 FRT18TNG R134a System almond 115

FRT18TNGW1 FRT18TNG R134a System white 115

MARKET

North American

Publication No.

5995316964

990114

-EN/SERVICE/KB

390

REFRIGERATOR

Model No.

FRT18TNG

FACTORY PARTS CATALOG

REFRIGERATOR

WIRING DIAGRAM - 218758400

OWNER’S GUIDE - 218613700

SERVICE DATA SHEET - 218758400

101 Masters Blvd.

Anderson, SC 29624

01/99 2

Publication No. FRT18TNG

5995316964

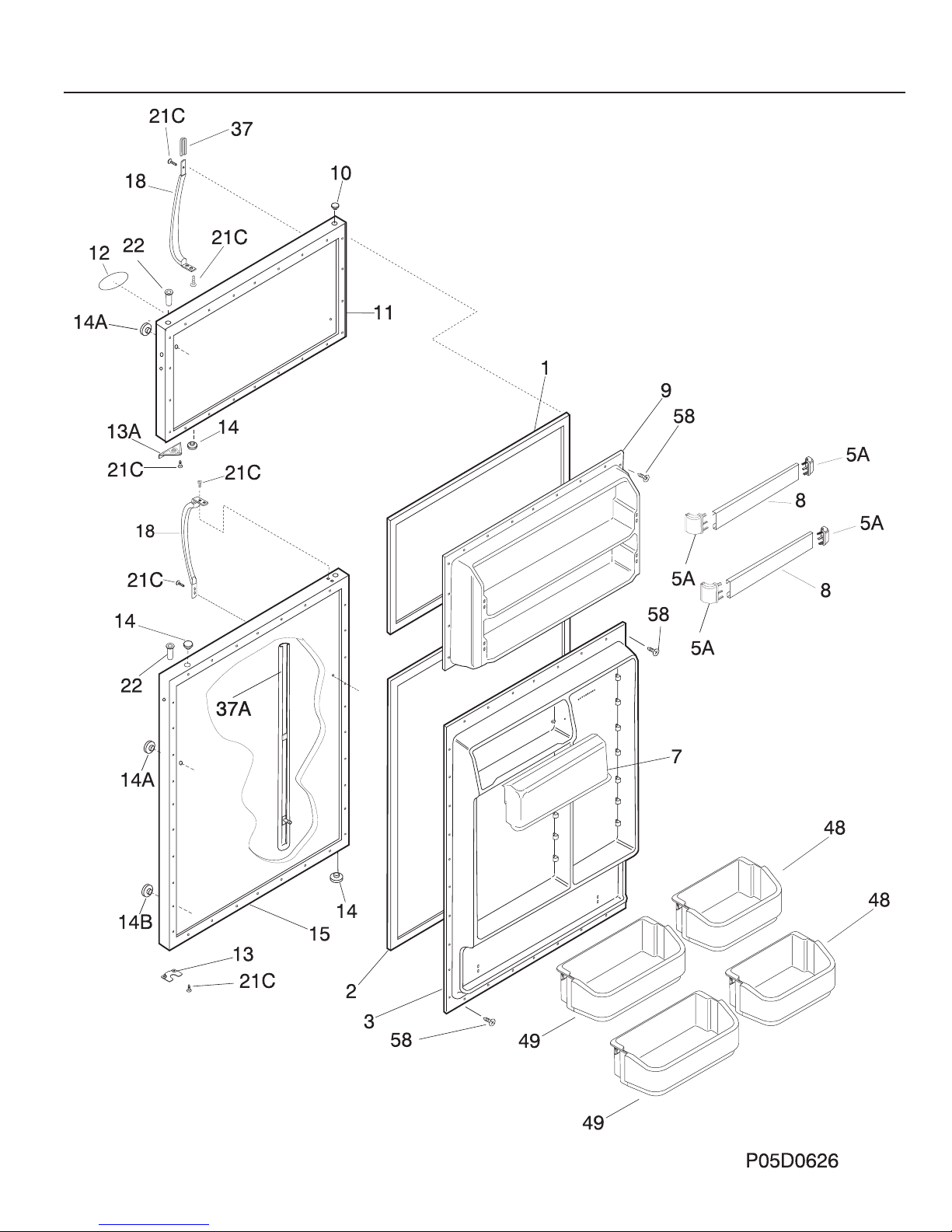

DOOR

# = Fast-moving Parts 3 01/99

* = Non-Illustrated Parts

FRT18TNG Publication No.

5995316964

DOOR

A = FRT18TNG (FRT18TNGD1)

B = FRT18TNG (FRT18TNGW1)

POS. NO PART NO DESCRIPTION

1 # 215608906 A - Gasket-frzr door,almond ,magnetic

1 # 215608916 - B Gasket-frzr door,white ,magnetic

2 # 218730606 A - Gasket-refr door,almond ,magnetic

2 # 218730605 - B Gasket-refr door,white ,magnetic

3 218360701 A B Panel-inner door,refr

5A 218758602 A B Support-door rack,RH/LH

7 5303308341 A B Door-dairy,12.96" wide

8 218763613 A B Rack-door

9 218360101 A B Panel-inner door,frzr

10 5303001308 A - Plug-button,almond ,hinge brg hole

10 5308000134 - B Plug-button,white ,hinge brg hole

11 5303917796 A - Panel-frzr door,almond ,with insulation

11 5303917795 - B Panel-frzr door,white ,with insulation

12 218425005 A - Nameplate Assy,almond

12 218425004 - B Nameplate Assy,white

12* 215008608 A - Label-nameplate,almond

12* 215008607 - B Label-nameplate,white

12* 215518000 A B Magnet-nameplate

12* 218364002 A - Frame-nameplate,almond

12* 218364001 - B Frame-nameplate,white

13 218800300 A B Door Stop,plated

13A 218249002 A - Door Stop,almond ,frzr section

13A 218249001 - B Door Stop,white ,frzr section

14 218915702 A - Plug-button,almond

14 218915701 - B Plug-button,white

14A 218110902 A - Plug-button,almond ,refr door front, upper

14A 218110901 - B Plug-button,white ,refr door front, upper

14B 218074002 A - Plug-button,almond ,refr door front, lower

14B 218074001 - B Plug-button,white ,refr door front, lower

15 5303917798 A - Panel-refr door,almond ,w/insul & brace

15 5303917797 - B Panel-refr door,white ,w/insul & brace

18 218668002 A - Handle-door,almond

18 218668001 - B Handle-door,white

21C 218252200 A B Screw,#8 truss hd ,10-32CA x .5

22 218519300 A B Bearing-hinge

37 215870620 A - Trim-handle,2.47" ,almond, w/chrome band

37 215870619 - B Trim-handle,2.47" ,white ,w/chrome band

37* 218807701 A B Lock-handle trim,stick-on

37A 215867071 A - Trim-handle,29.84" ,almond, w/band & locks

37A 215867070 - B Trim-handle,29.84" ,white, w/band & locks

37A* 215782300 A B Lock-handle trim,snap-in

37A* 215940700 A B Lock-handle trim,stick-on

37A* 218676001 A B Band-decorative,chrome

48 215441811 A B Bin-door

49 215441513 A B Bin-door,gallon

58 218699800 A B Screw,truss head ,8-15A x 0.500

* 5303917276 A B Insulation-door,fiberglass ,(bulk)

01/99 4

Publication No. FRT18TNG

5995316964

CABINET

# = Fast-moving Parts 5 01/99

* = Non-Illustrated Parts

FRT18TNG Publication No.

5995316964

CABINET

A = FRT18TNG (FRT18TNGD1)

B = FRT18TNG (FRT18TNGW1)

POS. NO PART NO DESCRIPTION

1 218672501 A B Cover-fan

2 5303307351 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 218722200 A B Damper-fan cover,black

5 # 218649000 A B Fan Blade,black

6 218448302 A - Cover,almond ,lwr hinge hole

6 218448301 - B Cover,white ,lwr hinge hole

8 5300157666 A B Bushing-motor mtg,(2)

9 5303205118 A B Bracket-motor mtg,front

10 3206451 A B Cover-evap coil

10* 5303209814 A B Nut,"U" type ,8-15(A) ,fan mtr mtg

11 5303208309 A B Plug-hole,factory test

13 218878701 A B Motor-evap fan

14 5303322992 A B Bracket-motor mtg,rear

17 218725700 A B Trough-drain

18 215245000 A B Support-evap cover,(2)

19 5303001198 A B Tube,rubber

22 215774911 A - Plug-button,almond ,upr hinge holes

22 215774901 - B Plug-button,white ,upr hinge holes

23 5303269702 A B Tube-drain,w/seal ring

24 5303207353 A B Seal Ring,drain tube

25 215774100 A B Spout-drain tube,w/mounting pins

29 5308000007 A B Washer,.34 x .62 x .05 ,nylon

29 5308011326 A B Washer,.34 x .62 x .02 ,nylon

30 5304409595 A B Bracket-lower hinge

30* 215882300 A B Tapping Plate,lower hinge ,(2)

32 215217703 A - Plug-button,almond ,cabinet base ,(2)

32 215217701 - B Plug-button,white ,cabinet base ,(2)

35 218220102 A - Bracket-ctr hinge,almond

35 218220101 - B Bracket-ctr hinge,light grey

36 218251300 A B Pin-center hinge

37 5303321082 A - Trim-cabinet corner,almond

37 5303321081 - B Trim-cabinet corner,white

38 3206100 A B Bracket-upper hinge

40 3206105 A - Cover-upper hinge,almond

40 3206101 - B Cover-upper hinge,white

41 5303001609 A B Grommet,shelf/rod mtg ,RH

41* 5308009759 A B Grommet,shelf mtg ,LH

42 215880100 A B Screw-hinge mtg,hex washer head, 1/4-20 x 0.685,(2)

43 218724000 A B Roller Assy,front ,complete

43* 218703002 A B Roller

43* 5308009761 A B Bolt-roller adj

43* 5308009790 A B Spring-roller adj

44 5303283014 A B Roller Assy,metal housing

45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec

47 218233300 A B Channel-shelf mtg,side ,(2)

49 218362500 A B Screw,hex washer head ,8-18AB x 1-1/4

56 218220300 A B Pin-lower hinge

59 218188000 A B Screw,pan hd ,10-32 x 0.625, hinge/mullion,thrd forming

78 5303274237 A B Screw-bracket,hex wshr hd, 8-32CA x 0.500

81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile

83 5308000107 A B Bracket-connector

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875, (6)

98 215099711 A - Plug-button,almond ,ctr hinge hole

98 215099701 - B Plug-button,white ,ctr hinge hole

* 5303305325 A - Paint,touch-up ,almond

* 5303305324 - B Paint,touch-up ,white

01/99 6

Publication No. FRT18TNG

5995316964

SHELVES

# = Fast-moving Parts 7 01/99

* = Non-Illustrated Parts

FRT18TNG Publication No.

5995316964

SHELVES

A = FRT18TNG (FRT18TNGD1)

B = FRT18TNG (FRT18TNGW1)

POS. NO PART NO DESCRIPTION

1 218874311 A - Mullion,almond ,1

1 218874301 - B Mullion,white ,1

5 # 218781003 A B Heater-mullion

6 218845602 A B Tapping Plate,mullion mtg ,(2)

7 218814800 A B Panel-top,refr cavity

7* 5303001380 A B Screw,truss head ,8-10 x 1.750

8 218872903 A B Divider,styrofoam ,w/foil tape

8* 218814600 A B Divider,styrofoam

8* # 218878500 A B Harness-wiring,control/divider

9 218814700 A B Panel-bottom,frzr cavity

11 5303288242 A B Shelf-freezer,fixed/flat ,full width, wire

11* 5303299664 A B Spacer-shelf

12 218730000 A B Deflector-air

12* 5303001449 A B Seal-air deflector,foam plastic ,(2)

13 218631001 A B Cover-air deflector

14 # 5309918806 A B Switch-light/lamp

15 5303001179 A B Light Bulb/Lamp,40 W

16A 218906801 A B Socket-light/lamp

17 5303321455 A B Control Box

17* 5308016567 A B Nut-anchor

18 5303311079 A B Knob-temp control

19 # 5303286905 A B Switch-energy saver,rocker type

21 # 5304404821 A B Control-temperature

21* 5303001260 A B Screw-control mtg,pan hd ,6-32 x 0.250

22A 5303916855 A B Tube,plastic ,clear ,sensor sleeve

22B 218731104 A B Tube,PVC ,white ,@ air deflector, insulator

23 # 215267800 A B Timer-defrost

23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438

24 215919161 A B Frame-full shelf,cantilever

24A 215919171 A B Frame-full shelf,cantilever, w/hanger tabs

25 215686501 A B Cover-crisper pan,with beam

25A 218905802 A B Trim-crisper cover

25B 5303308340 A B Control-humidity

26 3206438 A B Pan-crisper

28 3201150 A B End Cap-shelf,protector, upper fzr shelf

29 218830303 A B Trim-glass shelf,24.92" ,front

31 215742602 A B Pan-meat

34 5303212918 A B Container-ice

40 218390520 A B Glass-shelf,24.88" x 14.57"

41 215919803 A B Trim-glass shelf,24.92" ,rear

42 5304404462 A B Hanger-pan/tray,LH

42 5304404463 A B Hanger-pan/tray,RH

46 215357606 A B Front-crisper pan

47 218390516 A B Insert-pan cover,glass

59 218188000 A B Screw,pan hd ,10-32 x 0.625, hinge/mullion,thrd forming

67 215357809 A B Front-meat pan

81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625, low profile

123 215005100 A B Screw-roller/hanger,8-10 x .438

145 218660800 A B Clip,plastic ,temp sensor mtg ,snap-in

01/99 8

Publication No. FRT18TNG

5995316964

SYSTEM

# = Fast-moving Parts 9 01/99

* = Non-Illustrated Parts

FRT18TNG Publication No.

5995316964

SYSTEMS

A = FRT18TNG (FRT18TNGD1)

B = FRT18TNG (FRT18TNGW1)

POS. NO PART NO DESCRIPTION

1 # 218173900 A B Condenser

2 5308000296 A B Bracket,condenser mtg ,(4)

2* 5308009617 A B Washer,ext tooth lock ,#10

4 # 218541000 A B Drier-filter

5 # 218878500 A B Harness-wiring,control/divider

6 # 215257004 A B Harness-wiring,compressor

7 # 5316254901 A B Cord-electric power

8 5303001197 A B Cover-wiring

13 # 218429306 A B Heat Exchanger,suction line

14 # 3206453 A B Heater-defrost

15 # 3206452 A B Evaporator

16 5308000110 A B Strap-evap/heater,aluminum

17 5303207493 A B Insulator-evap,plastic

18 5308013648 A B Insulation Block,RH

19 5303007287 A B Insulation Plug,RH

20 5308017227 A B Insulation Block,LH

21 # 5316269001 A B Thermostat-defrost

22 218802500 A B Plate-compr mtg,with rail

22* 3051070 A B Screw 10-24 X 7/16,hex washer head, special

23 218254500 A B Grommet-compr mtg,(4)

24 5308003633 A B Washer-compr mtg

25 5308003596 A B Clip-compressor mtg

26 215372500 A B Pan-defrost drain

27 5303001348 A B Nut-lock,1/4-20 ,drain pan mtg

28 5303916001 A B Pan Retainer Kit,Service

29 # 218846902 A B Compressor,R134a ,w/o electricals

30 # 218721103 A B Starter/Overload Assy

32 218740800 A B Wire-bale

41 5308000039 A B Screw,hex wshr hd ,8-32CA x 0.500, serrated head

43 5303001199 A B Clamp-wiring harness,strain relief, galv steel

44 5308000133 A B Clamp,nylon ,.75 OD tube

45 218843800 A B Screw,hex wshr hd ,#8 14 x ½, wiring clamps

45 5300141713 A B Screw,hex wshr hd ,8-32 x .625 ,spec

45 5303001343 A B Screw,hex wshr hd ,8-15A x .5 ,spec

55 # 216236200 A B Capacitor-run

* # 3916557 A B Hot Tube Repair Kit,Service

01/99 10

Publication No. FRT18TNG

5995316964

ICE MAKER

Dieses Handbuch passt für folgende Modelle

Andere Frigidaire Kühlschrank Handbücher

Frigidaire

Frigidaire FFTR1614TW Betriebsanleitung

Frigidaire

Frigidaire FRT21G3H Bedienungsanleitung

Frigidaire

Frigidaire CFPH31M6LM Bedienungsanleitung

Frigidaire

Frigidaire FRT17B1B Bedienungsanleitung

Frigidaire

Frigidaire FRT21FD3A Bedienungsanleitung

Frigidaire

Frigidaire FRS26ZRGW7 Bedienungsanleitung

Frigidaire

Frigidaire FRT21LR7D Bedienungsanleitung

Frigidaire

Frigidaire FRT15B1B Bedienungsanleitung

Frigidaire

Frigidaire FGHS2334KB3 Betriebsanleitung

Frigidaire

Frigidaire A13110307 Betriebsanleitung

Frigidaire

Frigidaire FPHC2398LF Bedienungsanleitung

Frigidaire

Frigidaire FSC23F7DS Bedienungsanleitung

Frigidaire

Frigidaire FRS26KF6E Bedienungsanleitung

Frigidaire

Frigidaire FGHT2146KE Betriebsanleitung

Frigidaire

Frigidaire FRS28ZRG Bedienungsanleitung

Frigidaire

Frigidaire FRS26KF5D Bedienungsanleitung

Frigidaire

Frigidaire FFPT12F0KM Bedienungsanleitung

Frigidaire

Frigidaire EFMIS170 B Betriebsanleitung

Frigidaire

Frigidaire FRT21HS6DQ - 20.5 cu. Ft. Top-Freezer... Benutzerhandbuch

Frigidaire

Frigidaire GHSC39EGP Bedienungsanleitung

Frigidaire

Frigidaire DGHS2634KB2 Betriebsanleitung

Frigidaire

Frigidaire FRT18B4A Bedienungsanleitung

Frigidaire

Frigidaire FGHN2844LE Bedienungsanleitung

Frigidaire

Frigidaire FPE-16TA Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
