Frigidaire FRT21G3A Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT21G3AQ1 FRT21G3A R134a bisque 115

FRT21G3AW0 FRT21G3A R134a white 115

FRT21G3AW1 FRT21G3A R134a bisque 115

MARKET

North America

Publication No.

5995354551

010611

-EN/SERVICE/KHB

357

TOP MOUNT

REFRIGERATOR

Model No.

FRT21G3A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - #240398801

OWNER’S GUIDE-0=#240400102 & 1 = #240400103

SERVICE DATA SHEET - #240379005

06/01 2

Publication No. FRT21B4A

5995354510

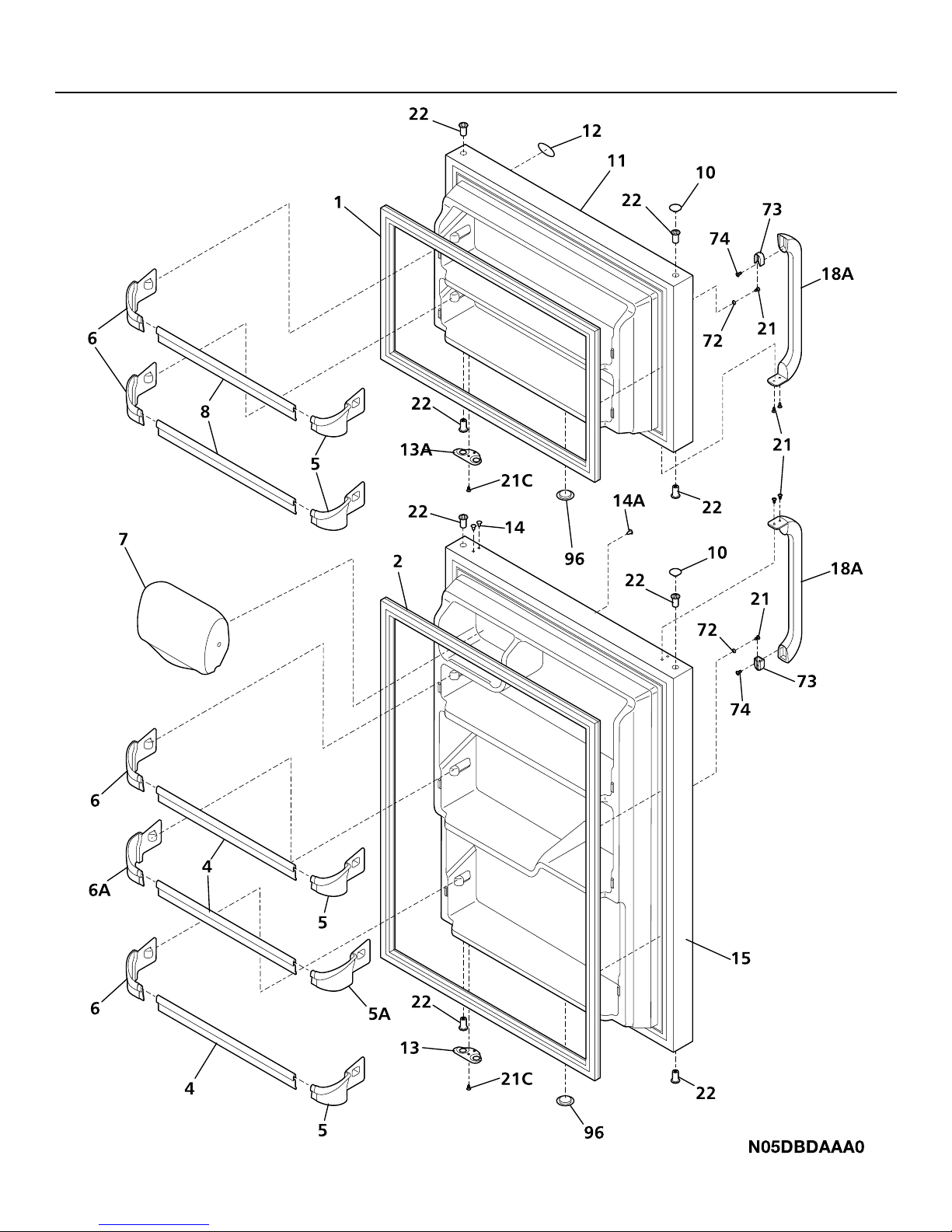

DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FRT21B4A Publication No.

5995354510

A = FRT21G3A (FRT21G3AQ1)

B = FRT21G3A (FRT21G3AW0)

C = FRT21G3A (FRT21G3AW1)

POS. NO PART NO DESCRIPTION

1 # 240390702 A B C Gasket-frzr door,white ,magnetic

2 # 240390701 A B C Gasket-refr door,white ,magnetic

4 240331401 A B C Rack-door,20.27" x 1.72"

5 240311502 A B C Support-door rack,2 liter ,RH

5A 240331502 A B C Support-door rack,gallon ,RH

6 240311501 A B C Support-door rack,2 liter ,LH

6A 240331501 A B C Support-door rack,gallon ,LH

7 240337701 A B C Door-dairy,w/o graphics ,white

8 240331402 A B C Rack-door,17.99" x 1.72"

10 240381302 A - - Plug-button,hinge brg hole ,bisque ,(2)

10 240381301 - B C Plug-button,hinge brg hole ,white ,(2)

11 240450305 A - - Door-frzr,bisque ,complete assy

11 240450301 - B C Door-frzr,white ,complete assy

12 240415203 A - - Label-nameplate,bisque

12 240415201 - B C Label-nameplate,white

13 240312407 A - - Door Stop,bisque ,ref

13 240312403 - B C Door Stop,white ,ref

13A 240312408 A - - Door Stop,bisque ,frzr

13A 240312404 - B C Door Stop,white ,frzr

14 218915704 A - - Plug-button,bisque

14 218915701 - B C Plug-button,white

14A 240428302 A - - Plug-button,screw type ,bisque

14A 240428301 - B C Plug-button,screw type ,white

15 240450405 A - - Door-refr,bisque ,complete assy

15 240450401 - B C Door-refr,white ,complete assy

18A 218428119 A - - Handle-door,bisque ,w/block & screw

18A 218428101 - B C Handle-door,white ,w/block & screw

21 240383401 A B C Screw,truss hd quad ,#10-16 x .500

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 A B C Bearing-hinge,natural color ,(8)

72 218397000 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345503 A B C Plug-foam hole,white

DOOR

06/01 4

Publication No. FRT21B4A

5995354510

CABINET

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FRT21B4A Publication No.

5995354510

A = FRT21G3A (FRT21G3AQ1)

B = FRT21G3A (FRT21G3AW0)

C = FRT21G3A (FRT21G3AW1)

POS. NO PART NO DESCRIPTION

1 240355402 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut,push-on

4 240367401 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade,red ,evaporator fan

8 5300157666 A B C Bushing-motor mtg,(2)

9 5303292396 A B C Bracket-motor mtg,front

10 240313606 A B C Cover-evap coil

10* 240371303 A B C Seal-coil cover

10*# 240385402 A - C Wiring Harness,freezer section

10*# 240385401 - B - Wiring Harness,freezer section

11 5303208309 A B C Plug-hole,factory test

12 240366801 A B C Plug-ice maker harness,rectangular

12A 240374401 A B C Plug-wtr inlet tube,round ,1"

13 # 240369701 A B C Motor-evap fan

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg,rear

14* 240433201 A B C Screw-8-18 x 3/8, hex washer head, 8-18 x 0.375

18 240345801 A B C Support-evap cover, (2)

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 215774919 A - - Plug-button,bisque ,upr hinge holes

22 215774901 - B C Plug-button,white ,upr hinge holes

28 240335501 A B C Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020, (2),special

30 240314004 A - - Bracket-lower hinge,bisque

30 240314002 - B C Bracket-lower hinge,white

34 240311301 A B C Washer,hinge ,nylon ,(2)

35 240313804 A - - Bracket-ctr hinge,bisque

35 240313802 - B C Bracket-ctr hinge,white

35A 240336801 A B C Spacer-hinge,center

36 240313901 A B C Pin-center hinge

37 240337604 A - - Trim-cabinet corner,bisque ,(2)

37 240337601 - B C Trim-cabinet corner,white ,(2)

38 240313701 A B C Bracket-upper hinge

40 240354403 A - - Cover-upper hinge,bisque

40 240354401 - B C Cover-upper hinge,white

41 5303001609 A B C Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B C Grommet,shelf mtg ,1.25" ,LH

42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B C Roller Assy,front ,(2)

56 240314101 A B C Pin-lower hinge

58 5303274237 A B C Screw-bracket,hex wshr hd, 8-32CA x 0.500

59 240442704 A - - Screw-#10-32 X 3/4,bisque

59 240442702 - B C Screw-#10-32 X 3/4,white

72 240368202 A - - Grille/Kickplate,bisque

72 240368201 - B C Grille/Kickplate,white

81 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B C Roller,comp base ,rear ,(2)

83 215164200 A B C Pin-roller,(2)

89 240326102 A B C Cover-access,w/ label

89* 241500301 A B C Screw,#8 18 x .500 ,(3)

92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218990901 A B C Clip-wire

* 5304414035 A - - Paint,touch-up ,bisque

* 5303305324 - B C Paint,touch-up ,white

* 5308016571 A B C Plug-button,cab liner holes

CABINET

06/01 6

Publication No. FRT21B4A

5995354510

SHELVES

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FRT21B4A Publication No.

5995354510

A = FRT21G3A (FRT21G3AQ1)

B = FRT21G3A (FRT21G3AW0)

C = FRT21G3A (FRT21G3AW1)

POS. NO PART NO DESCRIPTION

10 215667501 A B C Tray-ice,plastic

11 240358003 A B C Shelf-freezer

11* 5303299664 A B C Spacer-shelf

12 240380202 A - C Diffuser-air,top

12 240380201 - B - Diffuser-air,top

13 240362601 A B C Diffuser-air,bottom

13* 240392601 A B C Seal-diffuser

14 # 240413601 A B C Switch-light/lamp

15 240436701 A - C Light Bulb/Lamp, A-15, 40 W, 120 V, miniature

15 5303001179 - B - Light Bulb/Lamp,40 W

16 241500701 A B C Socket-light/lamp

17 240368101 A B C Box-control

17*# 240388701 A B C Wiring Harness,control box

18 240360801 A B C Knob-control

21 # 5304421256 A - C Control-temperature

21 5304418228 - B - Control-temperature

22A 5303916855 A B C Tube, sensor sleeve, plastic, clear

22B 218731105 A B C Tube, PVC, white, @ air diffuser, insulator

23 # 215846606 A B C Timer-defrost, 60 Hz, 120 V, 10 hour/30 min

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372407 A B C Frame-shelf,sliding ,full width

25 240364716 A B C Cover-crisper pan

26 240343801 A B C Pan-crisper,(2)

28 3201150 A B C End Cap-shelf,protector ,frzr shelf

29 240357704 A B C Trim-shelf,front

40 240350621 A B C Glass-shelf,23.78 x 18.02 ,full shelf

41 240357804 A B C Trim-shelf,rear

47 240350609 A B C Insert-pan cover,glass

81 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

* 3205266 A B C Edge Protector,wiring harness

SHELVES

06/01 8

Publication No. FRT21B4A

5995354510

SYSTEM

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FRT21B4A Publication No.

5995354510

A = FRT21G3A (FRT21G3AQ1)

B = FRT21G3A (FRT21G3AW0)

C = FRT21G3A (FRT21G3AW1)

POS. NO PART NO DESCRIPTION

1 # 240345601 A B C Condenser,dynamic

4 # 218944001 A B C Drier-filter,R134a System

6 # 240375301 A B C Wiring Harness, machine compt, w/service cord

6* # 240385402 A - C Wiring Harness,freezer section

6* # 240385401 - B - Wiring Harness,freezer section

6* # 240388701 A B C Wiring Harness,control box

14 # 5303918247 A B C Defrost Heater Kit

15 # 5303918250 A B C Evaporator Kit

16 5308000110 A B C Strap-evap/heater,aluminum ,(2)

17 240434002 A B C Trough-drain

18 240362301 A B C Insulation Block,RH

20 240362401 A B C Insulation Block,LH

21 # 5303918202 A B C Thermostat-defrost,kit

22 240330001 A B C Plate-compr mtg

22* 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 A B C Grommet-compr mtg,(4)

25 240491501 A - C Screw-compressor mtg, 1/4-28 x 1.16,shoulder,typ CF

25 240420302 - B - Screw-compr mtg,hex hd ,1/4-28 shoulder

26 240332602 A B C Pan-defrost drain

29 # 5303918249 A B C Compressor,w/electricals

30 # 218721113 A B C Starter-PTC

32 218740800 A B C Clamp,elec cont mtg ,compressor

34 240405201 A B C Grommet-cond mtg,(4)

41 218897001 A B C Screw, hex wshr hd, 8-32 x 1/4

41* 5308000039 A B C Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated hd

44 5303001199 A B C Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 A B C Capacitor-run,220 VAC ,15 microfarad

57 240403601 A B C Clip-wiring harness

58 215004600 A B C Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16, (2)

59 240315501 A B C Shroud-cond fan

59* 240346701 A B C Tape-foam seal,shroud

59* 240359401 A B C Screw-fan shroud,(2)

59A 240346501 A B C Bracket-support,cond mtr ,(3)

59B 240346601 A B C Grommet-bracket,(3)

60 # 240334001 A B C Motor-condenser fan

61 # 240315401 A B C Fan Blade,galv steel ,condenser fan

61A 215004700 A B C Nut,speed

61B 215004800 A B C Grommet-silencer

82 5304418225 A B C Roller,comp base ,rear ,(2)

83 215164200 A B C Pin-roller,(2)

84 240359601 A B C Tube-drain,lower

85 240346201 A B C Tube-connector,suction

86 240409302 A B C Spacer-cond tube,black

* # 5303918210 A B C Heat Exchanger Kit,suction line

* 5304421289 A B C Hot Tube Repair Kit,Service

SYSTEM

06/01 10

Publication No. FRT21B4A

5995354510

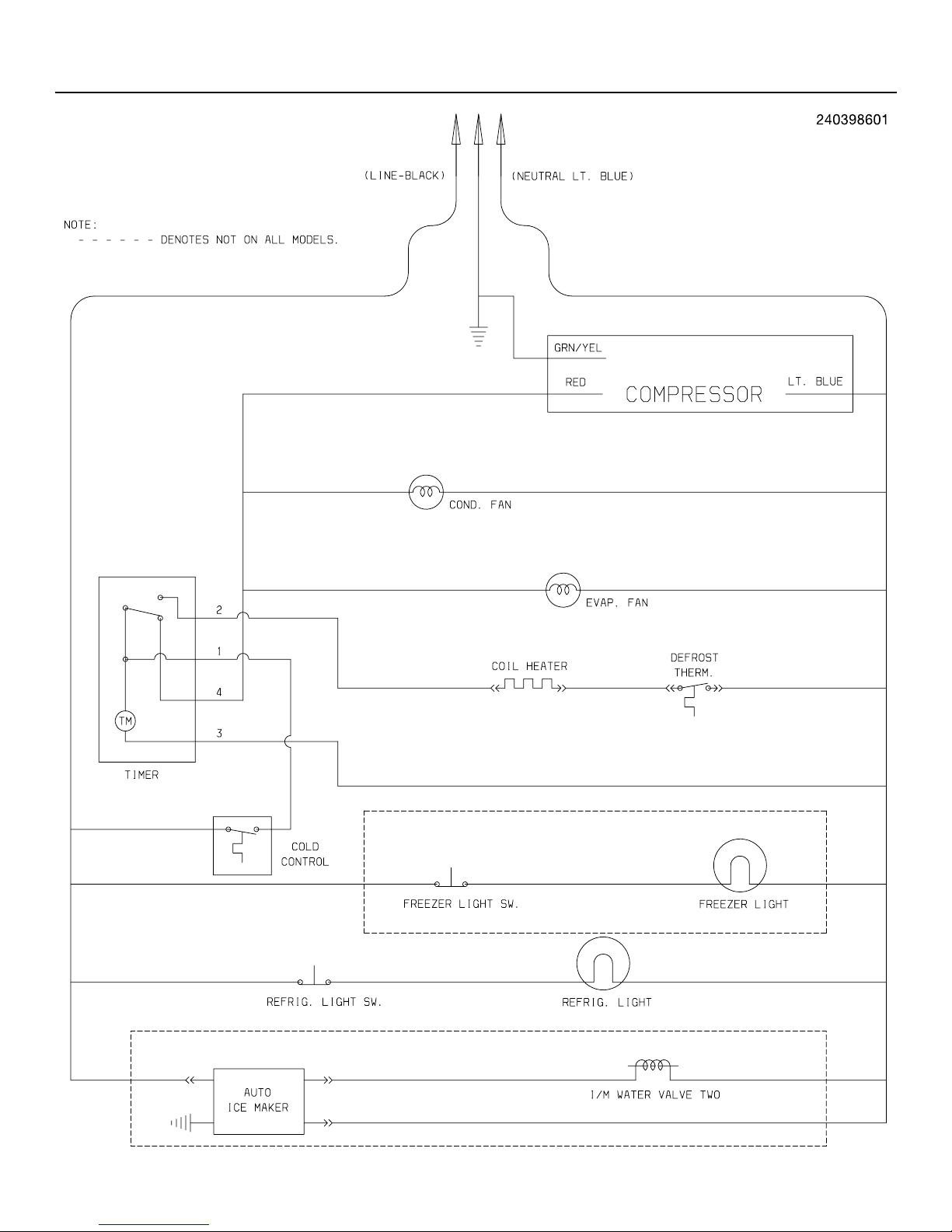

WIRING SCHEMATIC

Andere Handbücher für FRT21G3A

Dieses Handbuch passt für folgende Modelle

Andere Frigidaire Kühlschrank Handbücher

Frigidaire

Frigidaire FRT18P6C Bedienungsanleitung

Frigidaire

Frigidaire Refrigerator Bedienungsanleitung

Frigidaire

Frigidaire FRS24ZRH Bedienungsanleitung

Frigidaire

Frigidaire FRT21INGJ Bedienungsanleitung

Frigidaire

Frigidaire FRU17B2J Bedienungsanleitung

Frigidaire

Frigidaire FRS3HR35KB - 23 Cu Ft Refrigerator Benutzerhandbuch

Frigidaire

Frigidaire FRS20ZGJ Bedienungsanleitung

Frigidaire

Frigidaire FRT17G5CSB Bedienungsanleitung

Frigidaire

Frigidaire FRS23H7CS Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DS Bedienungsanleitung

Frigidaire

Frigidaire FRS6B7EES Bedienungsanleitung

Frigidaire

Frigidaire FRS26BH5C Bedienungsanleitung

Frigidaire

Frigidaire FFET1222QB Bedienungsanleitung

Frigidaire

Frigidaire Refrigerator Bedienungsanleitung

Frigidaire

Frigidaire FRSHT5EFW4 Bedienungsanleitung

Frigidaire

Frigidaire FRS26LH5D Bedienungsanleitung

Frigidaire

Frigidaire Gallery FGHG2344MF Bedienungsanleitung

Frigidaire

Frigidaire FRT18C5A Bedienungsanleitung

Frigidaire

Frigidaire EFMIS462-RED Betriebsanleitung

Frigidaire

Frigidaire FRT21KG4D Bedienungsanleitung

Frigidaire

Frigidaire FRT18QGJ Bedienungsanleitung

Frigidaire

Frigidaire FRT21S6A Bedienungsanleitung

Frigidaire

Frigidaire FRS26WGH Bedienungsanleitung

Frigidaire

Frigidaire FRCLF185W Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
