Frigidaire FRTB7B4EM Bedienungsanleitung

N05L00015.eps N05DDDCMA1.eps N05BBAAAA15.eps N05SADAJY2.eps

N05CAAAAA18.eps 240398801.eps 240398601.eps

Product No. FRTB7B4EMB0

Series beverage center

Color silver mist

Volts 115

Wiring Diagram 240398801

Owner's Guide 241666500

Market North America

Energy Guide

Service Data Sheet 240379015

Installation Instructions 240568300

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995451365

05/10/14

(EN/SERVICE/KHB)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRTB7B4EM

Publication No: 5995451365 FRTB7B4EMB0

10/05 2

DOOR

13A

21C

N05DDDCMA1

504

509

505

506

507

508

23A

503

503A

505

301

302

300

FRTB7B4EMB0 Publication No: 5995451365

# Functional Parts 3 10/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240542119 Gasket-frzr door, black, magnetic

2 240542122 Gasket, refr door seal, black, magnetic

4 240535101 Rack-door

4B 240535201 Rack-door

8 240535001 Rack-door

10 240381303 Plug-button, black, hinge brg hole

12 240415204 Label-nameplate, black

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

21A 240521301 Screw, #10-16 x 1/2

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

23 241662501 Sump-dispenser, black

23A 241662701 Drip Tray, black

44 241662601 Cover-module, black

56 5304451131 Drain Sump Kit

74 240383403 Screw, truss hd quad, #10-16 x .500, black

88 241672601 Nut

89 241672501 Washer, Neoprene

300 218515401 Clip

301 5304443662 Hose, delivery, 3/16" ID x 5'

302 5304443664 Washer, sealing, Neoprene, (2)

503 5304443658 Faucet, standard

503A 5304443659 Knob, faucet, black

504 5304451133 Shank Assembly, faucet

505 5304443667 Flange, sealing, plastic, black

506 5304443668 Nut, faucet coupling, chrome

507 5304443669 Sleeve

508 5304443670 Snap Ring

509 5304443672 Lock Nut

* 241669301 Ferrule-inner

* 241669401 Ferrule-outer

* 5304443671 Cleaning Kit, deluxe

* 5304451963 Drain Sump Hose Kit

* 5304451132 Regulatory washer kit

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995451365 FRTB7B4EMB0

10/05 4

CABINET

35A 36

N05BBAAAA15

43 21C

21C

FRTB7B4EMB0 Publication No: 5995451365

# Functional Parts 5 10/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652211 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 240369702 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

14* 5303274237 Screw, hex washer head, 8-32CA x 0.500, motor bracket

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

30 240357103 Bracket, bottom hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240357003 Bracket, center hinge, black

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 241611303 Trim-cabinet corner, black, (2)

38 241622503 Hinge-up-plastic-blk, plastic, black

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559602 Roller Assy, fixed, front LH

43* 241559601 Roller Assy, fixed, front RH

56 240516501 Pin-lower hinge

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 240442703 Screw-#10-32 X 3/4, black

72 240368303 Grille/Kickplate, black, lower front

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574606 Cover-access, w/label

89* 241500302 Screw, hex washer head, 8-18AB x 0.625

92 241624301 Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 218515401 Clip

* 240479601 Plug, button, cab liner holes, (2)

* 5304451343 Castor Kit

Publication No: 5995451365 FRTB7B4EMB0

10/05 6

SHELVES

302

300 301

22A

78A

74 25

27A

N05SADAJY2

24A

FRTB7B4EMB0 Publication No: 5995451365

# Functional Parts 7 10/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358004 Shelf, freezer

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240368001 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 241667701 Shelf-fixed, white

24A 241662401 Shelf, can tower

25 241665901 Cover, keg support

26 241667601 Basket-sliding, wire

27 241659001 Support, keg plate

27A 241661002 Tape-double faced, 23"

74 215503201 Screw, cr pan hd, 10-16 x 0.500

75 240515601 Shield-light

78 241672701 Plate-skid

78A 241661003 Tape-double faced, 21"

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

85 218644502 Clamp-strain relief

300 5304443657 Coulper, keg

301 5304443660 Gauge, pressure, double, CO2 primary

302 5304443661 Tank, CO2, aluminum

* 240379015 Service Data Sheet

Publication No: 5995451365 FRTB7B4EMB0

10/05 8

SYSTEM

17 21

N05CAAAAA18

FRTB7B4EMB0 Publication No: 5995451365

# Functional Parts 9 10/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241666601 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

14 # 240356213 Heater-defrost

15 # 5303918275 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551802 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602005 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332608 Pan-defrost drain

29 # 5303918325 Compressor, w/electricals

30A 216954201 Controller, compressor

32 216954300 Clip, controller

34 240405201 Grommet, rubber, black, cond tube/wire

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 # 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 241665801 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918263 Heat Exchanger Kit, suction line

* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995451365 FRTB7B4EMB0

10/05 10

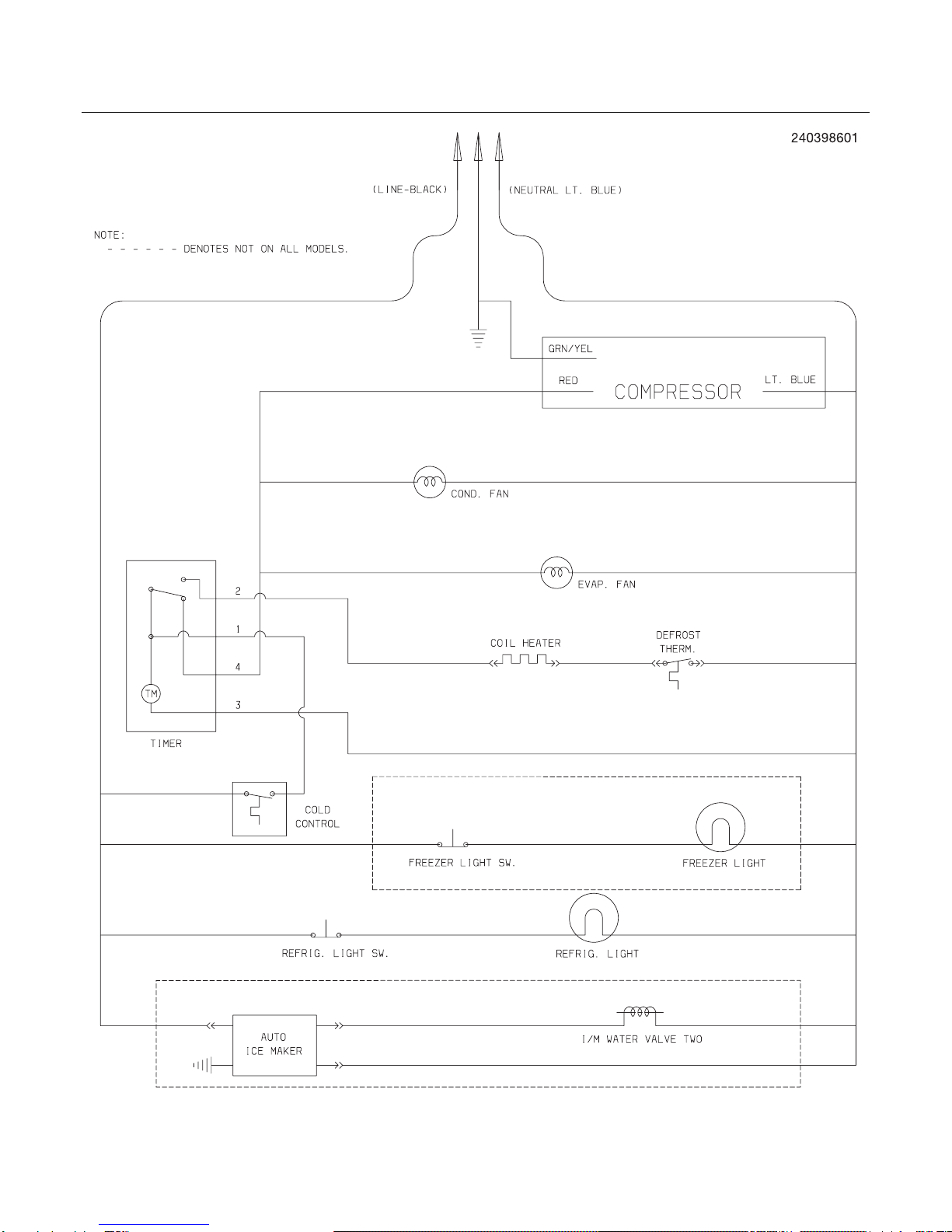

WIRING SCHEMATIC
