Lyrik™Wireless Portable Sound System

User Guide

Contents

Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

External Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Using a wired mic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Push to Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Mic Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Channel Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Group Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Squelch Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Display Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

One Mic to Multiple Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Maintenance and Troublshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Battery Replacment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PrioriTeach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

UHF TV Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Technical Specs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Frequency Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Welcome

You’re about to make learning more accessible! With the Lyrik Wireless Portable Sound System, students will hear more and learn

more in the classroom, in the gym, on the ﬁeld, or on a ﬁeld trip.

Lyrik provides wireless microphones for teacher voice, student voice (optional), Bluetooth connectivity, and auxiliary inputs and

outputs for media playback or assisted listening devices.

Before you use your Lyrik for the ﬁrst time be sure to charge the batteries fully. This can take up to 8 hours.

Placement

When used in a classroom, place the Lyrik on a desk or shelf near the front of the class, but not so close to where the teacher

will be speaking as to cause feedback. Ideally the speaker is projecting just above the students heads, ensuring audio coverage

across the classroom.

If you take the Lyrik outside, remember that it is not waterproof so do not leave it out in the rain or near ﬁeld sprinklers. The canvas

Field Case is highly recommended to keep the Lyrik protected and includes a shoulder strap for even easier carrying.

You can also mount the Lyrik to a speaker stand using the standard 5/8” - 27 thread at the bottom of the tower.

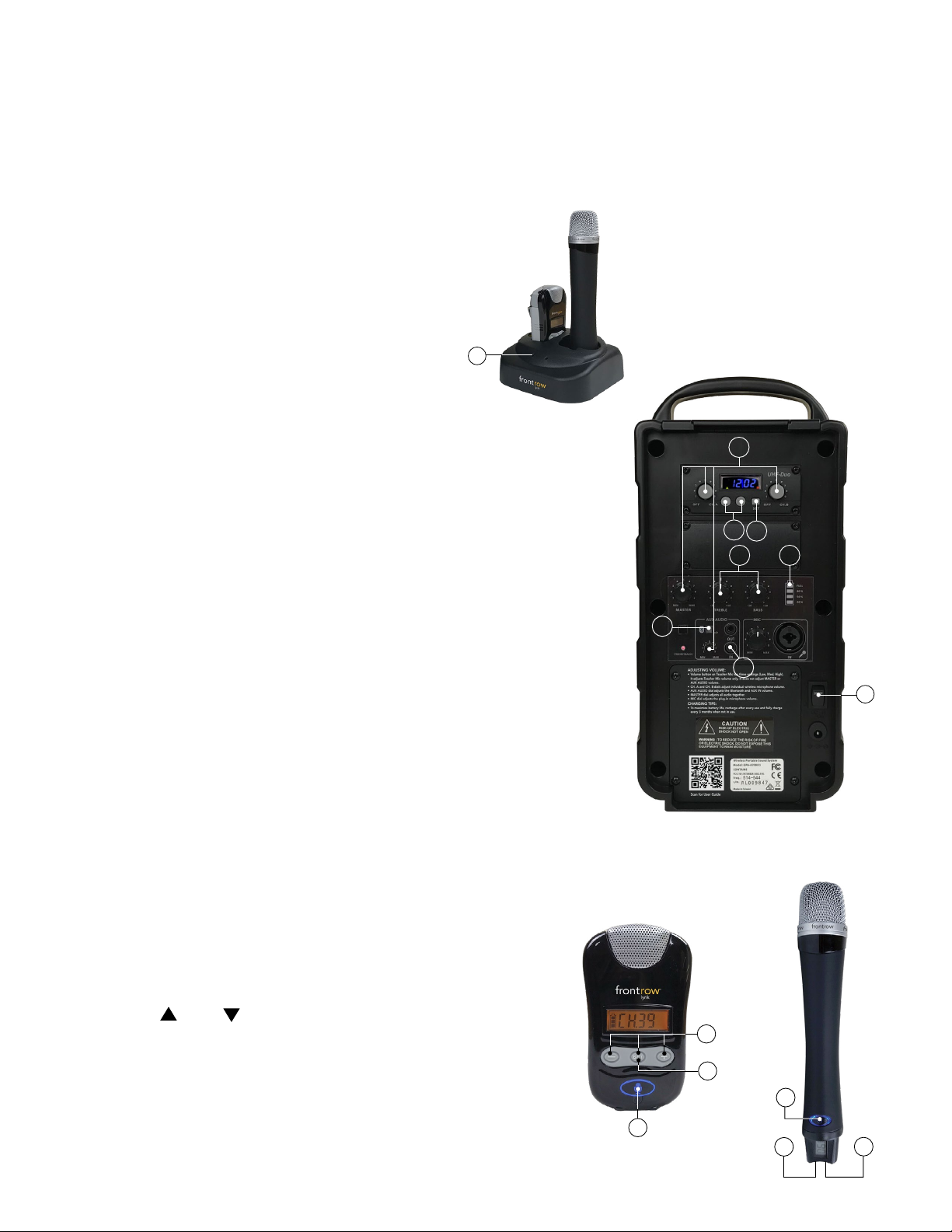

Quick Start

c. Turn tower on using rocker switch above power connection.

d. Set Channel A to 7. If using a student mic or second mic:

Set Channel B to 7 (otherwise leave off).

Set AUX to 5.

Set MASTER to 2 or whatever is comfortable for the room.

e. Set TREBLE and BASS to +4 (2 dots right of center)

k. For Bluetooth, press Bluetooth paring button and search for

“frontrow” followed by 3 digits on your device.

l. For direct connect, plug a 3.5mm audio cable into the AUX IN jack

Before getting started, fully charge microphones and tower

(NOTE: This can take up to 8 hours):

Microphones

• Connect power supply to charger.

• Place microphones into charger.

a. Steady green light indicates a full charge.

Tower

• Connect power supply to tower.

b. Steady green “FULL” light indicates a full charge.

4Connect AUX AUDIO

1Charge Microphones and Tower

2Set Tower controls and turn Tower on

The Lyrik™portable amplification system has an integrated rechargeable battery for use inside and outside the classroom. The lightweight

and comfortable teacher microphone provides voice amplification and the tower can be connected to a computer or other auxillary audio

source either directly using cables or wirelessly using Bluetooth®; to play music, audio from video sources or even integrate with video

conferencing programs. Use Bluetooth to connect wirelessly. Turn PrioriTeach on to automatically mute the auxillary audio when speaking.

Microphones

f. Press and hold power button for 0.5 second to power on and

2 seconds to power off.

g. Press and hold SET (or channel control) button for 2 seconds

until channel number flashes.

h. Press –or +button to select channel. Press SET button to

lock in channel.

Tower

i. Press and hold the SET button for 2 seconds until channel A

number flashes. Press SET again to set channel B.

j. Press the (Up) or (Down) buttons to select channel.

Press SET button to lock in channel.

3Set Channels (if required)

There are 96 available channels. The Tower channel and Microphone

channel must match (e.g., Teacher Mic set to CH01, Tower CH. A set

to CH01). If using a second microphone, it must be on a different

channel (e.g., Teacher Mic/Tower CH.A set to CH01, Student Mic/

Tower CH. B set to CH02). Do not use the same channels for

classrooms within 200ft (61m) of each other. If you experience static

or interference on a channel, switch to another channel.

Tower Speaker

Student

Microphone

Teacher

Microphone

Microphones

in charger

External Connections

Using the XLR or 1/4” input you can connect a wired microphone.

Make sure to set your Sound input AND output to the appropriate connections in your Settings. When using the FrontRow cable, this will be

a USB adapter with a device name of ‘C-Media USB Headphone Set’ or something similar.

Use the auxiliary connections to connect Lyrik to the Teacher’s computer, enabling audio for video conferencing or lesson capture.

The FrontRow Video Conferencing Cable Kit (1000-00217) provides the cables you need.

Advanced Features

Push To Talk

The student handheld mic can be conﬁgured for either push-to-talk or mute-unmute. To change the setting, open the battery case on the back

and use a small tool to slide the switch to either Talk or Push.

Talk - The button at the top of the mic will mute (red) or unmute (green) when pressed. This is the default setting.

Push - The button at the top will ﬂash red. To talk, the speaker must press the button and hold it down while speaking.

Channel Scanning

If you’re having trouble ﬁnding an open channel for one of your mics (e.g., there is interference from external sources or other mics),

you can try the SCAN feature.

On the Lyrik tower, on the back where the UHF unit is, press and hold the and buttons for 1 second until “SCAN” appears on the

display. If an open channel is found, it will stop at that channel. Then simply go to the mic and set it to the same channel to match. (If the

tower does not ﬁnd an open channel it will simply return to the channel where you started).

Mic Power

The microphones can be conﬁgured for low (about 100ft / 30m) or high (about 164 ft / 50m). Low power is ﬁne for classrooms. If outside on a

ﬁeld and the teacher is distant from the receiver, then you may need to switch to high power.

To switch power levels:

On the Teacher Mic, press and hold both the SET and Power buttons to power on. Press the SET button again to skip ﬁrst screen “96” and

then adjust to Hi or Low using the +and - buttons. Press SET again to conﬁrm the change.

On the Student Mic, open the back cover and remove the batteries. Use a small tool to toggle the switch to Hi or Low as needed. Reinstall

the batteries and close the cover.

Teacher Microphone

Student Microphone

Group Assignment

By default the microphones are part of the “F1” group. This is the recommended setting. If you have an environment with less than

38 units with devices close together and are experiencing cross-talk, you can try to use the F2 setting, which reduces the number of

available channels to 38 and creates more bandwidth between channels. All Lyrik towers would need to be switched to F2 to avoid the

chance of overlap.

To change to F2, hold the SET button on the tower while turning it on. While F1 is ﬂashing press to change it to F2, then press SET

twice to conﬁrm.

One Mic to Multiple Towers

Since the Lyrik system uses UHF radio, you can set multiple towers to receive on the same channel if you want to transmit from one or two

mics to several units simultaneously. For example, you could install 2 Lyriks in a larger room on speaker stands to provide coverage.

This principle does not work in reverse - do not set multiple mics to the same channel in order to use more microphones in one room on a

single Lyrik tower. The mics will interfere with each other and sound will be distorted.

Display Frequency

To see what frequency is being used for a channel, press the button on the receiver to see the frequency used by Channel A. Press the

button to see the frequency used by Channel B. For example, if Channel A says 5437, this means 543.7 MHz.

Squelch Value

If you are picking up cross-talk or excessive noise, you can increase the squelch value to help reduce the noise. To change the squelch value,

press and hold the SET button while you turn on the tower. Press SET again to skip past “F1”. When you see “59” (looks like “SQ”) then use

the or buttons to adjust the value from 0-4. Increasing the squelch value reduces the operating range of the system, so just make sure

to test the mic at the distance you will be using it. The default settings is 1.

To replace the Lyrik tower battery:

1. Turn off and unplug the unit.

2. Remove the 4 screws for the back panel using a Philips head screwdriver.

3. Pull the battery out, and disconnect the jack.

4. Connect the new battery, re-insert into the unit, and close the back panel.

5. Charge the battery.

6. Dispose of the old battery properly.

To replace the Teacher Mic battery:

1. Remove the belt clip using a small tool to gently pry off one side of the clip.

2. Remove all 4 screws with a Philips head screwdriver.

3. Unplug and remove the Lithium battery.

4. Install the new Lithium battery with the vibration pad facing down onto the circuit board.

5. Re-install the cover and belt clip, then charge the battery.

6. Dispose of the old battery properly.

NOTE: An EVA pad is glued on back of battery by default.

Belt Clip

Vibration Pad

Maintenance and Troubleshooting

Storage

If not using the Lyrik over the summer or winter breaks, you may unplug the devices for safety. However, be sure to charge the devices at least

every three months, and keep in mind humidity and temperature. The devices should be stored between 32-77°F at <60% humidity.

Battery Replacement

NOTE: Batteries can be recycled at your local Home Depot, Batteries & Bulbs, or search for a local recycling center. DO NOT DISPOSE

of batteries in landﬁll containers!

To replace the Student Mic batteries:

1. Open the battery cover and remove existing batteries.

2. Insert new NiMH 1.2V/1600mAh batteries as shown.

3. Dispose of the old batteries properly.

Troubleshooting

Bluetooth

Your phone will most likely not automatically reconnect to Lyrik over Bluetooth when you go home and return the next day. You can easily

reconnect by going to your Bluetooth settings on the phone and selecting “frontrow A03” (your device number may be different) to Connect.

If the blue LED on the Lyrik is ﬂashing, you can pair or connect. If not, simply press the Bluetooth button on the back to initiate pairing/

connect mode.

PrioriTeach

Note that the PrioriTeach feature sensitivity is dependent on the level of the Channel A/B receiver. This is set to level 7 by default as a good

balance for triggering voice priority. However, if you ﬁnd it is too sensitive you can turn down the volume on Channel A or B (you may want to

turn up the master volume to compensate). Conversely, if it is not sensitive enough, turn up the volume on the Channel A or B.

Local UHF TV

If you are receiving interference from local UHF TV stations, you can ﬁnd out what frequencies to avoid by searching for towers near your local

area code.

The UHF channels 22-26 have overlapping frequencies with the Lyrik.

To ﬁnd out if there are any of the channels in your area, you can search using sites Antennas Direct.

Channel-22 518-524

Channel-23 524-530

Channel-24 530-536

Channel-25 536-542

Channel-26 542-548

Appendix

Default Settings

Technical Specs

Battery Lithium-Ion 14.4 V, 5.2Ah

Ambient Temperature -10°C ~ 50°C / -14°F ~ 122°F

Frequency Response 70Hz – 17kHz

Operating Range Max 30m – 70m / 98ft – 229ft

Output Power 60W (max) / 40W (RMS)

Speaker/Amplifer 5” Neodymium driver + 1” Tweeter / Class D

Carrier Frequency 520 – 544MHz

Receiver Duo - Two channels for up to 2 mics

Recharge Time ~12 hours

Battery Runtime 7-8 hours

Power AC charging power supply adapter for full-time operation

AUX In/Out 3.5mm (Line level)

MIC In 1/4” mono or XLR (Mic level -60 dBv)

Bluetooth®Version 3.0

Weight 3.7kg / 8.2lbs

Size (wxdxh) 170 x 201 x 341 mm / 6.9 x 7.9 x 13.4 in

Power Requirements 100~240VAC, 20VDC, 3.25A switching power supply

Battery Life Indicator 4 LED status

Threaded speaker stand 5/8” - 27tpi

mounting hole

Lyrik Tower

Battery Lithium Ion 3.7V 1300mAh

Ambient Temperature -10°C ~ 50°C / -14°F ~ 122°F

Frequency Response 70Hz – 15kHz

Operating Range Max Hi: >50m/164ft Low: >30m/98ft

RF Power Hi: <10dBm Low: 3 +/- 2dBm

Carrier Frequency 520 – 544 MHz

Recharge time 4 – 6 hours

Battery runtime 16 – 20 hours typical

Weight 81g / 2.86oz

Size (wxhxd) 52 x 88 x 32 mm / 2.0 x 3.5 x 1.3 in

MIC / AUX IN 3.5mm, mono or stereo

Teacher Microphone

Battery 1.2V Ni-MH 1600 mAh

Ambient Temperature -10°C ~ 50°C / -14°F ~ 122°F

Frequency Response 70Hz – 13kHz

Operating Range Max Hi: >50m/164ft Low: >30m/98ft

RF Power Hi: <10dBm Low: <3dBm

Carrier Frequency 520 – 544 MHz

Recharge time 4 – 6 hours

Battery runtime 12 – 15 hours typical

Weight 140g / 4.9oz (including battery)

Size (dia x h) 37 x 200mm / 1.5 x 7.9 in

Student Microphone

AC switching adaptor power Input 100 ~ 240 VAC, Output 5VDC 1A

Charging current 120mA

Charging time (Ni-MH) 6 ~ 8 hours

Size (wxhxd) 120 x 52 x 120 mm / 4.7 x 2.0 x 4.7 in

Weight 255g/9.0oz

Drop-in Microphone Charger

Master Volume: 2

Channel: 7

Channel B (if used): 7

AUX: 5

Treble: +4

Bass: +4

Teacher Mic (on device): 2 (Medium)

Computer/phone output: Med-High

Computer input: Low-Med

For best results, start with the following volume levels and adjust as needed.

Andere Handbücher für Lyrik

Inhaltsverzeichnis

Andere FrontRow Sprecher Handbücher

FrontRow

FrontRow ezRoom ICR-01 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
