Food Warmer Parts Manual
FWH-1, FWH-2, Hatco, ThermoGlo
*8196330*
NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS ENODIS
EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED
DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS,
AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS
WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE
LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH
ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF
ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.
DANGER
Copper wire suitable for at least 167°F (75°C) must be used for power connections.
DANGER
The electrical power supply for this appliance must be the same as indicated on the
rating and serial number plate located on the inside of the fryer door.
DANGER
This appliance must be connected to the voltage and phase as specified on the rating
and serial number plate located on the inside of the fryer door.
DANGER
All wiring connections for this appliance must be made in accordance with the wiring
diagrams furnished with the equipment. Wiring diagrams are located on the inside of
the fryer door.
DANGER
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WARNING
Do not use water jets to clean this equipment.
Heat Lamps/Food Warmers
1
FWH-1, Merco Rod-Style
1

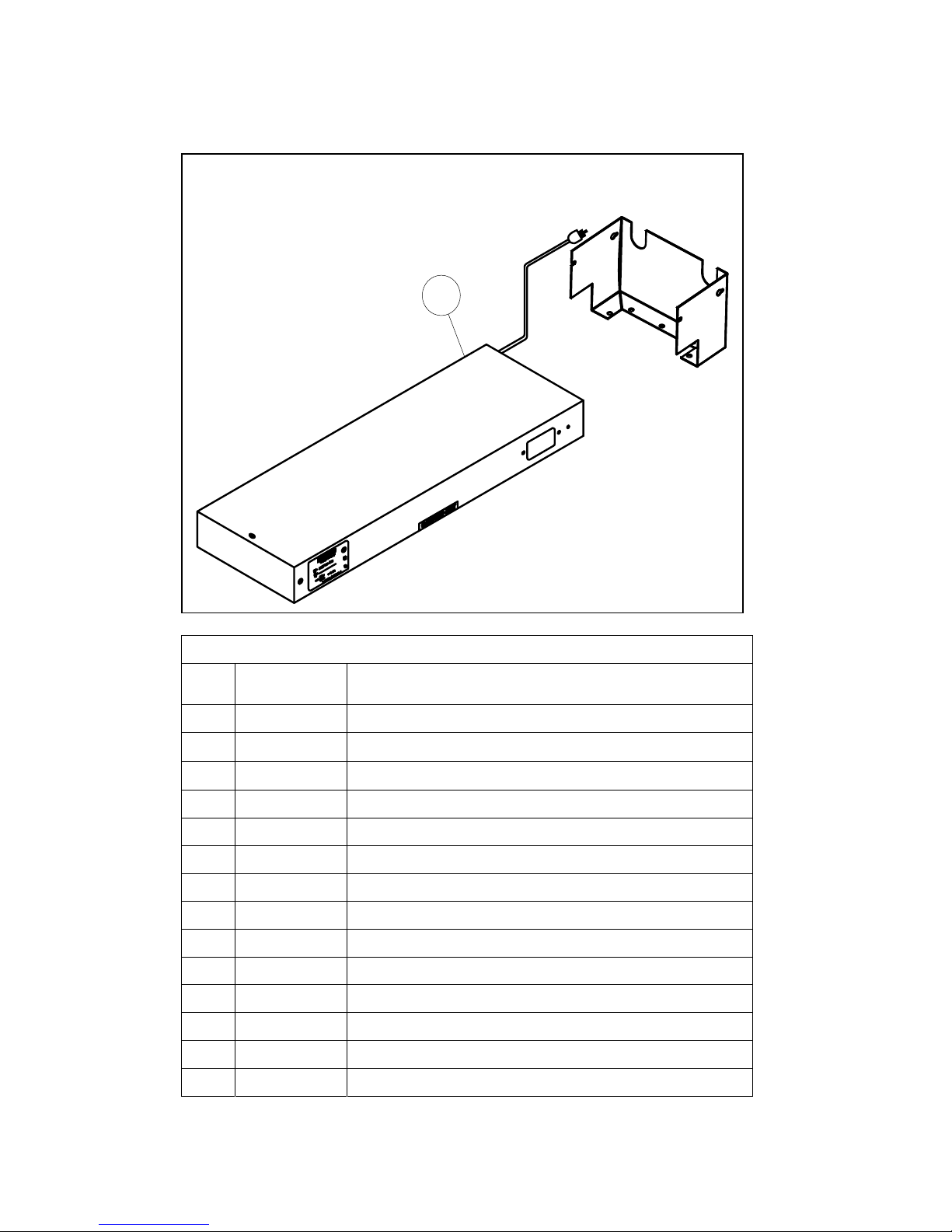

Merco Rod-Style Warmer FWH-1
Item
# Part
Number Description
1 807-4356 Food warmer, 120/60 825W
* 807-4402 Food warmer, 240V
* 807-1413 120V Switch, toggle, ON/OFF
* 807-1414 240V Switch, toggle, ON/OFF
* 807-1416 Power on indicator light, red
* 807-1417 120V cordset, 3 wire
* 807-4358 120V Element (tube) heating, 20 ¼”, 825W (screw-in)
* 807-4359 208/240 Element (tube) heating, 20 ¼” 825W (screw-in)
* 810-2389 Holder, Quartz Lamp, (snap-in) Dean
* 807-0746 120V Element (tube) heating, 20 ¼”, 825W (snap-in)
* 807-0748 208/240 Element (tube) heating, 20 ¼” 825W (snap-in)
* 807-1415 Socket, heating rod (snap-in)
* 807-3783 Switch, Dean
* 826-0990 Hardware kit
Heat Lamps/Food Warmers
2
FWH-2, Bulb Style
Merco Bulb-Style Warmer, FWH-2
807-1575 120V Warmer, with support
807-1576 240V Warmer, with support
806-5278SP 120V Warmer kit, with mounting hardware
806-5285SP 240 Warmer Kit, with mounting hardware
807-3053 Socket, heating bulb, 250W
807-3963 Socket, heating, bulb, 375W
807-3049 Bulb, 250W
807-3961 Bulb, 375W
807-3962 Bulb, 375W
826-1064 Hardware kit, (screws for attachment)
823-1896 Support, lamp, front/rear
807-3051 Cordset, in-line switch
826-1374 Screw, #10 (Qty:25)
Heat Lamps/Food Warmers
3
Hatco Warmers
Hatco Warmers
807-3219 240V Warmer assembly
807-1371 120V Warmer assembly
807-4695 220/230 CE Warmer assembly
807-4696 230/240 CE Warmer assembly
Frymaster Replacement Parts
910-8627 Housing support
823-2834 Plate, mount with nut
826-0990 Mounting kit, hardware
Dean Replacement Parts
823
-
3963
Support weld assembly
Heat Lamps/Food Warmers
4
ThermoGlo Warmers
ThermoGlo Warmers
806-8836SP 120V Warmer
826-1279 120V Warmer kit
807-3353 240V Warmer
807-2082 Switch, rocker, power, ON/OFF
807-1041 Switch, toggle, power, ON/OFF
806-7732SP Harness, wire
THIS PAGE INTENTIONALLY LEFT BLANK.
Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000
Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106
TEL 1-318-865-1711 FAX (Parts) 1-318-688-2200 (Tech Support) 1-318-219-7135
819-6330
PRINTED IN THE UNITED STATES SERVICE HOTLINE
1-800-551-8633 JULY 07
