Table of contents

0. Control elements and connections.......................................................................................................................3

0.1. Receiver front panel ......................................................................................................................................3

0.2. Receiver back panel ......................................................................................................................................3

0.3. Remote control ..............................................................................................................................................4

1. First installation......................................................................................................................................................5

1.1. Complete Content..........................................................................................................................................5

1.2. Installation examples.....................................................................................................................................6

1.3. Safety rules ....................................................................................................................................................7

1.4. Fast installation guide...................................................................................................................................8

1.5. Menu overview.............................................................................................................................................10

2. Standard functions...............................................................................................................................................11

2.1. Switch on the receiver.................................................................................................................................11

2.2. StandBy........................................................................................................................................................11

2.3. Teletext.........................................................................................................................................................11

2.4. MUTE ............................................................................................................................................................11

2.5. Numeric block on remote control...............................................................................................................11

2.6. Switch channels...........................................................................................................................................11

2.7. Change between TV- and Radio channels.................................................................................................11

2.8. Vol+/Vol- Volume ........................................................................................................................................11

2.9. Stop the functions .......................................................................................................................................11

2.10. Open Main menu......................................................................................................................................12

2.11. Watch the last viewed channel...............................................................................................................12

2.12. Channel list..............................................................................................................................................12

2.13. EPG Electronic Program Guide..............................................................................................................12

2.14. Favourite channel list..............................................................................................................................12

2.15. Menu Audio..............................................................................................................................................13

2.16. Signal and Channel information.............................................................................................................13

2.17. Changing favourite channels .................................................................................................................13

2.18. Zoom Function.........................................................................................................................................13

2.19. Subtitles...................................................................................................................................................13

3. Channel management..........................................................................................................................................14

3.1. TV-Channel list.............................................................................................................................................14

3.1.1. Skip channels......................................................................................................................................14

3.1.2. Lock channels .....................................................................................................................................14

3.1.3. Delete channels...................................................................................................................................14

3.1.4. Delete channel groups or all channels..............................................................................................15

3.1.5. Edit channels.......................................................................................................................................15

3.1.6. List of favourite channels...................................................................................................................15

4. Timers ...................................................................................................................................................................16

4.1. Sorting..........................................................................................................................................................16

4.2. Delete Timer.................................................................................................................................................16

4.3. Edit / Add timer...........................................................................................................................................16

5. Tools .....................................................................................................................................................................18

5.1. Calculator.....................................................................................................................................................18

5.2. Calendar .......................................................................................................................................................18

User’s manual · MAX IP90

Technical changes and mistakes reserve - 2- MAX IP90 Version en_1.0 FTE Maximal

6. System Settings ...................................................................................................................................................19

6.1. Menu Language ...........................................................................................................................................19

6.2. Audio Language...........................................................................................................................................19

6.3. Date and Time..............................................................................................................................................19

6.4. Time Zone.....................................................................................................................................................19

6.5. TV Settings...................................................................................................................................................20

6.6. OSD Settings................................................................................................................................................20

6.7. Version .........................................................................................................................................................21

6.8. Factory Default.............................................................................................................................................21

6.9. Software Upgrade........................................................................................................................................21

7. Parental Control ...................................................................................................................................................22

7.1. Set Lock........................................................................................................................................................22

7.2. Channel lock ................................................................................................................................................22

7.3. Installation Lock ..........................................................................................................................................22

7.4. Change Password........................................................................................................................................22

8. Installation............................................................................................................................................................23

8.1. Channel Search............................................................................................................................................23

8.2. Network Configuration................................................................................................................................23

8.3. Network Management..................................................................................................................................24

8.4. Backup..........................................................................................................................................................24

9. The equipment of the receiver ............................................................................................................................25

9.1. Technical data..............................................................................................................................................25

User’s manual · MAX IP90

Technical changes and mistakes reserve - 3- MAX IP90 Version en_1.0 FTE Maximal

0. Control elements and connections

0.1. Receiver front panel

1 2 3 4 5 6

1 POWER: Switches the receiver ON or in Standby mode. For total switching off, use the main

switch at the back side of the receiver.

2 POWER LED: Indicates that the mains voltage (90-230 VAC) is available.

3 LOCK LED: Indicates a sufficient signal level at the input

4 DISPLAY: 4 Digits to display the program numbers.

5 IR-SENSOR: Reception sensor for the IR remote control signals

6 BUTTONS: These buttons allow controlling the main functions of the receiver, and

provide the same functionality as the remote control ones.

0.2. Receiver back panel

1 2 3 4

5 6 7 8

1 ETHERNET: Network connection of the receiver.

2 RS-232: Serial port to update the firmware of the receiver

3AC IN: Power cord 230VAC/50Hz.

4 POWER ON/OFF: Main switch to switch off totally the receiver

5 AUDIO: Audio output for home audio systems

6VIDEO: Video output for external monitor, TFT or video beamer

7 COAXIAL S/PDIF: Coaxial output for digital audio (AC3)

8 TV SCART: SCART output for connecting one TV set

User’s manual · MAX IP90

Technical changes and mistakes reserve - 4- MAX IP90 Version en_1.0 FTE Maximal

0.3. Remote control

1. POWER: Switches receiver ON or in stand-by-mode

2. TEXT: Open and close teletext

3. MUTE: Switches audio on and off

4. NUMERIC BLOCK: For direct typing values and names

5. CH+ CH-: Changes channel up and down

6. VOL+ VOL-: Adjusts audio volume up and down

7. TV/R: Switches between TV and Radio

Channels

8. EXIT: Exit menus or stop operations

9. MENU: Opens the main menu

10. BACK: Watch the last viewed channel

11. :Confirms selections or opens channel

list

12. Color Keys: Controls menu options.

13.Green Button: Not available in this model

14.Red Button: Not available in this model

15.SAT: Not available in this model

16. EPG: Shows the EPG information

17.List: Opens channel list

18. Fav: Opens favourite channel list

19. Audio: Opens audio menu

20. Sub: Switches subtitle on and off

21.Pup Pdw: Moves cursor in block steps

22. Fav+ Fav-: Moves favourite channel up and down

23. INFO: Shows channel information with signal

bar

24.Zoom: Zoom function

User’s manual · MAX IP90

Technical changes and mistakes reserve - 5- MAX IP90 Version en_1.0 FTE Maximal

1. First installation

1.1. Complete Content

The following goods must be included in this package when you open it for the first time.

Remote control Installation guide Two batteries

type AAA, Micro, 1,5V

CDROM

User’s manual · MAX IP90

Technical changes and mistakes reserve - 6- MAX IP90 Version en_1.0 FTE Maximal

1.2. Installation examples

User’s manual · MAX IP90

Technical changes and mistakes reserve - 7- MAX IP90 Version en_1.0 FTE Maximal

1.3. Safety rules

Please read the manual carefully before using the receiver.

You will receive a lot of information to use this product correctly and you will prevent incidents.

Please keep the manual on a safe place.

This sign warns you about

high voltages, with risk

of electric shock

Caution: Do not open the housing of

this receiver. Repairs can only be

made by professionals authorized by

Fte maximal. If not, warranty will not be

valid anymore.

This sign informs about

special information which is

important to know.

Caution: Keep this receiver far away from liquids. Do not place it on placements close to water like flowers

vases, wash basin, aquariums or pools. It exists a high risk of electric shock when water or high humidity

filters inside the receivers. Never place other devices on it; they can overheat the receiver as well as daring

fire risk. The receiver must be used only with original power cord to 230V main plug.

Please read carefully this manual and do not hesitate to contact to professional help if you have any doubt.

Opening the receiver housing as well as the Hard Disk case will mean a total lost of warranty.

Installation:

1. Never work during a thunderstorm or staying near of the antenna systems.

2. Before adjusting the receiver, make sure that your antenna is well aligned and works properly.

3. Unplug the main connection (230V) every time you work with receiver connections. Do it also when you stay

away for a long time out of home like in holiday periods.

4. The best placement for the receiver is close to the TV and your other equipment like DVD, VCR, CD, and game

stations. Select a stable place where you can make the necessary connections in a safety way.

The 230V main plug should be in a place easy to reach, that you can unplug it when it is necessary.

Cleaning: Before cleaning the receiver with a slightly damped cloth, please disconnect the main 230 V connection from

the receiver. Please use only mild cleaners.

Accessories: Please, do not use accessories which are not agreed by the manufacturer of the receiver.

Unsuitable accessories could increase the risk of getting on fire, an electrical impact or other damages.

Placement: Select a placement where the Receiver has air circulation enough, otherwise it may have overheating

accumulation. Do not cover the openings of the housing. Unsuitable placements are also places close to heaters or soft

locations like e.g. sofas and beds.

Power connection: Select a main plug with easy access, in case of unplugging necessity; it will be easier and faster.

Please, make sure that the cord as well as the plug is in perfect conditions. Do not pull the cable, use always the plug.

Housing: Please, make sure that no liquid will filter into the housing of the receiver. If so, disconnect immediately the

receiver from the main 230 V plug and bring the receiver to a professional.

Air humidity: When you take the Receiver from a cold to a warm place, please wait until the receiver gets the same

temperature as the new environment, in order to avoid problems of humidity condensation.

Maintenance / Repairing: Within the warranty time all the repairing processes should be done by Fte Maximal technical

staff. Otherwise, the warranty will be lost.

RISK OF ELEKTRIC SHOCK

DO NOT OPEN

CAUTIONR

User’s manual · MAX IP90

Technical changes and mistakes reserve - 8- MAX IP90 Version en_1.0 FTE Maximal

1.4. Fast installation guide

Please, follow the instructions for a faster and simpler installation of the receiver.

Step 1: Connections

Connect the ETHERNET input of the receiver to the network.

Connecting TV set, LCD or video beamer:

Scart This is the connector which will be normally used to connect the TV.

For this purpose, you will need a Scart – Scart connector.

You can obtain further information in chapter 0.2 Receiver back panel.

When you set up the system for the first time, the current date will be stored in Menu > System Settings > Version

as beginning date for the warranty period.

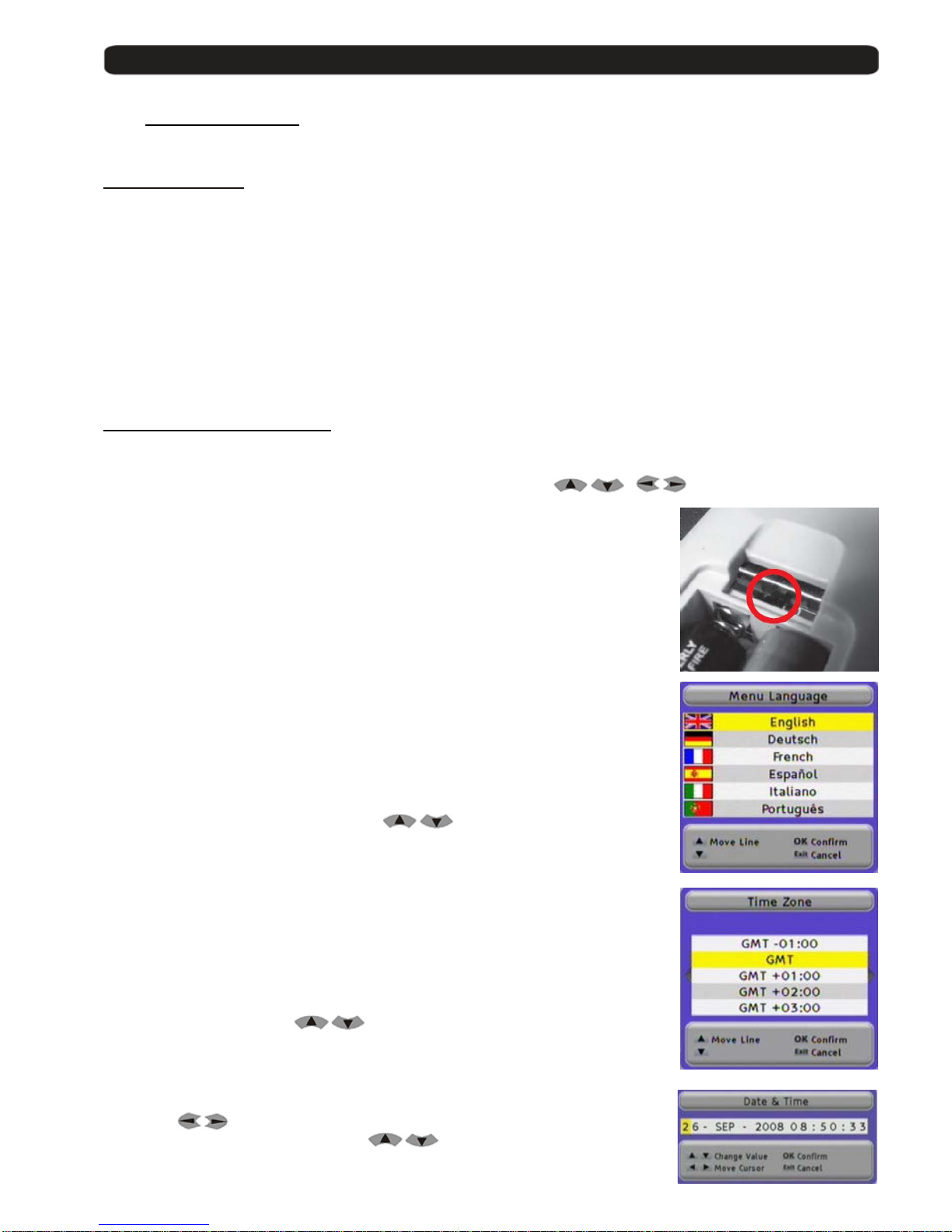

Step 2: Main settings on receiver

When you start the first time the receiver or when you execute a “factory default” process, you will see this

installation guide in English language.

The selection of the menu options will be done with the arrow buttons , and the button

OK of the remote control.

Please, choose the code for your remote control in the first window.

Fte Maximal gives you the possibility of using a IP, a DVB-T and a DVB-S

receivers at the same time.

For this purpose, your new receiver is selected by factory with code 3.

You have the possibility to change the code of it, to do that you have to change the

position of a switch in the remote control.

You have to select the same position in the receiver than in the remote control.

If you have problems with remote control devices, you can change the transmission

code if you go to Menu > System Settings > OSD Settings

after finishing the quick installation guide.

Menu Language:

Here you have to select the language for the Receiver menu and information.

Select the language with the arrow buttons and press the OK button.

Time Zone:

In order to the receiver is able to display the correct time and adjust the timer

recordings correctly, it is needed to fix the time zone to the place you live.

Select here the time delay according to your position comparing to Greenwich Time.

In UK: Summer time: +1 hours

Winter time: GMT hour

Select with the arrow buttons and press the OK button.

Date and Time

It is recommended to setup the clock before starting to enjoy the receiver.

Select with the entry you want to change.

The entry will be modified by the buttons .

When you have finished, press OK.

User’s manual · MAX IP90

Technical changes and mistakes reserve - 9- MAX IP90 Version en_1.0 FTE Maximal

Network Configuration

The receiver will require the introduction of the needed parameters to be able to

get connected to a network, as well as to be visible to other equipments so that

receive streaming of video and audio.

You should introduce the following parameters:

IP Address Number of 32 bits expressed in 4 numbers between 0

and 255 which identifies the receiver inside its network.

Every device in the network should have a different IP

Address and it is highly recommended that all of them

are in the same subnetwork and with IP addresses into

the following range:

10.x.x.x

172.16.0.0 – 172.31.255.255

192.168.x.x

Subnet Mask Number in IP format that, combined with the IP address, identifies where the equipment is.

IP LAN Soft: IP address of the PC where the application for exchanging video streamings between the

PC and the receiver is installed.

If you want, you can download the application IP LAN Soft from the Website:

www.ftemaximal.com

MAC Device address at hardware level. It is unique in each device and it comes from the factory.

You can move through the menus with the buttons and .

With the Red button you delete the last character.

Press OK to save the changes.

Search IP Channels

The receiver will carry out a search for channels broadcasted by other equipment

connected to the network.

You can receive transmissions of other equipment in mode Unicast and

Multicast.

- Unicast is when the information is sent from a unique sender to a

unique receiver.

- Multicast in when the information is sent through a network to multiple

destinations simultaneously. The equipment that work in multicast mode

send the information into an IP range between 224.0.0.0 and

239.255.255.255.

In Search Type select Auto to search for all the channels which are broadcasted

by other equipment in your network in multicast mode. If you select the Host

option, it will look for transmissions of the equipment present in the list Network

Management that you select.

In the field Multiplex you should select the hosts from the list Network

Management in which you with to search for channels.

Pressing the Blue button or a new window will appear, where you can select

the hosts.

You can move the cursor with .

With the Green button you select the hosts.

Press Exit to go back to the search menu.

If you press the Green button, it will carry out a search of the video IP channels.

Press Exit to exit.

The Fast install guide is now finished.

User’s manual · MAX IP90

Technical changes and mistakes reserve - 10 - MAX IP90 Version en_1.0 FTE Maximal

1.5. Menu overview

Main menu

Channel Management

Parental Control

Move, rename or delete channels,

Program and, create favourite list.

Activate parental control

Tools

Installation System Settings

Calculator,

Calendar with date management

Search channels

Network adjustments

Backup

Main settings for receiver

for OSD and adapt TV set

Factory default

Software upgrade

Timers

Manual activation for timer events

Inhaltsverzeichnis

Andere FTE Maximal Set-Top-Box Handbücher

FTE Maximal

FTE Maximal eXtreme HD compact Bedienungsanleitung

Beliebte Set-Top-Box Handbücher anderer Marken

VBrick

VBrick 8000-0188 Bedienungsanleitung

Kogan

Kogan KGNPVR500VAA Bedienungsanleitung

Asus

Asus O!PLAY MEDIA PRO Bedienungsanleitung

Samsung

Samsung ICU 100 Bedienungsanleitung

VECTORMAX

VECTORMAX A12E Bedienungsanleitung

DStv

DStv Explora Bedienungsanleitung

Ace Digital TV

Ace Digital TV ADB 3800 Bedienungsanleitung

Cisco

Cisco 4398DVB Bedienungsanleitung

Polaroid

Polaroid KHA-01651B Bedienungsanleitung

Samsung

Samsung GX-SM530CF Bedienungsanleitung

BT Business Total Broadband Bedienungsanleitung

Megasat

Megasat HD 720 plus Bedienungsanleitung

Sungale

Sungale STB608 Bedienungsanleitung

Amino

Amino Amigo 7X Bedienungsanleitung

Geniatech

Geniatech ATV225 Bedienungsanleitung

Android

Android Androidminibox mx2 se Bedienungsanleitung

Hama

Hama Internet TV Box Bedienungsanleitung

Ariva

Ariva T650i Bedienungsanleitung
