26 1 Printer Environment Settings

1 Printer Environment Settings

When you are finished installing your printer using the ‘Setup Guide’, go on to set up its

operating environment.

1.1 Supported Operating Environments

The printer can be used both as a local and a network printer. When used as a local printer,

the printer is connected directly to a computer. Connect the printer to a network for use as

a network printer.

Set all ports you want to use to [Enabled] on the control panel.

Using the Printer as a Local Printer

When using the printer as a local printer, the printer and a computer can be connected using

the following methods:

• USB connection: Connecting the printer and a computer using a USB cable.

(default: [Enabled])

• Parallel connection: Connecting the printer and a computer using a parallel cable. To use

this feature, the Parallel Port Kit (optional) must be installed. (default:

[Disabled])

Using the Printer as a Network Printer

When using the printer as a network printer, the printer can be set up in the following

environments:

• LPD : Used when using TCP/IP protocol to enable direct communication

between the printer and a computer. (default: [Enabled])

• Port9100 : Used when using a Port9100 port.

(default: [Enabled])

•NetWare

®: Used when sharing and managing the printer using a NetWare server.

(default: [Disabled])

Internet

IPP

Network Connection

NetWare/Windows Shared Printer

Network Connection

LPD/SMB/Port9100/EtherTalk/WSD*

Server

Local Connection

Parallel/USB

*: WSD stands for Web Services on Devices.

1.1 Supported Operating Environments 27

• SMB : Used when printing using a Windows®network.

(default: [Enabled])

• IPP : Used when printing via the Internet.

(default: [Disabled])

•EtherTalk

®: Used when printing from Macintosh. (default: [Disabled])

• WSD* : Can be used when printing from Windows Vista®, Windows®7,

Windows Server®2008, or Windows Server®2008 R2. (default:

[Enabled])

*: WSD stands for Web Services on Devices.

Supported Operating Systems and Operating Environments

Note

• The supported operating systems are subject to change without prior notice. Visit our web site for the

latest information.

Refer to

• For information on how to print PostScript data, refer to the manual on the PostScript Driver Library CD-

ROM.

Connectivity Local Network

Port Name

Parallel

USB

LPD NetWare SMB IPP Port

9100

Ether

Talk

Bon-

jour WSD

Protocol

TCP/

IPX/

SPX

Net

BEUI

TCP/

Apple

Talk

TCP/

Windows

2000



‐‐‐

Windows



‐‐‐‐

Windows Vista



‐‐‐ 

Windows



‐‐‐ ‐‐ 

Windows Server

2003



‐‐‐‐

Windows Server

2008



‐‐‐ 

Windows Server

2008 R2



‐‐‐ ‐‐ 

Mac OS 9.2.2

‐‐‐ ‐ ‐‐ ‐‐ ‐‐

Mac OS X

10.3.9 - 10.4.6,

10.4.8 - 10.4.11,

10.5, 10.6

‐

‐‐‐‐‐‐

*1: To use this feature, the Parallel Port Kit (optional) must be installed.

*2: The computer must be connected to the printer via a USB 2.0 port.

*3: WSD stands for Web Services on Devices.

28 1 Printer Environment Settings

OS and Available Print Drivers

OS Print Driver Note

Windows

2000

Windows

Windows Vista

Windows

Windows Server

2003

Windows Server

2008

Windows Server

2008 R2

PCL Print

Driver

Installing the print driver is available from the Driver CD

Kit CD-ROM.

Refer to the ‘CD-ROM Documentation (HTML)’ on the

CD-ROM.

PostScript

Print Driver

Installing the print driver is available from the PostScript

Driver Library CD-ROM.

Refer to the manual on the PostScript Driver Library CD-

ROM for details.

Mac OS

9.2.2

9-10

8-10

11,

5-10

PostScript

Print Driver

Installing the print driver is available from the PostScript

Driver Library CD-ROM.

Refer to the manual on the PostScript Driver Library CD-

ROM for details.

1.2 Connecting a cable 29

1.2 Connecting a cable

Connect the printer to your computer using an interface cable appropriate for your

connection method.

An interface cable is not included with the printer. You must purchase it separately.

USB Connection

When using a USB connection, install the printer driver on the computer after connecting

the cable. For the installation method, refer to “1.7 Installing a Print Driver” (P. 43) and

"Manual (HTML Document)" on the CD-ROM disk of the driver CD kit.

1. Connect the USB cable to the interface

connector.

2. Connect the other end of the USB cable to

the computer.

Network Connection

Use 1000BASE-T (When the optional Gigabit Ethernet Board Card is installed) or a straight-

type network cable that supports 100BASE-TX or 10BASE-T.

1. Switch off the printer's power.

2. Wind the network cable around the

supplied ferrite core and close the ferrite

core.

Note

• Do not wind the cable to tightly or it may break.

A connector to be

connected to the printer

Ferrite core

Approx. 7cm

30 1 Printer Environment Settings

3. Connect the network cable to the interface

connector on the printer.

Note

• The location of the connector differs depending on

whether Gigabit Ethernet Board Card is installed or

whether the standard configuration is used. Connect

the appropriate connector for your environment.

• When the Gigabit Ethernet Board Card is installed, the

connector for the standard configuration cannot be

used.

• The MAC address is the same as in the standard

configuration when installing the Gigabit Ethernet

Board Card.

• LED1 on the Gigabit Ethernet Board Card lights up as

follows according to the network environment

connected.

10BASE-T environment: Off

100BASE-TX environment: Lights in yellow

1000BASE-T environment: Lights in blue

4. Connect the other end of the network cable

into a network device such as a hub.

5. Switch on the printer's power.

Note

• The interface connecter for standard network cannot be used when the Gigabit Ethernet Board Card is

installed to the printer.

• When installing both Gigabit Ethernet Board Card and Feature Enhance Kit, install the Feature Enhance

Kit first.

• Message [Ready to print IP Address failed] may be displayed on the control panel. To erase this

message, set to [STATIC] in [Network / Port] > [TCP/IP Settings] > [IPv4 Settings] > [Get IP Address] to

specify IP address (Example: 192.168.1.100) or [Disabled] for each port other than the USB port in

[Network / Port].

Refer to

• For setting method of IP address, refer to “1.4 Setting the Network Environment” (P. 33).

• For setting each port, refer to “1.5 Enabling Ports” (P. 37) “.

Standard configuration

Gigabit Ethernet Board Card

1.2 Connecting a cable 31

Parallel Connection

When using a parallel connection, you must first install the optional Parallel Port and

connector conversion cable.

Important

• Parellel Port Kit (optional) and Gigabit Ethernet Board Card (optional) cannot be installed at the same

time.

.1. Switch the printer off.

2. Insert the connector conversion cable

included with the optional Parallel Port into

the interface connector on the printer.

3. Connect the other end of the connector

conversion cable to the connector on the

parallel cable. Then secure it using the

metal pieces on both sides of the

connector.

4. Plug the other end of the parallel cable into

your computer.

5. Switch the printer on.

Important

• Parallel Port Kit (Optional) and Gigabit Ethernet Board Card cannot be installed concurrently. If the

Parallel Port Kit (Optional) is installed, remove the card by reference to “ Removing the Parallel Port Kit

(Optional)” (P. 344).

32 1 Printer Environment Settings

1.3 Switching the Control Panel Display

Language

Select one display language from among [English], [Korean], [Simp.Chinese], and

[Trad.Chinese] for the control panel of the printer.

The following explains how to switch the control panel display language.

1. Press the <Printer Settings> button to

display the menu screen.

2. Press the < > button until [Language] is

displayed.

Note

• If you went past the desired item, return to the item by

pressing the < > button.

3. Press either the < > or <OK> button to

select.

The language is displayed.

4. Press the < > button until the desired

language is displayed.

5. Press the <OK> button to confirm.

6. Press the <Printer Settings> button to

close the menu.

The printer automatically restarts.

1.4 Setting the Network Environment 33

1.4 Setting the Network Environment

This section explains how to install your printer in a TCP/IP environment. When installing

the printer in a different environment, refer to the ‘CD-ROM Documentation (HTML)’ on the

Driver CD Kit CD-ROM.

Note

• The printer can use an IPv6 address in an IPv6 network environment. For information on using IPv6

addresses, refer to “Setting an IP Address (IPv6)” (P. 36).

Setting an IP Address (IPv4)

To use TCP/IP protocol, you must configure an IP address for the printer.

By default, the printer is set to obtain its IP address (via the [Get IP Address] setting on the

control panel) using [DHCP/Autonet]. Thus, when the printer is connected to a network that

has a DHCP server, the printer automatically obtains its IP address from the server.

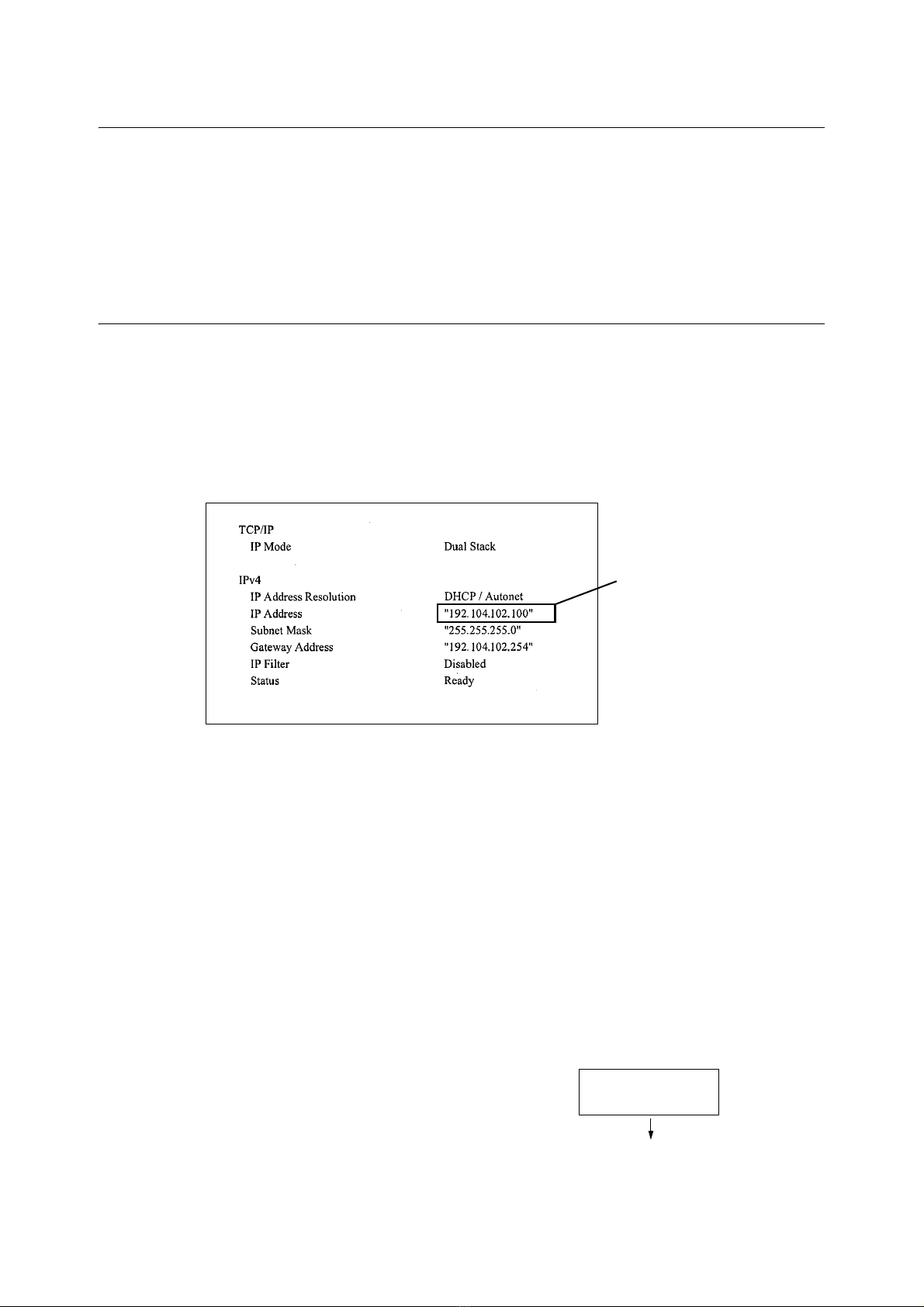

Print the [Configuration Report] to see if the printer already has an IP address.

If the printer does not have an IP address, set [Get IP Address] to [STATIC] and configure

the address.

Note

• For information on how to print the [Configuration Report], refer to “7.2 Printing Reports/Lists” (P. 260).

• The printer can also obtain its IP address by using a BOOTP or RARP server. If using a BOOTP or

RARP server, set [Get IP Address] to [BOOTP] or [RARP].

• If using a DHCP server, the printer’s IP address may change without notice. Make sure to check the

address periodically.

The following explains how to set up an IP address on the Control Panel. Depending on your

network environment, your printer also needs a subnet mask and gateway address. Consult

your network administrator for the settings required for your printer.

To Set the IP Address

Important

• Addresses including IP address, subnet mask and gateway address depend on your network

environment. Consult your network administrator for setting addresses.

1. On the control panel, press the <Printer

Settings> button to display the menu

screen.

If an IP address is listed,

skip the following procedure.

If an IP address is not listed,

or if you want to change the

current IP address, configure

the setting using the

following procedure.[■To Set

the IP address].

Settings

LanguageEmulation

34 1 Printer Environment Settings

2. Press the < > button until [Admin Menu] is

displayed.

Note

• If you went past the desired item, return to the item by

pressing the < > button.

3. Press the < >or <OK> button to select.

[Network / Port] is displayed.

Note

• If you pressed the < > or <OK> button on the wrong

item, return to the previous screen by pressing the

< > or the <Back> button.

• To start over from the beginning, press the <Printer

Settings> button.

4. Press the < > or <OK> button to select.

[LPD] is displayed.

Note

• [Parallel] appears only when the Parallel Port Kit

(optional) is installed.

5. Press the < > button until [TCP/IP

Settings] is displayed.

6. Press the < > or <OK> button to select.

[IP Mode] is displayed.

7. Press the < > button until [IPv4 Settings]

is displayed.

8. Press the < > or <OK> button to select.

[Get IP Address] is displayed.

9. Press the < > or <OK> button to select.

The current set value is displayed.

10. Press the < > button until [STATIC] is

displayed.

11. Press the <OK> button to confirm your

selection.

If [000.000.000.000] appears, skip to step

15.

12. Press the < > or <Back> button to return

to [Get IP Address].

Settings

Admin Menu

Network / Port

Network

Port

LPD

Network / Port

TCP/IP Settings

IP Mode

TCP/IP Settings

IPv4 Settings

Get IP Address

•

DHCP / Autonet

Get IP Address

STATIC

Get IP Address

•

STATIC

IPv4 Settings

Get IP Address

Andere Handbücher für DocuPrint 3105

Inhaltsverzeichnis

Andere Fuji Xerox Drucker Handbücher

Fuji Xerox

Fuji Xerox DocuPrint C1110 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint P455 D Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint CP305 d Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint CM225FW Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint P115 b Bedienungsanleitung

Fuji Xerox

Fuji Xerox Color C60 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint C5005 d Bedienungsanleitung

Fuji Xerox

Fuji Xerox ApeosPort-V C7775 Bedienungsanleitung

Fuji Xerox

Fuji Xerox Versant 180i Press Benutzerhandbuch

Fuji Xerox

Fuji Xerox DocuPrint M265 z Gebrauchsanweisung

Fuji Xerox

Fuji Xerox DocuPrint P205 b Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint M255 z Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint CP315 dw Gebrauchsanweisung

Fuji Xerox

Fuji Xerox DCC 240 Bedienungsanleitung

Fuji Xerox

Fuji Xerox C5575 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuCentreS2520 Bedienungsanleitung

Fuji Xerox

Fuji Xerox ApeosPort-IV 5070 Bedienungsanleitung

Fuji Xerox

Fuji Xerox ApeosPort-VI C7771 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint P385 dw Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuCentre S2010 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuCentre-IV 3060 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint CP215 Series Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuCentre-IV C3373 Bedienungsanleitung

Fuji Xerox

Fuji Xerox DocuPrint M385 z Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Epson

Epson ET-7750 Betriebsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Epson

Epson SC-F7100 series Bedienungsanleitung

Epson

Epson Stylus C40UX Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung
