FujiFilm Apeos 5570 Bedienungsanleitung

Prepared by Customer Training Team

Quick Reference Notes –Daily Care

簡易操作 -日常保養

Apeos 5570 / 4570



CONTENTS
目錄
1Clear Paper Jam ......................................................................................................2
1.1 Duplex Automatic Document Feeder / .................................................2
1.2 Inside Upper Left Cover ................................................................................3
1.2.1 Fusing Unit (A1) (A1) ....................................................................................3
1.2.2 Center Tray Exit (A2) (A2)............................................................4
1.2.3 Duplex Unit (A3) (A3) ................................................................................5
1.3 Inside Lower Left Cover .................................................................................6
1.4 Standard Trays .................................................................................................6
1.5 Tandem Trays ..................................................................................................7
1.6 Bypass Tray .....................................................................................................8
2Replacing Toner ...................................................................................................9
Scan QR Code OR Click here for more instruction.
請掃描 QR Code 或者點擊 查看更多使用説明。
For more online support information please visit
更多相關資料，請訪問以下網址：
 https://support-fb.fujifilm.com

Page 2 of 10

1 CLEAR PAPER JAM 夾紙排解

1.1 DUPLEX AUTOMATIC DOCUMENT FEEDER /自動雙面送稿裝置

1. Pull up the front handle of the cover and

open the cover until it stops.

1. 提起護蓋前的把手，開啟護蓋直到停止位

置。

2. Remove the document.

2. 清除原稿。

3. If you cannot find the document, open the

Document Cover, grip the handle to open

the Side 2 scanner, and then remove the

document.

3. 找不到原稿時，打開原稿蓋，抓著拉桿，

開啟反面掃描部，取出原稿。

4. Lift the Document Feeder Tray and

remove the document.

4. 提起送稿台，清除原稿。

Page 3 of 10

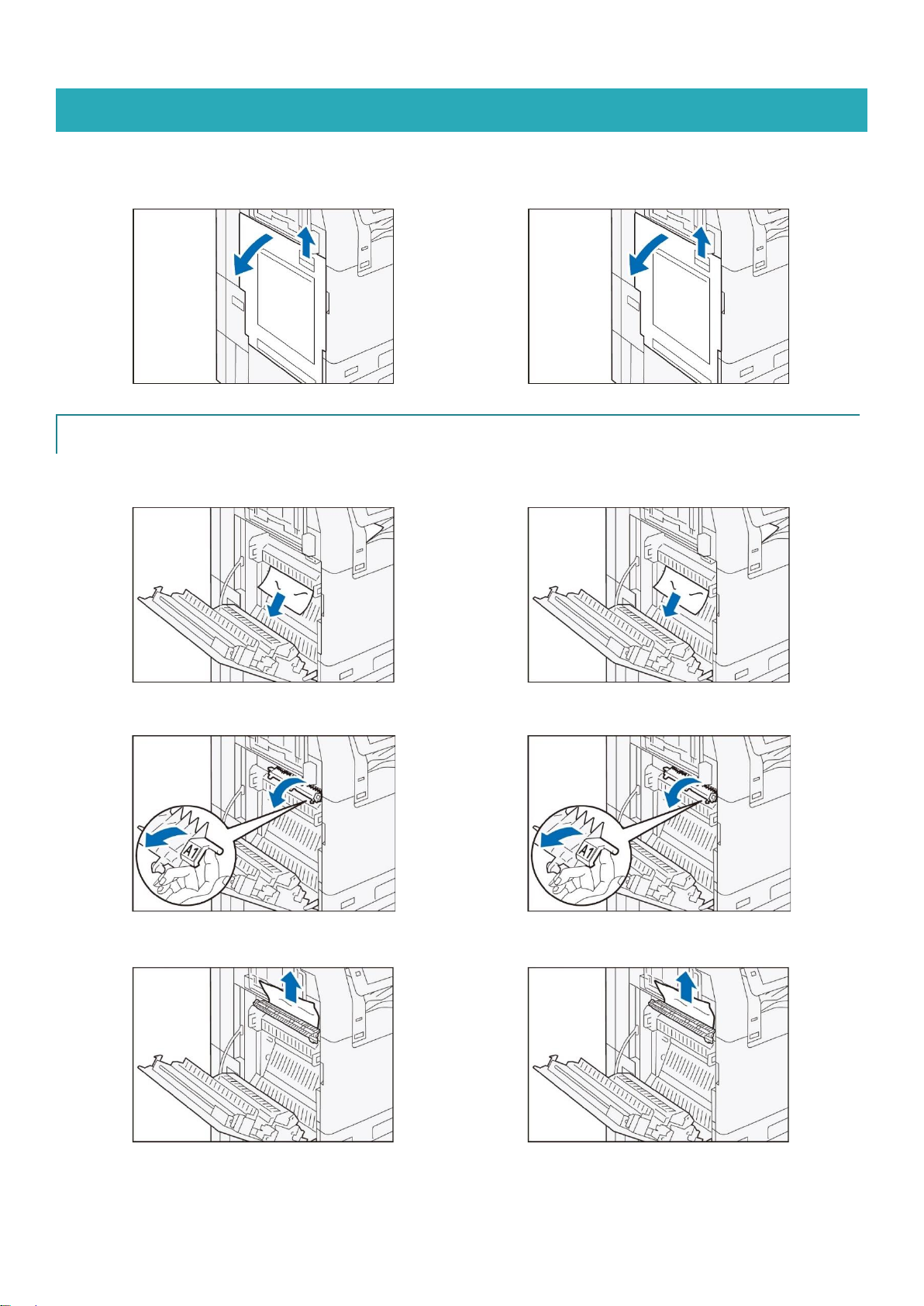

1.2 INSIDE UPPER LEFT COVER 左上蓋內部

1. While lifting up the Release Handle, open

the Upper Left Cover.

1. 提起釋放拉桿，開啟左上蓋。

1.2.1 Fusing Unit (A1) 熔著部 (A1)

1. Remove the jammed paper.

1. 清除卡住的紙張。

2. Pull the handle [A1].

2. 拉出拉桿【A1】。

3. Remove the jammed paper.

3. 清除卡住的紙張。

Page 4 of 10

1.2.2 Center Tray Exit (A2) 中央承接盤輸出口 (A2)

1. Pull the handle [A2].

1. 拉出拉桿【A2】。

2. While holding the handle [A2], remove the

jammed paper.

2. 抓著拉桿【A2】，清除卡住的紙張。

Page 5 of 10

1.2.3 Duplex Unit (A3) 雙面元件 (A3)

1. Remove the jammed paper.

1. 清除卡住的紙張。

2. Pull the handle [A3].

2. 拉出拉桿【A3】。

3. While holding the handle [A3], remove the

jammed paper.

3. 抓著拉桿【A3】，清除卡住的紙張。

Page 6 of 10

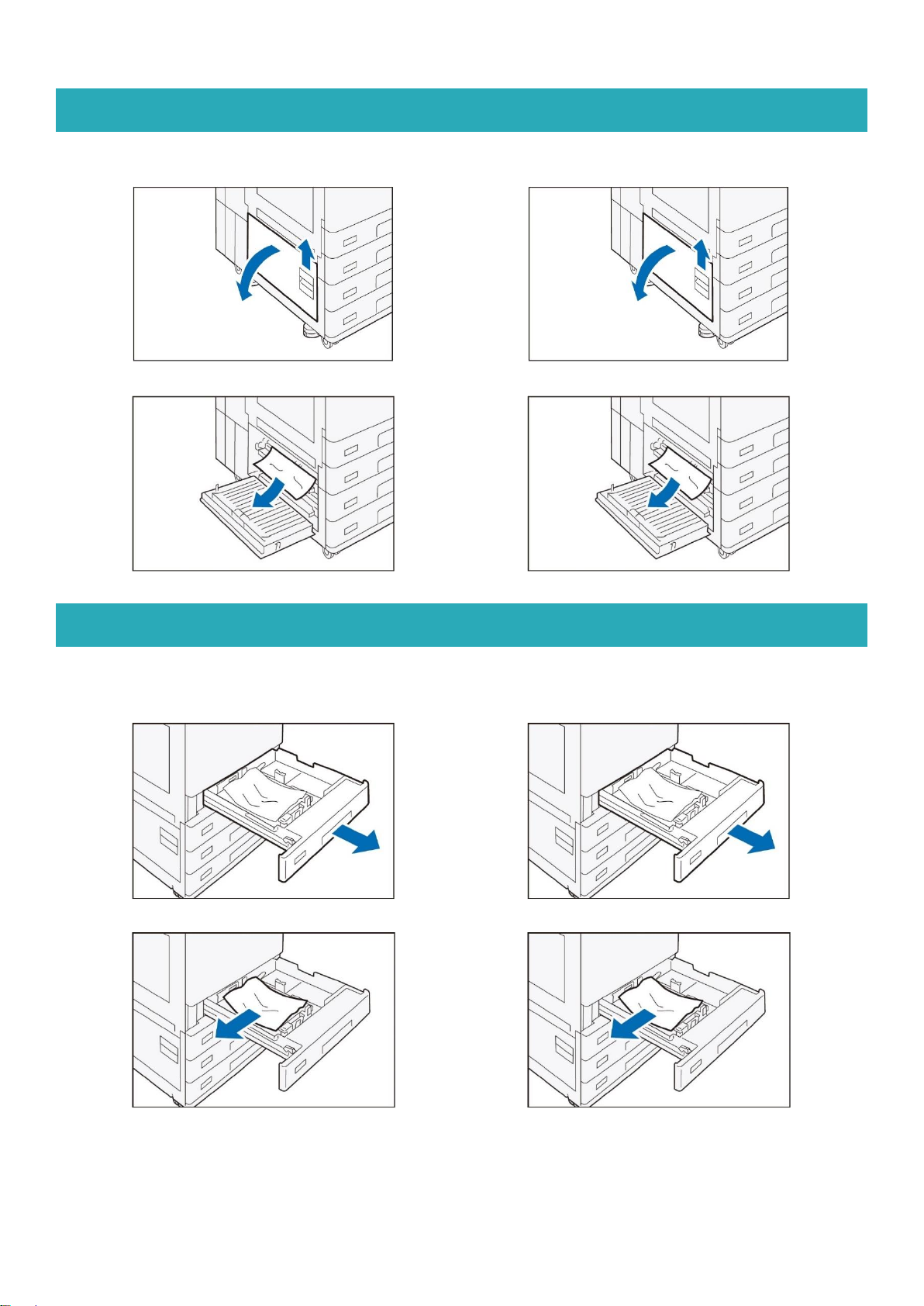

1.3 INSIDE LOWER LEFT COVER 左下蓋內部

1. Open the Lower Left Cover.

1. 打開左下蓋

2. Remove the jammed paper.

2. 清除卡住的紙張。

1.4 STANDARD TRAYS 標準紙盤

1. Pull out the Paper Tray where the paper

jam occurred until it stops.

1. 將發生卡紙的紙盤完全拉出。

2. Remove the jammed paper.

2. 清除卡住的紙張。

Page 7 of 10

1.5 TANDEM TRAYS 複合紙盤

1. Pull out the Paper Tray where the paper

jam occurred until it stops.

1. 將發生卡紙的紙盤完全拉出。

2. Remove the jammed paper.

2. 清除卡住的紙張。

3. If paper is jammed in the paper feed

section, pull out [C].

3. 紙張輸送部上有卡紙情況時，拉開【C】。

4. Open the cover and remove the jammed

paper.

4. 打開護蓋，清除紙張。

Page 8 of 10

1.6 BYPASS TRAY 手送紙盤

1. Remove the jammed paper.

1. 清除卡住的紙張。

Page 9 of 10

2 REPLACING TONER 更換碳粉匣

1. Make sure that the device is not

operating, then open the front cover.

2. Grasp the toner cartridge and pull it out

slowly.

3. Take the new toner cartridge from the

box and remove all packaging.

1. 先確定裝置已經停止運作，然後開啟前蓋。

2. 握住您要更換的碳粉匣的把手，然後將它慢

慢地拉出來。

3. 輕輕搖晃新碳粉卡匣。
