Fujitsu ARY30UUAN Bedienungsanleitung

SPLIT TYPE

AIR CONDITIONER

(50Hz)

DUCT

type

Models

Indoor unit Outdoor unit

ARY30FUAN

ARY30UUAN

AOY30FNBWL

AOY30UNBWL

CONTENTS

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 1

OUTLINE AND DIMENSIONS . . . . . . . . . . . . . 2

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . .

4REFRIGERANT SYSTEM DIAGRAM . . . . . . .

INDOOR PCB CIRCUIT DIAGRAM . . . . . . . . 7

OUTDOOR PCB CIRCUIT DIAGRAM . . . . . 9

DISASSEMBLY ILLUSTRATION . . . . . . . . . . . 11

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . 22

ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . 10

ADDITIONAL REFRIGERANT CHARGE (R410A)

Pipe Length

7.5 m (25 ft) 2,300 g (81.1 oz) 2,300 g (81.1 oz)

10.0 m (33 ft) 2,350 g (82.9 oz) 2,400 g (84.7 oz)

20.0 m (66 ft) 2,550 g (89.9 oz) 2,800 g (98.8 oz)

30.0 m (99 ft) 2,750 g (97.0 oz) 3,200 g (112.9 oz)

ADDITIONAL CHARGE

FULL CHARGE

AMOUNT

20 g / m (0.21 oz/ft) 40 g / m (0.43 oz/ft)

SPECIFICATIONS

TYPE COOLING COOLING & HEATING

INDOOR UNIT

ARY30FUAN ARY30UUAN

OUTDOOR UNIT

AOY30FNBWL AOY30UNBWL

COOLING CAPACITY (kW)

(kW)

8.40 8.40

HEATING CAPACITY ---- 9.50

POWER SOURCE (V)

(Hz)

230

FREQUENCY

RUNNING (A) COOLING 14.0 14.0

CURRENT HEATING ---- 12.4

INPUT WATTS (kW) COOLING 2.99 2.99

HEATING ---- 2.63

E.E.R. (kW/kW) COOLING 2.81 2.81

HEATING ---- 3.61

MOISTURE REMOVAL (/hr) 3.0

AIR CIRCULATION (m3/hr) 1,400

ELECTRICAL DATA

FAN MOTOR

COMPRESSOR

Hermetic type, 2 poles, Induced by condenser, Rotary

5JS330DAE01

(V) 230

DISCRIMINATION MFA-30PTT

INDOOR HI-SPEED ( r.p.m. ) 990

UNIT MED-SPEED ( r.p.m. ) 920

LO-SPEED ( r.p.m. ) 850

OUTDOOR

DISCRIMINATION MFB-30PTT

HI-SPEED ( r.p.m. ) 780

UNIT

LO-SPEED ( r.p.m. ) 400

WEIGHT

INDOOR UNIT NET / GROSS 43 / 50

OUTDOOR UNIT

(kg)

NET / GROSS (kg) 68 / 74 69 / 75

DIMENSIONS

INDOOR UNIT H x W x D 270 x 1,135 x 700

OUTDOOR UNIT

(mm)

H x W x D (mm) 830 x 900 x 330

FAN NOISE

High

50 dB 50 dB

Med

48 dB 48 dB

Low

45 dB 45 dB

OUTDOOR UNIT

INDOOR UNIT

- -

TYPE

DISCRIMINATION

POWER SOURCE

2005.04.27 1

Unit : mm

DIMENSIONS

INDOOR UNIT

2005.04.11 2

400

3003177900

830

370

196

147

170

650

Air Flow

2005.04.11 3

Unit : mm

OUTDOOR UNIT

: COOL

: HEAT

MUFFLER

COMPRESSOR ACCUMULATOR

STRAINER

THERMOSTAT (OUTDOOR TEMP.)

EVAPORATOR

CONDENSER

PRESSURE

CHECK VALVE

REFRIGERANT PIPE

15.88mm(5/8")

REFRIGERANT PIPE

9.52mm(3/8")

OUTDOOR UNIT INDOOR UNIT

CHARGING

VALVE

4-WAY

VALVE

CAPILLARY

TUBE

Models : ARY30FUAN / AOY30FNBWL

Models : ARY30UUAN / AOY30UNBWL

THo

THR

THPI

THo

THERMISTOR (PIPE TEMP.)

THERMISTOR (ROOM TEMP.)

THR

THPI

THERMISTOR (PIPE TEMP.)

THERMISTOR (ROOM TEMP.)

COMPRESSOR ACCUMULATOR

STRAINER STRAINER

THERMOSTAT (DISCHARGE TEMP.)

EVAPORATOR

CONDENSER

PRESSURE

CHECK VALVE

REFRIGERANT PIPE

15.88mm(5/8")

REFRIGERANT PIPE

9.52mm(3/8")

OUTDOOR UNIT INDOOR UNIT

CHARGING

VALVE

CAPILLARY

TUBE

THD

THR

THPI

THO

THD

THPO

THERMOSTAT (OUTDOOR TEMP.)

THO

THERMOSTAT (PIPE TEMP.)

THPO

REFRIGERANT SYSTEM DIAGRAM

2005.04.11 4

Models : ARY30FUAN / AOY30FNBWL

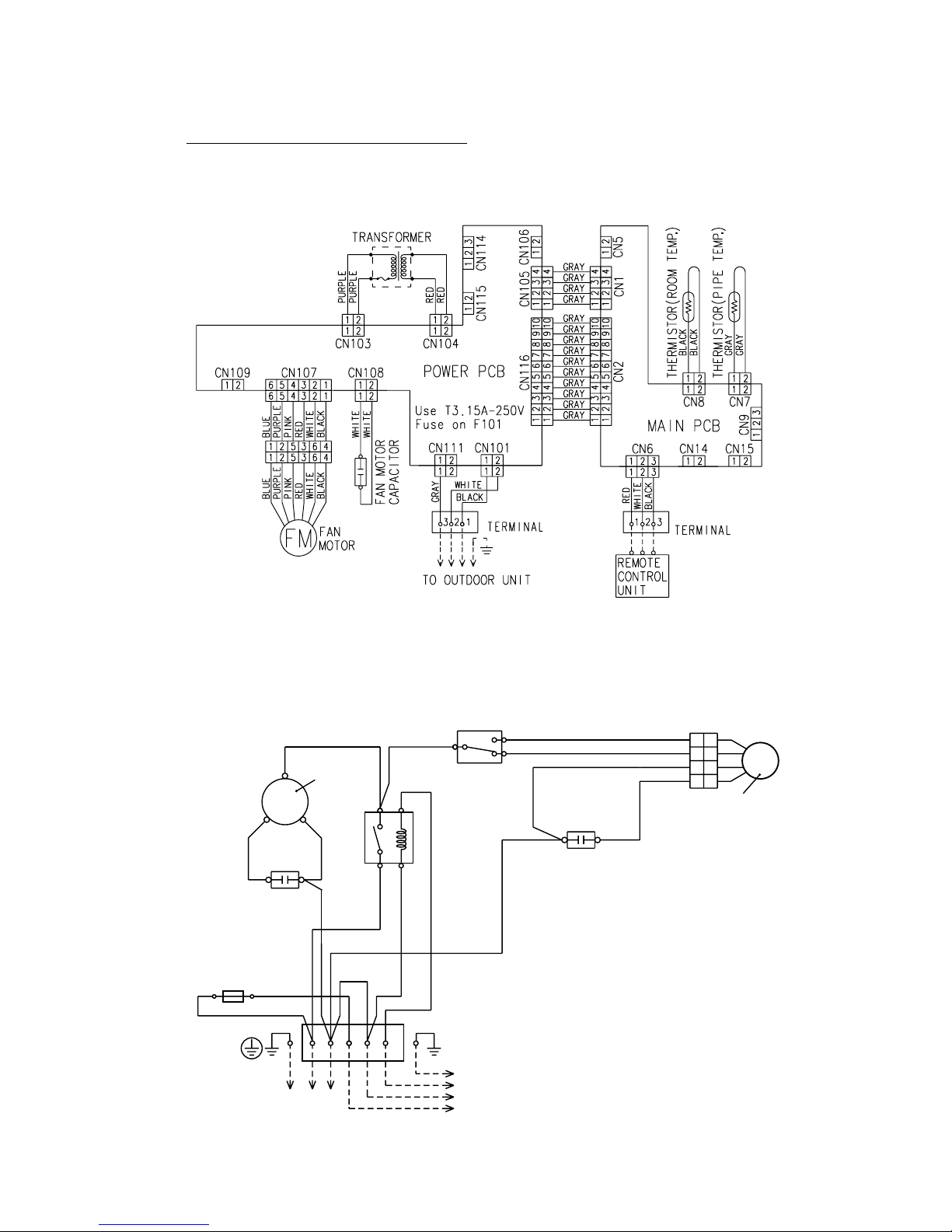

CIRCUIT DIAGRAM

C M

F M

THERMAL

PROTECTOR

TERMINAL

COMPRESSOR

INTERNAL

OVERLOAD

PROTECTOR

COMPRESSOR

CAPACITOR

FAN MOTOR

CAPACITOR

OUTDOOR

THERMOSTAT

FAN MOTOR

FUSE

TO INDDR

UNIT

TO POWER SUPPLY

RELAY

WHITE

BLACK

WHITE

BLACK

PURPLE

GRAY

BLUE

RED

WHITE

RED

BROWN

1NL 2 3

S R

1 5

4 6

1364

OUTDOOR UNIT

INDOOR UNIT

2005.04.27 5

C M

4WV

F M

PRINTED CIRCUIT BOARD

THERMAL

PROTECTOR

TERMINAL

COMPRESSOR INTERNAL

OVERLOAD

PROTECTOR

COMPRESSOR

CAPACITOR

FAN MOTOR

CAPACITOR

FAN MOTOR

FUSE

TO INDDR

UNIT

TO POWER SUPPLY

RELAY

WHITE

YELLOW

BLACK

BLACK BLACK

GRAY

BLACK

RED

WHITE

BLACK

GRAY

BLUE

RED

WHITE

RED

BROWN

1NL 2 3

S R

1 5

4 6

1364

4321

7531

OUTDOOR UNIT

INDOOR UNIT

THERMISTOR

(DISCHARGE TEMP.)

SOLENOID COIL

BELT HEATER

TRANSFORMER

THERMISTOR

(OUTDOOR TEMP.)

THERMISTOR

(PIPE TEMP.)

PURPLE

Models : ARY30UUAN / AOY30UNBWL

2005.04.28 6

5V 5V

R41 1.0K <1/10W>

C40

0.01

<F>

10/

25V

12V

7 10 2

BLACK

GRAY

VCC

VOUT

GND

SUB

3 1

5V 5V

C12

0.1

<F>

I C9

BD4742G

DAN202K

C37

0.01

<F>

C11

0.1

<F>

CSTS0500MG03-T

70 69

X1 X2

165

RESET

P03

P27

P56

P55

P54

R72

10K

<1/10W>

R80

10K

<1/10W>

R79 1.0K

<1/10W>

C10

0.1

<F>

R39

10K

<1/10W>

C36

0.01

<F>

R40 1.0K

<1/10W>

C13

0.1

<F>

I C7

BR93LC46

R45 - R47

10K <1/10W> x 3

R48 10K <1/10W>

P57

XT2

P35

P34

P33

P37

P00

P23

P24

P64

P60

P61

P62

P63

P01

I C

P120

P121

P127

P126

P125

P124

P123

P122

P14

P13

P12

P10

P11

P04

P05

P07

P15

P16

P17

P130

P131

P72

P20

VDD0

VDD1

AVRF0

AVRF1

AVSS

VSS0

VSS1

P31

P32

P53

P46

P70

P71

P51

P50

P47

P52

P45

P44

P43

P42

P41

P40

P02

P36

P30

P67

P66

P65

P21

P22

P25

P26

C27

0.1

<F>

C26

0.1

<F>

C25

0.1

<F>

C24

0.1

<F>

R21 - R24

1.0K <1/10W> x 4

5V C28 - C31

0.01 <F> x 4

14V

R33 - R36

1.0K <1/10W> x 4

10K <1/10W> x 4

R29 R30 R32R31

BZ1

R37 1.0K

<1/10W>

R38 1.0K

<1/10W>

I C3 (1/7)

uPA2003GR

12 5

K104

SSR

I NT

2 3

3 1

C21 - C23

0.1 <F>

x 3

C17 - C20

0.1 <F> x 3

+C3

0.01

<F>

100/

6.3V

14V

PC103

TLP621

<GB>

14V

12V

SW2

R15 - R17

10K <1/10W>

x 3

R18 - R20

1.0K <1/10W> x 3

SW1

14V

I C5 (7/7)

uPA2003GR

JM4

14V

I C3 (3/7)

uPA2003GR

14V

D1FS4A

DA226U

12V

14V

REMOTE CONTROL UNIT

TERMINAL BOARD

EARTH WIRE

321

UL1430 AWG22 BLACK

UL1430 AWG22 RED

UL1430 AWG22 WHITE

R43 R44

10K <1/10W> x 2

I C3 (1/7)

uPA2003GR

R71

10K

<1/10W>

R68

15.4K

<1/10W>

R69

28K

<1/10W>

R70

10K

<1/10W>

I C3 (1/7)

uPA2003GR

I C6-2

BA10393F

I C6-1

BA10393F

R67 390

<1/10W>

6 11

D I

VCC

GND

R42 47

<1/10W>

C41

1000P

<R>

C39

0.01

<F>

R50 10K

<1/10W>

R49 10K

<1/10W>

R62 - R64

10K <1/10W> x 3

R57 - R59

1.0K <1/10W> x 3

C14

0.1

<F>

C15

0.1

<F>

C16

0.1

<F>

0.1

<F>

0.1

<F>

R60 1.0K

<1/10W>

R61 1.0K

<1/10W>

14V

R65

10K

<1/10W>

R66

49.9K

<1/10W>

JM1

JM2

JM3

10K <1/10W> x 3

R3 R2 R1

R4 1.0K <1/10W>

R6 1.0K <1/10W>

R5 1.0K <1/10W>

CN8

B2B-XASK-1-A WHITE

CN7

B2B-XAKK-1-A BLACK

ROOM TEMPERATURE THERMISTOR

PIPE TEMPERATURE THERMISTOR

CN11

B5B-XASK-1-A

WHITE

LOUVER ( UP / DOWN )

CN12

B5B-XARK-1-A

RED

LOUVER ( RIGHT / LEFT )

CN13

B8B-XASK-1-A

WHITE

INDICATOR

CN6

B3B-XAKK-1-A

BLACK

CN14

B02B-PAMK-1

GREEN

FRESH AIR

HEATER

CN15

B02B-PA0K-1

ORANGE

CN9

B3B-XARK-1-A

RED

FLOAT SWITCH

FEED BACK

CN10

B3P-VH-B

WHITE

SW3

R25 - R28

10K <1/10W>

x 4

FAN CAPACITOR

10uF

440V

CN108

B2P3-VH-B-Y

YELLOW

CN3

B5P-SHF-1AA

WHITE

TEST

CN107

B6P11-VH-B

WHITE

CN109

B2P3-VH-B-E

BLUE

DRAIN PUMP

14V

CR101

120 / 0.2

K104

G5N-1A

K102

G5SB-14

DC12V

K103

G5SB-14

DC12V

K101

G5SB-14

DC12V

K108

G5N-1A

CR104

120 / 0.2

CN111

B2P3-VH-B

WHITE

1 2

CN101

B2P3-VH-B-C

BLACK

AC I N MAGNETIC

RELAY

FH101

FH102

F101

3.15A

<BET>

VA101

470V

K110

G2R-1A

DC12V

14V

K108

K103

K101

K110

K102

UL1430 AWG26 GRAY

RELAY DRIVE

CN116

B10B-PASK-1

WHITE

CN2

B10B-PASK-1

WHITE

DTC124EKA

C33

0.01

<F>

C32

0.01

<F>

R78 390

<1/10W>

R77 390

<1/10W>

11 6

16 1

110 7

C35

0.01

R73

10K

<1/10W> R74 1.0K <1/10W>

R53

10K

<1/10W>

C38

0.01

<F>

R55

10K

<1/10W> R56 1.0K <1/10W>

I C2 (1/7)

uPA2003GR

I C3 (1/7)

uPA2003GR

C34

0.01

<F>

R54 180

<1/10W>

14V

DTA143 I C4 (4/7)

uPA2003GR

I C2 (6/7)

uPA2003GR

B Z

FAN

MOTOR

OUTDOOR UNIT

2(N)

JM101

JM102

C113

0.01

R105 1.0K

<1/4W>

R106

10K

<1/4W>

D104

1SR139-600

R104 56K

<RS-1W>

PC101

TLP621

<GB>

UL1015 AWG20 WHITE

UL1015 AWG22 BLACK

UL1015 AWG22 WHITE

UL1015 AWG22 RED

UL1015 AWG22 PINK

UL1015 AWG22 PURPLE

UL1015 AWG22 BLUE

UL1015 AWG18 GRAY

UL1015 AWG18 WHITE

UL1015 AWG18 BLACK

TERMINAL BOARD

UL1015 AWG22 PURPLE

SECONDARY

PRIMARY

CN103

B2P3-VH-B-R

RED

POWER TRANSFORMER

EZ-0970WWE-T

12V

C112

0.1

<F>

C111

10/

25V

I C101

NJM7805

I C102

NJM7812

PC102

TLP621

<GB>

C114

0.01

FL102

BL02RN1

R108

330 <1/4W>

FL101

BL02RN1

14V

Q101

2SD1932

C109

10/

25V

D102

MTZJ15C

D101

D2SB20

R102

10K

<1/4W>

C107

1000

/50V

R103

1.0K

<1/2W>

C108

10/

25V

CN104

B2B-XARK-1-A

RED

JM103

UL1430 AWG22 RED

UL1430 AWG26 GRAY

CN105

B04B-PASK-1

WHITE DC SUPPLY

CN1

B04B-PASK-1

WHITE

CN114

B3B-XH-AM

WHITE

EX. I N

EX. OUT

CN115

B3B-XH-AM

WHITE

R107 330 <1/4W>

5V 12V 14V

R76 10K

<1/10W>

R75 10K

<1/10W>

CN106

B02B-PAKK-A

BLACK

EX. SIGNAL

CN5

B02B-PAKK-1

BLACK

SERIAL

CN4

B02B-PARK-1

RED

NEW SERIAL

CN16

B02B-PASK-1

WHITE

FAN CHANGER 2

FAN CHANGER 1

EX. SIGNAL FUNCTION CHANGER

AUTORESTART CHANGER

ROOM TEMP REVISE ( HEATING )

R11 - R14

10K <1/10W> x 4

R7 - R10

1.0K <1/10W> x 4

0.1

<F>

C42 - C43

0.1 <F> x 2

I C 1

uPD780058BGK

-A42-9EU-A

CONTROLLER PCB ASSEMBLY ( MAIN PCB )

K03BZ-0408WSE-C1

POWER SUPPLY PCB

K04CW-0401WSE-P0

Model : ARY30FUAN

2005.04.11 7

INDOOR PCB CIRCUIT DIAGRAM

EX. SIGNAL

CUSTOM CODE

CHANGE 2

CUSTOM CODE CHANGE 1

COMMERCIAL MODE CHANGER

FAN DELAY CHANGER (HEATING)

ROOM TEMP REVISE (COOLING)

Delay

off

+2 deg.

commercial

Function

Commercial mode

o deg.

normal

No delay

Fan delay change (heating operation)

Room temp. revise (cooling)

JP3

JP1

JP2

SW1-3 SW1-4 Wired remote controller

Remote controller custom code switching

on off

off

weekly type

EZ-09503HSE-R series

EZ-098YHSE-R series

"with thermistor" type

Wireless

B type

D type

C type

A type

SW1 & SW2

- -SW1-1 Fan changer

on off

SW Function

SW2-3

Room temp. revise (heating)SW2-1

SW1-2

SW2-2

not auto

0 deg.

pulse

auto

+4 deg.

edge

Auto restart

Ex. signal function changer

Fan changer

I C 103 H I 2002

14V

VA103

470V

K101

G2R-1A

DC12V

K101

G5SB-14

DC12V

14V

K104

G5N-1A

K102

G5SB-14

DC12V

K103

G5SB-14

DC12V

W105

SERIAL

CR101

120 / 0.2

TERMINAL BOARD

CN113

B02B-PARK-1

RED

O I

UL1430 AWG26 GRAY

K102

K110

K101

K103

K104

I NT

RELAY DRIVE

CN116

B10B-PASK-1

WHITE

CN2

B10B-PASK-1

WHITE

14V

DTC124EKA

C33

0.01

<F>

14V

I C2 (6/7)

uPA2003GR

C32

0.01

<F>

13 4

10 7

100/

6.3V

0.1

<F>

C17 - C20

0.1 <F> x 4

C21 - C23

0.1 <F> x 3

0.1

<F>

14V

R53

10K

<1/10W>

C38

0.01

<F>

R55

10K

<1/10W> R56 1.0K <1/10W>

C34

0.01

<F> I C2 (1/7)

uPA2003GR

I C3 (1/7)

uPA2003GR

C35

0.01

I C4 (4/7)

uPA2003GR

DTA143

R54 180

<1/10W>

12V

14V

SW2

R15 - R17

10K <1/10W> x 3

R18 - R20

1.0K <1/10W> x 3

C42 - C43

0.1 <F> x 2

SW1

R7 - R10

1.0K <1/10W> x 4

R11 - R14

10K <1/10W> x 4

P03

P27

RESET

P57

P54

P55

P56

XT2

P35

P34

P33

P37

P00

P01

P63

P62

P61

P60

P64

P24

P23

I C

P120

P121

P122

P123

P124

P125

P126

P127

P10

P11

P12

14V

JM4

5V 5V 5V

P14

P13

P07

P05

P04

17 P26

P25

P22

P21

P30

P67

P66

P65

P36

P02

P45

P44

P43

P42

P41

P40

P71

P51

P50

P47

P52

P70

P46

P53

P32

P31

P20

VDD0

VDD1

AVRF0

AVRF1

AVSS

VSS0

VSS1

P72

P131

P130

P17

P16

P15

710

D I

VCC

GND

C13

0.1

<F>

R39

10K

<1/10W>

C10

0.1

<F>

R79 1.0K

<1/10W>

R80

10K

<1/10W>

C11

0.1

<F>

R72

10K

<1/10W>

C12

0.1

<F>

C37

0.01

<F>

I C9

BD4742G

VCC

VOUT

GND

SUB

DAN202K

CSTS0500MG03-T

R40 1.0K <1/10W>

C36

0.01

<F>

R45 - R47

10K <1/10W> x 3

I C7

BR93LC46

R48 10K <1/10W>

14V

14V I C3 (3/7)

uPA2003GR

I C3 (1/7)

uPA2003GR

611

I C6-1

BA10393F

R67 390

<1/10W>

12V

R71

10K

<1/10W>

I C6-2

BA10393F

612V

C39

0.01

<F>

C41

1000P

<R>

R42 47

<1/10W>

12V

D1FS4A

DA226U

R68

15.4K

<1/10W>

R69

28K

<1/10W>

R70

10K

<1/10W>

10/

25V

C40

0.01

<F>

I C3 (1/7)

uPA2003GR

R49 10K

<1/10W>

R50 10K

<1/10W>

R41 1.0K <1/10W>

R43 R44

10K <1/10W> x 2

I C5 (7/7)

uPA2003GR

R62 - R64

10K <1/10W> x 3

R57 - R59

1.0K <1/10W> x 3

R73

10K

<1/10W>

R74 1.0K

<1/10W>

R75 1.0K

<1/10W>

R76 1.0K

<1/10W>

C16

0.1

<F>

C14

0.1

<F>

C15

0.1

<F>

R60 1.0K

<1/10W>

R61 1.0K

<1/10W>

R65

10K

<1/10W>

R66

49.9K

<1/10W>

14V

0.1

<F>

0.1

<F>

JM1

JM3

JM2

10K <1/10W> x 3

R3 R1

JM101

12V

C112

0.1

<F>

C111

10/

25V

I C101

NJM7805

I C102

NJM7812

PRIMARY

SECONDARY

D101

D2SB20

JM103

UL1430 AWG22 RED

R102

10K

<1/4W>

C107

1000

/50V

R103

1.0K

<1/2W>

C108

10/

25V

14V

Q101

2SC1932

+C109

10/

25V

D102 MTZJ15C

CN114

B3B-XH-AM

WHITE

5V 12V 14V

CN105

B04B-PASK-1

WHITE

CN104

B2B-XARK-1-A

RED

CN103

B2P3-VH-B-R

RED

UL1015 AWG22 VIOLET

POWER TRANSFORMER

EZ-0970WWE-T

DC SUPPLY

UL1430 AWG26 GRAY

CN1

B04B-PASK-1

WHITE

EX. I N

EX. OUT

CN115

B2B-XH-AM

WHITE

14V

FL101

BL02RN1

R107 330

<1/4W>

C114

0.01

FL102

BL02RN1

PC103

TLP621

<GB>

R108

330

<1/4W>

PC102

TLP621

<GB>

JM102

FH102

FH101

F101

3.15A

<BET>

AC I N

CN101

B2P3-VH-B-C

BLACK

1 2

UL1015 AWG18 BLACK

UL1015 AWG18 WHITE

UL1015 AWG20 RED

12 5

SW3

C24 - C27

0.1 <F> x 4

R21 - R24

1.0K <1/10W>

x 4

R25 - R28

10K <1/10W> x 4

TEST

CN3

B5P-SHF-1AA

WHITE

12123456

CN107

B6P11-VH-B

WHITE

CN108

B2P3-VH-B-Y

YELLOW

UL1015 AWG20 WHITE

UL1015 AWG22 PURPLE

UL1015 AWG22 PINK

UL1015 AWG22 RED

UL1015 AWG22 WHITE

UL1015 AWG22 BLACK

UL1015 AWG22 BLUE

1 2

CN109

B2P3-VH-B-E

BLUE

DRAIN PUMP

BZ1

R29 - R32

10K <1/10W> x 4

R33 - R36

1.0K <1/10W> x 4

C28 - C31

0.01 <F> x 4

I C3 (1/7)

uPA2003GR

R38 1.0K

<1/10W>

R37 1.0K

<1/10W>

B Z

FAN

MOTOR

FAN CAPACITOR

10.0uF

440V

2(N)

OUTDOOR UNIT

REMOTE CONTROL UNIT

EARTH WIRE

3 2 1 TERMINAL BOARD

CN10

B3P-VH-B

WHITE

FEED BACK

FLOAT SWITCH

CN9

B3B-XARK-1-A

RED

HEATER

CN15

B02B-PA0K-1

ORANGE

FRESH AIR

CN14

B02B-PAMK-1

GREEN

CN6

B3B-XAKK-1-A

BLACK

UL1430 AWG22 WHITE

UL1430 AWG22 RED

UL1430 AWG22 BLACK

DISPLAY

CN13

B8B-XASK-1-A

WHITE

CN12

B5B-XARK-1-A

RED

LOUVER (R / L )

LOUVER (U / D )

CN11

B5B-XASK-1-A

WHITE

CN8 B2B-XASK-1-A

WHITE

CN7 B2B-XAKK-1-A

BLACK

GRAY

BLACK

ROOM TEMPERATURE THERMISTOR

PIPE TEMPERATURE THERMISTOR

R4 - R6

1.0K <1/10W>

x 3

4 1

UL1430 AWG26 GRAY

EX. SIGNAL

CN106

B02B-PAKK-1

BLACK

CN5

B02B-PAKK-1

BLACK

EX. SIGNAL

SERIAL

CN4

B02B-PARK-1

RED

NEW SERIAL

CN16

B02B-PASK-1

WHITE

R77 10K

<1/10W>

R78 390

<1/10W>

I C 1

uPD780058BGK

-A42-9EU-A

CONTROLLER PCB ASSEMBLY ( MAIN PCB )

K03BZ-0409HSE-C1

POWER SUPPLY PCB

K04CW-0400HSE-P0

Model : ARY30UUAN

COMMERCIAL MODE CHANGER

FAN DELAY CHANGER (HEATING)

ROOM TEMP REVISE (COOLING)

EX. SIGNAL FUNCTION CHANGER

AUTORESTART CHANGER

ROOM TEMP REVISE ( HEATING )

FAN CHANGER 2

FAN CHANGER 1

CUSTOM CODE

CHANGE 2

CUSTOM CODE CHANGE 1

2005.04.11 8

Delay

off

+2 deg.

commercial

Function

Commercial mode

o deg.

normal

No delay

Fan delay change (heating operation)

JP3

Room temp. revise (cooling)

JP1

JP2

SW1-3 SW1-4 Wired remote controller

Remote controller custom code switching

on off

off

weekly type

EZ-09503HSE-R series

EZ-098YHSE-R series

"with thermistor" type

Wireless

B type

D type

C type

A type

SW1 & SW2

- -SW1-1 Fan changer

on off

SW Function

SW2-3

Room temp. revise (heating)SW2-1

SW1-2

SW2-2

not auto

0 deg.

pulse

auto

+4 deg.

edge

Auto restart

Ex. signal function changer

Fan changer

POWER SOURCE

230V

50Hz

POWER RELAY

EL12D1-F (M)

3.5 uF, 450V

CONTROLLER PCB ASSEMBLY ( MAIN PCB )

EZ-0028HUE-C

Model : AOY30UNBWL

OUTDOOR PCB CIRCUIT DIAGRAM

2005.04.11 9

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Fujitsu Klimaanlage Handbücher

Fujitsu

Fujitsu AIRSTAGE AJY126LELAH Bedienungsanleitung

Fujitsu

Fujitsu aoyg30lat4 Bedienungsanleitung

Fujitsu

Fujitsu AOYG36LATT Bedienungsanleitung

Fujitsu

Fujitsu AIRSTAGE ARXN18GATH Bedienungsanleitung

Fujitsu

Fujitsu AU Series A12LAL Bedienungsanleitung

Fujitsu

Fujitsu AO G12KBTB Series Betriebsanleitung

Fujitsu

Fujitsu AK series Bedienungsanleitung

Fujitsu

Fujitsu ASTA30JFC Bedienungsanleitung

Fujitsu

Fujitsu Suelo AGY40-KV Bedienungsanleitung

Fujitsu

Fujitsu ARTG45LHTB Bedienungsanleitung

Fujitsu

Fujitsu ASUH12LPAS Service-Handbuch

Fujitsu

Fujitsu ASYA18GBCH Bedienungsanleitung

Fujitsu

Fujitsu ARUX12TLAV2 Bedienungsanleitung

Fujitsu

Fujitsu Inverter Halcyon ASU9RMLQ Bedienungsanleitung

Fujitsu

Fujitsu AB Series A18LATN Original Betriebsanleitung

Fujitsu

Fujitsu AS*G07LECA Service-Handbuch

Fujitsu

Fujitsu AS G09LTCA Series Original Betriebsanleitung

Fujitsu

Fujitsu ABY14FBBJ Bedienungsanleitung

Fujitsu

Fujitsu AS*G07LECA Service-Handbuch

Fujitsu

Fujitsu AS G09LLTB-T Series Original Betriebsanleitung

Fujitsu

Fujitsu Inverter ARTG09LL Bedienungsanleitung

Fujitsu

Fujitsu ASYG09LECB Bedienungsanleitung

Fujitsu

Fujitsu AOYG60LATT Bedienungsanleitung

Fujitsu

Fujitsu ASUH15LPAS Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung

Webasto

Webasto Frigo Top 25 DS Bedienungsanleitung
