DS04-27801-1E

FUJITSU SEMICONDUCTOR

DATA SHEET

ASSP ForPowerManagementApplications(Mobile Phones)

Power Management IC

for GSM Mobile Phone

MB3891

■

■■

■DESCRIPTION

MB3891 is intended to be used in future GSM-phones, Dual Band phones and Dual Mode phones. It contains all

the necessary functions to support all Digital, Analog and RF blocks in these phones. A Charge-pump including

a Logic Level Translation circuit is built in to support SIM-card (SmartCard) of both 3 and 5 Volt technology. The

circuit contains a charger for a rechargeable Lithium coin cell of a Real Time Clock.

A complex control circuit is built in to generate main reset and to turn on and off the different LDO’s.

■

■■

■FEATURES

• Supply voltage range : 3 V to 5.5 V

• Low power consumption current during standby : 400 µA (MAX)

• 6-channel low-saturation voltage type series regulator

: 2.1 V/2 channels, 2.8 V/3 channels, 2.5 V/2.8 V switch

• Error prevention function during Low voltage

• Power on reset function

• 3 V/5 V SW for SIM-Card

• SIM interface function

• Backflow prevention function for Battery-Backup

• Temperature prevention function

■

■■

■PACKAGE

64-pin plastic LQFP

(FPT-64P-M03)

MB3891

■

■■

■PIN ASSIGNMENT

(TOP VIEW)

(FPT-64P-M03)

N.C. :49

N.C. :50

SW2-OUTPUT :51

SW2-INPUT :52

SW1-ON :53

SW2-ON :54

SW3-ON :55

CONT3 :56

CONT5 :57

OUT5 :58

GND5 :59

VBAT3 :60

VBAT3 :61

VBAT3 :62

N.C. :63

N.C. :64

N.C. :1

N.C. :2

OUT3 :3

OUT3 :4

GND3 :5

OUT2 :6

OUT2 :7

VBAT1 :8

VBAT1 :9

VBAT1 :10

VBAT1 :11

OUT1 :12

OUT1 :13

CONT1 :14

CONT6 :15

CONT2 :16

32 :GND-VSIM

31 :VCAP−

30 :VCAP+

29 :VSIMOUT

28 :OSC

27 :SIMPROG

26 :VSIM-ON

25 :VCC-VSIM

24 :REF-OUT

23 :VFIL

22 :VREF

21 :V-BACKUP

20 :VBAT2

19 :GND1

18 :DELAYCAP

17 :XPOWERGOOD

48 :SW3-INPUT

47 :SW3-OUTPUT

46 :SW1-INPUT

45 :SW1-OUTPUT

44 :CONT4

43 :VBAT4

42 :VBAT4

41 :OUT4

40 :OUT4

39 :GND4

38 :SIM-IO

37 :CLK

36 :RST

35 :µP-IO

34 :CLK-IN

33 :RESET-IN

MB3891

■

■■

■PIN DESCRIPTION

(Continued)

Pin No. Symbol I/O Descriptions

1, 2 N.C. Non connection.

3, 4 OUT3 O LDO3 output pin.

5GND3LDO3 ground pin.

6, 7 OUT2 O LDO2 output pin.

8, 9, 10, 11 VBAT1 Battery voltage input pin for LDO1 and LDO2.

12, 13 OUT1 O LDO1 output pin.

14 CONT1 I Power on input from keypad (Active low, Pulled up to VBAT2).

15 CONT6 I “CONT6” input from digital system µP (Active high).

16 CONT2 I External accessory supply voltage Enable (Active high).

17 XPOWERGOOD O Generates the main reset. (Active low, when OUT1 is out of regulation).

18 DELAYCAP Timing capacitor for XPOWERGOOD delay.

19 GND1 LDO1, LDO2, V-BACKUP, Reference and System ground pin.

20 VBAT2 Battery voltage input pin for both UVLO’s, Reference and V-BACKUP

LDO.

21 V-BACKUP O Supply voltage for Charger for rechargeable Lithium coin cell.

22 VREF O Supply voltage for Reference.

23 VFIL O Reference voltage Filter.

24 REF-OUT O Reference output voltage (Present when BACKUP UVLO is high).

25 VCC-VSIM Input voltage for charge pump. (Supplied by VBAT1).

26 VSIM-ON I VSIM supply Enable (Active high).

27 SIMPROG I VSIM programming: Low = 3 V SIM, High = 5 V SIM.

28 OSC Oscillator output pin.

29 VSIMOUT O Supply voltage for 3 or 5 V SIM-Card (SmartCard).

30 VCAP+Positive side of boost capacitor.

31 VCAP−Negative side of boost capacitor.

32 GND-VSIM 3 or 5 V SIM-Card (SmartCard) ground pin.

33 RESET-IN I Non level shifted SIM reset (µP side).

34 CLK-IN I Non level shifted clock (µP side).

35 µP-IO I/O Non level shifted bi-directional data input/output (µP side).

36 RST O Level shifted SIM reset (SmartCard side).

37 CLK O Level shifted SIM clock (SmartCard side).

38 SIM-IO I/O Level shifted bi-directional SIM data input/output (SmartCard side).

39 GND4 LDO4 ground pin.

40, 41 OUT4 O LDO4 output pin.

MB3891

(Continued)

Pin No. Symbol I/O Descriptions

42, 43 VBAT4 Supply voltage for LDO4.

44 CONT4 I OUT4 output voltage selection (“L”=2.8 V,“H”=2.5 V).

45 SW1-OUTPUT O Output of general purpose switch number 1 (Drain).

46 SW1-INPUT I Input of general purpose switch number 1 (Source).

47 SW3-OUTPUT O Output of general purpose switch number 3 (Drain).

48 SW3-INPUT I Input of general purpose switch number 3 (Source).

49, 50 N.C. Non connection.

51 SW2-OUTPUT O Output of general purpose switch number 2 (Drain).

52 SW2-INPUT I Input of general purpose switch number 2 (Source).

53 SW1-ON I General purpose switch number 1 Enable (Active high).

54 SW2-ON I General purpose switch number 2 Enable (Active high).

55 SW3-ON I General purpose switch number 3 Enable (Active high).

56 CONT3 I OUT3 and OUT4 supply voltage Enable (Active high).

57 CONT5 I OUT5 supply voltage Enable (Active high).

58 OUT5 O Output terminal of LDO5.

59 GND5 LDO5 ground pin.

60, 61, 62 VBAT3 Supply voltage for LDO and LDO5.

63, 64 N.C. Non connection.

MB3891

■

■■

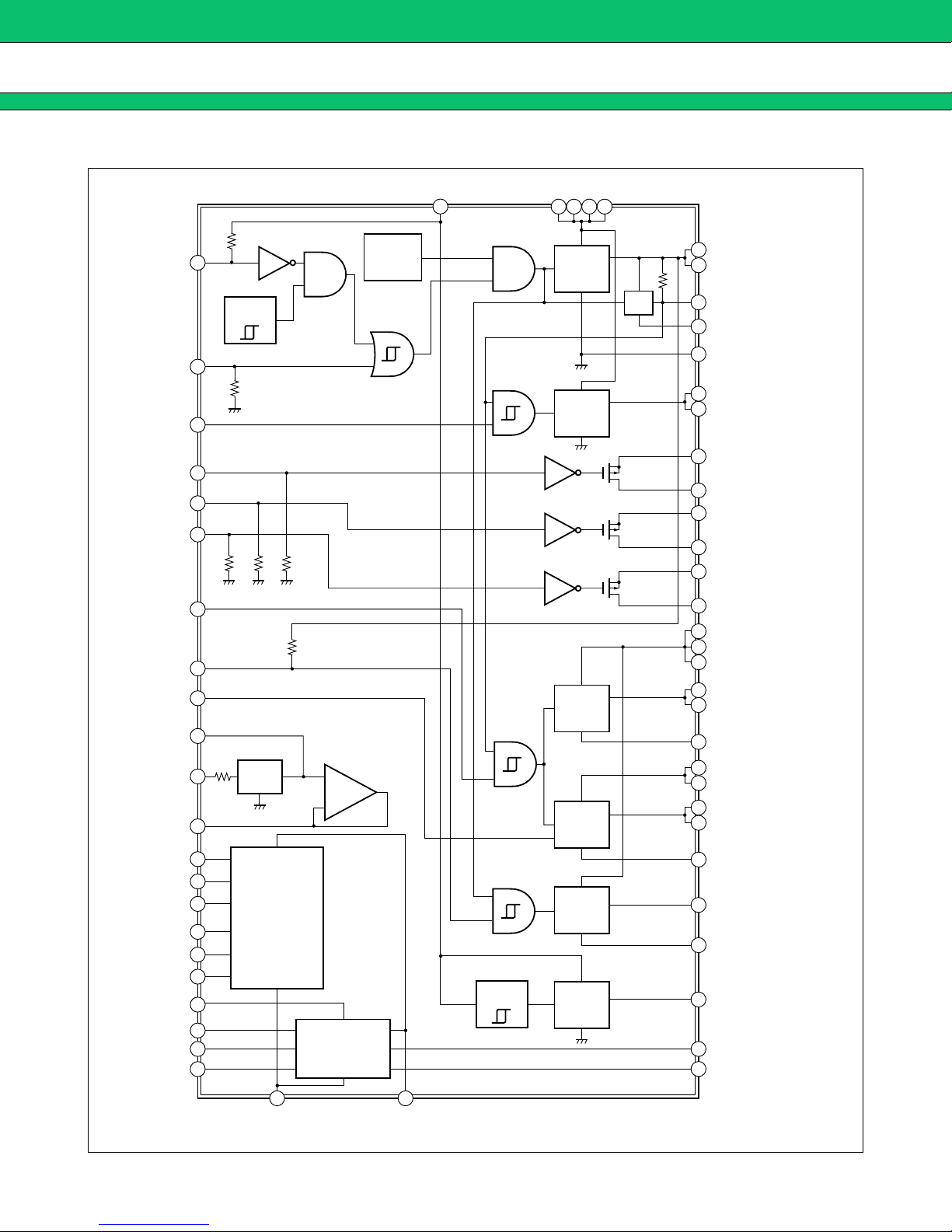

■BLOCK DIAGRAM

20 8 9 10 11

−

CONT1

CONT6

CONT2

SW1-ON

SW2-ON

SW3-ON

CONT4

VREF

RESET-IN

CLK-IN

µP-IO

RST

CLK

SIM-IO

VSIM-ON

SIMPROG

OSC

VBAT2 VBAT1

OUT1

OUT2

SW1-INPUT

SW1-OUTPUT

SW2-INPUT

SW2-OUTPUT

SW3-INPUT

SW3-OUTPUT

VBAT3

OUT3

GND3

VBAT4

OUT4

GND4

V-BACKUP

XPOWERGOOD

DELAYCAP

GND1

POR

Main

UVLO

Over

Temp

Protection

LDO1

LDO2

SW1

SW2

SW3

ON OUT

LDO3

ON OUT

LDO4

ON OUT

LDO5

ON OUT

LDO6

CONT4

BACKUP

UVLO

VREF VREF-AMP

GSM/SIM

Logic

Level

Translation

VSIMOUT

Charge-pump

CONT5

CONT3

31 VCAP−

30 VCAP+

59 GND5

58 OUT5

REF-OUT

VFIL

VCC-VSIM

VSIMOUT

GND-VSIM N.C.

Pin : 1, 2, 49, 50, 63, 64

MB3891

■

■■

■ABSOLUTE MAXIMUM RATINGS

* : The packages are mounted on the dual-sided epoxy board(10 cm ×10 cm)

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,

temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

■

■■

■RECOMMENDED OPERATING CONDITIONS

WARNING: The recommended operating conditions are required in order to ensure the normal operation of the

semiconductor device. All of the device’s electrical characteristics are warranted when the device is

operated within these ranges.

Always use semiconductor devices within their recommended operating condition ranges. Operation

outside these ranges may adversely affect reliability and could result in device failure.

No warranty is made with respect to uses, operating conditions, or combinations not represented on

the data sheet. Users considering application outside the listed conditions are advised to contact their

FUJITSU representatives beforehand.

Parameter Symbol Conditions Rating Unit

Min. Max.

Power supply voltage VBAT −0.3 7 V

VCC-VSIM −0.3 7 V

LDO regulator

IOOUT1 pin 120 mA

IOOUT2 pin 50 mA

IOOUT3 pin 100 mA

IOOUT4 pin 100 mA

IOOUT5 pin 50 mA

VSIMOUT chargepump IOVSIMOUT pin 10 mA

Power dissipation PDTa ≤+25 °C800* mW

Storage temperature Tstg −55 +125 °C

Parameter Symbol Conditions Value Unit

Min. Typ. Max.

Power supply voltage VBAT 3.0 3.6 5.5 V

VCC-VSIM 3.0 3.6 5.5 V

LDO capacitor guarantee value COOUT1 to OUT5, V-BACKUP pin 0.8 1.0 µF

REF-OUT capacitor guarantee

value COREF-OUT pin 0.027 µF

VSIMOUT capacitor guarantee

value COVSIMOUT pin 10 µF

Operating ambient temperature Ta −20 +25 +85 °C

MB3891

■

■■

■ELECTRICAL CHARACTERISTICS (Ta =+25 °C, VBAT1 to VBAT4 =VCC-VSIM =3.6 V)

* : Standard design value

(Continued)

Parameter Symbol Pin No. Conditions Value Unit

Min. Typ. Max.

General

Shutdown supply

current

IBAT1 8, 9, 10, 11,

20, 42, 43,

60, 61, 62

UVLO =“L”,

BACKUP UVLO =“L” 80 µA

IBAT2 8, 9, 10, 11,

20, 42, 43,

60, 61, 62

UVLO =“L”,

BACKUPUVLO=“H” 160 µA

Standby supply

current IBAT3 8, 9, 10, 11,

20, 42, 43,

60, 61, 62

All circuit’s = On

(No load) 400 µA

Operating ground

current IGND 4, 5, 19,

32, 59

All circuit’s -VSIM =

On Max. load on all

regulators 10 mA

UVLO threshold

voltage

VTHH 8, 9, 10, 11,

20, 42, 43,

60, 61, 62 OUT1 =ON 2.980 3.080 3.180 V

VTHL 8, 9, 10, 11,

20, 42, 43,

60, 61, 62 OUT1 =OFF 2.780 2.880 2.980 V

BACKUP UVLO

threshold voltage

VTHH 8, 9, 10, 11,

20, 42, 43,

60, 61, 62 V-BACKUP =ON 2.980 3.080 3.180 V

VTHL 8, 9, 10, 11,

20, 42, 43,

60, 61, 62 V-BACKUP =OFF 2.580 2.680 2.780 V

Input voltage

VIH 16, 56, 57 0.7 ×

OUT1 OUT1 V

VIL 16, 56, 57 00.3 ×

OUT1 V

VIH 14, 15, 44 0.7 ×

VBAT VBAT V

VIL 14, 15, 44 00.3 ×

VBAT V

VIH 26, 27 0.7 ×

VCC-VSIM VCC-VSIM V

VIL 26, 27 00.3 ×

VCC-VSIM V

Pull-up resistor RPU 17 15* kΩ

RPU 14, 57 200* kΩ

Pull-down resistor RPD 15,53,54,55 200* kΩ

MB3891

(Ta =+25 °C, VBAT1 to VBAT4 =VCC-VSIM =3.6 V)

(Continued)

Parameter Symbol Pin

No. Conditions Value Unit

Min. Typ. Max.

LDO1

(OUT1)

Output voltage VO12, 13 −50µA>OUT1>−120mA 2.000 2.100 2.200 V

Line regulation Line 12, 13 3.1 V < VBAT1 < 5.5 V 10 mV

Load reguration Load 12, 13 −50 µA>OUT1>−120mA 30 mV

Ripple rejection

∆VBAT1/∆OUT1 R.R 12, 13 f =217 Hz 45 dB

Dropout voltage VDO 12, 13 OUT1 =−120 mA 500 mV

GND current at low load IGND 19 OUT1 >−1 mA 30 µA

GND current at max. load IGND 19 OUT1 =−120 mA  2mA

Output noise volt. (RMS) VNOVL 12, 13 f =10 Hz to 1 MHz,

OUT1 =1 µF500 µV

XPOWER-

GOOD

(RESET)

Output voltage VOH 17 0.8 ×

OUT1 OUT1 V

VOL 17 00.1 ×

OUT1 V

Hold time TXPG 17 DELAYCAP =0.033 µF102540ms

LDO2

(OUT2)

Output voltage VO6, 7 −50 µA >OUT2 >−50 mA 2.700 2.800 2.900 V

Line regulation Line 6, 7 3.1 V < VBAT1 < 5.5 V 10 mV

Load regulation Load 6, 7 −50 µA >OUT2 >−50 mA 30 mV

Ripple rejection

∆VBAT1/∆OUT2 R.R 6, 7 f =217 Hz 45 dB

Dropout voltage VDO 6, 7 OUT2 =−50 mA 250 mV

GND current at low load IGND 19 OUT2 >−1 mA 30 µA

GND current at max. load IGND 19 OUT2 =−50 mA  1mA

Output noise volt. (RMS) VNOVL 6, 7 f =10 Hz to 1 MHz,

OUT2 =1 µF350 µV

General

purpose

switches Input/Output resistance

RSW1 45, 46 SW1-INPUT =2.8 V

(Gate/Source =2.8 V) 4.0 Ω

RSW2 51, 52 SW2-INPUT =2.8 V

(Gate/Source =2.8 V) 7.0 Ω

RSW3 47, 48 SW3-INPUT =2.8 V

(Gate/Source =2.8 V) 7.0 Ω

MB3891

(Ta =+25 °C, VBAT1 to VBAT4 =VCC-VSIM =3.6 V)

(Continued)

Parameter Symbol Pin No. Conditions Value Unit

Min. Typ. Max.

LDO3

(OUT3)

Output voltage VO3, 4 −50 µA >OUT3 >−100 mA 2.700 2.800 2.900 V

Line regulation Line 3, 4 3.1 V < VBAT3 < 5.5 V 10 mV

Load regulation Load 3, 4 −50 µA >OUT3 >−100 mA 30 mV

Ripple rejection

∆VBAT3/∆OUT3 R.R 3, 4 f =217 Hz 45 dB

Dropout voltage VDO 3, 4 OUT3 =−100 mA 250 mV

GND current at low load IGND 5OUT3>−1 mA 30 µA

GND current at max.

load IGND 5OUT3=−100 mA  2mA

Output noise volt. (RMS) VNOVL 3, 4 f =10 Hz to 1 MHz,

OUT3 =1 µF350 µV

LDO4

(OUT4)

Output voltage VO40, 41 −50µA>OUT4>−100mA,

CONT4 =“L” 2.700 2.800 2.900 V

VO40, 41 −50µA>OUT4>−100mA,

CONT4 =“H” 2.400 2.500 2.600 V

Line regulation Line 40, 41 3.1 V < VBAT4 < 5.5 V 10 mV

Load regulation Load 40, 41 −50 µA >OUT4 >−100 mA 30 mV

Ripple rejection

∆VBAT4 - OUT4/∆OUT4 R.R 40, 41 f =217 Hz 45 dB

Dropout voltage VDO 40, 41 OUT4 =−100 mA 250 mV

GND current at low load IGND 39 OUT4 >−1 mA 30 µA

GND current at max.

load IGND 39 OUT4 =−100 mA  2mA

Output noise volt. (RMS) VNOVL 40, 41 f =10 Hz to 1 MHz,

OUT4 =1 µF500 µV

LDO5

(OUT5)

Output voltage VO58 −50 µA >OUT5 >−50 mA 2.700 2.800 2.900 V

Line regulation Line 58 3.1 V < VBAT3 < 5.5 V 10 mV

Load regulation Load 58 −50 µA >OUT5 >−50 mA 30 mV

Ripple rejection

∆VBAT3/∆OUT5 R.R 58 f =217 Hz 45 dB

Dropout voltage VDO 58 OUT5 =−50 mA 250 mV

GND current at low load IGND 59 OUT5 >−500 µA20 µA

GND current at max.

load IGND 59 OUT5 =−50 mA  1mA

Output noise volt. (RMS) VNOVL 58 f =10 Hz to 1 MHz,

OUT5 =1 µF350 µV

MB3891

(Ta =+25 °C, VBAT1 to VBAT4 =VCC-VSIM =3.6 V)

(Continued)

Parameter Symbol Pin No. Conditions Value Unit

Min. Typ. Max.

LDO6

(V-BACKUP)

Output voltage VO21 −10 µA >V-BACKUP

>−250 µA2.000 2.100 2.200 V

Line regulation Line 21 3.1 V < VBAT2 < 5.5 V 10 mV

Load regulation Load 21 −10 µA >V-BACKUP

>−250 µA30 mV

Ripple rejection

∆VBAT2/

∆V-BACKUP R.R 21 f =217 Hz 25 dB

GND current at

low load IGND 19 V-BACKUP >−10 µA10 µA

GND current at

max. load IGND 19 V-BACKUP =−250 µA50 µA

Output noise volt.

(RMS) VNOVL 21 f =10 Hz to 1 MHz,

V-BACKUP =1 µF500 µV

Reverse current IRC 21 VBAT2 =0 V,

V-BACKUP =3.0 V 100 nA

REF-OUT

Output voltage VO24 0 µA >REF-OUT >−50 µA 1.200 1.225 1.250 V

Line regulation Line 24 3.1 V < VBAT2 < 5.5 V 10 mV

Load regulation Load 24 0 µA >REF-OUT >−50 µA 6mV

Ripple rejection

∆VBAT2/

∆REF-OUT R.R 24 f =217 Hz 50 dB

Output noise volt.

(RMS) VNOVL 24 f =10 Hz to 1 MHz,

REF-OUT =27 nF 250 µV

VSIMOUT

chargepump

Output voltage VO29 −50µA>VSIMOUT>−10mA,

SIMPROG =“H” 4.600 5.000 5.400 V

VO29 −50µA>VSIMOUT>−10mA,

SIMPROG =“L” 2.760 3.000 3.240 V

Line regulation Line 29 3.1 V < VCC-VSIM < 5.5 V 50 mV

Load regulation Load 29 −50 µA >VSIMOUT >−10 mA 100 mV

Inhaltsverzeichnis

Andere Fujitsu Handy-Zubehör Handbücher

Fujitsu

Fujitsu T-5000 Bedienungsanleitung

Beliebte Handy-Zubehör Handbücher anderer Marken

Valore

Valore AC14 Bedienungsanleitung

X-cam

X-cam X-CAM T3 Bedienungsanleitung

Nokia

Nokia AD-5B Bedienungsanleitung

Bauhn

Bauhn ABSS-1222 Bedienungsanleitung

ReSound

ReSound Phone Clip+ Bedienungsanleitung

Mpow

Mpow ISNAP X1 Bedienungsanleitung

Zartek Mobile

Zartek Mobile ZA-350 Bedienungsanleitung

Playbrush

Playbrush Playbrush Bedienungsanleitung

Sony

Sony SCR44 Bedienungsanleitung

Nautilus

Nautilus V5 Bedienungsanleitung

BigPantha

BigPantha Phone Mount Bedienungsanleitung

PRYME Radio Product

PRYME Radio Product PRYMEBLU BT-PTT-M Bedienungsanleitung

Nokia

Nokia CR-119 Bedienungsanleitung

weBoost

weBoost eqo Bedienungsanleitung

Rollei

Rollei LUMIS Bedienungsanleitung

Morphie

Morphie Juice Pack Helium Bedienungsanleitung

Lenovo

Lenovo SS100 Bedienungsanleitung

Philips

Philips DLA4214 Bedienungsanleitung
