Retail Platform Software Support
TeamPoS® 36xx
ATI Video Card Installation
Issue 1.02
June 14, 20010
Status: Release
Channels: ALL
Author: DJ
TeamPoS® 36xx
ATI R70PCI Video Card Installation
Copyright © 2010 Fujitsu Frontech North America, Inc.
TeamPoS36xx ATI Video Card Installation 2
Table of Contents
1. Overview..................................................................................................................3
2. ATI Adapter Installation and Initial Setup.................................................................3
3. VGA & DVI Dual Displays ........................................................................................6
4. Dual VGA Displays...................................................................................................7
5. Uninstalling Driver....................................................................................................8
6. Troubleshooting Tips................................................................................................8
TeamPoS36xx ATI Video Card Installation 3
1. Overview
This document addresses the steps necessary to install and setup the TeamPoS36xx
add-in ATI Video Adapter Card, which is necessary if multi-display use is
desired.
Note: This card cannot be used with Windows 7 –there are no
drivers available.
2. ATI Adapter Installation and Initial Setup
Install the ATI Video Adapter in the available TeamPoS36xx PCI slot.
Connect display (s) to the ATI Adapter connectors. The ATI Adapter supplies VGA and
DVI connectors.
Start the system and enter BIOS Setup pressing the DEL key when prompted during
power-up POST sequence.

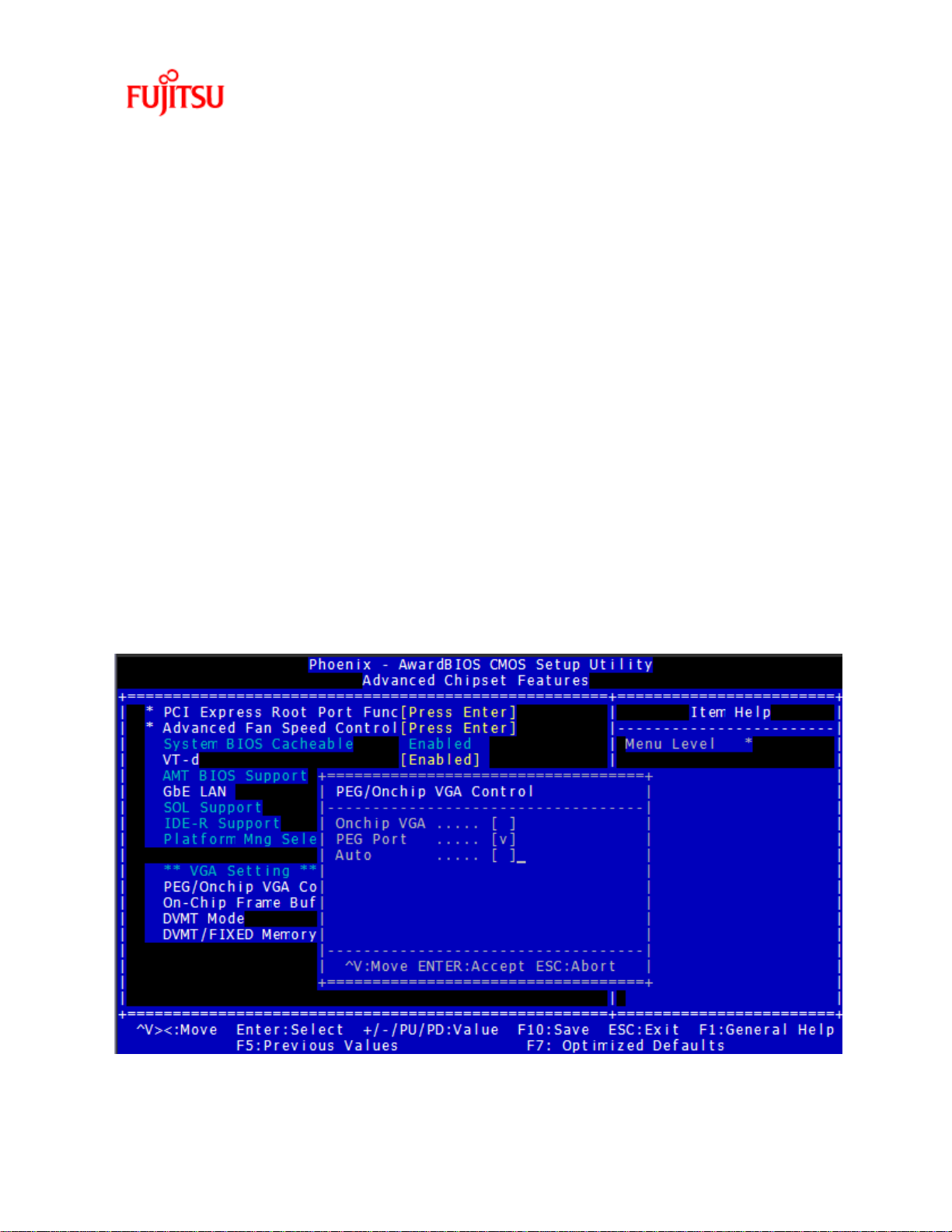

On the Advanced Chipset Features screen, set the PEG/Onchip VGA Control setting
to PEG Port.
Save BIOS settings and exit BIOS setup.
TeamPoS36xx ATI Video Card Installation 4
After starting Windows, the ATI Display Adapter may appear properly configured in
Device Manager.
However, a special driver version is required. Install the special driver by running
setup.exe found in the support folder (see below).
Note: The driver must be installed before restarting Windows after installing the
video card, or restoring the system from a recovery DVD with the video card
already installed.
TeamPoS36xx ATI Video Card Installation 5
Run Setup.exe in the following folder:
C:\TeamPoS36xx_Software_Support\ATI Video Card Driver\ \Driver
Now Windows can be restarted.
Note: that during start-up the screens may flash as the hardware is being detected. If
the system hangs during the initial boot-up press the reset button and continue.
Run “AtiCimUn.exe” from the
"\Software_Support\TeamPoS36xx_Software_Support\ATI Video Card Driver” folder.
Restart the system and let the terminal discover new hardware.
Cancel the “Found New Hardware” pop-up for the “Video Controller (VGA Compatible)”
card.
From the "\Software_Support\TeamPoS36xx_Software_Support\ATI Video Card
Driver\Driver" folder run “setup.exe” (again).
Restart the system.
TeamPoS36xx ATI Video Card Installation 6
3. VGA & DVI Dual Displays
The system will start in Clone-Mode. To change the mode to Extended, use the
Windows Display/Settings applet to enable monitor 2 for extended Windows desktop.
Note: The ATI Video Adapter will always use the DVI monitor as the primary device.
TeamPoS36xx ATI Video Card Installation 7
4. Dual VGA Displays
If two VGA displays are desired, one must be connected to the TeamPoS36xx on-board
VGA connection, and the second to the ATI Display Adapter.
For this configuration, BIOS must be changed to:
On the Advanced Chipset Features screen, set the PEG/Onchip VGA Control setting
to Auto.
Configure the dual-displays as desired with the Windows Display/Settings applet.
TeamPoS36xx ATI Video Card Installation 8
5. Uninstalling Driver
Note: Before removing the ATI video card, you must insure that the BIOS
PEG/Onchip setting is “Auto”. Otherwise you will not be able to use the onboard
VGA video port, and will have no display device.
On the Advanced Chipset Features screen, set the PEG/Onchip VGA Control setting
to Auto.
From the "\Software_Support\TeamPoS36xx_Software_Support\ATI Video Card Driver”,
run “AtiCimUn.exe”.
Shutdown the system and remove the video card (Important: see BIOS note above).
Restart the system.
6. Troubleshooting Tips
If problems are encountered after following this install procedure –Run “AtiCimUn.exe”
from the "\Software_Support\TeamPoS36xx_Software_Support\ATI Video Card Driver”
folder. Restart Windows and repeat the complete install procedure.
