■FEATURES

• USB peripherals connected to front USB ports.

• Between 2 PCs, user can transfer file data by USB link.

• Stable Switching allows simultaneous system start-up

• Supports DOS/V and Mac with USB function, also supports

connection of a Notebook PC

• Mac dedicated key input by PS/2 keyboard is possible

• 2 PCs can share one set of speakers

• Mini- tower console conserves desktop space

• Supports machines: PC, Mac (USB model)

OS: Win®95*/98/Me/NT*/2000/XP

Mac OS 9.2 and later, Linux**

Note: *: USB ports do not work on Win®95/NT

**: USB link does not support Mac, Linux

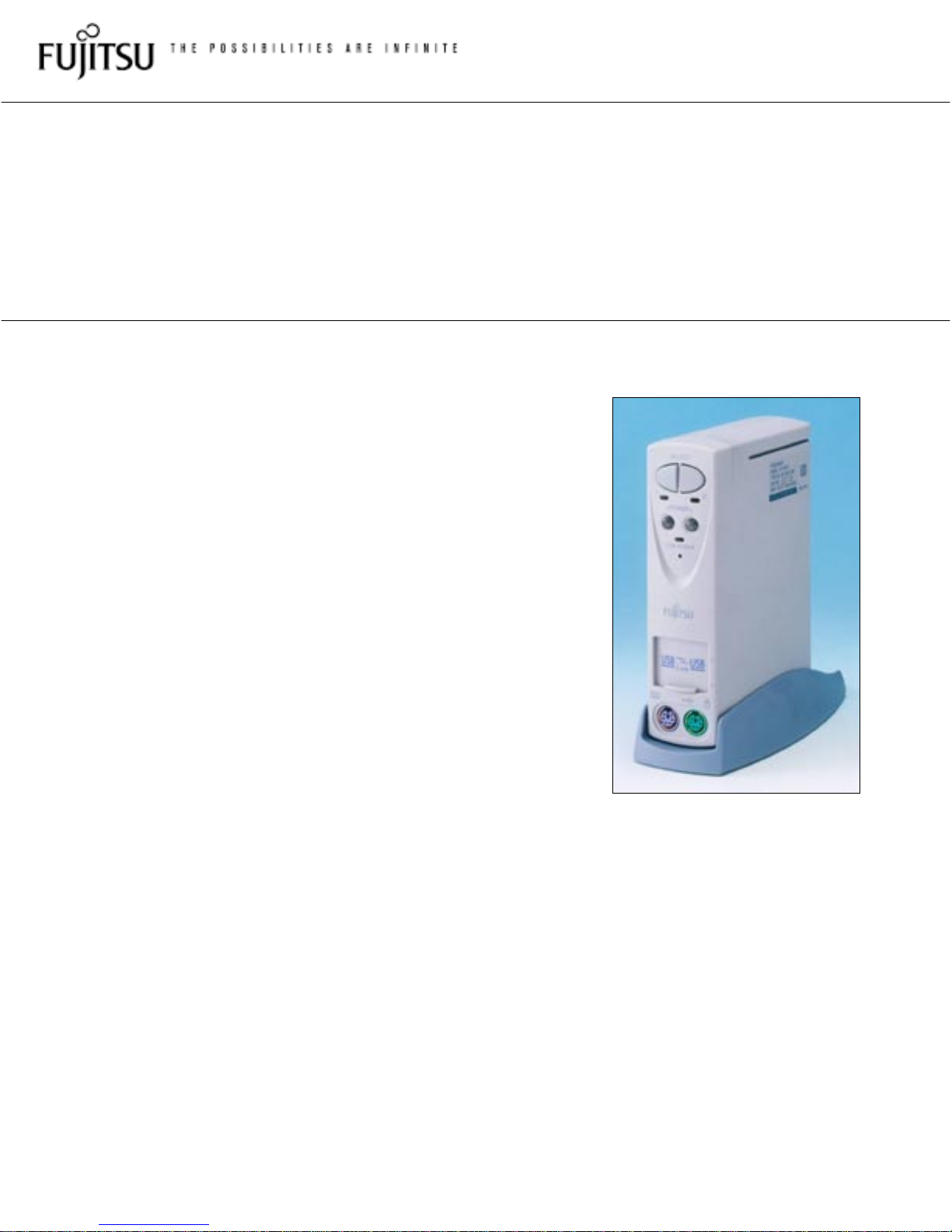

PC/USB KVM Switch

SERVIS TM Series

2-Port FS-102ATL

Fujitsu's SERVIS-KVM switch series provides users with a

compact, space saving device that enables stable switching

between host systems. The FS-CutterATL adds a USB link

function to the series to allow high-speed data transmis-

sions between two PCs using network protocol (TCP/IP).

Sharing peripherals, such as printers or storage equipment

(CD, MO, FD), between two PCs is possible via front USB

ports. In addition, audio ports allow switching between a set

of speakers.

KVM Switch/PC/USB - FS-102ATL Series - PC/USB Interface

■SPECIFICTIONS

smetIsnoitacificepS

ledoM)hctiwSAMVK(LTA201-SF

senihcaMdetroppuS )BSU(hsotnicaM,elbitapmocTA/CP

stroP2.xaM

dohteMnoitceleS )edomyektoh(draobyeK,nottubtceleS

noitacidnIDEL 1xrewoPwoL,2xtceleS,2xrewoP

troPelosnoC

draobyeK1xelamefP6NIDiniM,2/SP

esuoM1xelamefP6NIDiniM,2/SP

rotinoM1xelamef51BUS-DiniM

rekaepS )rekaepspmalanretniottcennoc(1xkcajtuOeniloiduA

troPtsoHesuoM/draobyeK2xelamefP6NIDiniM,2/SP

rotinoM2xelamefP51BUS-DiniM

rekaepS)skcajtuOenilCPottcennoc(2xkcajnIeniloiduA

BSU2xelamef,"B"seireS

tropBUH )trop/Am005(,2xelamef,"A"seireS

htdiwdnaB/noituloseRrotinoMzHM002/0021x0061

CAlaiceps(ylppuSrewoPlanretxE

)retpada CPfotropesuoMdnaBKmorfdeilppus%5±CDV5

noitpmusnoCrewoPAm051.xaM

tnemnorivnEnoitarepOHR%09,C˚04-0

erutarepmeTegarotS )dewollatonnoitasnednoc(C˚06+otC˚02-

erutcurtS )dewollatonnoitasnednoc(erusolcnecitsalpdedloM

)g(thgieW/)mm(snoisnemiD

)selbacgnidulcxe( g083/mmH6.93xD511xH841

■CONNECTION SCHEMES

Single UnitDaisy Chain

Slave

Master

KVM Switch/PC/USB - FS-102ATL Series - PC/USB Interface

Select Switch

Press to select the host. PCs with POWER LEDs out can

also be selected if power is being supplied to the switch

device (one or more hosts are ON).

Select LED

Illuminates when this PC is selected

Power LED

Illuminates when the host is ON.

Low Power LED

Switch devices which monitors whether or not the power

voltage is normal. Connect the special AC adapter when

LED light is illuminated.

Reset Switch

Usually, switch is not used. Use the switch when selection

is impossible or keyboard or mouse cannot be operated.

Gently push switch with tip of pointed object.

Pressing switch returns the switch device to its initial state,

and host can be restored without being rebooted.

DIP Switch

Used to set the Hot Key and key layout of the attached

keyboard

HUB port connector

Connector to connect USB devices

Mouse connector

Connects mouse to switch

Keyboard connector

Connects Keyboard to switch

Keyboard/Mouse connector

Connect to Keyboard or Mouse (PS/2) KB/Mouse ports

with special cable

Monitor connector

Connect this to monitor port on the host with the special

cable.

USB connector

Connect this to the USB port on the host with the special

cable

Audio connector IN1

Connects to PC's Line Out jack. (Do not connect to PC's

speaker Out jack).

Audio connector IN2

Connects to PC's Line Out jack. (Do not connect to PC's

speaker Out jack).

Audio connector Out

Connects to speaker

Monitor connector (console)

Connects Monitor

DC 5v connector

AC-powered adapter connector

■FUNTIONAL DESCRIPTION

KVM Switch/PC/USB - FS-102ATL Series - PC/USB Interface

marks of their respective owners. Rev. 1/14/2001
