EN INSTALLATION INSTRUCTIONS

FR INSTRUCTIONS D’INSTALLATION

ES INSTRUCCIONES DE INSTALLACIÓN

PROFESSIONAL GAS

COOKTOP

PLAQUE DE CUISSON GAZ

PROFESSIONNELLE

PLACA DE COCCIÓN

PROFESIONAL DE GAS

Dear Customer,

Thank you for purchasing a Fulgor Milano product. Fulgor Milano is

committed to excellence and our signature technologies provide you with

professional tools for your kitchen. One of our central philosophies is

continuous investment in research that is rooted in developing life enhancing

technology. Our goal is to deliver products that are worthy of your family

recipes and that will breathe life into your kitchen, the heart of your home.

We invite you to enjoy your new Fulgor Milano product with same amount

of care and attention that we have put into creating it.

Your Life | Our Passion

TABLE OF CONTENTS PAGE

1 - Special Warnings 2

Before Starting Installation 2

Cooktop Installed over Oven Installation 2

2 - Product Dimensions and Cutout Requirements 3

Important Preparation Suggestions 3

Mobile Home Installation 6

3 - Cooktop Installation 7

4 - Gas Requirement 9

Gas Connection 10

Pressure Testing 12

Pressure Test Method 12

5 - Electrical Requirements 13

General Information 13

Electrical Connection 13

Electrical Requirements 13

6 - Conversion for LP or NG Gas 15

Converting Appliance for Use with LP Gas 15

Replace injector on (one ring ﬂame or stacked

burners) 15

Replace injectors on (two rings ﬂame burner) 15

Converting Appliances for Use with NG Gas 16

Pressure regulator conversion 16

Injectors position 17

Low Flame Adjustment 19

Electric gas ignition 20

The Burner Flames 20

IMPORTANT: Save these instructions for the local electrical

inspector use.

INSTALLER: Please leave this manual with owner for future

reference.

OWNER: Please keep this manual for future reference.

Pay attention to these symbols present in this manual:

DANGER

You can be killed or seriously injured if you don’t

IMMEDIATELY follow instructions.

WARNING

• This is the safety alert symbol. This symbol alerts you to

potential hazards that can kill or hurt you and others.

• You can be killed or seriously injured if you don’t follow

these instructions.

READ AND SAVE THESE INSTRUCTIONS.

To installer:

Leave these instructions with the appliance.

To customer:

Retain these instructions for future reference.

WARNING

• If the information in this manual is not followed exactly,

a ﬁre or explosion may result in personal injury or

death.

• Do not store or use gasoline or other ﬂammable

vapours and liquids in the vicinity of this or any other

appliance.

1 - Special Warnings

IMPORTANT

Please read all instructions before using this appliance.

Proper installation is your responsibility. Have a qualiﬁed technician install this cooktop.

IMPORTANT

• Observe all governing codes and ordinances.

• Write down the model and serial numbers before

installing the cook top. Both numbers are on the serial

rating plate located on bottom of cooktop box.

Before Starting Installation

• Check location where cooktop will be installed. The

location should be away from strong drafty areas, such

as windows, doors and strong heating vents or fans.

• Electrical grounding is required. See “Electrical

Requirements”

• Assure that electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA

70 - latest edition**, or Canadian Electrical Code, part

1 C22.1 (latest edition)*** and all local codes and

ordinances.

• Assure that gas connection conforms with local codes and

ordinances. In the absence of local codes, installations

must conform with American National Standard, National

Fuel Gas Code ANSI Z223/NFPA 54 - latest edition**

The Natural Gas and Propane Installation Code, CSA

149.1 or CSA B149.2 latest edition***.

Copies of the standards listed may be obtained from:

** National Fire Protection Association One Batterymarch

Park Quincy, Massachusetts 02269

*** CSA International 8501 East Pleasant Valley Rd.

Cleveland, OH 44131-5575

NOTE: This cooktop is manufactured for use with Natural

gas or Propane.

To convert to LP (propane) or NG (natural gas),

see instruction in the gas conversion kit provided

in literature package. Proper gas supply connection

must be available. See gas supply requirements.

WARNING

BEFORE CONNECTING THE APPLIANCE ON THE

GAS LINE SUPPLY, ENSURE THAT ITS GAS SETTING IS

APPROPRIATE.

THE TYPE OF GAS ADJUSTED AND SHIPPED FROM

THE FACTORY IS INDICATED ON THE RATING PLATE

LOCATED ON BOTTOM OF THE BURNER BOX.

Cooktop Installed over Oven Installation

Only certain speciﬁed cooktop and oven models are

approved for cooktop over oven installations.

Cooktops approved for this type of installation will have an

approval label located on the outside of the burner box.

If you do not ﬁnd this label, contact your dealer to conﬁrm

that cooktop is approved.

The label on the bottom of your cooktop lists the cooktop

and oven combinations that are approved for this type of

installation.

2 - Product Dimensions and Cutout Requirements

Important Preparation Suggestions

1. Chamfer all exposed edges of decorative laminate to prevent damage from chipping.

2. Radius corners of cutout and ﬁle to Insure smooth edges and prevent corner cracking. Recommend 1/4”or 3/8” diameter drill

In each corner.

3. Rough edges, inside corners which have not been rounded and forced ﬁts can contribute to cracking of the countertop

laminate.

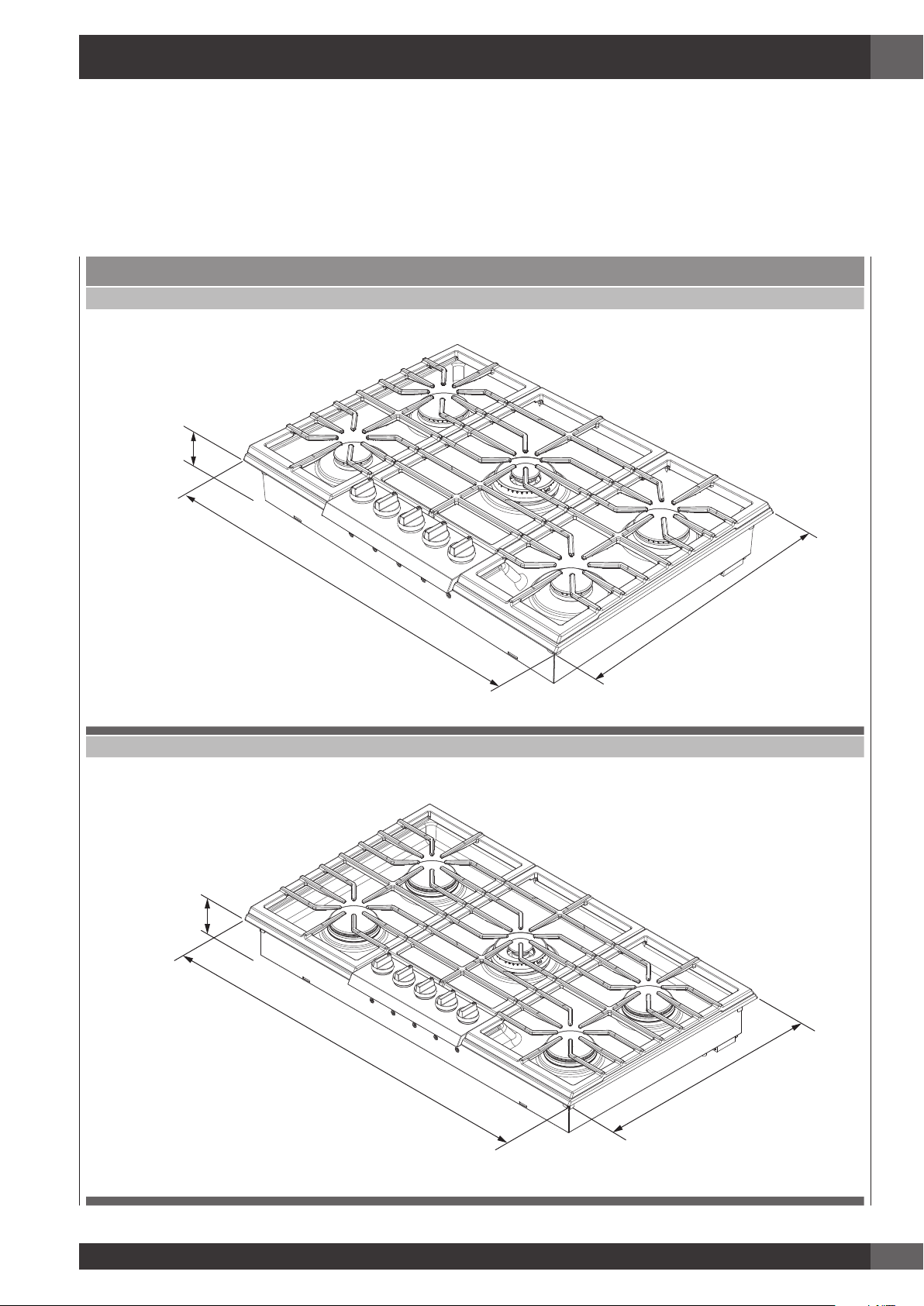

PRODUCT DIMENSIONS

30”

30” (762)

21” (533)

3 - 7/16”

(87)

36”

36” (914)

3 - 7/16”

(87)

21” (533)

5 - 11/16 “ (14,4 cm)

7 - 5/8 “ (19,3 cm)

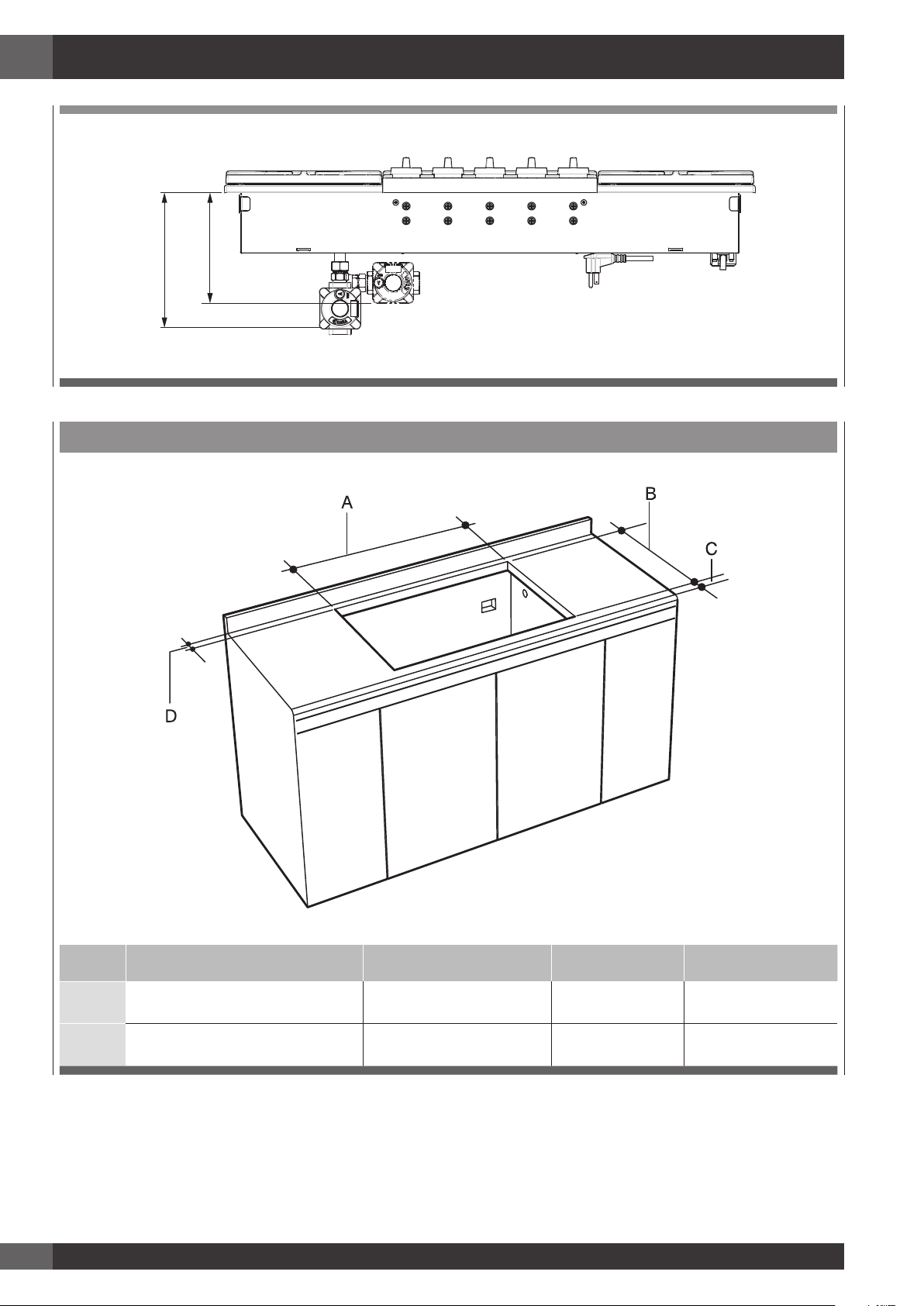

COUTOUT DIMENSIONS

CUT OUT

WIDTH A B C D

30” MIN 28-1/2 [72.4 cm]

MAX 28-11/16” [72.9 cm] MIN 19-9/16” [49.7 cm]

MAX 19-3/4” [50.2 cm] MIN 2” (5.0 cm) MIN 3 1/2” (9.0 cm)

36” MIN 34-1/2” [87.6 cm]

MAX 34-11/16 ” [88.1 cm] MIN 19-9/16” [49.7 cm]

MAX 19-3/4” [50.2 cm] MIN 2” (5.0 cm) MIN 3 1/2” (9.0 cm)

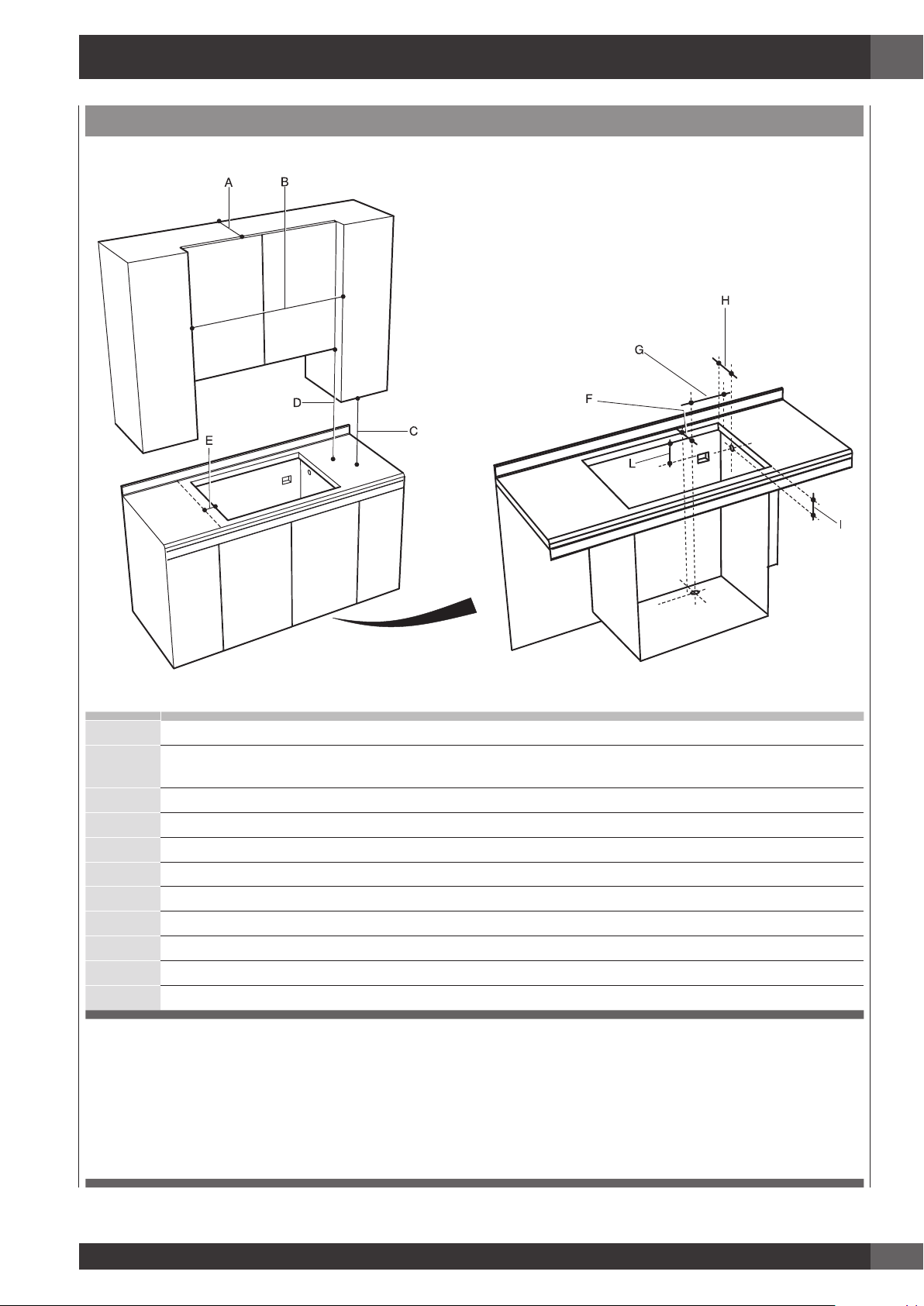

CUTOUT REQUIREMENTS

A13” (33 cm) Depth of unprotected overhead cabinets.

B30” (76.2 cm) MIN. (Model 30“).

36” (91.4 cm) MIN. (Model 36”).

C18” (47.7 cm) MIN. Height from countertop to nearest cabinet on either side of unit.

D36” (91 cm ) MIN. (see Note* Clearance from countertop to unprotected overhead surface. )

E5” (12.7 cm) min Clearance from cut out to side wall on the left and right of the unit.

FFrom the back corner of cut-out to hole center 2-9/32” (5.8 cm).

GFrom the right corner of cut-out to hole center 2-19/32” (6.6 cm).

HFrom the back corner of cut-out to hole center 1-1/4” (3.2 cm). Opening with oven under cooktop.

IFrom the top of countertop to hole center 5-1/8” (12.9 cm). Opening with oven under cooktop.

LElectric outlet from bottom of counter top and adjacent to the cabinet side 12” (30.5 cm).

-Hole 1-1/5” (3 cm).

* NOTE:

- If cabinet has a drawer, a 5-1/4”(13,35 cm) depth clearance from the top of the countertop to the top of the drawer (or

other obstruction) in base cabinet is required. The drawer depth may need to be shortened to avoid interfering with the

regulator.

- 24” (61 cm) min. clearance if bottom of wood or metal cabinets is protected by not less than 1/4” (0.6 cm) ame

retardant millboard covered with not less than No. 28 MSG sheet steel 0.015” (0.04 cm) stainless steel, or 0.024”

(0.06 cm) aluminium or 0.020” (0.05 cm) copper. 30” (76.2 cm) min. clearance between top of cooking platform and

bottom of unprotected wood or metal cabinet.

We recommend to that you consider the minimum dimension

of cut-out size in the case of new installation.

WARNING

The appliance should not be installed with a ventilation

system that blows air downward toward the range.

This type of ventilation system may cause ignition and

combustion problems with the gas cooking appliance

resulting in personal injury or unintended operation.

Mobile Home Installation

The installation of this cooktop must conform to the

Manufactured Home Construction and Safety Standards,

Title 24 CFR, Part 3280 (formerly the Federal Standard for

Mobile Home Construction and Safety;

Title 24 HUD part 280); or when such standard is

not applicable, the Standard for Manufactured Home

Installations (Manufactured Home Sites, Communities and

Setups), ANSI A225.1 - latest edition, or with local codes.

In Canada, the installation of this cooktop must conform

with the current standards CAN/CSA-Z240 - latest edition,

or with local codes.

IMPORTANT

• For solid surface material installations such as Surel™

and Corian®, consult with solid surface manufacturer.

Apply heat reﬂective tape such as Scotch® Aluminum

Foil Tape #425 or #427 around the cutout so that it

folds over on the top and sides.

• DO NOT WRAP THE TAPE UNDERNEATH THE

COOKTOP.

• Be sure the tape extends beyond the outermost ﬂange

of the cooktop. All corners should be covered with

tape.

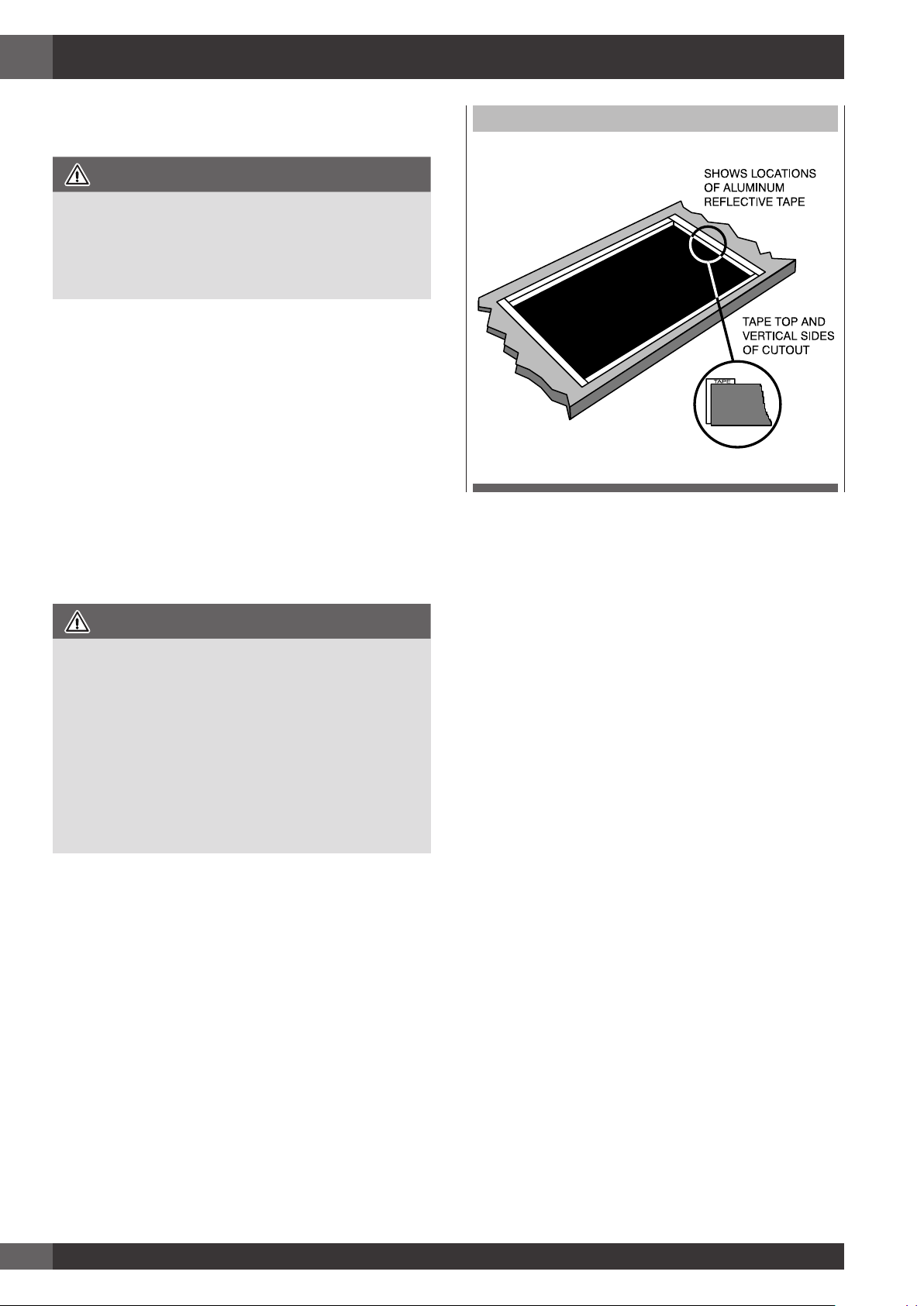

SOLID SURFACE COUNTERTOP INSTALLATION
