Getting Started

• Plan where you will mount each receiver and transmitter.

• Avoid transmitting along a length of wall, sharp angles and large obstructions.

• Avoid mounting inside a metal enclosure.

• Typical range is 100’ line of sight.

• Link devices to each other before installing. See linking instructions (per application) on following pages.

• All FDLR products must be powered during Link.

• PHC Gateway Controller can also link with an FDLR product and be bi-directional.

• Relay state at power-up can be set to ON, OFF, or LAST STATE (default).

• Each FDLR product can be Linked to up to 30 transmitters of any combination.

page 1

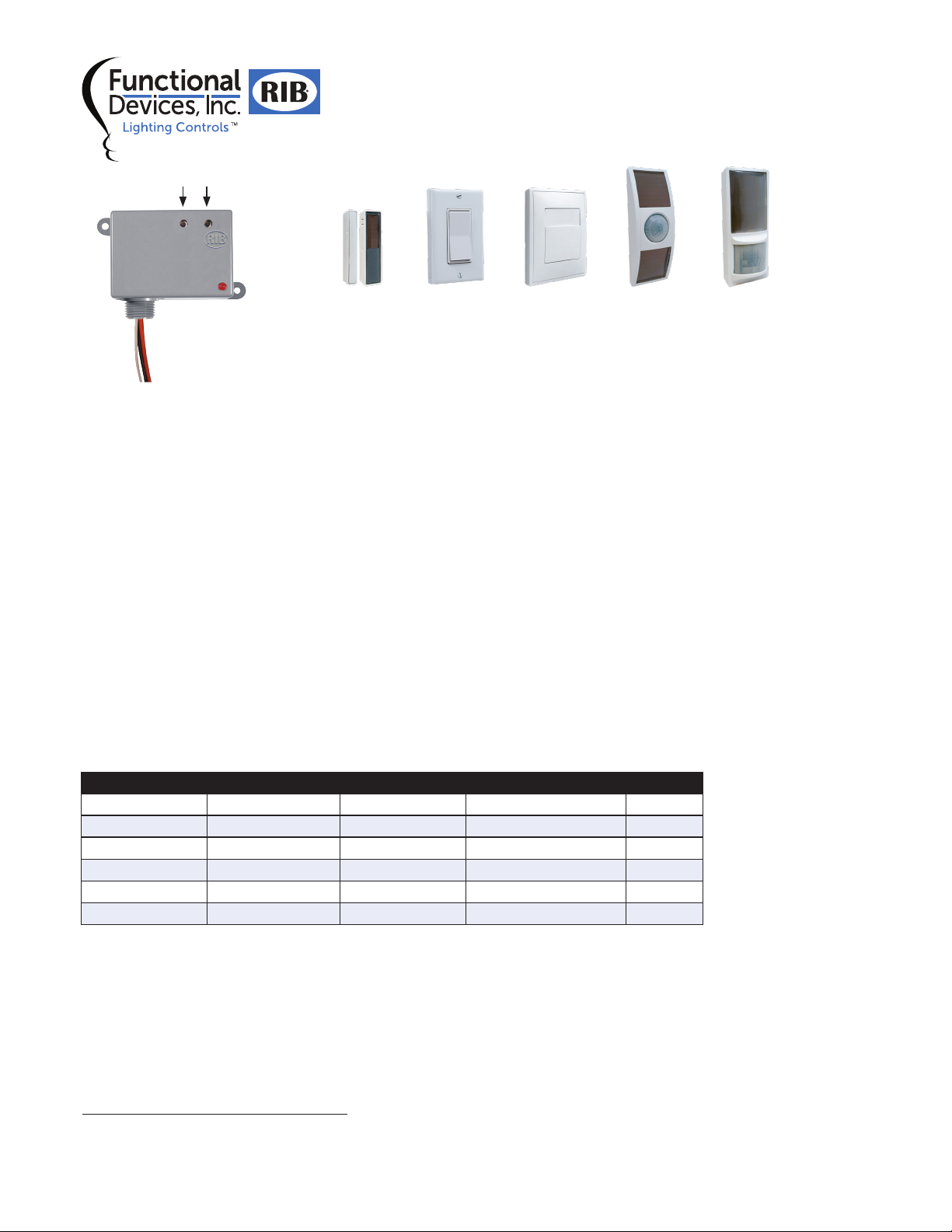

902 MHz Model Power Input (Vac) Contact Rating (A) Transmission Source EEP

FDLR20GV 120-277Vac 20 Status Change/Heartbeat A5-11-01

FDLTMAG None NA Contact Closure D5-00-01

FDLTS2 None NA Button Press F6-02-02

FDLTKEY None NA Insert/Remove Card F6-04-01

FDLTVC None NA Occupancy Detected A5-07-01

FDLTVW None NA Occupancy Detected A5-07-01

FDLR20GV FDLTMAG FDLTS2

(Switch and

cover plate)

LRN CLR

FDLTKEY

Functional Devices, Inc.’s EnOcean®Manufacturer ID is 0x055.

FDLTVC FDLTVW

B2489

ESRB and ESRN

Installation & Safety Instructions

Compatible Device from other Manufacturers

PHC Gateway Controller EEP A5-38-08 0x02 (Dimming Proﬁle)

Light Level Sensor EEP A5-06-02

Functional Devices, Inc.

101 Commerce Drive

Sharpsville, IN 46068

Toll Free: (800) 888-5538

Oce: (765) 883-5538

Fax: (765) 883-7505

Email: [email protected]

Website: www.functionaldevices.com

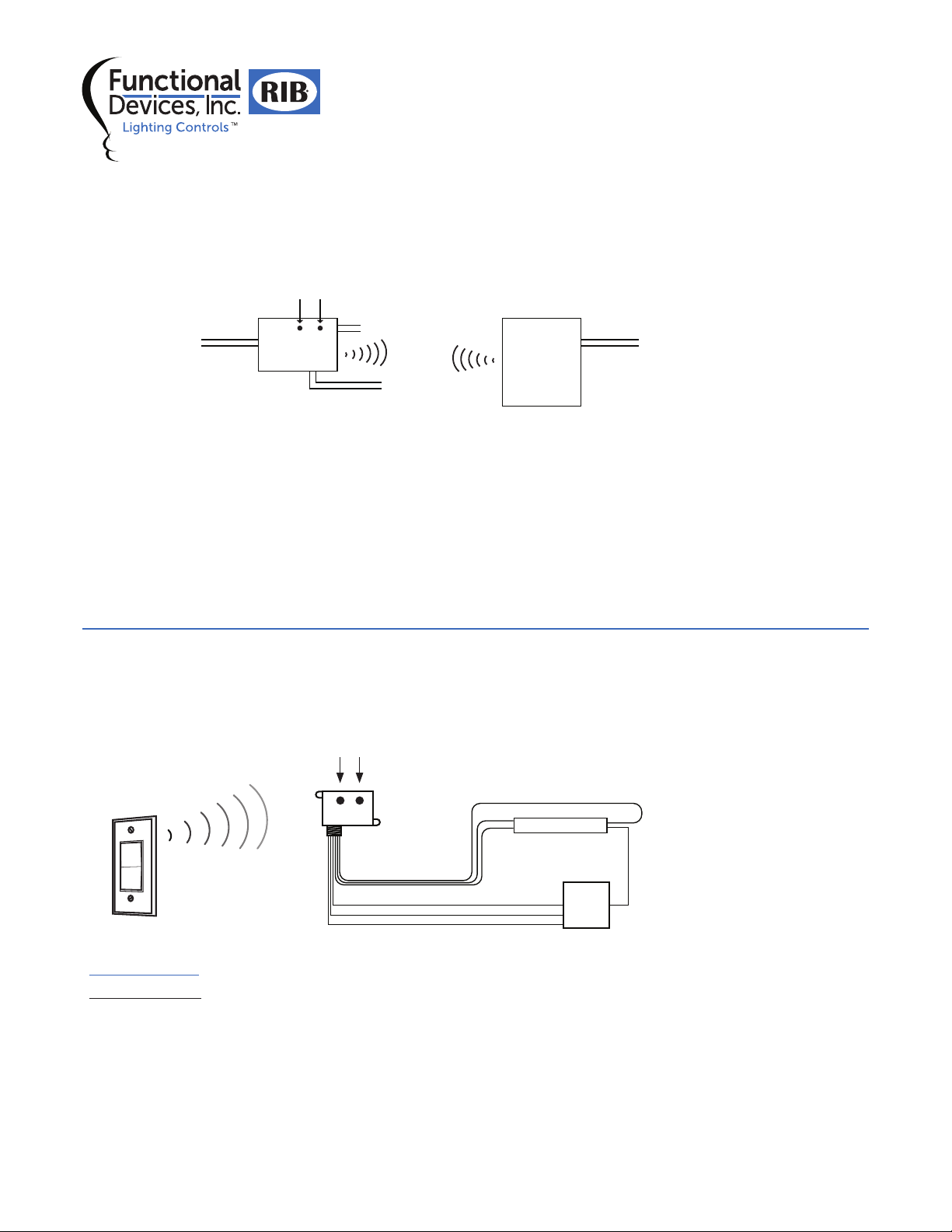

Bi-directional Mode: FDLR20GV and a Central Command Gateway

• Both devices must be able to receive and transmit.

• Gateway can control the relay and 0-10V outputs of the FDLR20GV.

• FDLR20GV re-transmits status every 70-140 seconds.

• Optional modes: Repeater (see page 4)

Bi-directional Link Procedure

1. Apply power to FDLR product.

2. Get FDLR Product in Learn mode by pressing the LRN button until LED starts ﬂashing slowly (approximately 1/2 second).

3. Transmit Link telegram from Central Command Gateway

• LED on FDLR product will stay ON for 4 seconds to acknowledge and then transmit a Link telegram.

Note: To clear memory, hold CLR button for 3 seconds.

Device Power

0-10V Output

FDLR20GV

Relay Output

Central

Command

Gateway

LRN CLR

Building Automation Applications

393278

page 2

Lighting Applications

Simple Lighting Control: FDLR20GV and FDLTS2 or FDLTKEY

60Hz A/C Power

Yel

Org

Blk

Red

FDLR20GV

FDLTS2

(Rocker Switch)

FDLTKEY

(Keycard Switch) Prp Gry

0-10V

Controlable

Load

LRN CLR

FDLTS2 Modes

A. Dimming Mode

• Relay activates when Rocker ON is pressed and released, and the

Analog Output ramps to previous value.

• Relay activates when Rocker ON is held, and the Analog Output

ramps up from minimum until ON is released.

• When Rocker OFF is pressed and released, the Analog Ouptut

ramps down to minimum, and then the Relay deactivates.

• If the Relay is activated, the Analog Output will ramp up or down

when the Rocker ON or OFF is held, and the Analog Output will

go to MAX if Rocker ON is pressed and released.

• Optional modes: Repeater

Dimming Mode Link Procedure

1. Apply power to FDLR Product.

2. Press and hold LRN button on FDLR Product until LED starts

ﬂashing slowly (approximately 1/2 second).

3. Press and release the button on the switch you are linking three

times quickly.

4. LED on FDLR Product will stay ON for 4 seconds indicating telegram

reception.

5. To link another switch, repeat steps 2-4.

Functional Devices, Inc.

101 Commerce Drive

Sharpsville, IN 46068

Toll Free: (800) 888-5538

Oce: (765) 883-5538

Fax: (765) 883-7505

Email: [email protected]

Website: www.functionaldevices.com

Momentary Mode Link Procedure

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED starts ﬂashing

slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3 seconds until LED

pattern changes to FLASH, FLASH, OFF (2 ﬂashes).

4. Press and hold LRN button on FDLR Product for 3 seconds until LED

pattern changes again, to FLASH, FLASH, FLASH, OFF (3 ﬂashes).

5. Press and release the button on the switch you are learning three

times quickly.

6. LED on FDLR product will stay ON for 4 seconds indicating telegram

reception.

7. To learn another switch, repeat steps 2-5.

D. Toggle Mode

• Each press and release of the switch causes the relay to

change state.

• Optional mode: Repeater (see page 4)

Toggle Mode Link Procedure

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED

starts ﬂashing slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3 seconds

until LED pattern changes to FLASH, FLASH, OFF (2

ﬂashes).

4. Press and hold LRN button on FDLR product for 3 seconds

until LED pattern changes again, to FLASH, FLASH, FLASH,

OFF (3 ﬂashes).

5. Press and hold LRN button on FDLR product for 3 seconds

until LED ﬂashes continuously.

6. Press and release the button on the switch you are learning

three times quickly.

7. LED on FDLR product will stay ON for 4 seconds indicating

telegram reception.

8. To learn another switch, repeat steps 2-6.

FDLTKEY Mode

Momentary Mode

• Relay activates when card is inserted and deactivates

when card is removed.

• Optional mode: Repeater (see page 4)

Momentary Mode Link Procedure

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED

starts ﬂashing slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3 seconds

until LED pattern changes to FLASH, FLASH, OFF (2 ﬂashes).

4. Press and hold LRN button on FDLR Product for 3 seconds

until LED pattern changes again, to FLASH, FLASH, FLASH,

OFF (3 ﬂashes).

5. Insert and remove the card on the switch you are learning

three times quickly.

6. LED on FDLR product will stay ON for 4 seconds indicating

telegram reception.

7. To learn another switch, repeat steps 2-5.

page 3

FDLTS2 Modes (Continued)

Occupancy Detection

A. Manual ON – Auto OFF: FDLR product receiving from both an Occupancy / Vacancy Sensor (FDLTVW or FDLTVC) and a Wall

Switch (FDLTS2)

• Relay activates when Rocker ON is pressed. Relay deactivates when Rocker OFF is pressed or 30 minutes after last detection of

occupancy.

• It may take up to 2 minutes for the FDLR product to respond to the Occupancy / Vacancy Sensor immediately following Link.

• Optional mode: Repeater (see page 4)

Manual ON – Auto OFF Learn Procedure

1. Be sure the Occupancy / Vacancy Sensor is charged

2. Apply power to FDLR product.

3. Press and hold LRN button on FDLR product until LED starts ﬂashing slowly (approximately 1/2 second).

4. Trigger a Teach telegram from the Occupancy / Vacancy Sensor by pressing the Menu button once.

5. LED on FDLR product will stay ON for 4 seconds acknowledging telegram reception.

6. Press and hold LRN button on FDLR product for ½ second. LED will ﬂash slowly.

7. Press and release rocker switch three times quickly.

8. LED on FDLR product will stay ON for 4 seconds acknowledging telegram reception.

9. To learn another switch, repeat steps 6-8.

B. Rocker Mode

• Relay activates when Rocker ON is pressed; relay deactivates when

Rocker OFF is pressed.

• Optional mode: Repeater (see page 4)

Rocker Mode Link Procedure

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED starts ﬂashing

slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR Product for 3 seconds until LED

pattern changes to FLASH, FLASH, OFF (2 ﬂashes).

4. Press and release the button on the switch you are learning three

times quickly.

5. LED on FDLR product will stay ON for 4 seconds indicating telegram

reception.

6. To learn another switch, repeat steps 2-4.

C. Momentary Mode

• Relay activates while switch is pressed and deactivates when switch

is released.

• Optional mode: Repeater (see page 4)

393278

Functional Devices, Inc.

101 Commerce Drive

Sharpsville, IN 46068

Toll Free: (800) 888-5538

Oce: (765) 883-5538

Fax: (765) 883-7505

Email: [email protected]

Website: www.functionaldevices.com

Occupancy / Vacancy Sensor Only Learn Procedure

1. Charge the Occupancy / Vacancy Sensor per instructions.

2. Apply power to FDLR product.

3. Press and hold LRN button on FDLR product until LED starts ﬂashing slowly (approximately 1/2 second).

4. Trigger a Teach telegram from the Occupancy / Vacancy Sensor by pressing the Menu button once.

5. LED on FDLR product will stay ON for 4 seconds acknowledging telegram reception.

6. Repeat steps 3-5 for additional Occupancy / Vacancy Sensors.

Optional Modes

page 4

• Relay state after power-up can be set to ON, OFF or LAST STATE

• Relay state after power-up is LAST STATE by default.

Setting Relay State to OFF at Power-up:

1. While device is not powered, press and hold the LRN button.

2. Power-up the device.

3. Wait approximately 3 seconds until the LED blinks 3 times.

4. Release the LRN button.

Relay will always be OFF at power-up.

Setting Relay State to ON at Power-up:

1. While device is not powered, press and hold the CLR button.

2. Power-up the device.

3. Wait approximately 3 seconds until the LED blinks 2 times.

4. Release the CLR button.

Relay will always be ON at power-up.

Setting Relay State to LAST STATE at Power-up: (Default Mode) **

1. While device is not powered, press and hold the LRN and CLR buttons.

2. Power-up the device.

3. Wait approximately 3 seconds until the LED blinks 1 time.

4. Release the LRN and CLR buttons.

Relay will return to LAST STATE at power-up.

Relay State

• Activating Repeater Mode allows FDLR product to repeat signals from other EnOcean devices within range. The FDLR product “hears”

the signal and echoes it but will not respond to it unless it has been linked to the transmitting device.

• FDLR product will allow a signal to be repeated up to two times.

Enabling Repeater Mode

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED starts

ﬂashing slowly (approximately 1/2 second).

3. Press and hold the CLR button for 3 seconds until LED ﬂashes

twice indicating Repeater Mode is enabled.

Disabling Repeater Mode

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED

starts ﬂashing slowly (approximately 1/2 second).

3. Press and hold the CLR button for 3 seconds until LED

ﬂashes three times indicating Repeater Mode is disabled.

Repeater Mode

B. Auto On: FDLR Product and an Occupancy / Vacancy Sensor (FDLTVW or FDLTVC)

• Relay activates when occupancy is detected and deactivates 30 minutes after last detection of occupancy.

• It may take up to 2 minutes for the FDLR product to respond to the Occupancy / Vacancy Sensor immediately following Link.

• Optional mode: Repeater (see page 4)

393278

Functional Devices, Inc.

101 Commerce Drive

Sharpsville, IN 46068

Toll Free: (800) 888-5538

Oce: (765) 883-5538

Fax: (765) 883-7505

Email: [email protected]

Website: www.functionaldevices.com

page 5

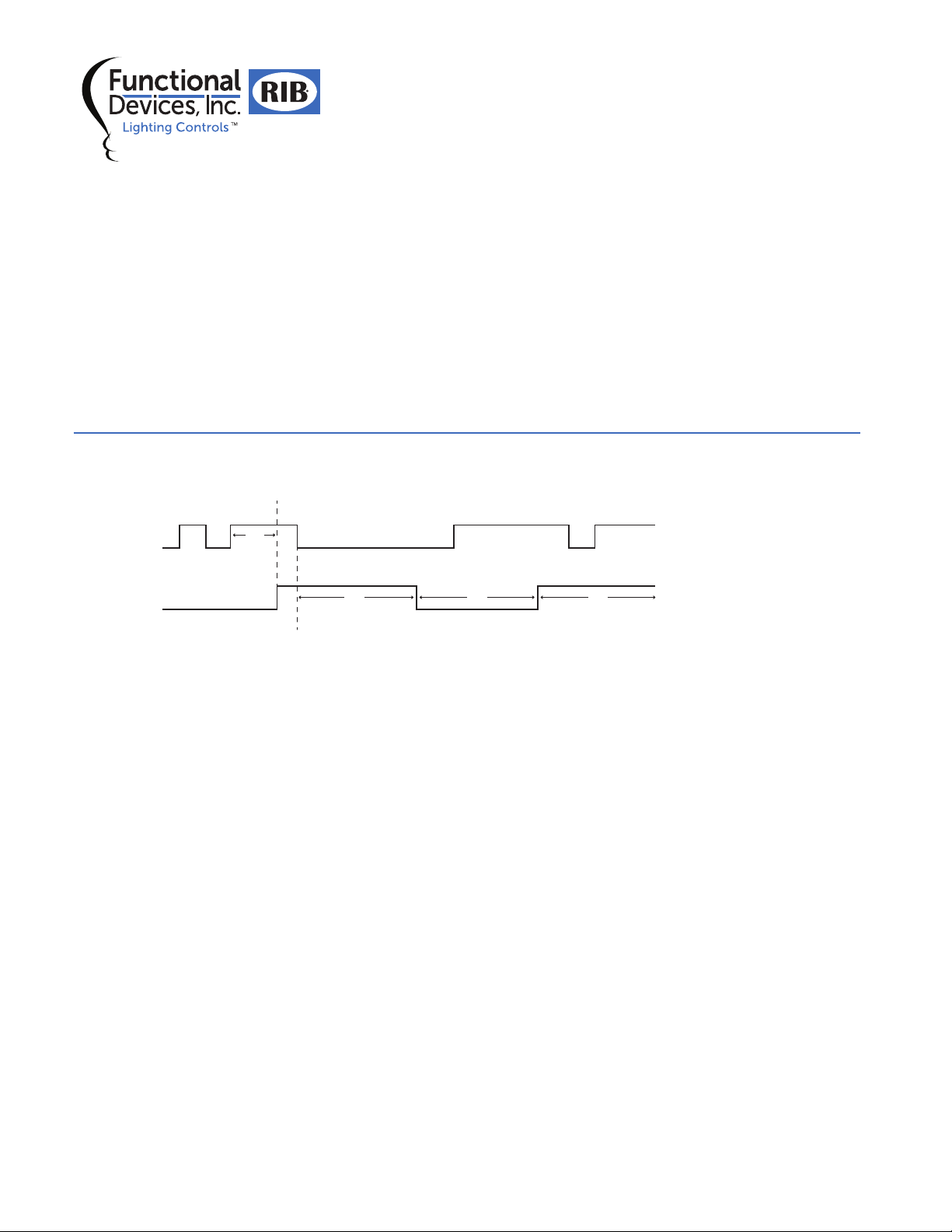

Delay Mode

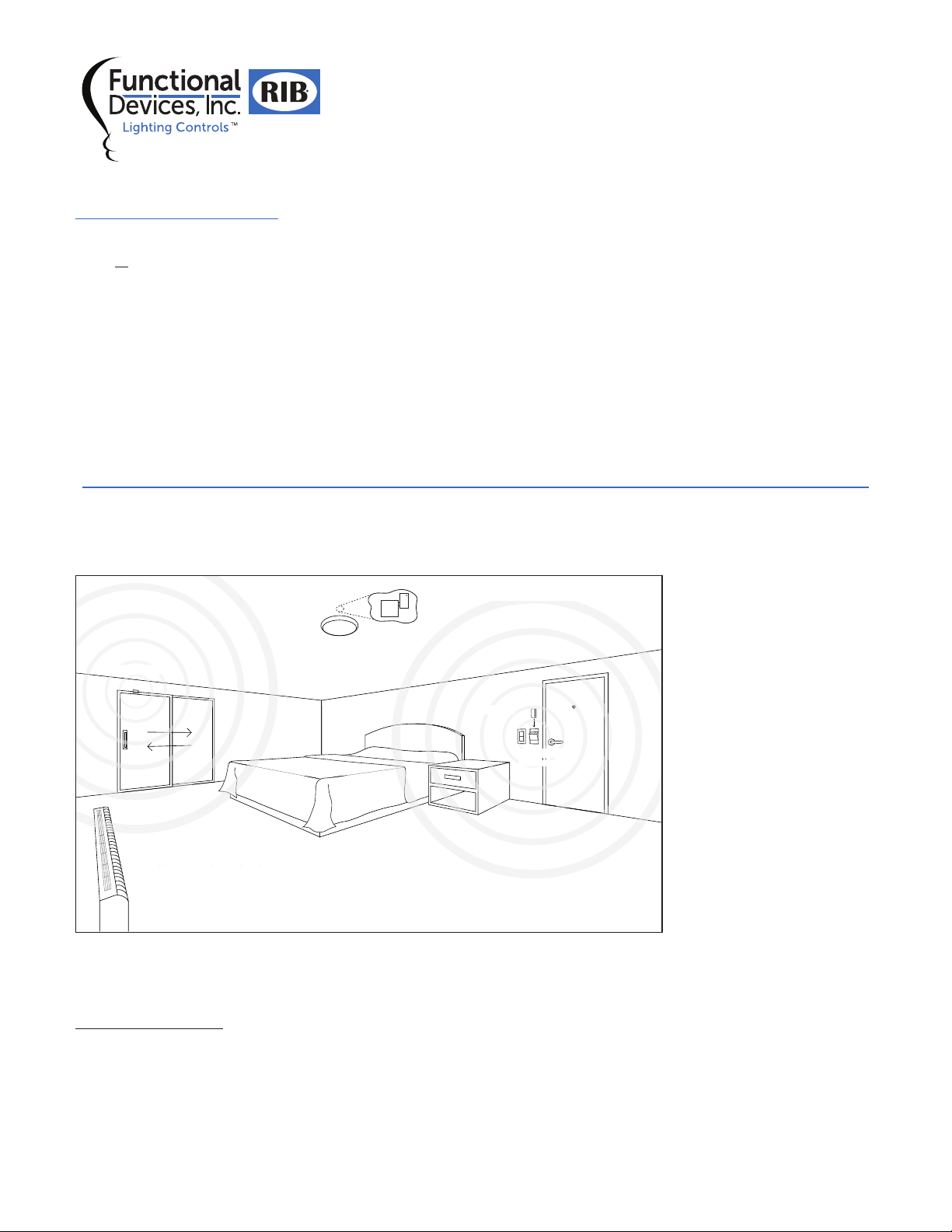

• Typically used with Hotel Room Energy Control (see page 7).

• Activating Delay Mode allows the FDLR product to ignore temporary changes in switch states.

• The Delay Mode causes a delay of 10 seconds before relay will turn ON and a delay of 90 seconds before it will turn OFF. It also pre

vents the relay from activating following a deactivation for 90 seconds (see Figure 4, below).

• The OFF delay allows the load to continue to run while the switch or transmitter is temporarily open. This is helpful when monitoring

window and door contacts that may be brieﬂy opened and then closed. If the contact remains open for longer than 90 seconds the

relay will deactivate.

• The ON delay prevents the relay from immediately responding to a closed contact.

• The 90 second OFF to ON delay is intended speciﬁcally for HVAC units so that they will not short cycle.

Enabling Delay Mode

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED starts

ﬂashing slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3 seconds until

LED pattern changes to FLASH, FLASH, OFF (2 ﬂashes).

4. Press and hold LRN button on FDLR product for 3 seconds until

LED pattern changes again, to FLASH, FLASH, FLASH, OFF

(3 ﬂashes).

5. Press and hold the CLR button for 3 seconds until LED ﬂashes

twice indicating Delay Mode is enabled.

Disabling Delay Mode

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED

starts ﬂashing slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3

seconds until LED pattern changes to FLASH, FLASH,

OFF (2 ﬂashes).

4. Press and hold LRN button on FDLR product for 3

seconds until LED pattern changes again, to FLASH,

FLASH, FLASH, OFF (3 ﬂashes).

5. Press and hold the CLR button for 3 seconds until LED

ﬂashes three times indicating Delay Mode is disabled.

<10s

O

>10s10s

90s 90s 90s

Wireless

Command

Relay

State

Alarm Mode

• Activating Alarm Mode requires all learned contact switches, FDLTMAG, to transmit a CLOSED telegram before

relay will activate. Relay will deactivate if any contact switch transmits an OPEN telegram.

Enabling Alarm Mode

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED starts

ﬂashing slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3 seconds until

LED pattern changes to FLASH, FLASH, OFF (2 ﬂashes).

4. Press and hold the CLR button for 3 seconds until LED ﬂashes t

wice indicating Alarm Mode is enabled.

Disabling Alarm Mode

1. Apply power to FDLR product.

2. Press and hold LRN button on FDLR product until LED

starts ﬂashing slowly (approximately 1/2 second).

3. Press and hold LRN button on FDLR product for 3

seconds until LED pattern changes to FLASH, FLASH, OFF

(2 ﬂashes).

4. Press and hold the CLR button for 3 seconds until LED

ﬂashes three times indicating Alarm Mode is disabled.

393278

Functional Devices, Inc.

101 Commerce Drive

Sharpsville, IN 46068

Toll Free: (800) 888-5538

Oce: (765) 883-5538

Fax: (765) 883-7505

Email: [email protected]

Website: www.functionaldevices.com

page 6

FDLRxxx with Door/Window Sensor(s) FDLTMAG

• Relay activates with closed command from FDLTMAG and deactivates

with open command.

• FDLTMAG retransmits contact state every 20-30 minutes.

• Optional modes: Repeater,(see page 4) Alarm, Delay (see page 5)

FDLTMAG Link Procedure

1. Charge the FDLTMAG per Instructions provided with unit.

2. Apply power to FDLR product.

3. Press and hold LRN button on FDLR product until LED starts

ﬂashing slowly (approximately 1/2 second).

4. Press and release Link button on FDLTMAG to transmit Teach

telegram.

5. LED on FDLR product will stay ON for 4 seconds acknowledging

telegram reception.

6. To learn more FDLTMAG, repeat steps 3-5.

WDWS-EN3

Rocker Switch

PTAC unit with RIBWxxxB-EN3

in Hotel Room Energy Control Mode

in Momentary Mode with Keycard Switch

and in Dimming Mode with FDLTS

(Wired through J Box)

FDLR20GV

FDLTMAG

FDLTS2

PTAC unit with FDLR20x or FDLR05x

Energy Saving Applications

0-10V Dimmable Fixture

Clearing ID’s from Memory

Global Clear (Reset to default settings)

Clears all linked devices, disables optional modes, turns relay OFF, and sets 0-10V output to minimum.

Performing Global Clear

1. Press and hold CLR button on FDLR product for 3 seconds until

LED begins slowly ﬂashing.

a. Clear Mode will time out and exit in 30 seconds.

• Allows the user to Un-link a single transmitter from FDLR product.

• Maintains all optional mode settings.

Performing Single Device Clear

1. Repeating the Link procedure for a currently Linked device will

Un-link that device.

Single Device Clear

393278

FDLTKEY

Keycard Switch

Functional Devices, Inc.

101 Commerce Drive

Sharpsville, IN 46068

Toll Free: (800) 888-5538

Oce: (765) 883-5538

Fax: (765) 883-7505

Email: [email protected]

Website: www.functionaldevices.com

Hotel Room Energy Control FDLR Product with FDLTMAG and FDLTKEY

Consult factory.

393278

page 7

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Functional Devices Beleuchtungsausrüstung Handbücher

Functional Devices

Functional Devices RIBTWXV-WI Series Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
