Mounting and getting started
Before installation

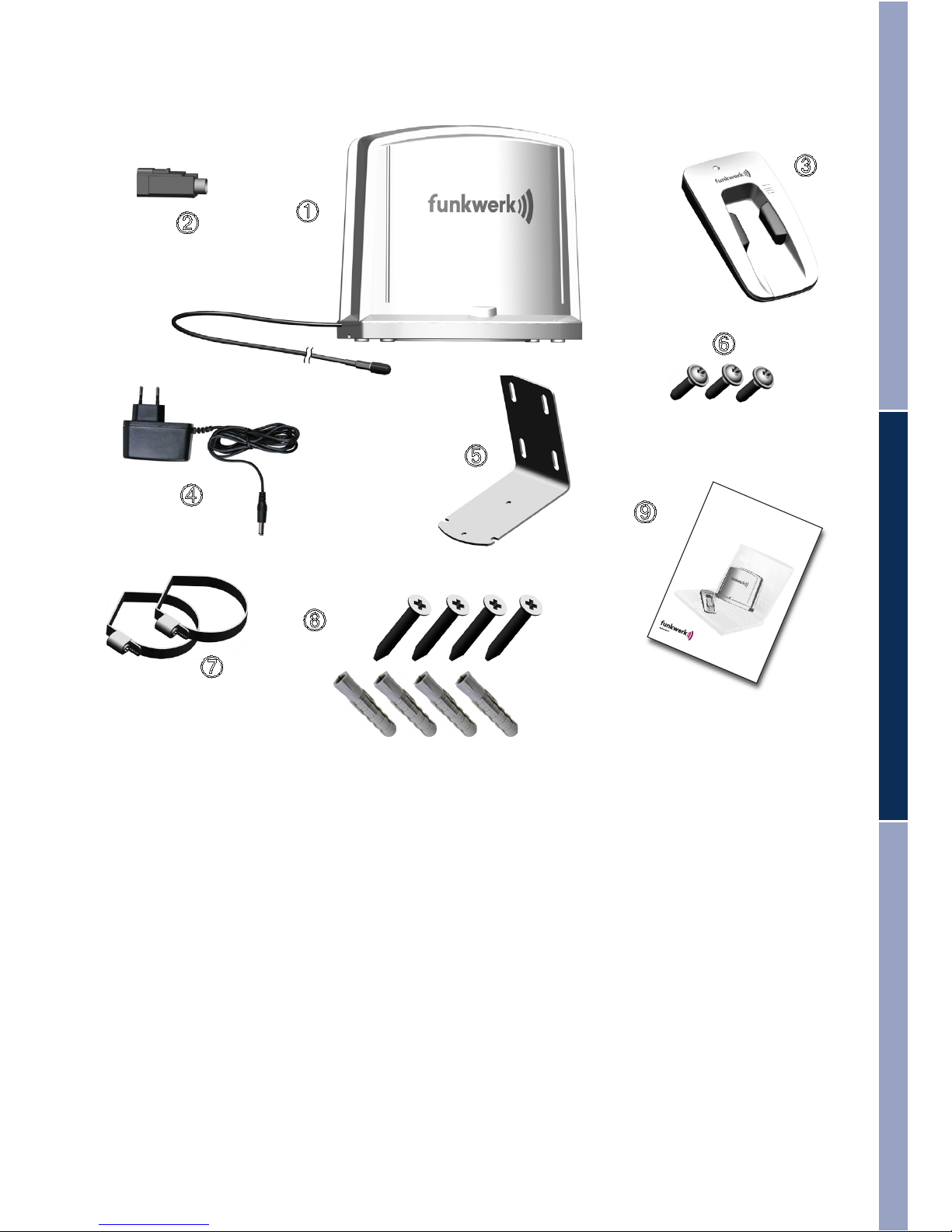

Please check the supplies for completeness.
Test whether your UMTS data stick fits into the mounting .

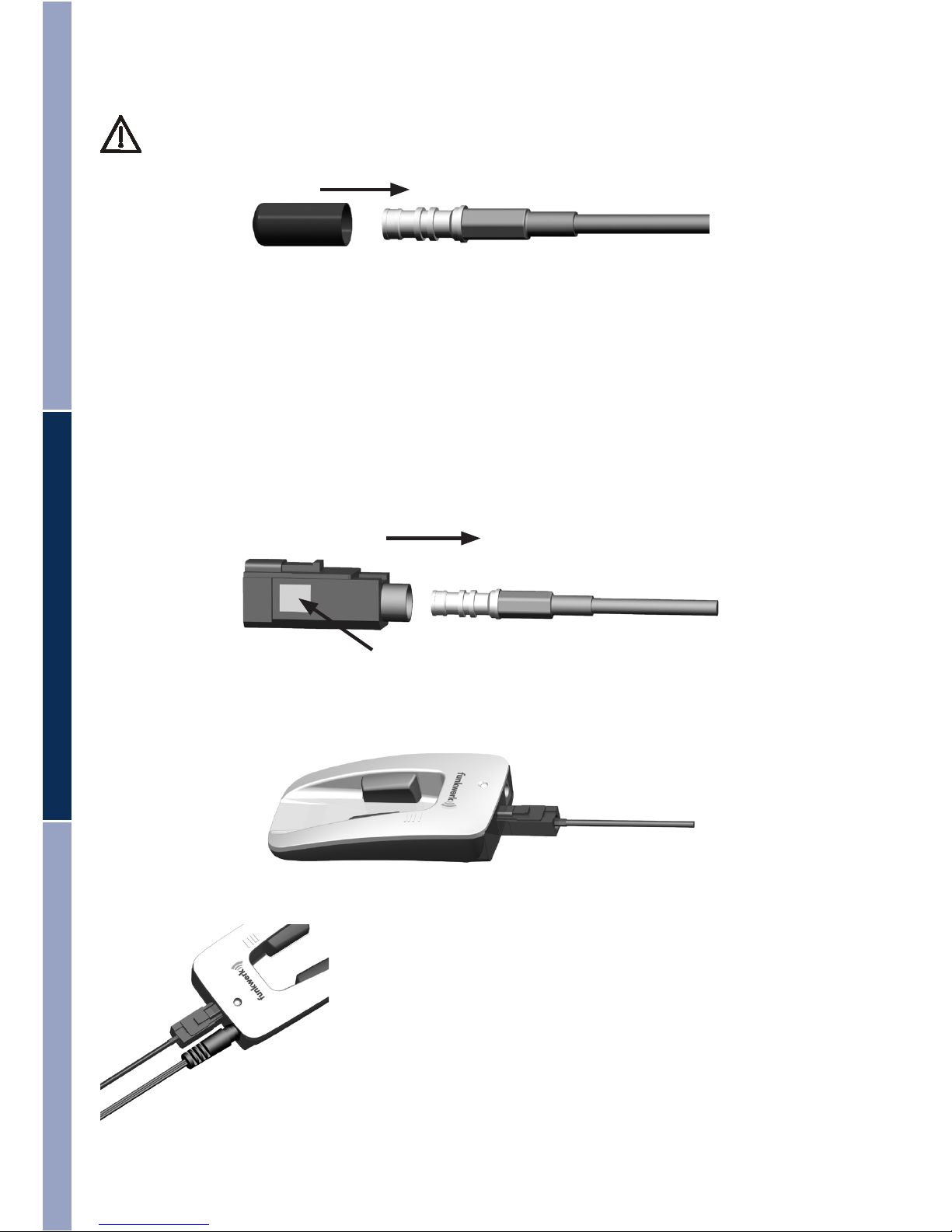

The coupler casing included in the supplies is for the safe connection
between coaxial line and the mounting of the UMTS data stick.
ATTENTION! Do not stick the coupler casing onto the coaxial line before
laying work is completed! The coupler casing cannot be removed after
connection!
If the penetration through the wall is planned with, or must have, a small
diameter, please read and observe the mounting steps described in the
following!
Finding out preconditions
To ensure you to get a sound UMTS signal please ask your mobile radio provider
where the nearest transmitter mast is located in the surroundings of your home.
Now lay down the position of the antenna in the outdoor or indoor area.
You have three different installation variants for your active antenna:
Antenna within the house

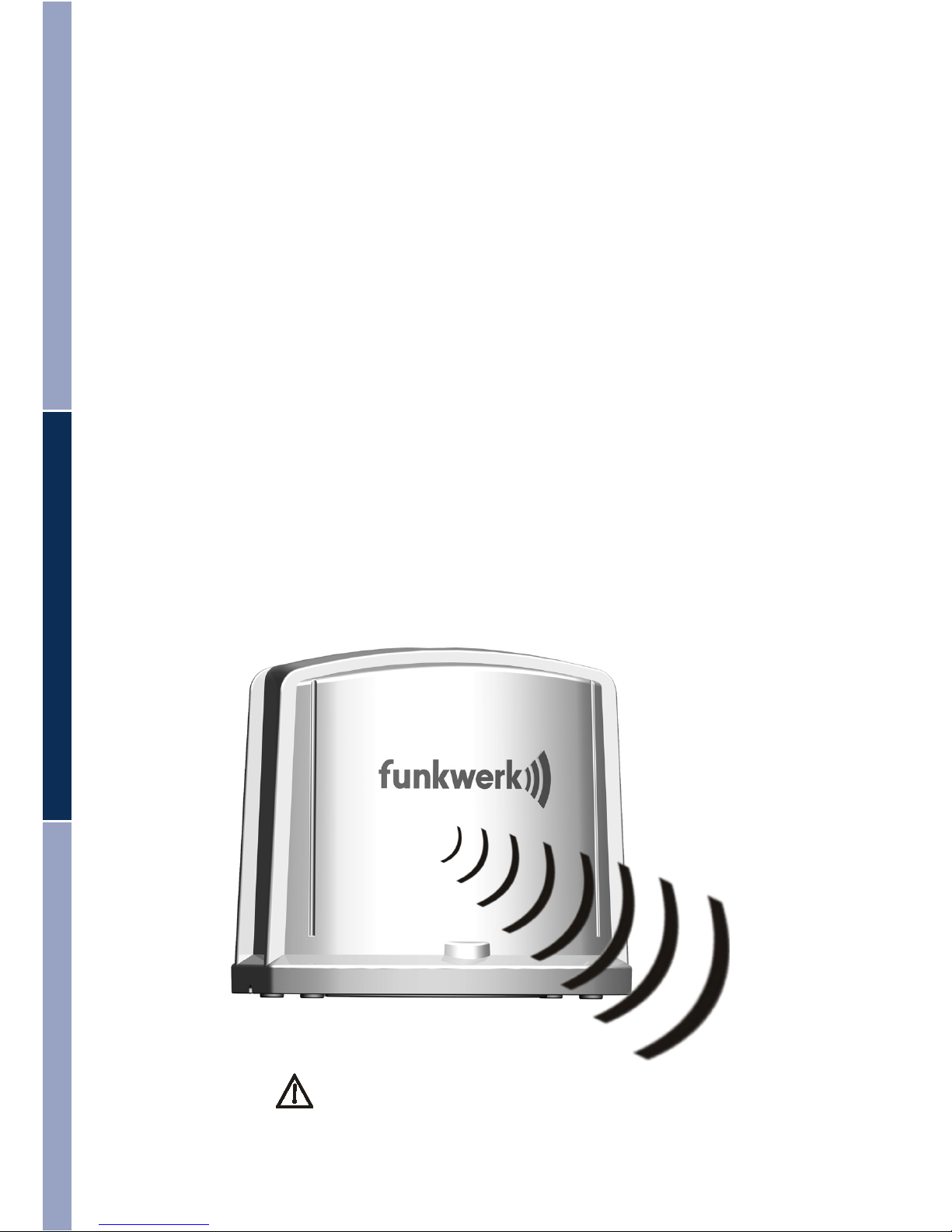

The active antenna Àis positioned within the house at a place at which a sound
UMTS signal is available.
Antenna outside on the house

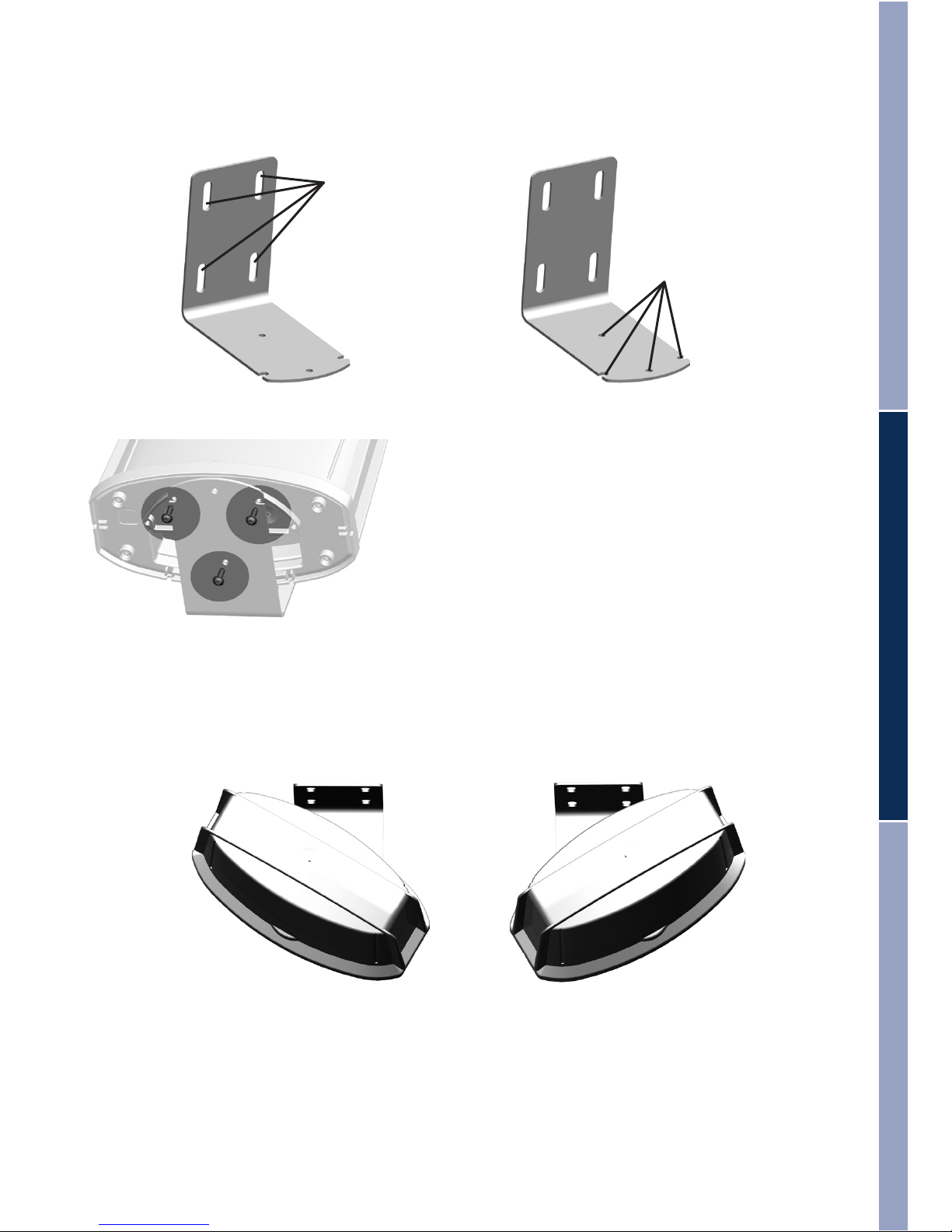

The active antenna Àis mounted to the house wall with the enclosed mounting
bracket .

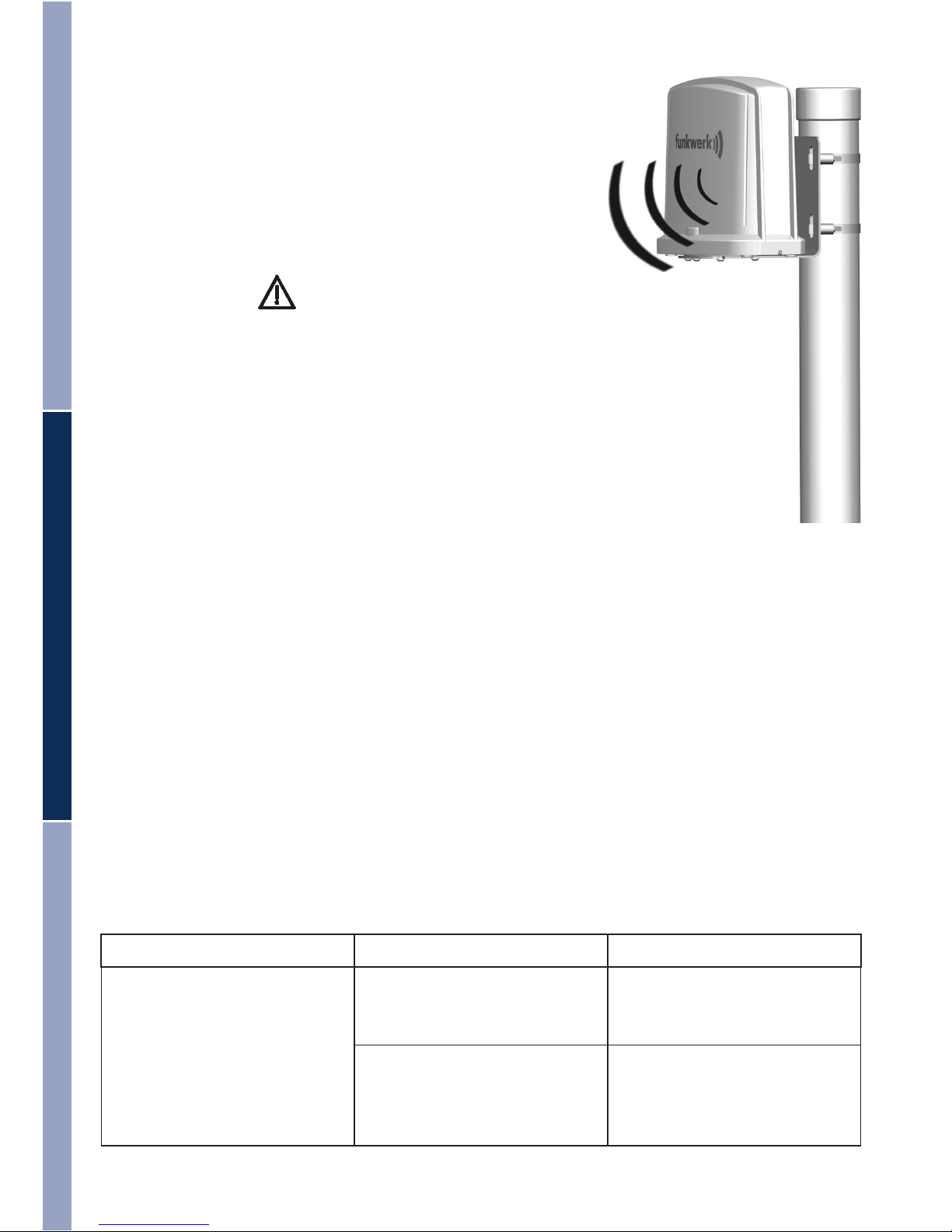

Antenna on an antenna mast
The active antenna Àis mounted to the antenna mast with the enclosed moun-
ting bracket and the loop clamps .
Function Test
1. Find out where the transmitter mast is located in relation to the antenna.
2. Align the antenna approximately; the logo should point to the location of the
transmitter mast. An angular deviation of 30° is possible [when mounting to a
mounting bracket].
3. Now use the software of the mobile ‚phone provider to start up PC or notebook.

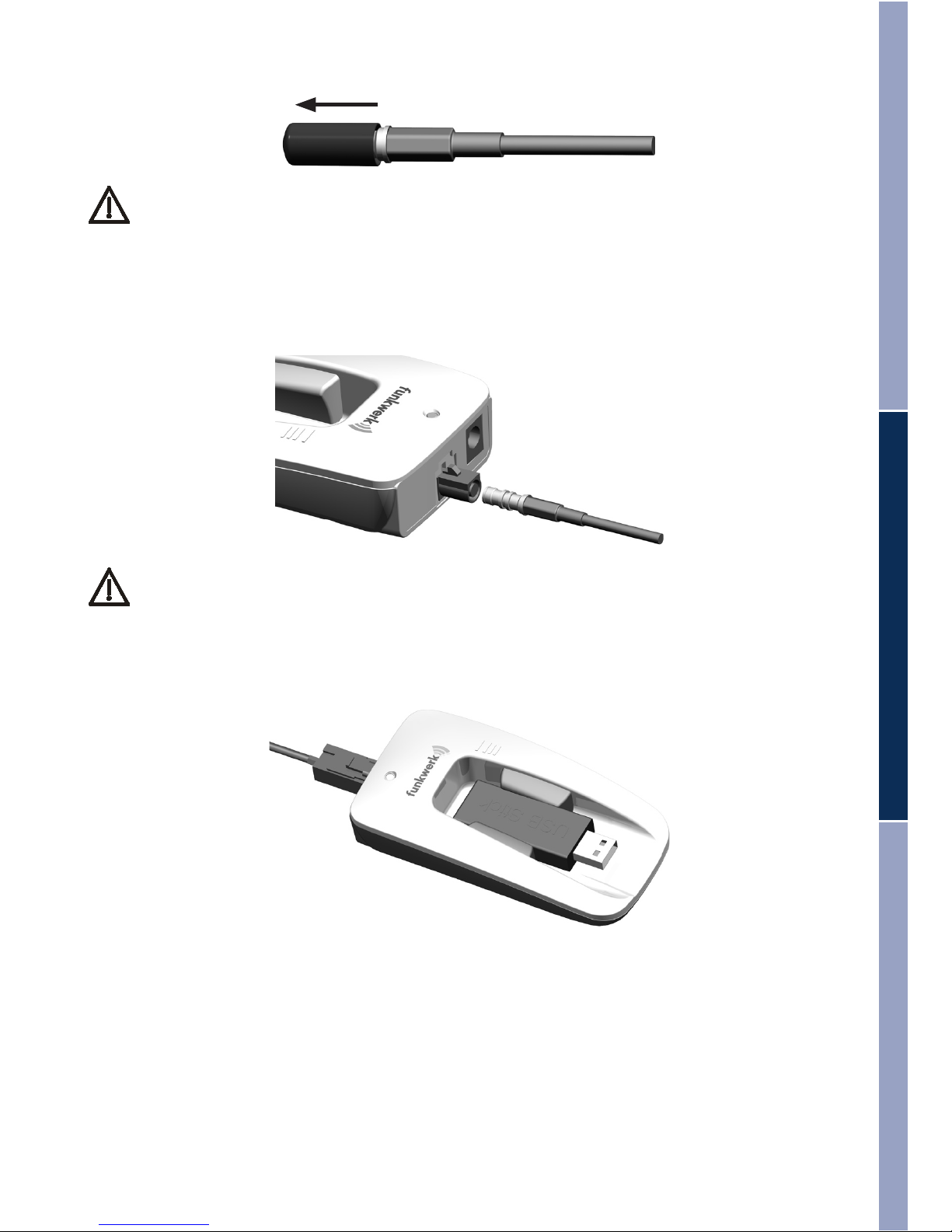

4. Connect data stick via USB cable [not included in supplies] with PC or notebook.
5. Connect mounting for UMTS data stick with the power supply unit and
start up.
