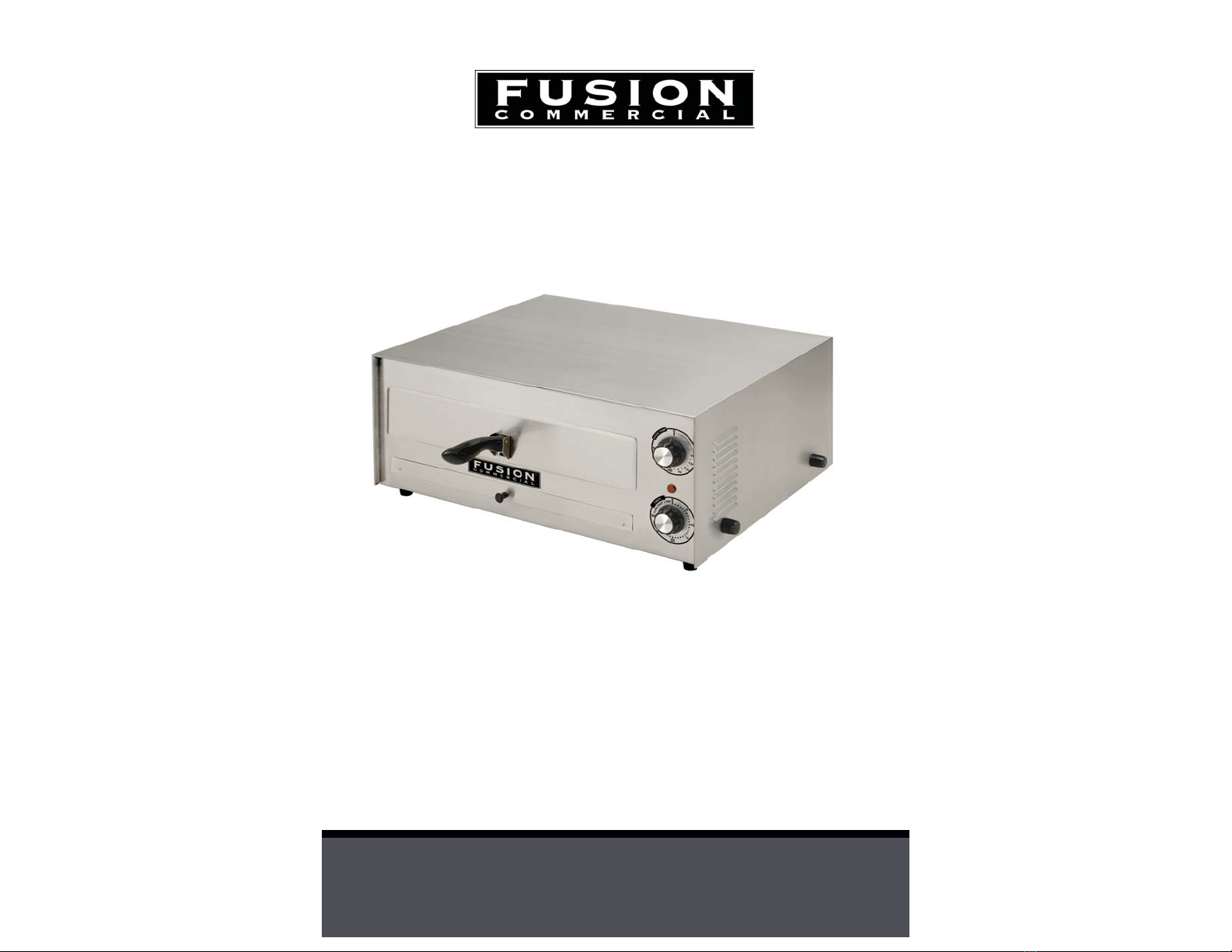

DELUXE 16”
PIZZA & SNACK OVEN
IMPORTANT:
Safety Recommendations Inside
MODEL
515FC
1023224
QUALITY VALUE PERFORMANCE
INSTRUCTION MANUAL
2 3
IMPORTANT!
READ THESE INSTRUCTIONS BEFORE OPERATING.
KEEP THIS BOOKLET FOR FUTURE REFERENCE.
WARNING: A risk of fire and electrical shock exists in all electrical appliances
and may cause personal injury or death. Please follow all safety instructions
carefully.
CAUTION: This appliance produces heat during use. Proper precautions
must be taken to prevent risk of burns, fire or other injury to persons or
damage to property.
CAUTION: When using electrical appliances, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury.
Please follow these basic safety rules!
• Only individuals that have read this manual are qualified to
operate this appliance.
• Never operate the oven without its crumb tray and
food rack.
• If this appliance accidentally falls or becomes immersed in
water while it is plugged in, unplug it immediately from the
wall outlet. DO NOT REACH INTO THE WATER.
• Make sure timer is in off position before plugging cord into outlet or
unplugging cord from outlet.
• Do not touch the outer surface of the oven during or
immediately after baking. Protective hot pads or gloves are
recommended when baking.
• During the baking process make certain that there is
adequate air space above and on the sides of the unit for air
circulation. Do not operate this appliance near or touching
any flammable material.
• Do not use or attempt to repair a malfunctioning appliance. Contact
Consumer Service 1-800-945-4589 ext. 112 for return or repair
authorization.
• Do not place this appliance on an unstable surface.
• Do not place paper, cardboard, plastic or similar materials in
or on the oven.
• Do not clean metal finish with scouring pad or harsh
abrasives.
• Use handle when sliding food rack into the oven.
• Not for outdoor use.
• This appliance is not for use by children.
• Close supervision is necessary when using the oven
near children.
• Do not immerse cord or plug in water or liquids.
• Unplug cord from outlet when not in use.
• Oven should be allowed to cool before cleaning.
• Read all instructions before using the oven.
• Do not use accessories or attachments not recommended
by manufacturer.
• Do not use while standing in a damp area.
• Use caution when removing pizza and other hot foods from
the oven.
• Do not attempt to bake greasy foods in the oven.
• Use the oven only as indicated in the manual.
• Do not attempt to dislodge food when the unit is hot or
plugged in.
• Use only with a properly grounded outlet
• Do not leave the oven unattended while in use.
• Do not use crumb tray as baking surface. Only bake food on wire rack
SAVE THESE INSTRUCTIONS
As a safety feature, this appliance has a grounded plug to
reduce the risk of electrical shock. This plug is intended to fit
into a grounded outlet only. If the plug does not fit into the
outlet, contact a qualified electrician. Do not attempt to defeat
this safety feature.
Getting to know your FUSION COMMERCIAL Deluxe 16"
Pizza & Snack Oven
Your FUSION COMMERCIAL Deluxe 16" Pizza & Snack Oven was created
to bake the finest quality frozen pizza and so much more. All sorts of
other non-greasy frozen and fresh foods can be baked in your FUSION
COMMERCIAL oven. Your FUSION COMMERCIAL oven bakes just about
anything you can bake in a toaster oven and so much more. Try quesadillas,
pretzels, garlic and cheese breads, egg rolls, mozzarella sticks, chicken
fingers, fish sticks...the choices are almost limitless...just be sure not to bake
greasy foods in your FUSION COMMERCIAL oven.
4 5
Your FUSION COMMERCIAL oven is a professional restaurant quality oven
designed to fit on a countertop in your kitchen, office, bar or recreation room.
With the oven’s dual baking elements, you will be able to bake most frozen
pizza, single serve entree snack foods, and appetizers in 30 minutes or less.
We recommend preheating the oven for 5 minutes. Actual baking times could
vary from each product’s recommendations, so check food often to avoid
over-baking.
Construction
Your FUSION COMMERCIAL oven outer case and food rack cover are made
of 22 gauge brushed 430 stainless steel. The inner case and internal case
parts are made from aluminized steel to protect against corrosion.
Power Capacity
Your FUSION COMMERCIAL oven operates on 120 volts, draws 14.2 amps
and processes 1700 watts of power. For best results, operate your pizza
oven on an individual outlet or circuit branch.
Parts
Model #515FC FUSION COMMERCIAL Deluxe 16" Pizza & Snack Oven
includes the following pieces:
Model # Description QTY
PN# PO-515 Pizza Oven 1
PN# CT-515 Crumb Tray 1
PN# SS-501 - 1923487 Small Screw 1
PN# BN-501 - 1923488 Black Knob 1
PN# FR-515 Food Rack 1
PN# FRC-515 Food Rack Cover 1
PN# HA-508 - 1923248 Handle Assembly 1
PN# LS-501 - 1923454 Large Bolt 1
PN# LTN-501-1923455 Large Thumb Nut 1
PN# CB-501 - 1923491 Cleaning Brush 1
Handle Assembly
Included with your oven is a parts bag containing an rgonomically designed
cool-touch handle, large bolt and large thumb nut. Follow the steps listed
below to assemble the handle to the food rack and food rack cover.
Step 1: Remove food rack cover PN# FRC-515 and food rack
PN# FR-515 from the oven.
Step 2: Lay food rack on a stable counter top with loop facing
up and slightly over the edge of the counter.
Step 3: Slip the slot on the front of the food rack cover over the loop so
the food rack cover rests flat against the food rack.

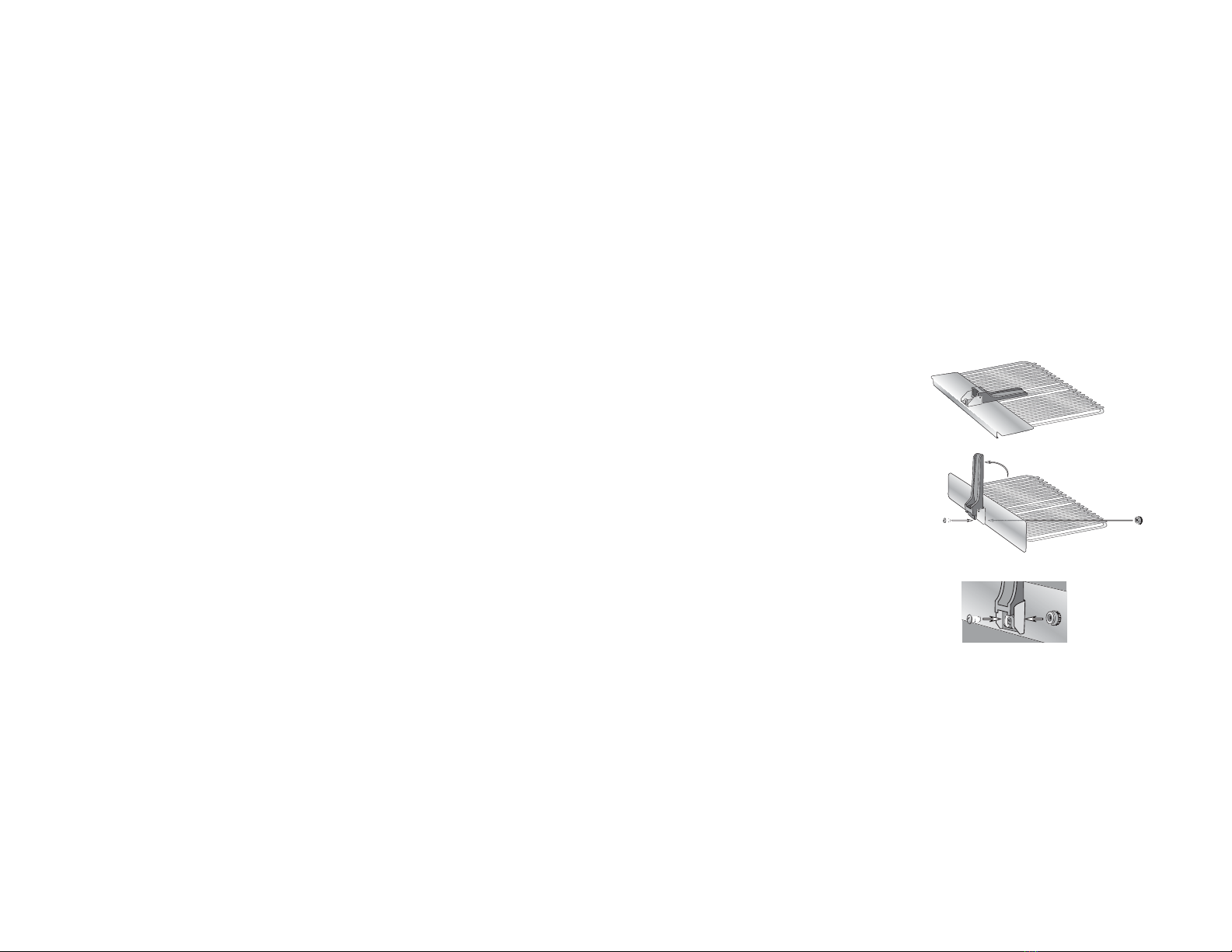

Step 4: Take handle assembly PN# HA-508 and rotate the
handle and bracket so they lie
flat. Lay the bracket slot over
the food rack loop on top of the
food rack cover as shown (Figure
1).
Step 5: Rotate handle and food rack
cover towards you together as a
single unit (Figure 2).
Step 6: Using attaching hardware found
in the parts bag, take one large
bolt PN# LS-501 and one large
thumb nut PN# LTN-501. Slide
large bolt through the round
hole, capturing the loop, handle
bracket and the food rack cover.
Thread the nut onto the large bolt from the opposite of the food
rack and tighten (Figure 3).
Step 7: Rotate the assembled handle down and slide the completed food
rack back into its original position in the oven.
Warning:
Improper assembly of the handle to the food rack could cause the food rack
to rotate and fall when food is removed from the oven. Do not attempt to
grab HOT foods with bare hands when removing food from the oven.
Figure 1.
Figure 2.
Figure 3.
6 7
Baking Instructions
Keep your food frozen until ready to bake. The surface area of the baking
rack is approximately 17" x 17" square so the oven is large enough to
accommodate many types of frozen food including 16" pizza. Place food
onto the baking rack and slide the rack into the oven. Set the OVEN TEMP
dial to the desired temperature and set the TIMER dial to desired bake time.
Note: You must turn the TIMER past the 2 minute mark in order to activate
the oven.
The FUSION COMMERCIAL 16” Deluxe Pizza & Snack Oven offers a HOLD
option that enables you to use the oven without setting the 30 minute
timer. This feature is important during busy times when you don’t want to
take the time to preheat the oven.
Always check your food midway through the baking cycle, rotating if
necessary to ensure even baking.
Operating and Cleaning Guidelines
• The power light on the front of the oven indicates that the oven is
actively heating. The light WILL cycle OFF once the oven reaches the
temperature set by the temperature control and will cycle ON as the
oven may need to heat back up. This is true whether the oven timer is
“counting down” or in the “HOLD” position.
• We do not recommend the use of an extension cord, however if an
extension cord is required caution is necessary. The cord must be 14
gauge and have a minimum electrical rating of 120 volts and 15 amps.
The electrical rating will be marked on the cord. Make sure the cord is
arranged so people can not accidentally pull or trip over it.
• If the electric circuit is overloaded, the circuit breaker will trip and
your pizza oven will not operate. Make sure your outlet has a 20 amp
electrical circuit and separate from other appliances.
• To operate oven, firmly hold handle and remove food rack. Place food
in center of the rack. Return loaded food rack to oven, set OVEN TEMP
and TIMER to desired settings. Your oven will automatically shut off
when the baking cycle is completed.
• Remove the food rack slowly from the oven to insure that food does not
slide off the rack onto the heating elements.
• When finished baking, remove plug from wall socket and allow to cool
before cleaning.
• To clean the outside of oven, wipe with damp cloth and dry thoroughly.
• To clean the crumb tray, remove and rinse with warm soapy water, wipe
with damp cloth and dry thoroughly before placing back into the oven.
• Use caution when cleaning as the fabrication nature of this
oven may present some sharp edges on the crumb tray and
surrounding openings to the oven.
To keep your oven clean and ready to use at all times, simply
remove the crumb tray at the end of each use and wipe clean.
Proper cleaning and maintenance will reduce the risk of food
accumulation that may create smoke caused by carbon build up.
One Year Limited Warranty
Tomlinson guarantees to the original purchaser of each Tomlinson Fusion
Commercial 515FC 16" Deluxe Pizza and Snack Oven that any part thereof
which proves to be defective in material or workmanship within one year of
the date of shipment will be repaired or a replacement part furnished F.O.B.
our factory. Warranty will not apply if our examination shows oven to be
defective as the result of negligence, abuse, misapplication or alteration by
other than ourselves. Tomlinson will not be responsible for unauthorized
field service. Contact factory at 1-800-945-4589 ext. 112 for instructions.
To register your product and activate the warranty, go to
www.tomlinsonind.com. Click on the SUPPORT tab,
then click on PRODUCT REGISTRATION.
Customer Service: (800) 945-4589 ext. 112
Should you have any concerns regarding your oven, you should first call
Tomlinson Customer Service between 8am and 5pm
Eastern Standard Time, Monday through Friday.
Refer to Model #515FC - 1023224
Manufactured in China / Fabricado en China
© 2010 Tomlinson Industries
v1.1
