Futech FT004D-USB-BT Bedienungsanleitung

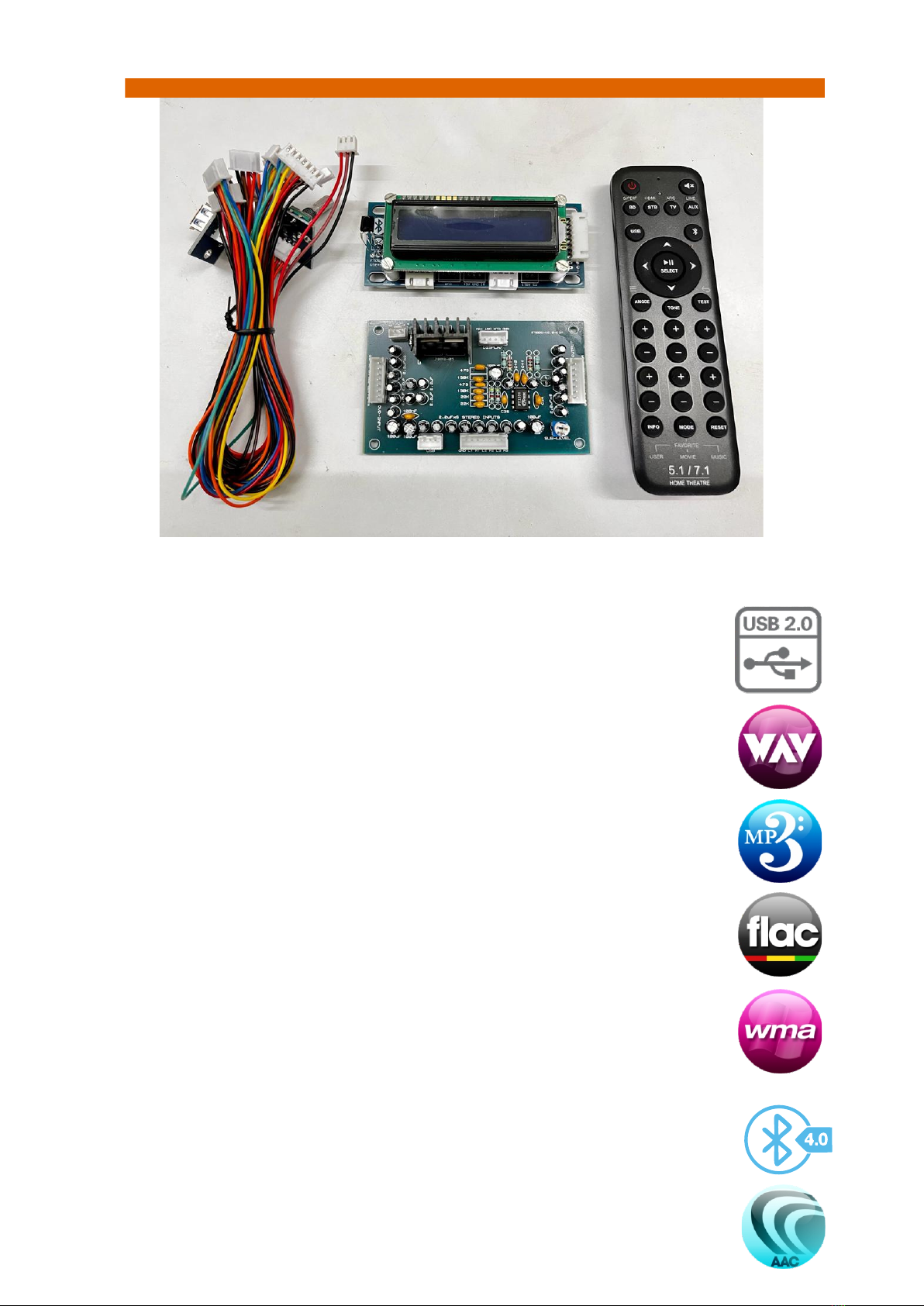

FT004D-USB-BT
5.1Ch Remote Control Kit
User’s manual
4
Features :
1) 6 channels independent electronic volume (0 to –99dB/1dBstep, –∞dB),
2) 6 channels independent gain control (0 to +14dB/ 2dB step),
3) Bass: –14 to + 14dB(2dB step),
4) Treble: –14 to + 14dB(2dB step)
5) 1 x 6Ch - DVD Input,
6) 3 x 2Ch - Stereo Inputs,
7) Built-in Low Pass Filter for Subwoofer Frequency,
8) Built-in Simulate Surround Sound,
10) Memery Function MOD1,MOD2,MOD3,
11) With Full Fucntion Digital Rotary Encoder Support
12) User Changeable Welcome Display Name,
13) User Changeble Source Name,
14) User Changeble Key Assign,
USB AUDIO:
1) 24bit High Performance DAC
2) MP3 ,WAV , FLAC, WMA Format Support Through USB,
3) USB File Name & Folder Name Scrolling Display
4) USB Folder Next/PREV Support
5) USB Song Forward/Reverse Support
BLUETOOTH AUDIO:
1) Bluetooth Protocol V4.0
2) High Performence Low Latency A2DP
3) Bluetooth MP3 , AAC, SBC Support
FT004D-USB-BT
5.1Ch Remote Control Kit
User’s manual
4
1.
2.
3.
4.
5.
6.
7.
1.0 AUDIO CONTROLLER BOARD
1
2
5.1 multichannel input .
Usb/bluetooth (L/R) audio singal input from display unit .
4 x stereo inputs (AUX) .
Sub-Woofer output level ctrl.
5.1ch output to power amplfier
Communication from display unit .
Unregulated 12V- 15V Vdc single power supply .
34
5
6
7
1.
2.
3.
4.
5.
6
1.1
DISPLAY UNIT
16X2 DISPLAY
2 3
1
7
LCD contrast adj
Rotary encoder control input .
Infrared sensor input.
FT003 Control AB Output.
Standby Micro Switch Input
NO USE
45
Communication to audio controller.
USB port input
6.
7.
2.0 HOW TO GO ADVANCED SETTINGS
FT004D-USB-BT
5.1Ch Remote Control Kit
User’s manual
4
1. Hold AMODE Key
2.1
2.3
HOW TO SET WELCOME NAME
HOW TO SET KEY ASSIGN
1.
2.
2.
3.
3.
4.
4.
5.
5.
6.
6.
7.
7.
Go system . Advanced Setting -> System settings -> Welcome Name Edit
Go system . Advanced Setting -> System Settings -> Key Map Set
D-PAD key to cursor navigation.
D-PAD - up/dn button to which key you want assign input .
Type your letter or number hide keypad method . see figure 1
D-PAD - Right/left button to assign which input you want that key.
Hold button to change case and number
you can able to assign per key 3 inputs .
0 button delete character .
1 button to symbols.
Back button to save.
Back button save welcome name.
MULTI-TAP KEYPAD
REMOTE
Hold enter button to remove assigned input .
Enter button to assign input .
note :
note :
you can able to change pin number by Advanced Setting -> System settings -> Change PINnote :
2.2 HOW TO SET INPUTS DISPLAY NAME
1.
2.
3.
4.
Go system . Advanced Setting -> System Settings -> Inputs Edit
D-PAD - up/dn button to which input .
D-PAD - Right/left button to cursor navigation. .
3 character only edit
5. Back button save inputs name edit.
note :
2.2 HOW TO SET BLUETOOTH VISIBLE NAME
1.
2.
3.
Go system Advanced Setting -> System Settings -> BTname Edit
D-PAD - Right/left button to cursor navigation. .
16 character only edit
4. Back button save bluetooth name edit.
figure 1
VOL
BSUR SW
FRONT CEN
SURR
SYMBOLS
1
ABC
2
DEF
3
PQRS
7
TUV
8
WXYZ
9
GHI
4
JKL
5
MNO
6
DEL
0
Type your letter or number hide keypad method . see figure 1
Type your letter or number hide keypad method . see figure 1
LONG PRESS KEY TO CHANGE CASE AND NUM
AUX
USB
STB TVBD
S/PDIF HDMI ARC LINE
1. Long Press Input Key from Remote or follow step 2 .
2.4 HOW TO SET AUDIO MODE MEMORY
you can able to disable user set audio mod memory feature by
Advanced setting -> System setting -> General set -> Mode Lock = yes
note :
Audio mode memory setting 2 type of method available.
2. Advanced setting -> Audio setup -> Modes Level expert set by .
1. user can be set audio mod memory by hold ( mod 1 , mod2 , mod 3 ) button to memory
2.5 HOW TO SET RESUME VOLUME TYPE
you can set resume type by Advanced Setting -> Audio Setting -> General Set -> Boot Volm
Resume volume set 3 type available
3. = Resume last Mode ( mod1 , mod2, mod3 ) volume . MODE
1. = Resume last adjusted volume. RESM
2. = Resume default reset volume DFLT
FT004D-USB-BT
5.1Ch Remote Control Kit
User’s manual
4
2.7 HOW TO SET BOOT STBY MODE
Advanced Setting -> System Setting -> General Set -> Boot St-by = YES
if you want poweron device will go standby mode set by
1. = Standby mode enabled. YES
2. = Standby mode disabled. NO
1. = User mode lock enabled. YES
2. = User mode lock disabled. NO
2.6 HOW TO SET AUTO GAIN
you can enable/disable auto gain mode
Advanced Setting -> Audio Setting -> General Set -> Auto Gain
Auto Gain is working principle in simple.
((47dB attenuation + 7dB Gain) 50dB Volume * 2dB per Step = Total 100dB ) ,
Once auto gain enabled , input gain not possible to set.
