Future Automation PS55-M Bedienungsanleitung
EDIT CUSTOM PROPERTIES
31. ISSUE NO.
TO DESIRED ISSUE NUMBER
EDIT CUSTOM PROPERTIES
29. TITLE TO DESIRED
PRODUCT CODE
30. SUBHEADING TO DESIRED
PRODUCT DESCRIPTION
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 1
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
SPECIFICATION
MEASUREMENTS
Product Dimensions
677mm (26 5/8") x 700mm (27 9/16") x 56mm (2 3/16")
Screen Sizes
55" - 75"
Maximum Weight Capacity
60Kg (132lb)
Maximum Extension From Wall
500mm (19 11/16")
Minimum Depth From Wall
56mm (2 3/16")
Product Weight
13.5Kg (29.8 lb)
Packaging Dimensions
TBC
Shipping Weight
TBC
Maximum Rotation
50° - Bi-directional with 55" screen - 42° with 65" - 35° with 75"
Movement Type
Manual
Mounting Patterns Supported
VESA 400, 300, 200, 100 W x 400, 300, 200, 100 H
Product Options / Features
Specific B&O and Loewe mounts / adapters, Custom RAL paint finishes, Marine suitable version
Package Contents
Mechanism
Marine Suitable
Yes (Indoor)
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 2
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
50°
55"
42°
65"
35°
75"

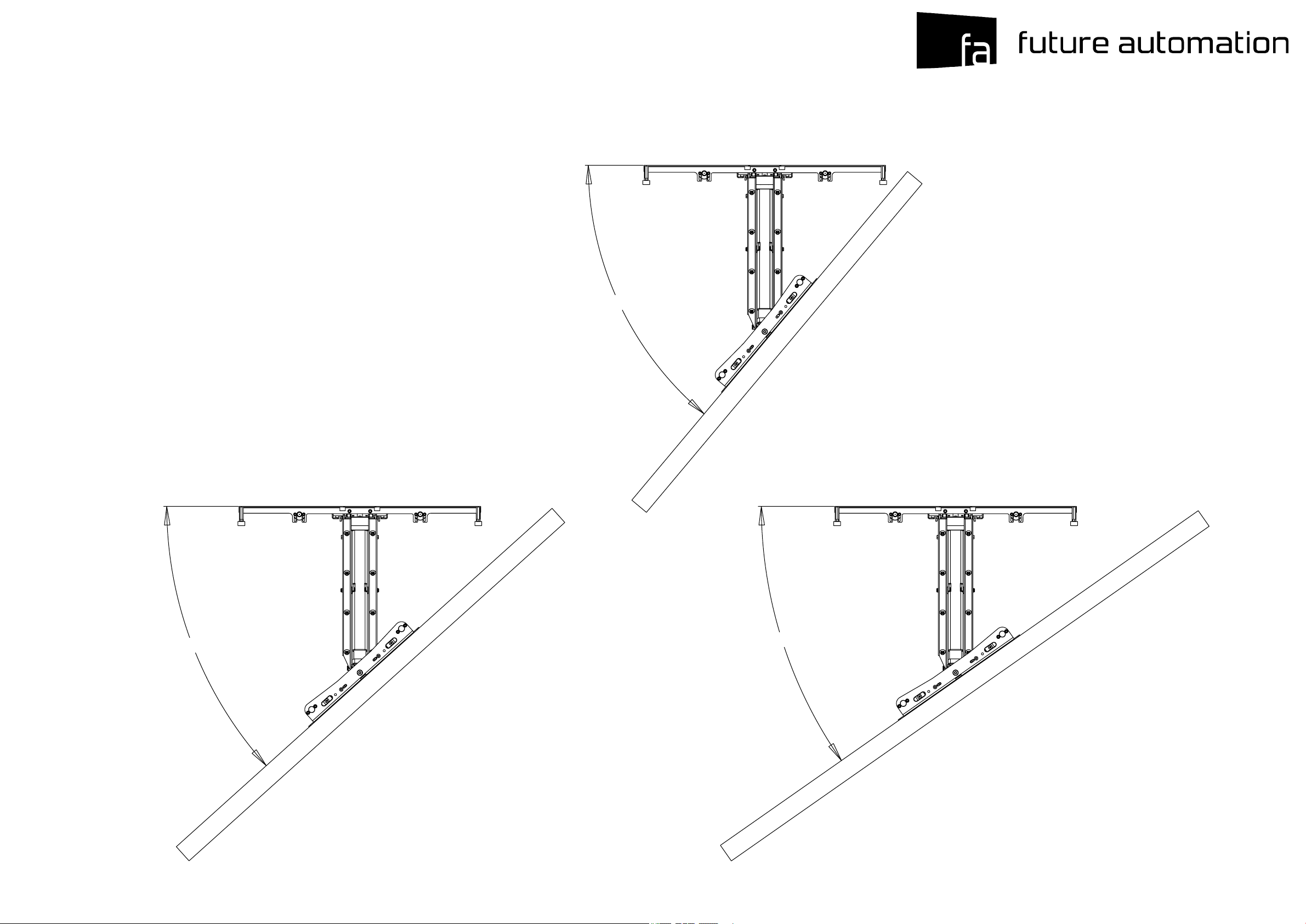

SCREEN ANGLES
The views below show the approximate maximum swivel angles achievable
for varying screen sizes.
NOTE
: The maximum swivel angle achievable is 50° regardless of screen size
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 3
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
17 11/16"
450
27 9/16"
700
Cable Tie Point
Ensure Sufficient Slack
CABLE ROUTING AND SOCKET LOCATION
Route the screen cables as shown below ensuring sufficient slack at
moving points
and secure in place using the integrated cable tie points.
Marine locking system hidden for clarity.
Wall sockets should be ideally placed as shown outside
of the bracket footprint to maximise space for cable routing
SOCKET
SOCKET
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 4
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
26 5/8"
677
22 1/8"
563
MAX VESA
HEIGHT
27 9/16"
700
2 3/16"
56
19 11/16"
500
GENERAL DIMENSIONS
FULL EXTENSION
CLOSED
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 5
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
9/16"
15
1 3/8"
35
6 5/16"
160
20 1/2"
520
1 3/8"
35
4 3/4"
120
4 15/16"
125
5/16"
8.5
5/16"
8.5
MOUNTING DIMENSIONS
Make sure the wall that the bracket is being mounted to is secure
and strong enough to support the bracket and screen.
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 6
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
26 1/4"
668
27 9/16"
700
Adjustable buffers
2 3/16"
56
27 9/16"
700
T
Adjustable buffers
2 3/16" min.
56 min.
27 9/16"
700
F
Adjustable buffers
2 1/2" max.
63 max.
27 9/16"
700
G
Adjustable buffers
2 7/8" max.
73 max.
27 9/16"
700
D
Adjustable buffers
2 9/16" min.
66 min.
MARINE LOCK
Intended to enable easy servicing by pulling on two cords to
release the spring loaded catches at the top of the bracket.
The cords would be attached at the bottom back edge of
the screen before pushing the bracket back into place.
4 x Adjustable buffers provide stability for the screen corners. These
are mounted on provided Hex Spacers (2 Lengths Provided)
4 x 35mm Spacer
4 x 45mm Spacer
35mm
Spacer
45mm
Spacer
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 7
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
Level Adjustment
Bolts
15 3/4"
400
11 13/16"
300
7 7/8"
200
3 15/16"
100
SCREEN ADJUSTMENT
The angle of the screen can be fine tuned to horizontal by adjusting
the 2 POZI bolts on top of the screen frame
The PS brackets uprights can be reversed to offer VESA 100, 200,
300 & 400 Width
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 8
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
MARINE CATCH CABLE ROUTING
4 x Cable Routing Bosses are provided to route the 2
marine catch cords to the outer edges of the screen
Mount boss to be secured to the wall with countersunk
fixings
(NOT PROVIDED)
Additional Cable Route Bosses Can be purchased using
order code
CRB-PS-M
No Cable Routing
Bosses used
Cables hang below
the screen
Cable Routing
Bosses used
Cables routed to
the side of screen
Cable Routing Bosses
used
Cables routed to the
top of screen
This orientation
increases pulling
power required to
release marine catch
4 x Cable Route Bosses
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 9
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
ADDITIONAL ACCESSORIES
CABLE ROUTING BOSS KIT
4 x Cable Routing Bosses are
provided
as standard with the marine PS
brackets.
Additional
sets can be ordered with
code
CRB-PS-M
BALL & SOCKET KIT
Sets of 4 x Ball and Socket Catches to
be used with the marine PS bracket to
retain and stablise the screen edges.
Full Details refer to
BS-PS-M
Technical
Sheet
Sets of 4 x Rubber screen Posts to be
used with the marine PS bracket to
apply pressure and stabilise the
screen edges.
Full Details refer to
RP-PS-M
Technical
Sheet
RUBBER POST KIT
WWW
.
FUTUREAUTOMATION
.
NET
PS55-M
TECHNICAL SHEET
ISSUE 003
SHEET 10
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
