Original User Manual FUXTEC FX-MSP2.2_rev08
1
O
Original User Manual
FUXTEC Motor Sprayer Model FX-MSP2.2
Fig. similar
FUXTEC GmbH
Kappstrasse 69, 71083 Herrenberg-Gülstein, Germany
Original User Manual FUXTEC FX-MSP2.2
2
Table of contents
Introduction............................................................................................... 3
Safety and Warning Instructions .................................................................. 4
Commissioning of the device ....................................................................... 7
Filling and starting .................................................................................... 10
Nebulizing / Fogging ................................................................................. 14
Malfunctions and troubleshooting ............................................................... 15
Technical maintenance and storage ............................................................ 17
Technical execution .................................................................................. 19
EC Declaration of Conformity ..................................................................... 20
Original User Manual FUXTEC FX-MSP2.2
3
Introduction
The FUXTEC FX-MSP2.2 motorized sprayer is portable, flexible, and made of high-
quality / high-performance material for weed control and protection of plants in
large areas and the protection of crops. The device can also be used to remove
weeds, leaves and fertilizers, and salt spraying.
Before using your device for the first time, please read these operating instructions
carefully.
Warning!
The device is filled with a 2-stroke petrol mixture. The ratio between
gasoline and oil is fixed with a mixing rate of 25:1. Use a 2-stroke oil for
petrol engines. (It is generally forbidden to use another oil)
The device should have been in operation for 3-5 minutes before the engine
is stopped again. To avoid damages to the engine, it is generally not allowed
to run the device on the highest level before it has warmed up. Among other
things, it is strictly forbidden to stop the device at maximum speed.
To prevent fire, switch off the device when filling it with gasoline. Smoking
while filling the tank is not allowed!
Functions / Basics
The device's main components are made of high-quality plastic; therefore,
the device has a lower weight.
All parts are made of reinforced plastic; the steel and metal parts are rust-
free, making the materials less sensitive and more durable.
The tank opening is kept broad, making it easy to fill the gasoline directly
from the canister.
The processed components are of high quality and protected from heating.
Original User Manual FUXTEC FX-MSP2.2
4
Safety and Warning Instructions
1. Read the instructions carefully. Be sure that you have understood the
operating instructions precisely before you start working with the device.
2. Wear safety clothing / protective clothing such as:
1) Safety cap/protection cap
2) Safety glasses (fog)
3) Breathing mask
4) Long safety gloves
5) Safety clothing against toxic substances
6) Safety shoes
3. The following persons must not work with the device:
1) Alcoholized persons.
2) Minors and older people.
3) Persons who do not know the device.
4) People who are excited, nervous, and overtired.
5) Pregnant and breastfeeding women.
4. Prevention of fire
1) Do not light a fire or smoke near the device.
2) Do not fill the fuel tank while the engine is still warm.
3) Never fill the device after cleaning the device.
4) Always close the tank cap tightly.
Original User Manual FUXTEC FX-MSP2.2
5
5. Starting the device
1) Switch the dust nozzle to the lowest position before starting the device.
Otherwise, the chemical will be sprayed when you start the engine.
2) It is forbidden to stand at the front of the blow nozzle. Even if the spray nozzle
is closed, residues of the residual dust may be deposited on the tube.
6. Nebulizing / Fogging
1) It is recommended to use the device in cold weather. For example: in the early
morning or late afternoon. This can reduce the evaporation of the chemical and
thus improve the effect.
2) If your mouth or eyes contact the chemical, wash them out immediately with
water and see your doctor immediately.
3) If you have headaches or a dizzy spell, stop working with the device and see a
doctor for safety reasons.
4) When preparing the pesticides, the user should follow the instructions on the
label.
5) It is forbidden to use special liquids, those with strong acids or lye, etc.
Safety symbols on the device
WARNING: Improper operation can lead to
severe injuries!
Read this manual carefully to understand how to
use this device properly!
Please wear hearing protection during work!
Original User Manual FUXTEC FX-MSP2.2
6
Please wear a respirator and eye protection mask
during work!
Please wear protective gloves during work!
Please wear a protective suit during work!
Please wear safety shoes during work!
WARNING: Spray materials must not be inhaled
under any circumstances!
WARNING: highly flammable petrol mixture; avoid fire!
WARNING: Danger from hot components!
WARNING: Do not reach into nozzle or spray
openings during operation!
WARNING: Never change the device. Exhaust fumes
of this product contain chemicals that can lead to
cancer, congenital disabilities, and other diseases!
Original User Manual FUXTEC FX-MSP2.2
7
Commissioning of the device
1. Change from liquid to granulate sprayer (e.g., salt)
Remove the side safety nuts (1) of the chemical tank and disassemble the tank
(see next step in fig.2. Remove the spray insert and insert the granule insert (2,
Fig.1).
Fig.1
1. Security screw
2. Granulate insert
3. Granule attachment
4. Cover
Disassembly of the chemical tank
2) Remove the lower cover "A" of the chemical tank, change the spray nozzle
connected to the rubber tube/hose, and screw on the cover "B." (Make sure that
the sealing ring is present to prevent the granules from leaking) as shown in Fig.
3.
Screw on the cover. Loosen the hoses (2+3) and the filter (5).
Fig. 2
1.Use of chemicals
2.Hose
3.Hose
4.Filling filter
5.Cover
Original User Manual FUXTEC FX-MSP2.2
8
Fig. 3
1.Sealing
2.Connection
3.Fixing screw
3)Connect the spray unit to the device as shown in Fig. 4
2. Assembly of the spray nozzle
Fig. 5
1. Flexible hose
2. Spray pipe
3. Handle/gas handle
4. Pipe Elbow
5. Spray attachment chemical
6. Pipe clamps
7. Hose
1
3
2
6
4
5
7
Original User Manual FUXTEC FX-MSP2.2
9
3. Anti- Electrostatic Installation
Dusting or spreading of the chemical granules can generate electrostatic charges.
This is proven after the application of such chemicals under certain conditions of
air temperature and humidity.
Please use the enclosed safety chain (C) to avoid electrostatic charges and mount
the cable lug (A) on the pull starter. Please loosen one screw of the starter and
push the cable lug (A) underneath. Then retighten the screw of the starter. When
the air becomes humid, the electrostatic charge is high, especially if the tube's
skin used to spray and distribute the granules is damp. Electrostatics often occur.
Please pay attention to this.
Fig. 7
The safety chain C should be freely suspended and touch the ground for grounding
during work.
At the same time, please install the ground cable (B) under the hose clamp, as
shown in Fig. 7.
Original User Manual FUXTEC FX-MSP2.2
10
Filling and starting
1.Testing before commissioning
1) Check if the spark plug etc. is loose.
2) Check if the air cooling opening is blocked to prevent overheating.
3) Check if the air filter is dirty.
4) Press the starter 2-3 times to see if the device's operation is regular.
2. Refuelling
1) Switch off the engine before filling the tank.
2) We recommend a petrol mixture 25:1 - 40:1; the oil must be 2-stroke engine
oil. For the first 4-5 hours of operation, a mixing ratio of 25:1 should be used. An
incorrect mixing ratio can destroy the function of the motor. The unit is not
designed for special fuels or ready-mixes.
3. Filling of chemicals

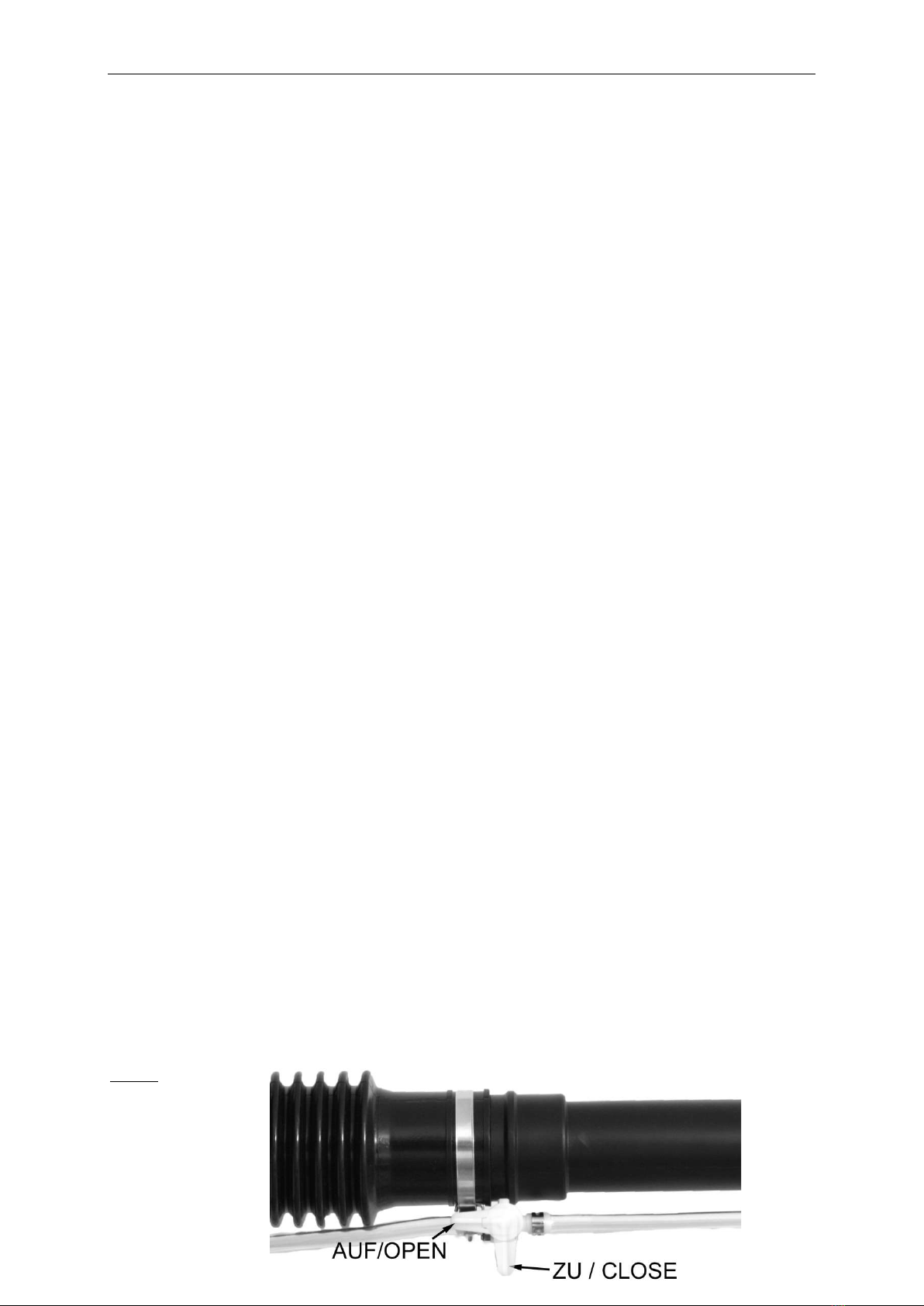

1) While filling the chemicals, the OPEN / CLOSE switch must be locked, as shown
in Fig.8. While the spray tank is being filled with the chemical, the device should
be placed on the floor. Otherwise, chemicals may escape from the device.
2) Because the chemical powder can easily block the spray lines, the chemical
should not be in the tank for long.
3) While spraying, the chemical tank cap should be tightly closed. After spraying
the chemical, please clean the lid of the chemical tank cap and tighten the cap.
Fig. 8
