Dear customer,

We would like to thank and congratulate you for your

choice. This practical modern appliance has been made

using materials of the highest quality, which have been

put through the strictest of Quality Controls during

manufacture and meticulously tested to ensure that they

meet all of your cooking demands. To make life easier,

this instructions booklet is divided up into two sections:

instructions of use and installation instructions. We kindly

ask you to read and follow these simple instructions in

order to guarantee first-class results from the very start.

This booklet contains important information not only

concerning use, but also concerning your own personal

safety and maintenance of the appliance.

Our products need to be carefully packed to protect them

during transportation. All the material used for packing is

considered essential for this purpose and is also

completely recyclable. You too can contribut towards

protecting the environment by disposing of this material at

your nearest recyclable refuse collection point. Do not

dispose of used cooking oil down the kitchen sink. Oil

may seriously damage the environment. Dispose of it in a

closed container at your nearest collection point or, failing

this, dispose of it in your rubbish bin. Although this last

solution is far from perfect, your oil will be taken to a

controlled refuse dump where it will not be allowed to

pollute water. You and your children will appreciate it.

Render your old appliance useless before disposing of it

at your nearest recyclable refuse collection centre.

Your local authority will be pleased to inform you where

your nearest centre is.

Packaging and old appliances

If the symbol appears on the specifications plate,

follow these instructions:

Disposing in an environmentally-responsible

manner

Unpack the appliance and dispose of the

packaging in a environmentally-responsible

manner.

This appliance is labelled in accordance with the

European Directive 2002/96/EC concerning

used electrical and electronic appliances (waste

electrical and electronic equipment - WEEE).

The guideline determines the framework for the

return and recycling of used appliances as

applicable.



CONTENTS

Safety Warnings ........................................................ 3

Your new hob ............................................................ 4

Gas Burners .............................................................. 5

Recommended receptacle diameters ...................... 6

Cooking recommendations ..................................... 7

Warnings of use ......................................................... 8

Cooking ................................................................ 8

Cleaning and maintenance .................................... 9

Troubleshooting ........................................................10

Conditions of warranty ..............................................11

Safety warnings

Read this manual carefully in order to cook efficiently

and safely.

In accordance with current regulations, the installation

and adaptation of gas systems may only be performed

by an officially authorised technician.

Check all measurements before proceeding to install

your new hob.

These instructions are only valid for the countries indica-

ted on the appliance. Refer to the technical instructions

to adapt the appliance to the conditions of use for the

relevant country.

This appliance should not be connected to device for

extracting combustion products.

The appliance should not be exposed to strong draughts,

as these may blow the burners out.

This appliance leaves the factory set for the gas supply

indicated on the characteristics plate. Call the Service

Centre this it needs to be altered.

Do not tamper inside the appliance. If necessary, call

your local Service Centre.

Look after these instructions of use and installation so

as to be able to produce them should the appliance ever

change hands.

If your hob is supplied with a glass cover, do not subject

it to excessive force. If the glass should become

detached from the hob, call the Service Centre

immediately for them to repair or replace it.

Do not use a damaged appliance.

The surfaces on heating and cooking appliances get hot

when in use. Be careful. Keep children away from the

appliance.

Only use your appliance for the preparation of food and

never for room-heating purposes.

Overheated fat or oil can easily catch fire. Never leave

the appliance unattended when cooking food with fat or

oil, e.g. chips.

Never pour water on burning fat or oil. DANGER OF

BURNS! Cover the receptacle to smother the flames

and turn the hob off.

In the event of a fault, cut the gas and electricity supplies

to the appliance. Call our Service Centre to repair the

fault.

Do not use unstable or uneven-based receptacles on

cooking plates or burners. They may accidentally tip

over.

If a gas supply knob/valve jams, do not force it. Call

repair or replace it.

The illustrations used in this booklet are only

intended as a guide.

IF THESE INSTRUCTIONS ARE NOT FOLLOWED,

THE MANUFACTURER ACCEPTS NO

RESPONSIBILITY

Do not use steam clearing machines to clean the

your official Service Centre immediately for them to

hotplate, as there is risk of electrocution.

(including children) with reduced physical, sensory or

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

This appliance is not intended for use by persons

responsible for their safety.

mental capabilities, or lack of experience and

Never leave the appliance unattended during operation.

Your New Hob:

Pan support

Triple flame

burner Small triple flame

burner

Control knob

Gas burners

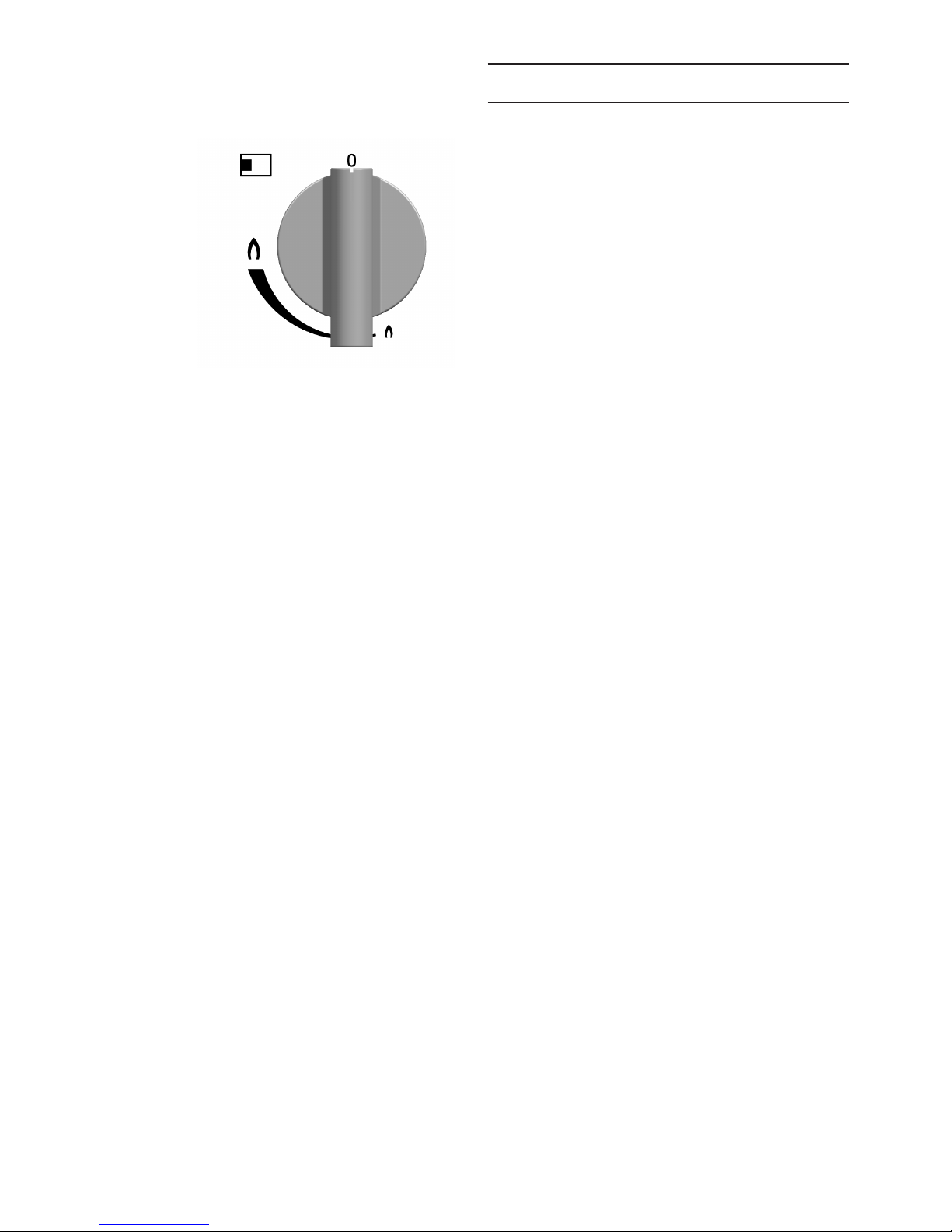

Each control knob indicates which burner it controls.

Fig. 1.

To light a burner, press the burner switch and turn it left

to the maximum position, keeping it in this position for a

few seconds until the burner lights before releasing and

adjusting it to the required position.

If the burner does not light at the first attempt, repeat the

operation.

If your hob does not come with any kind of automatic

ignition system, then light the burners with a naked flame

(cigarette lighter, matches, etc.).

If the spark plugs are dirty, then a fault may occur in the

ignition system. Keep them completely clean. Clean the

spark plugs using a small brush, remembering that the

plugs must not receive any kind of violent impact.

Your hob is equipped with burners with safety valves

which prevent gas from being released. Should the

burners accidentally go out, proceed to light as

described above, but keep the control knob pressed in

until the burners light and then for a few more seconds

once alight. If complete ignition does not occur, repeat

the operation keeping the knob pressed in for approx. 10

seconds.

To turn the burners off, turn the control knob in a

clockwise direction to the 0 setting.

Your modern functional hob is equipped with progressive

valves which permit you to find the perfect flame setting

between maximum and minimum.

Your hob is equipped with a triple-flame burner, the

perfect system for cooking paellas, using woks, etc.

Gas appliances create both heat and humidity in the

room they are used in. Make sure that your kitchen is

properly ventilated: keep natural ventilation outlets open

or install a mechanical ventilation system (extractor fan).

When using your appliance for a prolonged period of

time, it may be necessary to provide additional ventilation

e.g. by opening a window (without creating a draught)

or turning up the setting on your mechanical ventilation

system.

And orange-coloured flame is normal and it is produced

in the presence of dust in the atmosphere, spillages, etc.

Fig. 1

Depending on model:

Burner Mínimum receptacle Maximum receptacle

Triple flame: >22 cm

Small triple flame: 22 cm 26 cm

Semi-rapid: 14 cm 20 cm

Auxiliary: 12 cm 14 cm

Additional pan support:

Depending on the model that you have purchased, your

hob may come equipped with an additional pan support.

This pan support is essential when using the triple-flame

burner for receptacles with diameters of more than 26

cm, griddles, terracotta casseroles and all kinds of

concave receptacles (Woks, etc...) Fig 2.

If you do not have this pan support, then it is available

Coffee pot support: Depending on the model that you

have purchased, your hob may come equipped with an

additional coffee pot support. This pan support is only

for use on the auxiliary burner for receptacles with

diameters of less than 10 cm. If you do not have this pan

support, then it is available from your Service

The manufacturer cannot be held responsible for

the non-use or misuse of these additional pan

support.

Recommended receptacle

diameters (cm.)

Fig. 2

from your Service Centre, code 484128.

Centre, code 423545.

Cooking recommendations

These recommendations are only intended as a guide

Very strong Strong Medium Slow

Triple flame Boiling, stewing, grilling, Re-heating and

browning off, paellas, keeping food warm:

oriental food (Wok) prepared food,

pre-cooked food

Small Escalope, steak, Rice, Steaming:

triple omelette,fried food white sauce, fish,

flame agout. vegetables.

Semi-rapid Steamed potatoes, fresh Re heating and

vegetables, pasta keeping food warm:

pre-cooked food and

delicate stews.

Auxiliary Stews, rice pudding, Thawing Making/

caramel. and slow melting:

boiling: butter,

pulses, chocolate

fruit, jelly

frozen

food

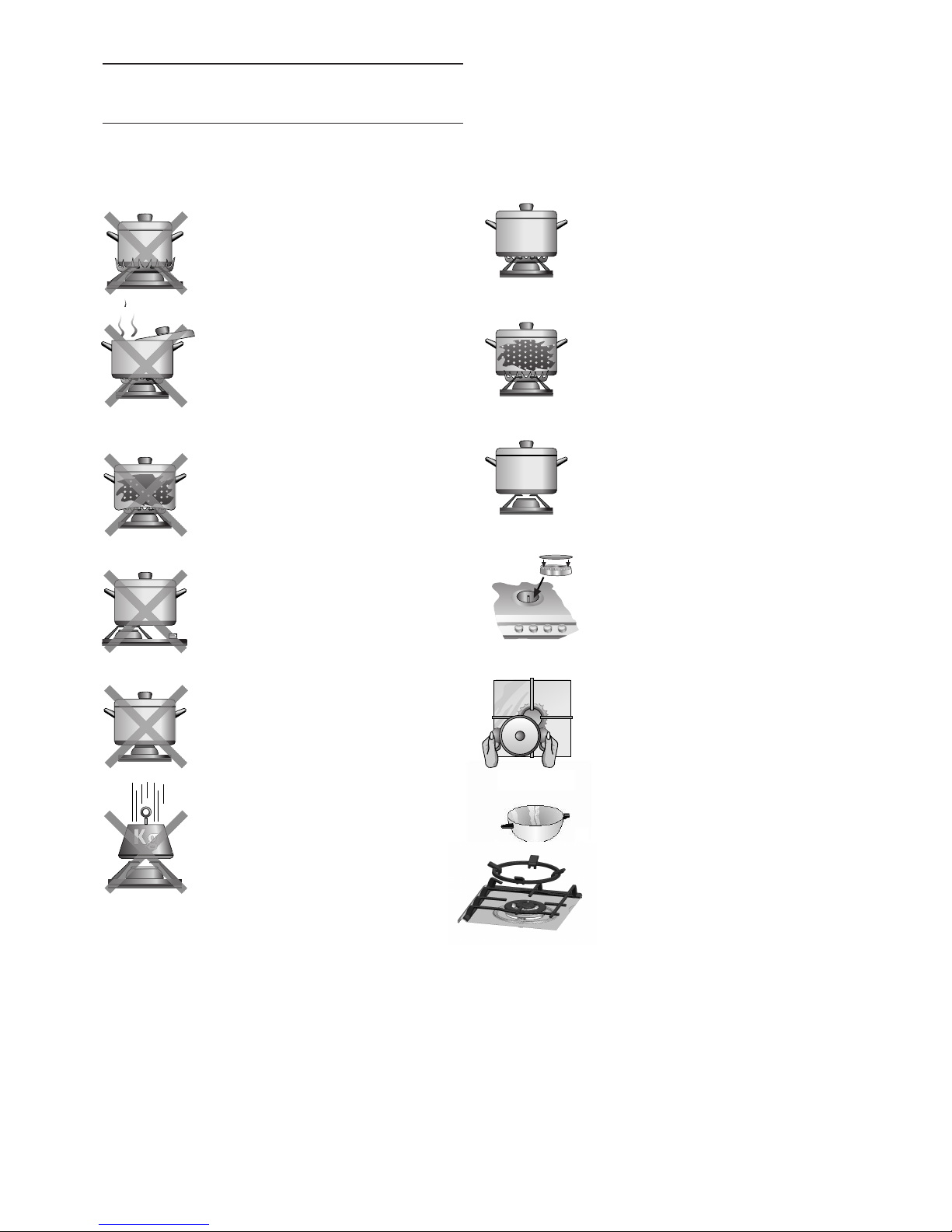

Warnings concerning cooking:

DON'Ts

Do not use small receptacles on large

burners. The flame should not touch the

sides of receptacles.

Do not cook without lids or with lids only

partially covering receptacles.

You are wasting energy.

Do not use receptacles with uneven

bases. They lengthen cooking times and

increase energy consumption.

Do not place receptacles on burners off

centre. They could tip over. Do not use

wide-based receptacles on the burners

nearest to the controls.When centred on

the burner, they could touch the controls

or raise the temperature in the area. This

may damage the hob.

Do not place receptacles directly on top

of burners.

Do not use excessive weights or strike

the hob with heavy objects.

DOs

Always use suitably sized receptacles on

each burner. This helps avoid excessive

gas consumption and prevents

receptacles from getting tarnished.

Always use lids.

Only use thick-,flat-based saucepans,

frying pans and casseroles.

Always place receptacles in the middle

of burners.

Always place receptacle on the pans

support. Make sure that the metal grids

and the tops of the burners are correctly

positioned before using them.

Handle receptacles on the hob with care.

Only use one recipient per burner. Use

the extra cast iron grid on the triple flame

burner

Cleaning and maintenance:

DON'Ts

NEVER use abrasive products,

sharp instruments, steel scourers,

knives, etc... to remove bits of

hardened food that have stuck to the

hob, pan supports, burners or

electric hotplates.

DO NOT use steam cleaning

machines to clean the hob, this

could damage it.

Avoid spilling acidic liquids (such as

lemon juice or vinegar) on your

DOs

Once the appliance is cool, use a

sponge, water and soap. Wipe

away all spilled liquids as soon as

spillage occurs to save unnecessary

effort at a later stage.

In order to keep the burners and the

pan supports clean they should be

periodically cleaned by sumerging

them in soapy water and scrubbing

them with a non-metallic brush so

that all holes and grooves are

perfectly clean and free from dirt.

This will ensure correct flames.

Always dry the burner covers and

the pan supports if they have

become wet.

After cleaning and drying the

burners, make sure the burner

covers are correctly placed on the

burner´s flame diffuser.

The lid of the triple-flame burner and stainless steel parts such as top sheet and the area around the burners may

become discoloured over time. This is NORMAL because of the high temperatures. Each time the appliance is used

these parts should be cleaned with a product that is suitable for stainless steel.

After washing the pan supports, dry them completely before cooking with them again. Drops of water or damp patches

on the surfaces when you begin cooking may cause deterioration of the enamel.

The pan supports on your cooking hob are fitted with rubber rests. Take care when you clean them, as they might

come off, leaving your pan support without protection, and it may scratch the cooking hob.

cooking hob.

Try not to spill salt on the surface

of the electric hotplate.

Inhaltsverzeichnis

Sprachen:

Andere Gaggenau Kochfeld Handbücher

Gaggenau

Gaggenau VG295250 Bedienungsanleitung

Gaggenau

Gaggenau CI 490 Bedienungsanleitung

Gaggenau

Gaggenau CK 270-604 Produkthandbuch

Gaggenau

Gaggenau VG 295 250 AU Bedienungsanleitung

Gaggenau

Gaggenau CI 290 Bedienungsanleitung

Gaggenau

Gaggenau CI 261 Technisches Datenblatt

Gaggenau

Gaggenau CI 283 Technisches Datenblatt

Gaggenau

Gaggenau Teppan Yaki VP 421-610 Produkthandbuch

Gaggenau

Gaggenau VG 230-811 Bedienungsanleitung

Gaggenau

Gaggenau VP230120 Bedienungsanleitung

Gaggenau

Gaggenau CI 490 Bedienungsanleitung

Gaggenau

Gaggenau VI 232 12 Series Bedienungsanleitung

Gaggenau

Gaggenau VI 414 Bedienungsanleitung

Gaggenau

Gaggenau CG270210 Bedienungsanleitung

Gaggenau

Gaggenau CE 492 Bedienungsanleitung

Gaggenau

Gaggenau VG 231 RK Bedienungsanleitung

Gaggenau

Gaggenau VG 231 AU Bedienungsanleitung

Gaggenau

Gaggenau CE261114 Bedienungsanleitung

Gaggenau

Gaggenau CG261210AU Bedienungsanleitung

Gaggenau

Gaggenau CK 260-604 Produkthandbuch

Gaggenau

Gaggenau VI260 Bedienungsanleitung

Gaggenau

Gaggenau CI 262 Bedienungsanleitung

Gaggenau

Gaggenau CI 262 Bedienungsanleitung

Gaggenau

Gaggenau VG231120F Bedienungsanleitung

Beliebte Kochfeld Handbücher anderer Marken

Siemens

Siemens EX875KYV1E Technisches Datenblatt

AEG

AEG CERAMIC HOB 6010 K Bedienungsanleitung

VALERA

VALERA CT 70A Bedienungsanleitung

Zanussi

Zanussi ZGF 6420 Bedienungsanleitung

G3 Ferrari

G3 Ferrari Energy Bedienungsanleitung

Pkm

Pkm IN4B Bedienungsanleitung

Award

Award H903BG Bedienungsanleitung

Zanussi

Zanussi VCH 5005 RZ Bedienungsanleitung

Miele

Miele KM 523 Bedienungsanleitung

Hotpoint

Hotpoint IS67V8CCXT/E Bedienungsanleitung

AEG

AEG HK854870XB Bedienungsanleitung

Cookology

Cookology SEP600BK Bedienungsanleitung

Bauknecht

Bauknecht Hob Bedienungsanleitung

Zanussi

Zanussi ZGM 782 Bedienungsanleitung

dipo INDUCTION

dipo INDUCTION DIBK218S Bedienungsanleitung

Miele

Miele KM 5987 Bedienungsanleitung

Miele

Miele KM 360 G Bedienungsanleitung

Blomberg

Blomberg MKN 24201 W Bedienungsanleitung
