Changing the door hinge side
The swivel door of the built-in frame is pre-fitted
with the hinge on the left. The door hinge can be
converted to the right-hand side.
roceed as follows:
– lace the frame on the door using a suitable soft
pad.
– Remove the four securing screws of the bottom
trim of the built-in frame (Ain Fig. 1).
– You can now detach the door and the bottom trim
from the built-in frame.
– Undo the stopper in the hole for accommodation
of the door journal (Bin Fig. 1). Secure the
stopper in the opposite hole.
– Turn the door by 180°. Secure the door and the
bottom trim back on the built-in frame.
– Remove the bottom screw from the door handle
(Fig. 2).
– Remove the top screw from the door handle and
detach the door handle.
– Hold the front window with one hand and lightly
shake the door to and fro. The glass window can
be removed towards you (Fig. 3).
– Turn the glass window by 180°. The Gaggenau
inscription must be at the bottom.
– Install in the reverse order. In doing so, make sure
that you first insert the window on the hinge side
and that you hold it with one hand to stop it from
falling out.
8
Fig. 2
Fig. 3
Fig. 1
A A B

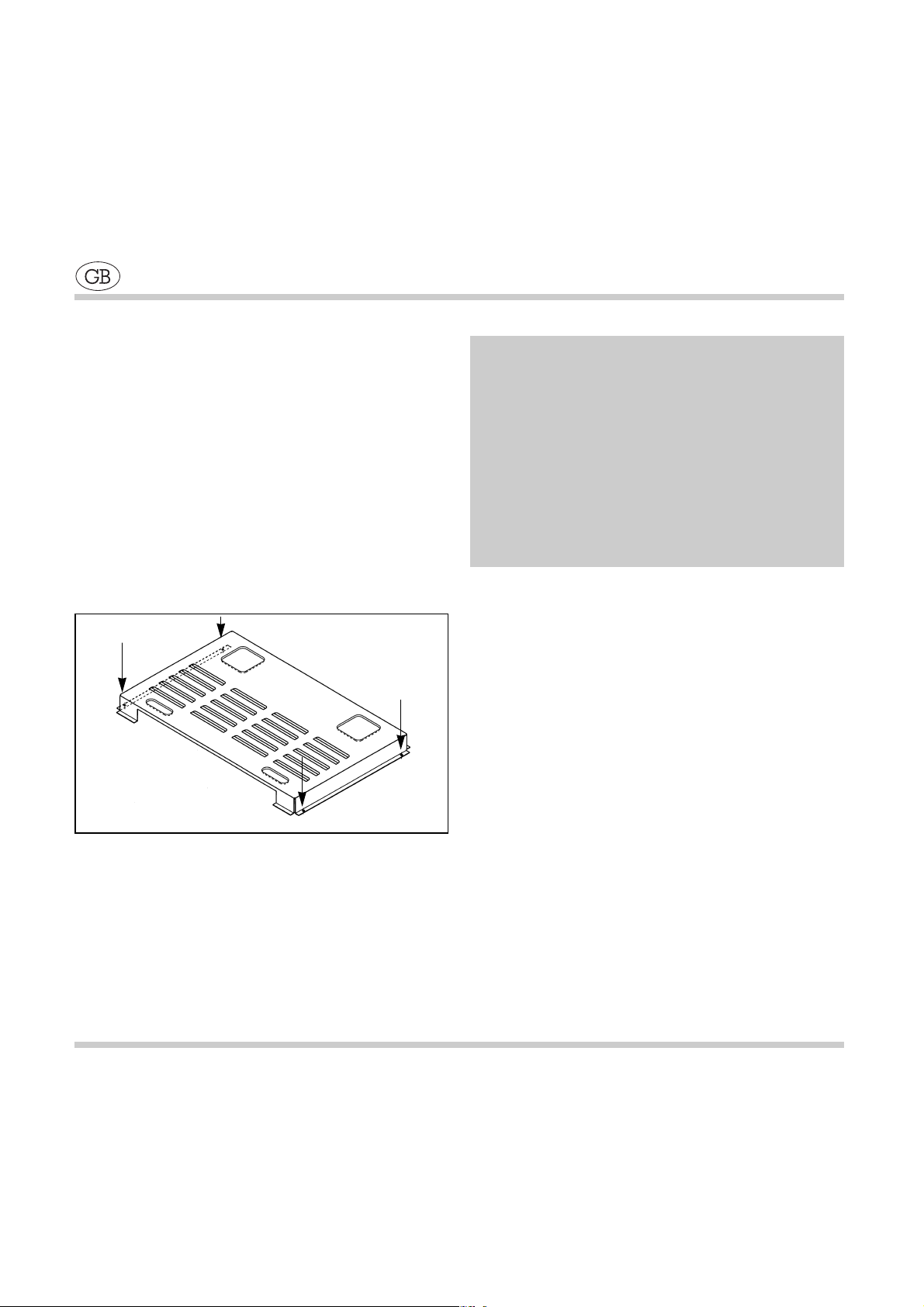

Fitting the built-in frame
roceed as follows:
– Secure the base plate on the intermediate shelf of
the built-in cabinet with the four included wood
screws (Fig. 4). To do this, use the template on
page 47.
– Screw the air baffle onto the upper side of the
recess in the appliance:
Distance from cabinet front to hole:
340 mm
Distance from left cabinet side to left hole:
80 mm
Note:
before connecting the appliance, make sure that
the voltage specified on the rating plate agrees
with your household installation voltage.
– Connect the microwave unit to the power mains
and place it on the base plate in the built-in
cabinet. To fit the front door, push the appliance
a little towards the rear in the built-in cabinet.
9
The ER 212 built-in frame can be combined
with the Gaggenau E 119 microwave unit.
Other combinations are not permissible and
may damage the microwave unit or the built-in
cabinet.
Observe the assembly instructions. The ven-
tilation slot shown in the installation drawing
must be produced in the built-in cabinet.
The microwave unit may only be installed with
a permanently fitted intermediate shelf meas-
uring at least 16 mm (between oven and micro-
wave unit) and the intended base plate.
Explanations of the drilling template on page 47
A – Left cabinet side
B – Right cabinet side
C– Cut off here if the cabinet wall is 22 mm thick
D– Cut off here if the cabinet wall is 19 mm thick
E – Cut off here if the cabinet wall is 16 mm thick
F – Face side of the cabinet wall
G– Outer cabinet wall
H – Centre of hole for base plate
Fig. 4
Face side of the cabinet wall
– Make sure that the air baffle lies on the top of the
appliance with its padded side.
– If the side walls of your built-in cabinet are less
than 22 mm thick, you must stick the included
spacers behind the four side holes in the front
door:
Side wall = 19 mm/spacer 3 mm
Side wall = 16 mm/spacer 6 mm
– Fit the built-in frame in the door recess so that it
lies at the bottom on the intermediate shelf.
– At the sides, firmly screw in the built-in frame in
the built-in cabinet with the four included wood
screws (Fig. 5).
– Now pull the microwave unit on the base plate so
far towards you that the feet of the microwave unit
stand in the recesses of the base plate.
– Check whether the door opens and closes easily.
If the door does not open and close easily after
assembly you can adjust the door by loosening
the four screws A.
Cleaning
Clean trim components and the glass surface with a
moist cloth and gentle rinsing detergent and wipe
them dry with a soft dry cloth. Do not use any
abrasive or nitro polishing agents for cleaning!
Do not use any abrasive sponges either.
10
560
min.
560
590
37,5
455
450
min.
850
Fig. 6
Fig. 5
Air outlet at least 200 cm2
