GALTRONICS MK-07305 Bedienungsanleitung

Model No: MK-07305 | Mounting kit for DAS antennas page 1 of 4

WWW.GALTRONICS.COM

A90-00077 Release Date: 01-APR-2020; Revision: 01

Mounting Bracket

For Outdoor DAS Antenna Installation

DESCRIPTION:

This steel mounting bracket is suitable for outdoor DAS

antennas, and can be assembled onto wall and poles ranging

from 1.5” (38.1mm) to 4”(101.6mm).

Specifications

Model Number

MK-07305

Environmental Conditions

Outdoor

Weight

6.0lbs (2.73kg)

Dimensions

L 11.3” X H 7.1” X W 7.0” (288.0mm X 180.0mm X 176.9mm)

Material

Steel

Wind Speed Resistance

150mph (240kmh)

Pole Diameter Range

1.5” (38.1mm) to 4” (100mm)

Mounting Style

Pole Mount and Wall Mount

Mounting Hardware to Antenna

Supplied with Bracket

Mounting Hardware to Pole

Supplied with Bracket

Mounting Hardware to Wall

Partially supplied with Bracket

Figure 1. Mounting Bracket

Model No: MK-07305 | Mounting kit for DAS antennas page 2 of 4

WWW.GALTRONICS.COM

A90-00077 Release Date: 01-APR-2020; Revision: 01

Assembly instructions

Step 1 –Mounting Bracket

The bracket can be mounted to a pole or a wall.

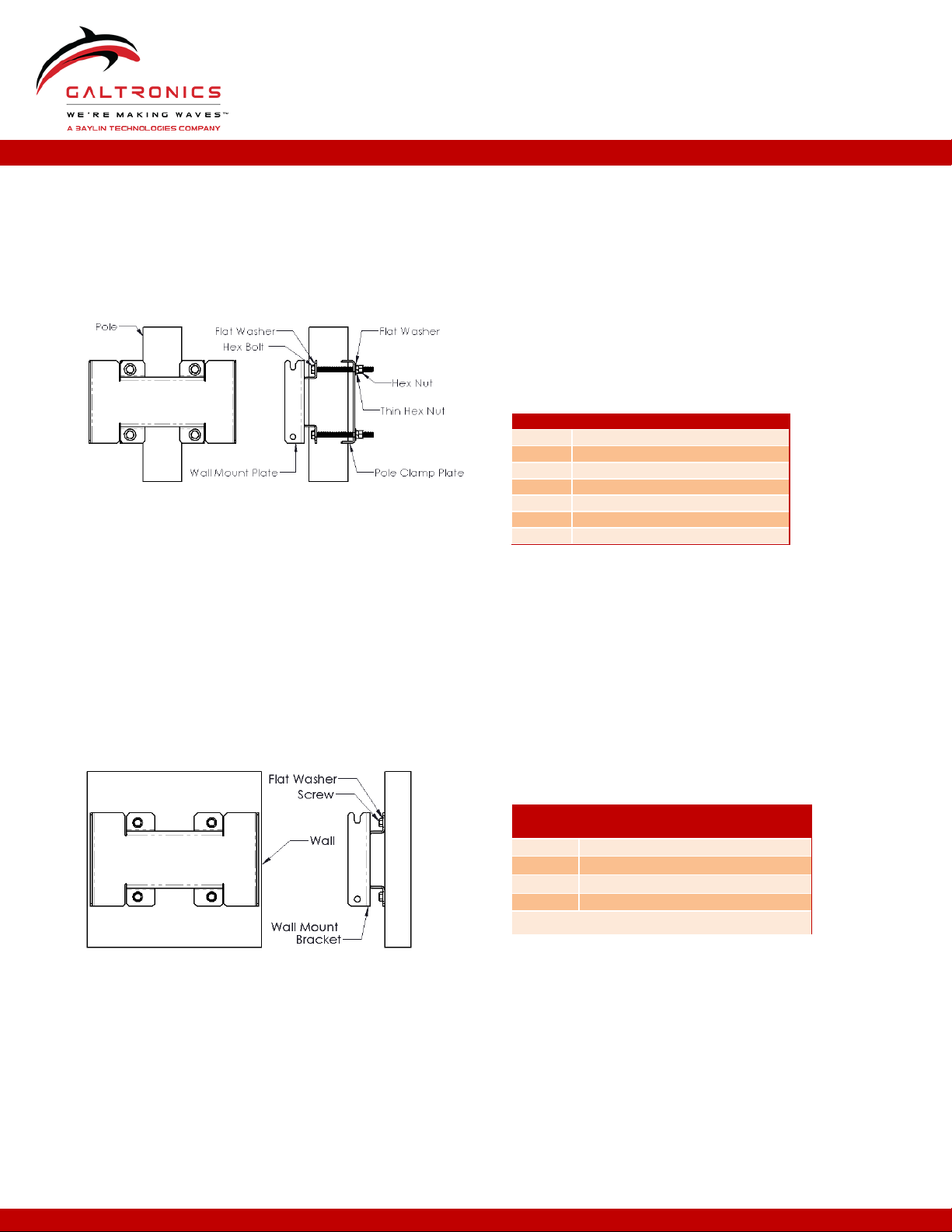

Figure 2. Pole Mount

For pole mounting, the bracket is mounted to the pole

using the pole clamp plate (Figure 2. Pole Mount)

The hardware required for pole mount is shown in Table 1.

Table 1

Mounting Hardware to Pole

QTY

DESCRIPTION

Wall Mount Plate

Pole Clamp Plate

3/8”x4-1/2” Hex Head Bolt

3/8” Flat Washer

3/8” Hex Nut

3/8” Thin Hex Nut

For wall mounting, the pole clamp plate is not used.

The hardware required for wall mount is shown in Table 2.

Table 2

Mounting Hardware to Wall

QTY

DESCRIPTION

3/8”Wall Mount Screw

Wall Mount Plate

3/8” Flat Washer

Notes:

1. Only wall mount plate is included in this mounting kit.

Figure 3. Wall Mount

Model No: MK-07305 | Mounting kit for DAS antennas page 3 of 4

WWW.GALTRONICS.COM

A90-00077 Release Date: 01-APR-2020; Revision: 01

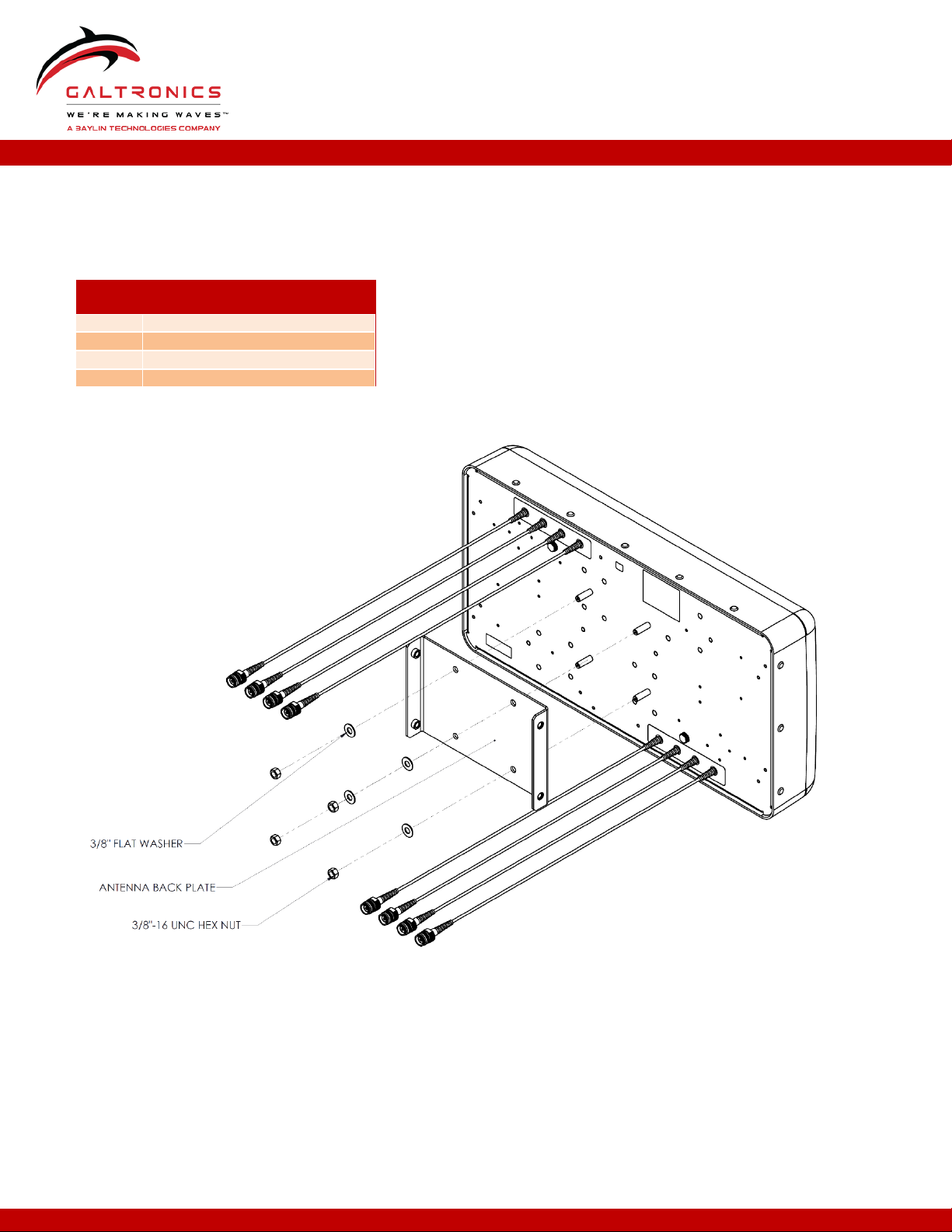

Step 2 –Antenna Back Plate

Fasten the Antenna Back Plate to the antenna using parts listed in Table 3. Torque to 17 ftlbf, and use a thread lubricant to

prevent seizing.

Table 3

Mounting Antenna Back Plate to Antenna

QTY

DESCRIPTION

3/8”Hex Nut

3/8” Flat Washer

Antenna Back Plate

Figure 4. Antenna Back Plate

Model No: MK-07305 | Mounting kit for DAS antennas page 4 of 4

WWW.GALTRONICS.COM

A90-00077 Release Date: 01-APR-2020; Revision: 01

Step 3 –Mounting Antenna to Mounting Bracket

Figure 5

Attach the antenna onto the wall mount bracket using hex

head serrated-flange screws as shown in Figure 5 and

Figure 6.

Apply a thread lubricant to prevent seizing, and torque to

17 ftlbf.

Table 4

Mounting Hardware to Antenna

QTY

DESCRIPTION

3/8”x1 Hex Head Serrated-Flange Screw

Figure 6
