Gama Sonic GS-103 Bedienungsanleitung

Progressive Solar Spot Light

Instruction Manual

Model: GS-103 / GS-103WW

INTRODUCTION

Thank you for your purchase. GAMA SONIC®solar charged accent lighting eliminates

the problems associated with most solar lighting available today. GAMA SONIC®solar

charged lights are brighter and last all night with a typical solar charge. Unique

design, superior light output and numerous installation options confirm the

outstanding value of our product.

GAMA SONIC®has been recognized as a worldwide leader in the lighting industry for

over 20 years. The company also offers unique multi-purpose rechargeable products

that range from party lights to emergency lighting products.

For technical assistance and more information call our Toll-Free number:

800-835-4113 (only within the US) or visit our website at:

www.gamasonic.com.

Please read the instruction manual carefully to obtain the best results from your

purchase.

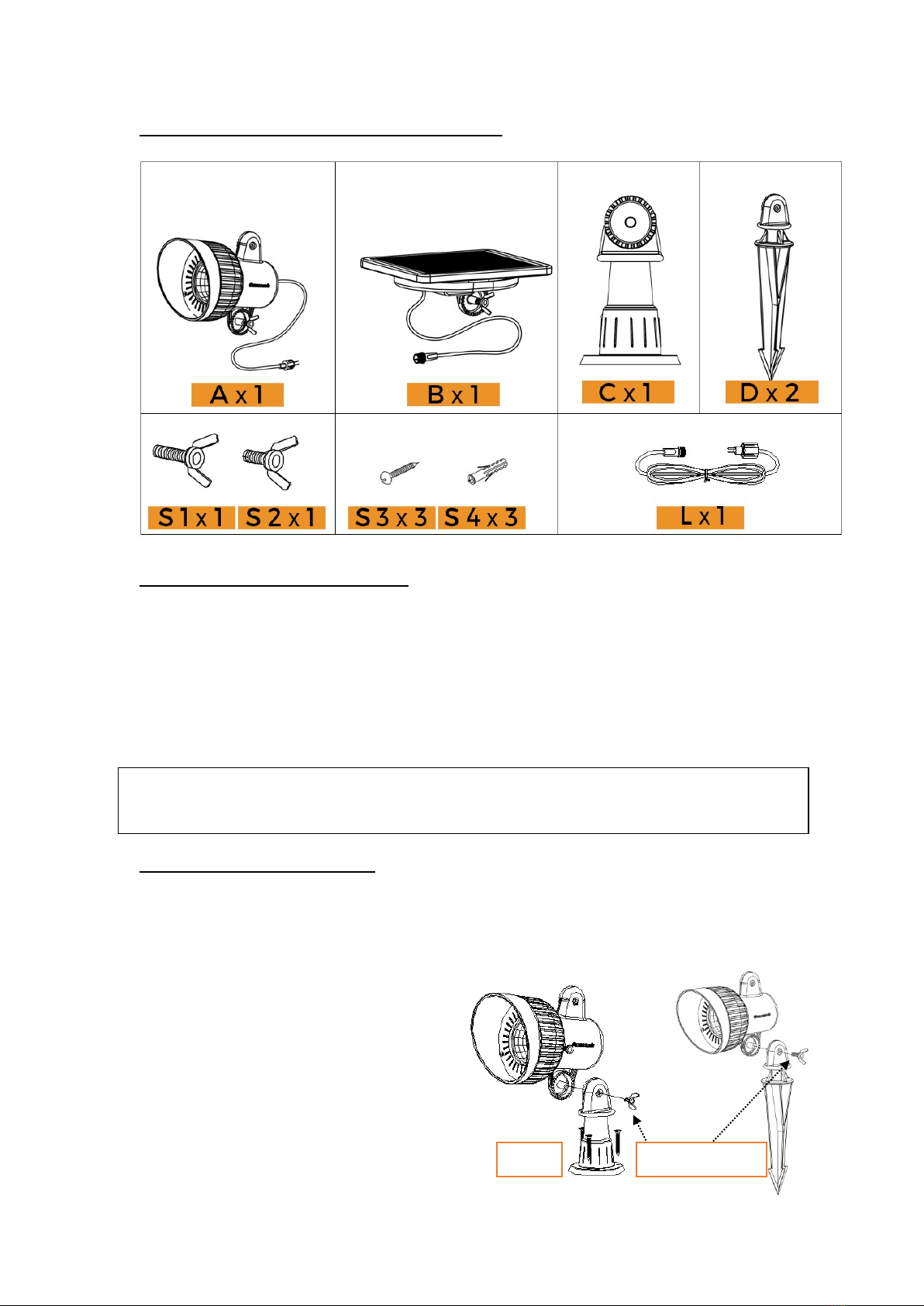

Unpack and identify the following parts:

SOLAR SPOT LIGHT LOCATION

1. Place the solar spot light in a position where the sun shines directly on

the solar panel free from any obstacles and shade.

2. It is recommended to have the solar panel at a 45 degree angle

toward the south in North America to absorb maximum sun energy

during the day.

3. Make sure the solar panel is not going to be affected by any other

light source at night. Otherwise the light will not illuminate after dusk.

ASSEMBLY INSTRUCTIONS

Our GS-103 model boasts multiple installation options. These instructions will

explain how to assemble the different pieces to each other. Please use this as a

guide and choose the mounting option/combination that works best for your

situation.

Step 1:

Assemble the Stake (D)or the

Base (C) onto the body unit (A)

using the short wing screw (S2)

provided (Fig. 1).

NOTE: If the ground is hard and packed, moisten the ground with water before inserting

the stake to avoid possible damage to the unit.

Fig. 1

Short Screw (S2)

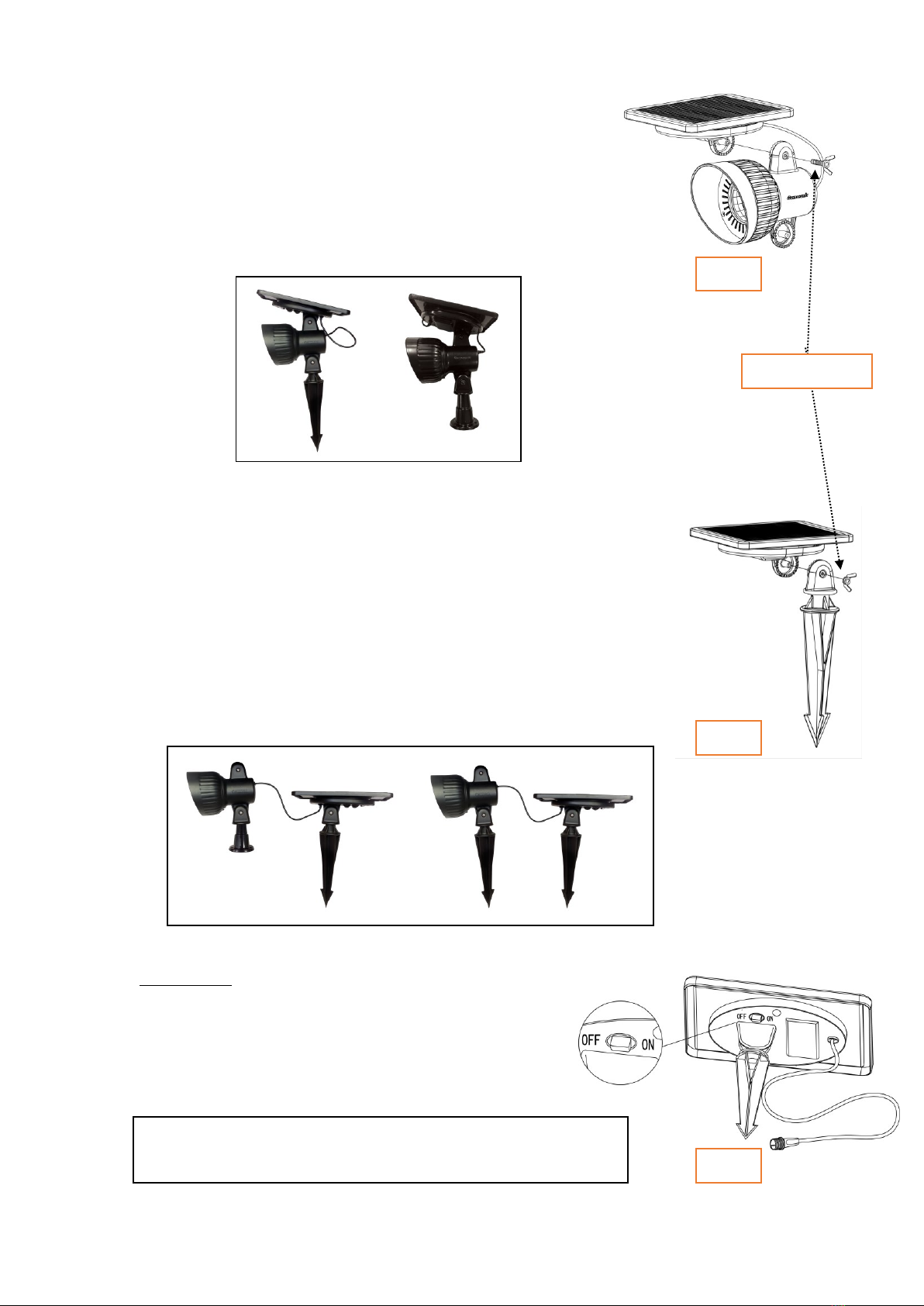

Step 2.1:

To install the solar panel on top of the light fixture,

follow the instructions below:

1. Assemble the solar panel (B) onto the spotlight (A) using

the long wing screw (S1) provided (Fig. 2).

Step 2.2:

In case you need to install the solar panel remotely

for maximum sun exposure, follow the instructions below.

1. Unwind the extension wire under the solar panel

to the desire length. You can also use the extension cord (L) if needed.

2. Assemble the solar panel (B) onto the

stake (D) using the long wing screw provided (S1) (Fig. 3).

OPERATION

The On/Off switch is located on the bottom side of the

solar panel. Turn the light On and Off by pushing the

switch in the appropriate direction for On/Off s. (Fig. 4).

Fig. 2

NOTE: For best results the solar spot light must be charged for

two full sunny days in the “On” position.

Fig. 3

Fig. 4

Long Screw (S1)

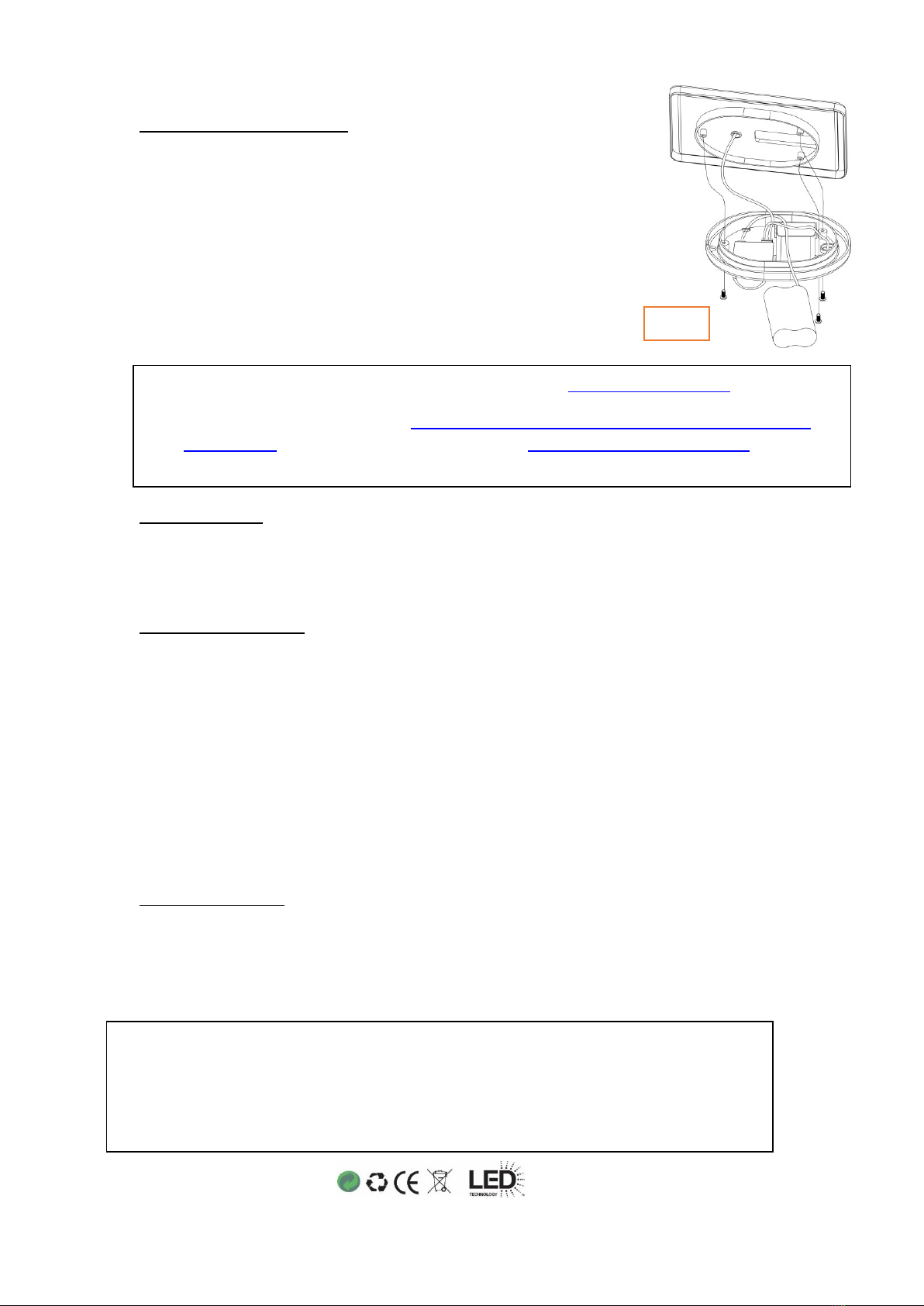

REPLACING THE BATTERIES

(After several years of use, the batteries may need replacing).

1. Unscrew the 3 screws on backside of the solar panel

(Fig. 5).

2. Remove the battery pack by unclipping the connector.

Make sure the new battery is a Gama Sonic –

3.2V/3,000mAh, Li-ion Rechargeable

3. Connect the new battery pack and place into the battery

compartment.

4. Reassemble the unit by reversing the above procedure.

MAINTENANCE:

Clean the solar panel regularly with a damp towel to guarantee optimum

performance of the solar panel. Do not use any type of solvent for cleaning and be

careful not to put too much pressure on the module while cleaning.

TROUBLE SHOOTING:

If your solar charged light does not come on at dusk despite observance of all the

instructions, please try the following steps:

1. Make sure that the solar light is not being affected by any other light source.

2. Ensure the solar light is not affected by any shade during the day.

3. Make sure the light is in the ‘ON’ position.

4. Check that the batteries are installed correctly.

NOTE: The performance of the solar lamp will vary with the time of year. It will

deliver longer duration when it has had a full day of direct sun rather than a day in

overcast weather.

WINTERTIME TIPS:

Keep snow and debris cleaned off the solar panels so the batteries can recharge. If

the lights are covered with snow for an extended period of time, after the snow

melts, allow all the batteries to charge in full, direct sunlight for at least 6 hours to

their maximum capacity.

WARNING: Please keep out of reach of children. Do not dispose of Li-Ion battery in

the regular trash, municipal waste stream or by fire as batteries may leak or explode.

Do not open, short circuit, or mutilate batteries as injury may occur. Preserve our

environment by recycling Li-Ion batteries or disposing of them in accordance with

local, state and federal regulations. Do not mix old and new batteries.

Fig. 5

** Gama Sonic batteries are available at www.gamasonic.com

You can purchase it directly at: https://gamasonic.com/product-category/parts-and-

accessories/ . Make sure the new battery is a Gama Sonic - 3.2V/3,000mAh, Li-ion

Rechargeable Battery with a connector.
