INSTALLATION INSTRUCTIONS
Product
Revision
Form #
CF20 Docking Station
7160-0802
CF20 Cradle
7160-080
Rev.
K
INST
-
712
Printing Spec: PS-004
This instruction sheet is for the CF20 docking station and Cradle only. For instructions on
features, set-up and operation of the CF20 computer, please refer to the manual provided
by Panasonic with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson
mounting systems. Installation instructions for other Gamber-Johnson products are
provided with each individual product.
This instruction sheet is for the following products:
7160-0802-00, (-P) & (-E) Docking Station – No RF, Keyed Alike
7160-0802-02, (-P) & (-E) Docking Station – Dual RF, Keyed Alike
7160-0802-04, (-P) & (-E) Docking Station – No RF, Keyed Different
7160-0802-06, (-P) & (-E) Docking Station – Dual RF, Keyed Different
7160-080 -00, (-P) & (-E) Cradle – No RF, Keyed Alike
7160-080 -01, (-P) & (-E) Cradle – No RF, Keyed Different
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or
other damage Of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicles or any other application. In order to safely
install and use Gamber-Johnson products full consideration of vehicle occupants vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other
systems), air-bags, and other safety equipment is required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not
consistent with the original vehicle manufactures specifications and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed
through the Gamber-Johnson Certified Installer Program.
© Copyright 2017 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Page 2 of 12
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private
households)
This symbol on the products and/or accompanying documents means that used
electrical and electronic products should not be mixed with general household
waste.
Please dispose of this item only in designated national waste electronic collection
schemes, and not in the ordinary dust bin.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
6-E-1
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private
households)
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer
and ask for the correct method of disposal.
6-M-1
Warning
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Page 3 of 12
No user serviceable parts.
Refer to qualified repair center personal for assistance.
Interface Cable
Use of an interface cable longer than 10ft ( m) is not recommended.
Installation by qualified personnel required.
Safety of product may be compromised if incorrectly installed.
complies with
U 60950-1
Page 4 of 12
For
Europe
Declaration of Conformity (DoC)
"Hereby, Gamber-Johnson LLC declares that this Docking Station
is in compliance with the essential requirements and other
relevant provisions of EU Council Directives."
DoC available from Gamber-
Johnson LLC
Manufacturer:
Gamber-Johnson LLC
001 Borham Ave
Stevens Point WI 54481 USA
For
Canada
Canadian ICES-00
CAN ICES- (A)/NMB- (A)
7-M-2
<Only for model with external antenna>
External Antenna
This device has been designed to operate with an external WWAN antenna having a maximum gain
of 4 dBi for the cellular band, dBi for the PCS band, dBi for LTE Band 4, 9 dBi for LTE Band 17
and 10 dBi for LTE Band 1 . WWAN Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada. The required antenna impedance is 50ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication.
<Uniquement pour les modèles avec l'antenne externe>
Antenne Externe
Cet appareil est conçu pour opérer avec une antenne WWAN (réseau étendu sans fil) dont le gain
maximum est fixé à 4 dBi pour la bande cellulaire, dBi pour la bande de service de
communications personnelles (PCS), dBi pour la bande LTE 4, 9 dBi pour la bande LTE 17 et 10
dBi pour la bande LTE 1 . Les règlements d'Industrie Canada interdisent l'utilisation d'une antenne
WWAN dont le gain serait supérieur à cette limite. L'antenne doit avoir une impédance de 50 ohms.
Afin de réduire le risque d'interférence radioélectrique aux autres utilisateurs des bandes de
fréquences, le type d'antenne et son gain doivent être tels que la puissance isotrope rayonnée
équivalente (PIRE) n'est pas plus élevée que le niveau requis pour assurer la communication.
2-Ca-1-1
For U.S.A.
Page 5 of 12
Federal Communications Commission Radio Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult an experienced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface cables when connecting to a computer or
peripheral. Also, any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Responsible Party:
Gamber-Johnson LLC
001 Borham Ave
Stevens Point WI 54481 USA
Tel: 1-800-456-6868
Support Contact: www.gamberjohnson.com
<Only for model with external antenna>
External Antenna
FCC RF Exposure Warning:
This equipment is provided with external antenna connector(s) for connection to optional Docking Station
or Port Replicator for mobile external mounted antenna(s). External antenna(s) must be professionally
installed and cannot exceed recommended maximum antenna gain as described in individual provided
supplement instructions for wireless transmitters.
The maximum allowable antenna gain for the external WWAN base whip antenna for the cellular band is 4
dBi, PCS band is dBi, LTE Band 4 is dBi, LTE Band 17 is 9 dBi and 10 dBi for LTE Band 1 . Also, user
must maintain minimum 20 cm spacing between external antenna(s) and all person's body (excluding
extremities of hands, wrist and feet) during wireless modes of operation.
2-M-1-1
Page 6 of 12
PRE-INSTALLATION RECOMMENDATIONS
Conduct a “Bench Test”
Gamber-Johnson strongly advises a “bench test” be conducted to verify all electronic and software issues are
resolved prior to installation:
1. Make sure the computer is operational by itself.
2. Insert computer into the docking station and verify that the computer is operating in the dock.
. Interconnect entire assembly and verify start-up of all components, including other equipment (printers,
modems, scanners, etc.)
Gamber-Johnson recommends positioning of all mounts and equipment in the vehicle prior to the actual install to
verify that mounting locations are safe and practical.
IMPORTANT SAFETY INFORMATION FOR INSTALLERS
Safety is dependent on the proper installation and servicing of this docking station. It is important to read and follow
all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding of automotive electrical
procedures and systems, along with proficiency in the installation and service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the docking station. Opening the
docking station will void the product warranty.
During Installation:
DO NOT connect this docking station to the vehicle battery until:
1. All other electrical connections are made
2. Mounting of all components is complete
. Verification that no shorts exist in the entire system
DO NOT install equipment or route wiring or cords in the deployment path of any air bag.
When drilling into the vehicle, DO make sure that both sides of the surface are clear of anything that could be
damaged.
Caution: If wiring is shorted to the frame, high current conductors can cause hazardous sparks resulting in electrical
fires or flying molten metal.
After installation:
Test the docking station to ensure that it is working properly.
File these instructions in a safe place and refer to them when performing maintenance or reinstalling.
WARNING: Failure to follow all safety precautions and instructions may result in property damage, serious injury, or
death.
Page 7 of 12
Precautions for Operating the Docking Station
•
If a Malfunction or Trouble Occurs,
Immediately Stop Use
If a Malfunction Occurs, Immediately
Unplug the Car Plug and Remove
the Computer from this product
•This product is damaged
•The connector pins are bent
•A foreign object is inside this product
•Smoke is emitted
•An unusual smell is emitted
•Unusually hot
Continuing to use this product while any of the
above conditions are present may result in fire
or electric shock.
•If a malfunction or trouble occurs,
immediately unplug the car plug and remove
the unit from this product. Then, contact your
technical support office for repair.
•Do Not Touch This Product or Cable When It
Starts Thundering
Electric shock may result.
•Do Not Place Containers of Liquid or Metal
Objects on Top of This Product If water or
other liquid spills, or if paper
clips, coins, or foreign matter get inside this
product, fire or electric shock may result.
•If foreign matter has found its way inside,
immediately unplug the car plug and remove
the unit from this product. Then contact your
technical support office.
•
Avoid a Lot of Water, Moisture, Steam,
Dust, Oily Vapors, etc.
Otherwise, possibly resulting in fire or
electric shock.
•
Use Only the Specified Docking Station
with This Product
Using a Docking Station other than the one
supplied (supplied with the unit or one sold
separately as an accessory) may result in a
fire.
•Do Not Connect a Telephone Line, or a
Network Cable Other Than the one
Specified, Into the LAN Port.
If the LAN port is connected to a network
such as the ones listed below, a fire or
electric shock may result.
•Networks other than 1000BASE-T,
100BASE-TX or 10BASE-T
•Phone lines (IP phone (Internet
Protocol Telephone), Telephone
lines, internal phone lines (on premise
switches), digital public phones, etc.)
•
Using this product continuously in a
hot environment will shorten
the product life. Avoid use in these
types of environments.
•
When using in hot or cold
environment, some peripherals may
fail to work properly. Check the
operation environment of the
peripherals.
Page 8 of 12
•
Do Not Install This Product in Unstable
State
If balance of the unit is lost, it may fall over
or drop, resulting in an injury.
•Docks used in the vertical (Tablet) position
must be installed with the lock on TOP.
Installing the dock upside down may result
in damage to the computer.
•Do Not Install This Product Where
There is a Lot of Water, Moisture,
Steam, Dust, Oily Vapors, etc.
Otherwise, a possibility of fire or
electric shock could result.

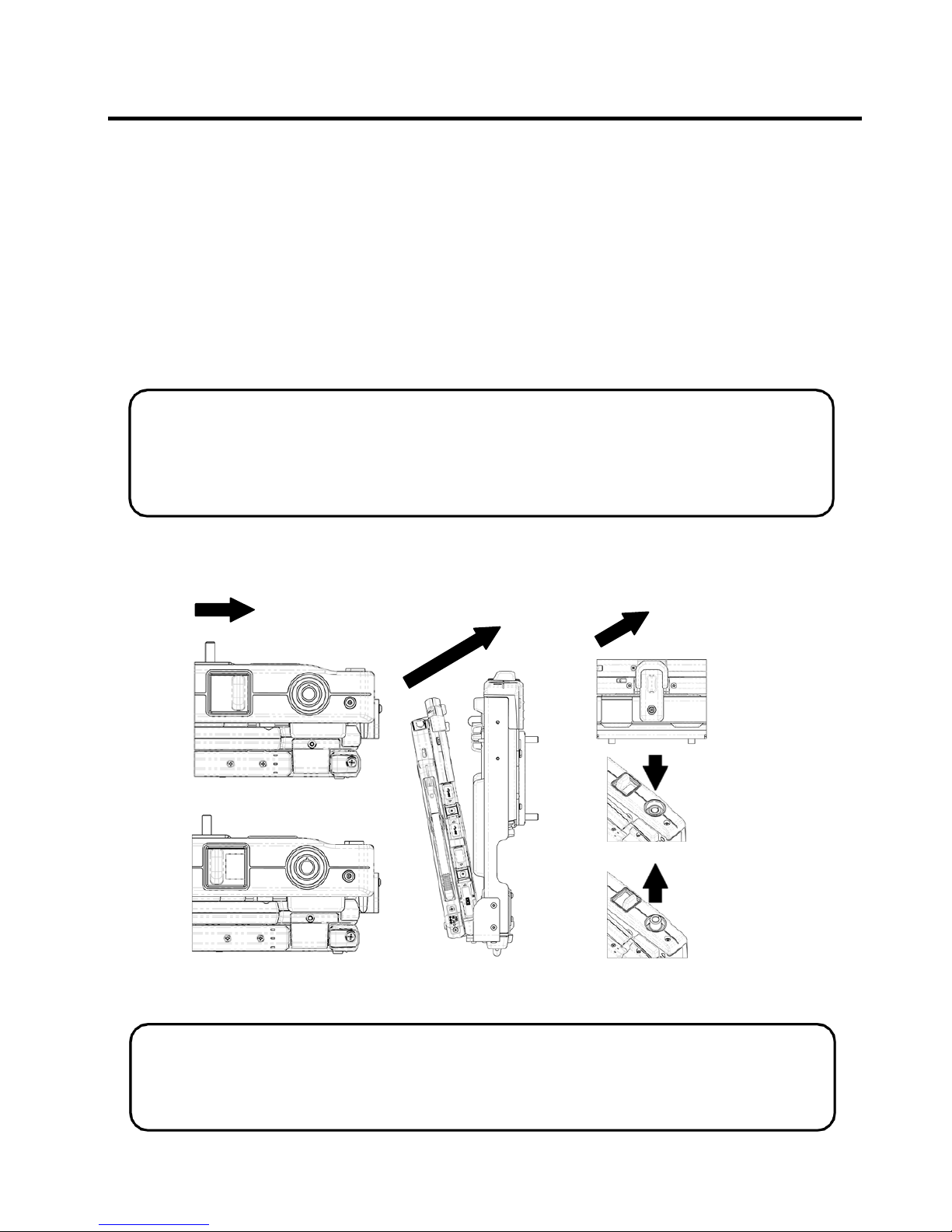

Dimensional Drawing
Installation fixing 75mm VESA studs are provided in the areas indicated by the arrows in the figure
above.

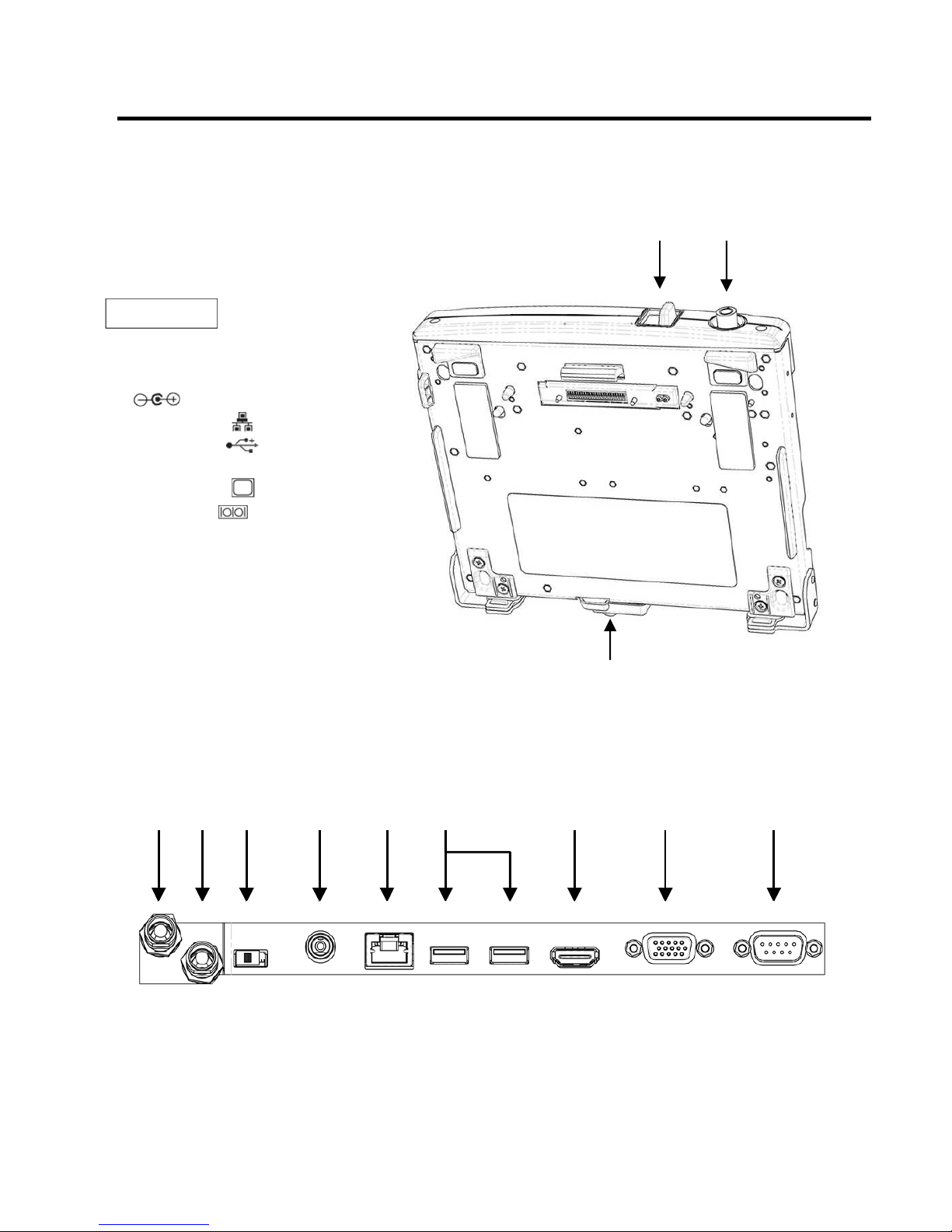

How to use
Page 9 of 12
DOCKING PROCEDURE
1. Ensure latch is in the "OPEN" Position
2. Extend the CF-20 handle to the "DEPLOYED" position then insert CF-20
3. Push the top of the CF-20 into the dock. The latch will move to the "Docked" position
4. To secure the tablet ensure it is in the closed position with the display latch engaged then
move the lower latch into the locked position
5. Push the CF-20 handle into the "STOWED" position
6. Push the lock to secure the device
UNDOCK Position
DOCK Position
Lower
Latch
Locked
Locked
Unlocked
NOTE:
Portions of your Docking Station may differ somewhat from the illustrations in the operating
instructions, but this should present no problems in actual use. Be sure to follow the operating
instructions when using your Docking Station.
NOTES:
Ensure latch is fully in the "Docked" position. It is recommended that the CF-20 is pushed into
the dock with two hands. For CF-20 fitted with Gadget option, it may be necessary to attach the
main unit in the forward direction only. Refer to device manual for further information.
Description
of
Parts
Page 10 of 12
A.Lever
B. Lock
C. Secondary Latch
D. Antenna Switch
E. DC-IN jack DC IN 16V
F. LAN port
G. USB port
H. HDMI port
HDMI
I. VGA Port
J. Serial port
K.
External wireless LAN/GPS antenna port
EX. ANT 2
. External wireless WAN antenna port EX.
ANT 1
K L D E F G H I J
K & L ports on the following models only:
7160-0802-02, (-P) & (-E)
7160-0802-06, (-P) & (-E)
Bottom Side
A
B
C
Inhaltsverzeichnis
Andere Gamber Johnson Dockingstation Handbücher
Gamber Johnson
Gamber Johnson 7160-1084-00 Bedienungsanleitung
Gamber Johnson
Gamber Johnson CF53 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0542-00 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-1253 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-1082 Series Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0907-02 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0902-00-P Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-1252 Series Bedienungsanleitung
Gamber Johnson
Gamber Johnson GETAC S410 Bedienungsanleitung
Gamber Johnson
Gamber Johnson TabCruzer Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0595 Bedienungsanleitung
Gamber Johnson
Gamber Johnson Getac S400 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0883-00 Bedienungsanleitung
Gamber Johnson
Gamber Johnson ZEBRA TC22 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0486 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0318-00 Bedienungsanleitung
Gamber Johnson
Gamber Johnson CF19 Bedienungsanleitung
Gamber Johnson
Gamber Johnson 7160-0840-00 Bedienungsanleitung
Gamber Johnson
Gamber Johnson Recon CF31 Military Bedienungsanleitung
Gamber Johnson
Gamber Johnson GETAC V110 Bedienungsanleitung
