GameShark Media Manager for PSP Bedienungsanleitung

INSTRUCTION MANUAL

For use with the PSP®PlayStation®Portable

Game Console

™

PSP Media Manager UG_FR 12/5/05 2:00 PM Page 1

GAMESHARK MEDIA MANAGER FOR PSP MANUAL

1) GETTING STARTED

a) Requirements

To use GameShark Media Manager for PSP you must have a PC running Windows 2000, or XP.

It is advisable to have over 300MB of disk space free for storing the various file types that are

available via GameShark Media Manager for PSP. You will need a CD-ROM drive and one free

USB port.

A PC modem and an account with an Internet Service Provider (ISP) or a dial-up Internet con-

nection is required to use GameShark Media Manager for PSP online features.

b) Setting up GameShark Media Manager for PSP for the first time

1. Insert the GameShark Media Manager for PSP disc into the CD-ROM drive of your PC and

close the drawer.

2. After a few seconds, the installation launch panel will appear. If the launch panel does not

automatically appear, double-click on the My Computer Icon, then double-click on the

CD-ROM icon, and lastly double-click on the SETUP.EXE file to bring up the launch panel.

3. Follow the onscreen prompts to install GameShark Media Manager for PSP onto your PC.

c) Connecting your PSP™ Console to your PC

1. Ensure you have a Memory Stick inserted into your PSP console, and that it has been

formatted in the PSP.

2. Using the supplied USB cable, connect the smaller USB connector into the top of your PSP

console.

3. Insert the larger USB connector into a spare USB slot on your PC.

4. Turn on your PSP console. Use the D-Pad to scroll to the left.

5. Scroll up or down and select the “USB Connection” option. The PSP is now connected to

your PC.

d) Starting-up the GameShark Media Manager for PSP Interface

Make sure you have your PSP™ console connected via the supplied USB cable, and that the

console is in “USB Connection” mode. Double-click the GameShark Media Manager for PSP

icon on your PC desktop to start.

2) AN OVERVIEW OF THE GAMESHARK MEDIA MANAGER FOR PSP INTERFACE

When you first start your GameShark Media Manager for PSP software, you will be presented

with an interface consisting of 2 different panels as shown below. Details of each panel and its

functions are explained in more detail below:

a) PC Panel

This is the left panel that displays all the Gamesave, Photo, Music and Video files stored on your

PC. The files are stored in Group Folders so you can identify and manage your own files by simply

grouping them together.

b) Memory Stick Panel

This is the Panel on the right and displays the files that are stored on your Memory Stick that is

in the PSP console.

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 2

c) User Interface

1. FILE - This is the File menu option. It consists of the

following sub options:

Create folder- Creates a new folder

Add PC File- Adds a file to the selected folder

Delete- deletes the selected item

Refresh- refreshes the selected window

Minimize- minimizes the application

Close- closes the application

2. EDIT - This is the Edit menu option. It consists of the

following sub options:

PC FILES- allows you to edit the name/ information on a file

RSS URL- Allows you to edit the URL which the RSS feed

pulls from

3. ADVANCED - This is the advanced menu option. It consists of the following sub option:

User Configuration- allows you to enter details to logon to the online database.

4. HELP: This is the Help menu option. It consists of the following sub options:

About - Displays contact details and information on the product

Help - Displays a help diagram.

5. WEB BANNER- This is the Web Banner. It displays images, animations or messages from

the GameShark website. It may also be used to display offers that are available from

GameShark.com .

6. BACKGROUND- This is the background of the interface.

7. MINIMIZE - This button will minimize the application to the taskbar.

8. CLOSE - This button will close the application.

9. FILES/ FOLDERS ON MEMORY STICK - These are the files/folders on the PSP Memory stick.

10. MEMORY STICK PANEL - This panel displays the contents of the Memory Stick folders. To

view the Music files, click the My Music Folder on the PC Panel; to view photos, click the My

Photos folder, and so on.

11. CAPACITY BAR - This is the capacity bar and shows the amount of space available on

the Memory Stick.

12. COPY TO PC BUTTON - The Copy to PC button copies the selected file over to a pre

selected folder in the PC Window.

13. FILE INFORMATION - This is the File Information panel. When you click on a File or Folder

so it is selected, the information for that file appears here.

14. WEBSITE LINK - This button links through to the GameShark website.

15. COPY TO MEMORY STICK - This is the copy to Memory Stick button and copies a

pre-selected file/folder from the PC to the Memory Stick.

16. RSS FEED - The RSS Feed keeps the user updated with the latest news.

17. PC PANEL - This panel displays the folders and files that are stored on the PC.

18. PC FILES – These are the files that are stored on the PC.

19. PC FOLDERS - These are the default folders for the application, they consist of:

My GameSaves, My Music, My Pictures and My Videos. These folders are used to manage

one type of file at a time; for example clicking on My Music will display the Music contents of

the PSP Memory Stick, and you can only copy MP3 files to the My Music folder.

20. INTERNET DOWNLOADS BUTTON- This button opens the Internet downloads panel.

3) MANAGING FILES

GameShark Media Manager for PSP allows you to manage convert and download media files

and game saves. The application allows you to manage ONE category of files at a time. The

different categories are: VIDEOS, MUSIC, PHOTOS, and GAMESAVES.

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 3

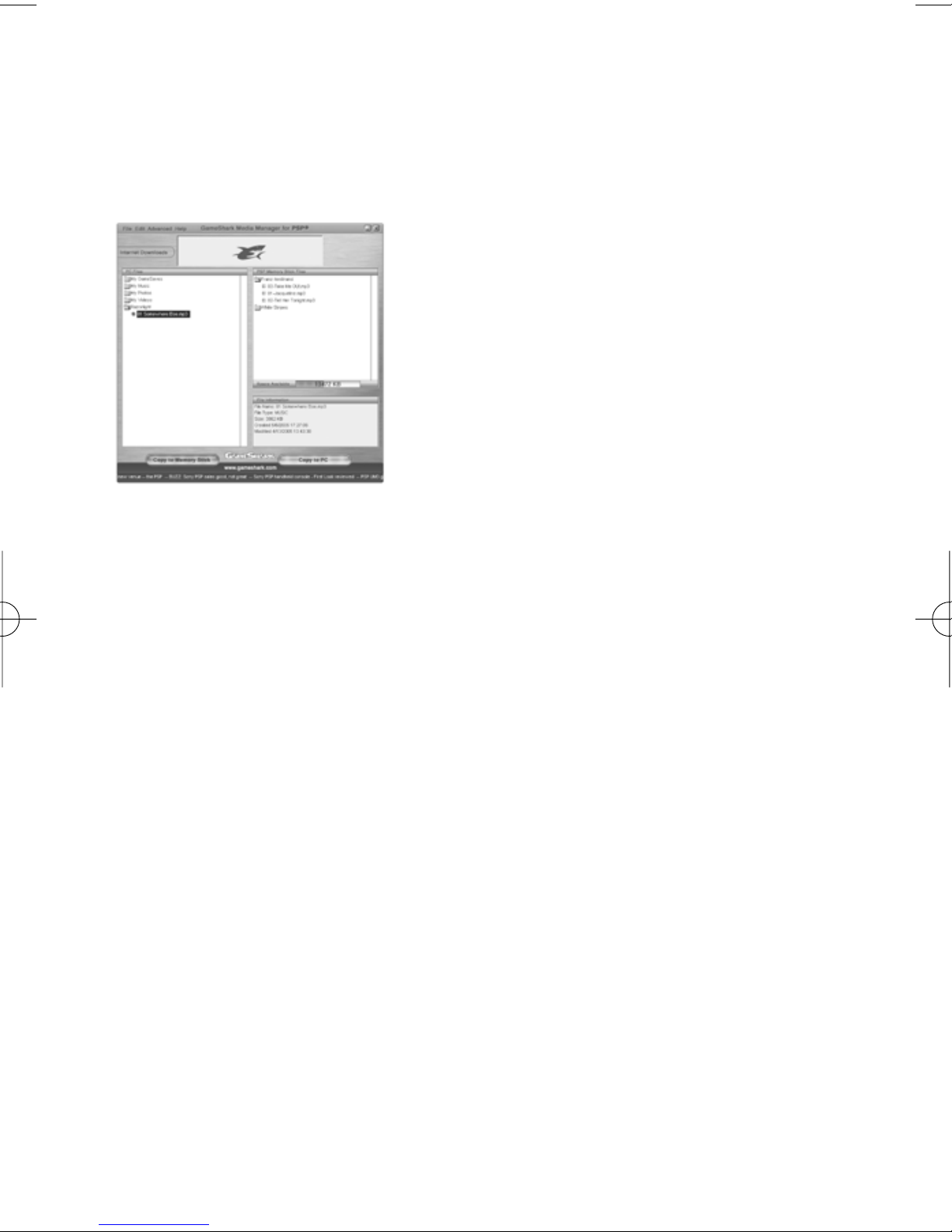

To select the type of file you want to manage click on one of the folders in the PC Panel that cor-

responds to the type of file you want to manage. So if you want to manage Music files, click on

the “My Music” folder in the PC Panel; the Memory Stick panel will now display the MP3 files

that are on your Memory Stick. If you want to convert and transfer video files to your PSP, click

the “My Videos” folder, and so on:

See diagram below-

Once you have chosen the type of file you want to

manage, you can use the various functions. The fur file

types of Video, Music, Photos and GameSaves are

explained below.

4) MY VIDEOS

GameShark Media Manager for PSP can convert your

PC video files so they can be played back on your PSP

console! The PSP only plays MPEG 4 videos that are

named correctly; GameShark Media Manager for PSP

takes care of this for you.

a) Video Conversion

GameShark Media Manager for PSP can convert the following types of video file for playback

on PSP:

• AVID

• MPEG 1

• MPEG 2

• DIX

• MOVE

• MP4

The video files are converted automatically when copied across to the PSP. Copying and con-

verting files is easy, and is explained below.

b) Adding Video files to the “My Videos” folder

The Video files on your PC need to be added to the “My Videos” folder before they can be

copied to the Memory Stick.

1. To add a video file to the “My Videos” folder, select the “My Videos folder with a mouse click

so it is highlighted (to confirm the destination folder).

2. Now select the “File” menu option.

3. Select “Add PC File”.

4. Browse your PC directories until you find the video file you want to add to the folder.

5. Click OK and the video file will be added to the “My Videos” folder in

GameShark Media Manager for PSP.

6.Repeat these steps to add as many files as you wish to the My Videos folder.

Or if you are familiar with PC techniques, you can “drag and drop” video files into the “My

Videos” folder.

1. To drag and drop a video file into the My Videos folder, first select the “My Videos” folder with

a mouse click so it is highlighted (to confirm the destination folder).

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 4

2. Now open the Windows folder that the video file is in (ensuring you can see the

GameShark Media Manager for PSP interface and the video file folder).

3. Now drag and drop the video file over the “My Videos” folder in the

GameShark Media Manager for PSP interface.

4. The file will now be added to the “My Videos” folder.

5. Repeat these steps to add as many files as you wish to the My Videos folder.

c) Converting and copying video files to the PSP Memory Stick

When video files are copied over to the Memory Stick, they are automatically converted into the

PSP compatible format, and renamed so the PSP will play them. Below are ways to copy files to

your PSP Memory Stick:

1. Ensure your PSP is in USB mode and connected to the PC.

2. Double click on the “My Videos” folder to open it. The video files available for copying

and converting will be shown.

3. Select the video file you want to copy to your PSP Memory Stick so it is highlighted

(ensure you have enough free space on your memory Stick by checking the Capacity bar).

4. Click the “Copy to Memory Stick” button on the GameShark Media Manager for PSP interface.

5. The conversion and copy process will now take place, so a progress bar will appear.

6. You will now see the file appear in the Memory Stick panel with the new name

“M4V0001.MP4”. The file must be called this to be viewed on the PSP.

7. To watch your newly converted video, close the GameShark Media Manager for PSP interface

and remove the PSP safely from your PC using the “Unplug or Eject Hardware” option

of Windows.

If you are familiar with PC techniques, you can “Drag and drop” video files from the PC panel to

the Memory Stick panel to convert and copy them across:

1. Ensure your PSP is in USB mode and connected to the PC.

2. Double click on the “My Videos” folder to open it. The video files available for copying

and converting will be shown.

3. Select the video file you want to copy to your PSP Memory Stick so it is highlighted

(ensure you have enough free space on your memory Stick by checking the Capacity bar).

4. Drag and drop the video file from the My Videos folder over to the Memory Stick panel.

5. You will now see the file appear in the Memory Stick panel with the new name

“M4V0001.MP4”. The file must be called this to be viewed on the PSP.

6. To watch your newly converted video, close the GameShark Media Manager for PSP interface

and remove the PSP safely from your PC using the “Unplug or Eject Hardware” option

of Windows.

After the conversion of a video file, an MP4 copy of the file will be left in the “My Videos” folder

with the same file name as the original file. If you delete the MP4 file from your Memory Stick,

and want to copy the file over again it does not have to be re-converted.

PLEASE NOTE

If you have transferred files to the Memory Stick, you MUST close the application and use the

Unplug or Eject Hardware option of Windows (usually found on the Taskbar). If you do not do

this then your file may not be saved to your Memory Stick. This is due to Windows and not the

GameShark Media Manager for PSP application.

d) Organizing Video Files

You do not have to store video files in the “My Videos” folder. You can create your own specific

folders and store certain video files in them.

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 5

To create a new folder in which to store videos follow these steps:

1. Select the “File” menu option

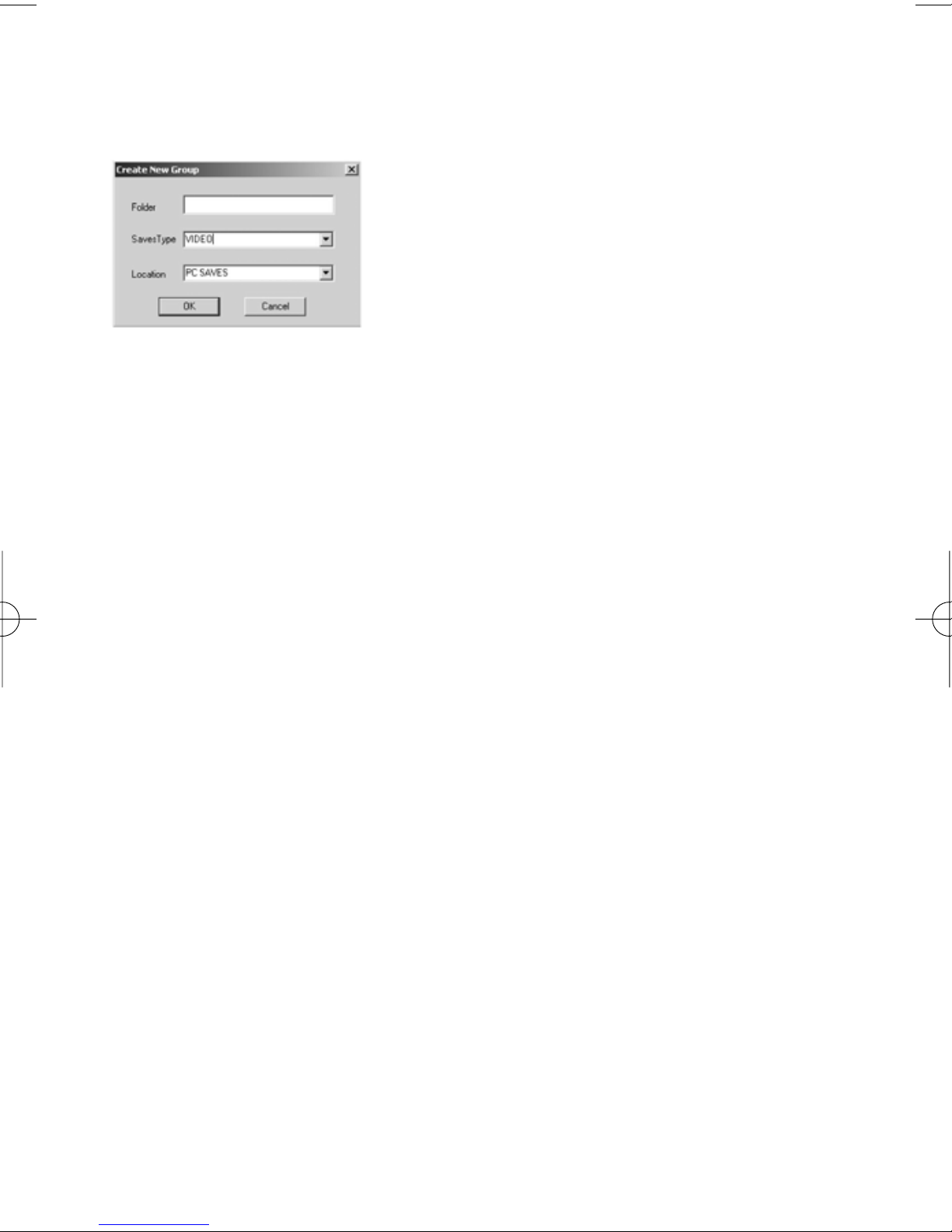

2. Select “Create Folder” and the dialog below will appear:

3. Select Video from the drop down menu as the file type

and PC as the location.

4. Type in the name you want to call the folder.

5. Click OK and the folder will appear in the PC Panel.

6. You can now add files to this folder in the manner

described in the “Adding Video files to the “My Videos”

folder”, replacing “My Videos” with the folder you have just

created.

e) Deleting Video Files

Deleting Video files from the GameShark Media Manager for PSP interface is very easy.

To delete a file either from the PC Panel or from the Memory Stick panel simply click on the file

so it is highlighted.

Press the delete button on your keyboard, or select the File menu option, then select Delete.

Confirm the deletion of the file and the file is deleted.

PLEASE NOTE

If you delete a file from the Memory Stick Panel, the file cannot be recovered. You may want to

make a copy of the file to a PC folder before deleting the file from the Memory Stick.

If you delete a file from the PC panel, the file will be removed from the GameShark Media

Manager for PSP interface, but the source file originally copied from your Windows desktop will

still be intact.

5) MUSIC

GameShark Media Manager for PSP allows you to manage your MP3 files and copy them to

your PSP Memory Stick.You can even copy direct from iTunes™ into GameShark Media

Manager for PSP!

To start managing your MP3 music files, click the “My Music” folder on the PC panel. This will

show the music contents of your PSP Memory Stick (if any).

To copy your MP3’s over to your PSP Memory Stick you must first put them in the “My Music”

folder on the PC Panel of the interface.

a) Adding Music files to the “My Music” folder

The Music files on your PC need to be added to the “My Music” folder before they can be copied

to the Memory Stick.

1. To add an MP3 file to the “My Music” folder, select the “My Music” folder with a mouse click

so it is highlighted (to confirm the destination folder).

2. Now select the “File” menu option

3. Select “Add PC File”

4. Browse your PC directories until you find the MP3 file you want to add to the folder

5. Click OK and the MP3 will be added to the “My Music” folder in GameShark Media Manager

for PSP.

6. Repeat these steps to add as many files as you wish to the My Music folder.

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 6

Or if you are familiar with PC techniques, you can “drag and drop” MP3 files into the “My Music”

folder. To do this:

1. To drag and drop a video file into the My Music folder, first select the “My Music” folder with a

mouse click so it is highlighted (to confirm the destination folder).

2. Now open the Windows folder that the MP3 is in (ensuring you can see the

GameShark Media Manager for PSP interface and the MP3 file folder).

3. Now drag and drop the MP3 over the “My Music” folder in the GameShark Media Manager

for PSP interface.

4. The file will now be added to the “My Music” folder.

5. Repeat these steps to add as many files as you wish to the My Music folder

b) Organizing your MP3 files

You can organize your MP3’s within the GameShark Media Manager for PSP interface, and cat-

alogue your songs by artist, genre or any other method you prefer.

You do not have to store your MP3 files in the default “My Music” folder; you can create your

own specific folders and store certain music files in them.

To create a new folder in which to store MP3’s, follow these steps:

1. Select the “File” menu option

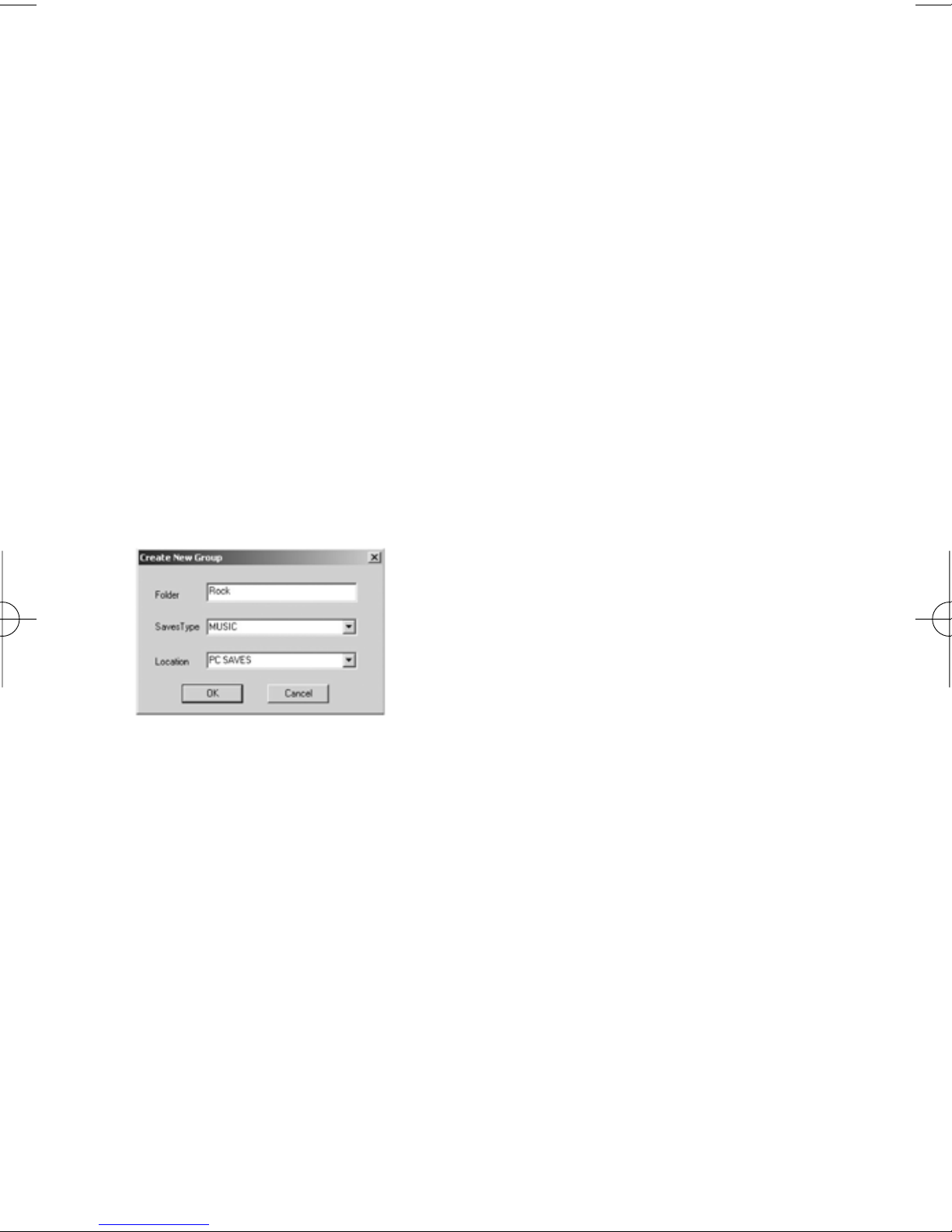

2. Select “Create Folder” and the dialog below will appear:

3. Select Music from the drop down menu as the file type

and PC as the location.

4. Type in the name you want to call the folder

(e.g. “Rock” if you want to store Rock MP3’s in it).

5. Click OK and the folder will appear in the PC Panel.

6. You can now add files to this folder in the manner

described in the “Adding Music files to the “My Music”

folder”, replacing “My Music” with the folder you have

just created.

c) Copying Music files to your PSP Memory Stick

You can copy music files across to your PSP Memory Stick very easily. You can either copy the

music folders you have created (see above) and all their contents across, or you can copy single

files across to the root of the PSP Music folder.

1. Ensure your PSP is in USB mode and connected to the PC.

2. Select the MP3 file or complete folder you want to copy to your PSP Memory Stick so it is

highlighted (ensure you have enough free space on your memory Stick by checking the

Capacity bar).

3. Click the “Copy to Memory Stick” button on the GameShark Media Manager for PSP interface.

4. The copy process will now take place, so a progress bar will appear.

5. You will now see the file or folder appear in the Memory Stick panel, so it is on the Memory Stick.

6. To listen to your MP3’s on your PSP, close the GameShark Media Manager for PSP interface

and remove the PSP safely from your PC using the “Unplug or Eject Hardware” option of

Windows.

7. Play the MP3’s as normal on your PSP (see your PSP manual for details).

If you are familiar with PC techniques, you can “drag and drop” music files or folders from the

PC panel to the Memory Stick panel to copy them across:

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 7

1. Ensure your PSP is in USB mode and connected to the PC.

2. Select the MP3 file or complete folder you want to copy to your PSP Memory Stick so it is

highlighted (ensure you have enough free space on your memory Stick by checking the

Capacity bar).

3. Simply drag and drop the file or folder across into the Memory Stick panel.

4. The copy process will now take place, so a progress bar will appear.

5. You will now see the file or folder appear in the Memory Stick panel, so it is on the Memory Stick.

6. To listen to your MP3’s on your PSP, close the GameShark Media Manager for PSP interface

and remove the PSP safely from your PC using the “Unplug or Eject Hardware” option

of Windows.

7. Play the MP3’s as normal on your PSP (see your PSP manual for details).

PLEASE NOTE

If you have transferred files to the Memory Stick, you MUST close the application and use the

Unplug or Eject Hardware option of Windows (usually found on the Taskbar). If you do not do

this then your file may not be saved to your Memory Stick. This is due to Windows and not

the GameShark Media Manager for PSP application.

d) Copying songs from iTunes to GameShark Media Manager

If you use iTunes to organise your music, then you can copy your songs from iTunes into the

Gameshark Media Manager interface then copy the files to PSP!

The songs can be in MP3 or AAC format, but can only be songs from CD’s you have imported

yourself.

To copy songs from iTunes to GameShark Media Manager, follow the steps below:

1. Open iTunes and select the playlist/library you want to copy from.

2. Open GameShark Media Manager for PSP Music Studio and select the “My Music” folder, or

other music folder you want to copy the song to.

3. Simply click and drag the song from iTunes over the highlighted folder in

GameShark MediaManager for PSP.

4. The file will now be added to the folder. Repeat this with as many tracks as you wish.

5. You can now copy these files to your PSP Memory Stick as explained above.

6. If the file is an MP3 then the songs will just be copied. However if the songs are AAC

encoded .M4A files then the file extension will be changed to .MP4 when you copy to PSP.

This is so the PSP can play the songs.

PLEASE NOTE: YOU CANNOT COPY SONGS THAT HAVE BEEN PURCHASED FROM THE

ITUNES MUSIC STORE AS THESE SONGS ARE PROTECTED AND CONTAIN DRM (DIGITAL

RIGHTS MANAGEMENT).

e) Renaming your MP3 files

You can rename your MP3 files in the application. This is useful because it allows you to reorder

your tracks into the order you want them played when copied across to the PSP.

If you want a track to play first, put “01” at the start of the file name. The second track you want

to be played “02” and so on.

To rename your files or folders:

1. Select the file or folder you want to rename

2. Right Click on the file with your mouse and select the “Rename” option

3. Type in the name you wish to call the file or folder

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 8

4. Click ok

5. The file/folder will refresh and the name will be saved

f) Deleting Music Files or folders

Deleting MP3 music files from the GameShark Media Manager for PSP interface is very easy.

1. To delete a file either from the PC panel or from the Memory Stick panel simply click on the

file so it is highlighted.

2. Press the delete button on your keyboard, or select the File menu option, then select Delete.

3. Confirm the deletion of the file and the file is deleted.

PLEASE NOTE

If you delete a file from the Memory Stick Panel, the file cannot be recovered. You may want to

make a copy of the file to a PC folder before deleting the file from the Memory Stick.

If you delete a file from the PC panel, the file will be removed from the GameShark Media

Manager for PSP interface, but the source file originally copied from your Windows desktop will

still be intact.

5) g) Importing your own CD collection to your PSP

GameShark Media Manager for PSP can also import your existing CD collection into the PC for

use on your PSP. The files are compressed to MP3 format to fit more songs onto your PSP and

there's also a handy internet database query feature which automatically shows the album, artist

and track names of your CD's!

To Import your own CD:

1. Insert a CD into the PC CD Tray. (If your PC window pops up to use the CD with any other

device, select "close" or "cancel")

2. Click on the IMPORT CD button (6).

3. GameShark Media Manager for PSP will now attempt to get the track and album name form

the Internet. If no internet connection is available or if the album information is not available

online, then a message box will pop up asking you to enter the name of the album.

4. The CD will now be imported into the “PC Saves” window, listed under the Album Name.

5. You can now drag and drop this album or selected tracks onto your PSP as described in

paragraph above.

PLEASE NOTE: IT IS AN OFFENCE TO COPY COPYRIGHT MATERIAL. PLEASE ENSURE

YOU SEEK THE PERMISSION OF THE COPYRIGHT OWNER BEFORE UTILISING THIS FEA-

TURE FOR ANY COPYRIGHT MATERIAL.

6) PHOTOS

The PSP console can be used to display your JPG photos or images.

a) Adding Photos or images to the “My Photos” folder

The photo or image files on your PC need to be added to the “My Photos” folder before they can

be copied to the Memory Stick.

1. To add a JPG file to the “My Photos” folder, select the “My Photos” folder with a mouse click

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 9

so it is highlighted (to confirm the destination folder).

2. Now select the “File” menu option

3. Select “Add PC File”

4. Browse your PC directories until you find the JPG file you want to add to the folder.

5. Click OK and the file will be added to the “My Photos” folder in GameShark Media Manager

for PSP.

6. Repeat these steps to add as many files as you wish to the “My Photos” folder.

Or if you are familiar with PC techniques, you can “drag and drop” JPG image files into the “My

Photos” folder. To do this:

1. To drag and drop a video file into the “My Photos” folder, first select the “My Photos” folder

with a mouse click so it is highlighted (to confirm the destination folder)

2. Now open the Windows folder that the JPG is in (ensuring you can see the GameShark

Media Manager for PSP interface and the JPG file folder)

3. Now drag and drop the JPG over the “My Photos” folder in the GameShark Media Manager

for PSP interface

4. The file will now be added to the “My Photos” folder

5. Repeat these steps to add as many files as you wish to the “My Photos” folder

b) Organizing your Image files

You can organize your JPG files within the GameShark Media Manager for PSP interface and

catalogue your images.

You do not have to store your JPG files in the default “My Photos” folder; you can create your

own specific folders and store certain JPG files in them.

To create a new folder in which to store your images follow these steps:

1. Select the “File” menu option

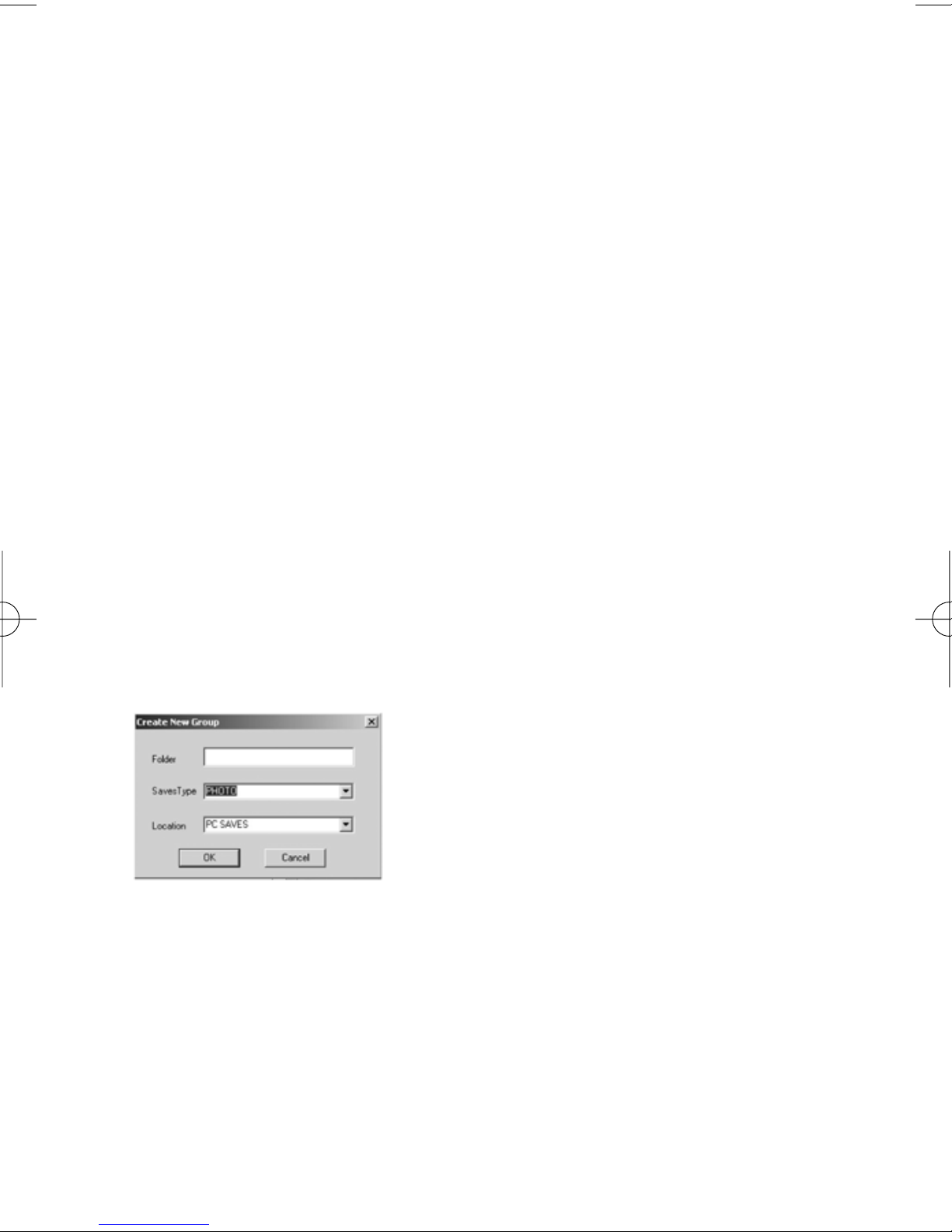

2. Select “Create Folder” and the dialog below will appear:

3. Select Photo from the drop down menu as the file type

and PC as the location.

4. Type in the name you want to call the folder.

5. Click OK and the folder will appear in the PC Panel.

6. You can now add files to this folder in the manner

described in the “Adding Photos” files to the “My

Photos” folder”, replacing “My Photo” with the folder

you have just created.

c) Copying Image files to your PSP Memory Stick

You can copy JPG image files across to your PSP Memory Stick very easily.

1. Ensure your PSP is in USB mode and connected to the PC.

2. Select the file you want to copy to your PSP Memory Stick so it is highlighted (ensure you

have enough free space on your memory Stick by checking the Capacity bar).

3. Click the “Copy to Memory Stick” button on the GameShark Media Manager for PSP interface.

4. The copy process will now take place, so a progress bar will appear.

5. You will now see the file or folder appear in the Memory Stick panel, so it is on the

Memory Stick.

6. To view your images on your PSP, close the GameShark Media Manager for PSP interface

and remove the PSP safely from your PC using the “Unplug or Eject Hardware” option

of Windows.

PSP Media Manager UG_FR 12/5/05 1:57 PM Page 10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GameShark Software Handbücher

GameShark

GameShark GAME CUBE Bedienungsanleitung

Beliebte Software Handbücher anderer Marken

COMPRO

COMPRO COMPROFM Bedienungsanleitung

Muratec

Muratec OFFICEBRIDGE ONLINE Bedienungsanleitung

Oracle

Oracle Contact Center Anywhere 8.1 Bedienungsanleitung

Adobe

Adobe 65007312 - Photoshop Lightroom Handbuch

Avaya

Avaya NULL One-X for RIM Blackberry Bedienungsanleitung

HP ProLiant BL420c Bedienungsanleitung

PS Audio

PS Audio PowerPlay Betriebsanleitung

Brady

Brady LOCKOUT PRO 3.0 Service-Handbuch

Avaya

Avaya Interaction Center Bedienungsanleitung

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Handbuch

Novell

Novell GROUPWISE 8 - INTERNET AGENT Bedienungsanleitung

Oracle

Oracle Application 9i Bedienungsanleitung

Acer

Acer RDM Bedienungsanleitung

Canon

Canon Vixia HF21 Bedienungsanleitung

Canon

Canon ZR950 Bedienungsanleitung

Samsung

Samsung Auto Backup Bedienungsanleitung

Polycom

Polycom Vortex EF2201 Montage- und Bedienungsanleitung

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Bedienungsanleitung
