Gardenline LT26 Bedienungsanleitung

After Sales Support

Now you have purchased a Gardenline®

product you can rest assured in the

knowledge that as well as your

3 year parts and labour guarantee

you have the added peace of

mind of dedicated helplines

and web support

26cc Petrol Line Trimmer

User Guide

AFTER SALES SUPPORT

1800 909 909

www.powertoolsupport.com

MODEL: LT26 PRODUCT CODE: 43670 10/2014

YEAR WARRANTY

AUS

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

Contents

03 Warranty

03 Introduction

03 Environmental protection

04 Description of symbols

05 Speciﬁcations

06 Safety instructions

08 Additional safety rules for petrol line trimmers

09 Parts list

10 Unpacking

10 Contents of carton

10 Assembly

13 Mixing the fuel

14 Filling the tank

15 Starting the line trimmer

16 Stopping the line trimmer

17 Running in the engine

17 Use of the petrol line trimmer

17 Operating the line trimmer

18 Feeding the line

19 Advancing the llne manually

19 Tips for cutting

19 Replacement of the cutting line

20 Maintenance

22 Storage and maintenance after use

23 Problems

22 Service Support

23 Accessories & Problems

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

Introduction

Your new Gardenline®line trimmer will more than satisfy

your expectations. It has been manufactured under stringent

Gardenline®Quality Standards to meet superior performance

criteria.

You will ﬁnd your new line trimmer easy and safe to operate, and, with proper

care, it will give you many years of dependable service.

CAUTION. Carefully read through this entire instruction manual before using

your new Gardenline®line trimmer. Take special care to heed the Cautions and

Warnings.

Your Gardenline®line trimmer has many features that will make your job faster

and easier. Safety, performance, and dependability have been given top priority

in the development of this tool, making it easy to maintain and operate.

Environmental protection

Recycle unwanted materials instead of disposing of them as waste.

All tools, hoses and packaging should be sorted, taken to the local

recycling centre and disposed of in an environmentally safe way.

What your 3 year warranty means

Great care has gone into the manufacture of this product and it should

therefore provide you with years of good service when used properly.

In the event of product failure within its intended use over the

course of the ﬁrst 3 years after the date of purchase, we will remedy

the problem as quickly as possible once it has been brought to our

attention. In the unlikely event of such an occurrence, or if you require

any information about the product please contact us via our after sales

support services, details of which can be found in this manual and on

the product itself.

After Sales Support TEL: 1800 909 909

YEAR WARRANTY

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

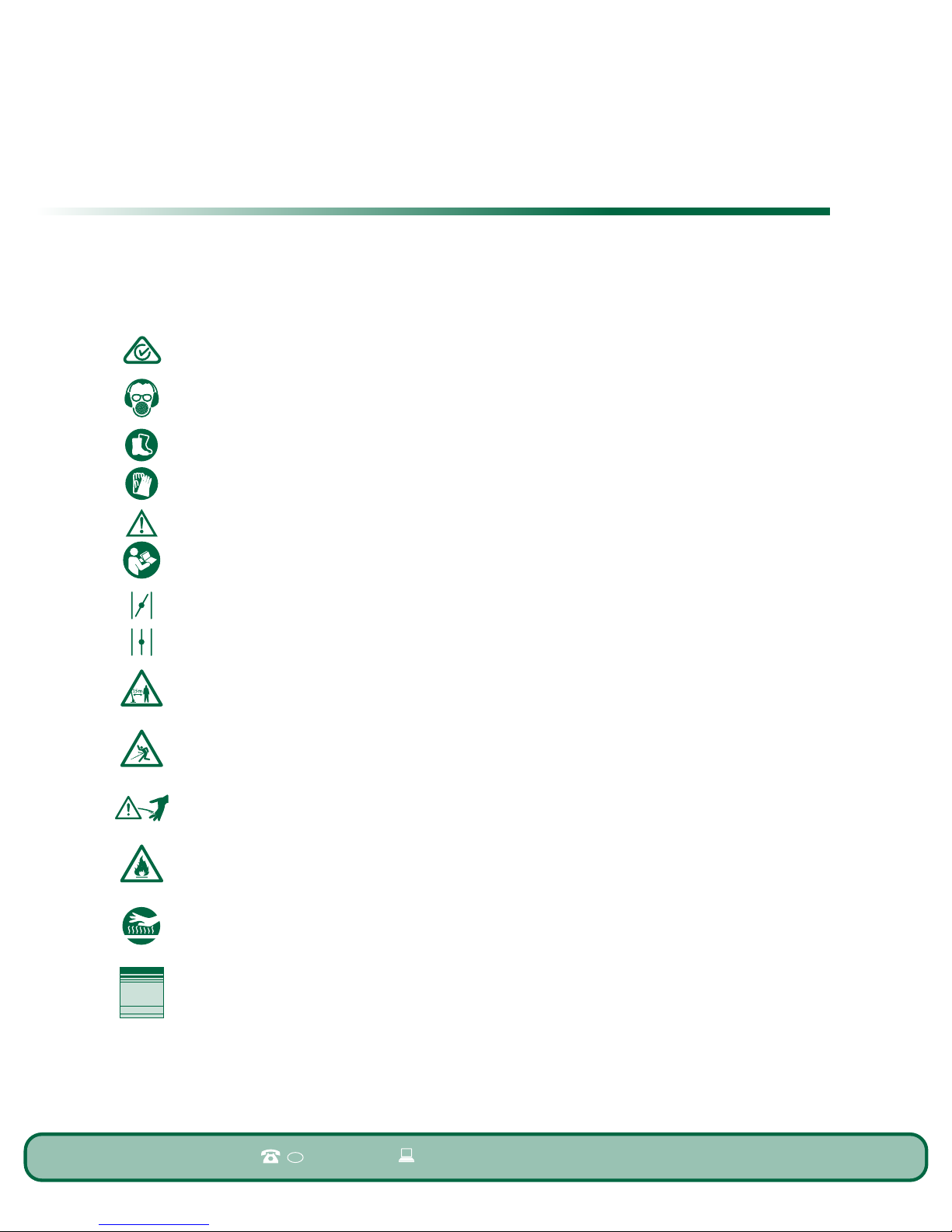

Description of symbols

The rating plate on your tool may show symbols. These represent important

information about the product or instructions on its use.

Conforms to relevant standards for electromagnetic compatibility.

Wear hearing protection. Wear eye protection.

Wear breathing protection.

Wear safety footwear.

Wear safety gloves.

Warning.

Read these instructions for use carefully.

Choke control

Start position (choke closed).

Run position (choke open).

Use at a distance of at least 15m from other people.

Thrown objects and rotating line can cause severe injury. Do not operate

the unit without the safety guard in place. Keep away from rotating cutter.

Sharp blade on the safety guard, do not touch the cut off knife.

Explosive material.

Extremely hot surface. Do not touch a hot mufﬂer, gear box or cylinder,

you may get burned. These parts get extremely hot from operation and

remain hot for a short time after the unit is turned off.

Noise label rating 85dBA (taken at 7.5 metres) you must wear ear

protection at all times.

General Information & Safety Instructions

NOI SE dB

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

General Information & Safety Instructions

Speciﬁcations

Engine: 26cc, 2 stroke

Max. speed: 8500min-1

Cutting diameter (swathe): 380mm

Line thickness: 2mm

Spool type: Bump feed, twin line

Fuel tank capacity: 700ml

Fuel type: Unleaded petrol

Fuel mixture: Unleaded petrol:

2-Stroke oil (40:1)

Spark Plug: Torch L7RTC

Equivalent spark plugs: NGK BPMR7A

CHAMPION RCJ6Y

Net Weight: 4.5kg

Noise label rating 85dBA (taken at 7.5 metres) you must wear ear protection

at all times.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

Safety instructions

WARNING Read and understand all instructions. Failure to follow all instructions

listed below may result in electric shock, ﬁre and/or serious injury. The term

“power tool” in all of the warnings below refers to your mains-operated (corded)

power tool or battery-operated (cordless) power tool.

Save these instructions

Work area

• Keepworkareacleanandwelllit.Clutteredanddarkareasinviteaccidents.

• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceof

ﬂammable liquids, gases, or dust. Power tools create sparks which may ignite the

dust or fumes.

• Keepchildrenandbystandersawaywhileoperatingapowertool.Distractions

can cause you to lose control.

Personal safety

• Stayalert,watchwhatyouaredoingandusecommonsensewhenoperatinga

power tool. Do not use a power tool while you are tired or under the inﬂuence

of drugs, alcohol, or medication. A moment of inattention while operating power

tools may result in serious personal injury.

• Usesafetyequipment.Alwaysweareyeprotection.Safetyequipmentsuchas

a dust mask, non-skid safety shoes, hard hat, or hearing protection used for

appropriate conditions will reduce personal injuries.

• Removeanyadjustingkeyorwrenchbeforeturningthetoolon.Awrenchor

a key that is left attached to a rotating part of the power tool may result in

personal injury.

• Donotoverreach.Keepproperfootingandbalanceatalltimes.Thisenables

better control of the power tool in unexpected situations.

• Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhair,clothing

and gloves away from moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

• Ifdevicesareprovidedfortheconnectionofdustextractionandcollection

facilities ensure that these are connected and properly used. Use of these devices

can reduce dust-related hazards.

General Information & Safety Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

Power tool use and care

• Donotforcethepowertool.Usethecorrectpowertoolforyourapplication.

The correct power tool will do the job better and safer at the rate for which it was

designed.

•Donotusethepowertooliftheswitchdoesnotturnitonandoff.Anypowertool

that cannot be controlled with the switch is dangerous and must be repaired.

• Turntooloffcompletelybeforemakinganyadjustments,changingaccessories,or

storing power tools. Such preventive safety measures reduce the risk of starting

the power tool accidentally.

• Storeidlepowertoolsoutofthereachofchildrenanddonotallowpersons

unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

• Maintainpowertools.Checkformisalignmentorbindingofmovingparts,

breakage of parts and any other condition that may affect the power tool’s

operation. If damaged, have the power tool repaired before use. Many accidents

are caused by poorly maintained power tools.

• Keepcuttingtoolssharpandclean.Properlymaintainedcuttingtoolswithsharp

cutting edges are less likely to bind and are easier to control.

• Usethepowertool,accessoriesandtoolbitsetc.,inaccordancewiththese

instructions and in the manner intended for the particular type of power tool, taking

into account the working conditions and the work to be performed. Use of the power

tool for operations different from intended could result in a hazardous situation.

Service

• Haveyourpowertoolservicedbyaqualiedrepairpersonnelusingonlyidentical

replacement parts. This will ensure that the safety of the power tool is maintained.

General Information & Safety Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

Additional safety rules for petrol line trimmers

• Donotoperateinahazardouslocation.Suchareasincludewherethereisarisk

of explosion of petrol fumes, leaking gas or explosive dust.

• Donotoperateinaconnedarea.Exhaustgases,smokeorfumescouldreach

dangerous concentrations.

• Protectyourtool.ThislinetrimmerisNOTWEATHERPROOFandshouldnotbe

exposed to direct sunlight, high ambient temperature and damp, wet or high

humidity conditions.

• Donotsmokewhilerefuelling.Thisispotentiallydangerousasitmayignite

the fuel and cause an explosion.

• Takecarenottospillfuel.Whenrefuellingthelinetrimmerensurethatthe

motor has been switched off. Prevent the spilling of fuel as this may also ignite

with the hot motor. Never refuel whilst the engine running.

• Becarefulwhereyoustorethelinetrimmer.Storethelinetrimmerinadryarea

away from ﬂammable liquids.

• Keepyourdistance.Thelinetrimmeremitsexhaustfumes.Ensurebystanders

keep a safe distance.

• Ensureyouuseoil-mixfuel.Ensurethatyoumix40partsunleadedfuelto1

part 2-stroke oil. If not, the engine will overheat and cause damage to your line

trimmer. Do not use ethanol fuel (E10). Use fresh 91 Octane unleaded petrol.

• Usegoodqualityaircooled2-strokeengineoil.

• Neverllfueltankindoors.Neverllfueltankwhenengineisrunningorhot.

Do not smoke when ﬁlling fuel tank.

Wear goggles

Wear earmuffs

Wear a breathing mask

General Information & Safety Instructions

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

1. Cutting line spool

and assembly

2. Cut off knife

3. Safety guard

4. Handle

5a. Upper shaft

5b. Lower shaft

6. Recoil starter

7. Ignition On/Off switch

8. Fuel tank

9. Throttle trigger

10. Primer

11. Spark plug

12. Filter cover

13. Safety lever

14. Choke lever (red)

15. Handle locking screws x 2

16. Spark plug wrench

17. Carry strap

18. Bump knob

19. Hex key

20. Throttle lock button

21. Shaft locking knob

Parts List

Note. Before operating ensure

that the protective cover is

removed from the cut-off knife.

SUA 1800 909 909 www.globalpowerbrands.com email: [email protected]

AFTER SALES SUPPORT 43670

Getting Started 4

Unpacking

Due to modern mass production techniques, it is unlikely that your petrol line

trimmer is faulty or that a part is missing. If you ﬁnd anything wrong, do not

operate the tool until the parts have been replaced or the fault has been rectiﬁed.

Failure to do so could result in serious personal injury.

Contents of carton

•Uppershaftwithmotor

•Lowershaft

•Safetyguardwithattachingboltandnut

•Hexkey

•Sparkplugwrench

•Bumpfeedspool

•Fuelmixingcanister

•Carrystrap

Assembly

Prior to use, it is necessary to assemble the safety guard (3) and cutting spool (1)

to the lower shaft (5b) and join the lower shaft (5b) to the upper shaft (5a).

Before assembling the line trimmer, ensure the protective plastic sleeve is

removed from the shaft of the trimmer.

Fitting the safety guard

Note. If the bump feed knob is ﬁtted, remove the bump feed knob on the end

of the spindle prior to ﬁtting the guard. To remove the bump feed knob, turn the

bump knob (18) in an anti-clockwise direction.

1. Slide the safety guard (3) on from the bottom of the lower

shaft (5b). The guard should slide upward so the bracket ﬁtted

on the end of the shaft locates on the inside of the guard.

Ensure the holes of the safety guard line up with the ﬁxing

mount holes on the shaft bracket.

Note. If you require replacement spool and line, this is

available for purchase. Please refer to page 23 for

further detail.

Inhaltsverzeichnis

Andere Gardenline Trimmer Handbücher

Gardenline

Gardenline GL-CH 36 Li Bedienungsanleitung

Gardenline

Gardenline GLPT 2538 Bedienungsanleitung

Gardenline

Gardenline GLT 453 Bedienungsanleitung

Gardenline

Gardenline GPHS-26cc Bedienungsanleitung

Gardenline

Gardenline YGL N.G.1250-1 Bedienungsanleitung

Gardenline

Gardenline GLPHT26 Bedienungsanleitung

Gardenline

Gardenline Hedge Trimmer Bedienungsanleitung

Gardenline

Gardenline GLT455 Bedienungsanleitung

Gardenline

Gardenline GLHT 6051 Bedienungsanleitung

Gardenline

Gardenline GLTH680 Bedienungsanleitung

Gardenline

Gardenline GLHT680 Bedienungsanleitung

Gardenline

Gardenline GLHT551 Bedienungsanleitung

Gardenline

Gardenline GCGS 18-S Bedienungsanleitung

Gardenline

Gardenline ALDI HTH250 Bedienungsanleitung

Gardenline

Gardenline 43671/HTKS26 Bedienungsanleitung

Gardenline

Gardenline GLGT400 Bedienungsanleitung

Gardenline

Gardenline SPS01-26TRB2 Benutzerhandbuch

Gardenline

Gardenline GL-CT 36 Li Bedienungsanleitung

Gardenline

Gardenline M0E-17ET-510 Bedienungsanleitung

Gardenline

Gardenline 31CC 4 STROKE Bedienungsanleitung

Gardenline

Gardenline GLHT600 Bedienungsanleitung

Gardenline

Gardenline GL3.6GS Bedienungsanleitung

Gardenline

Gardenline GLH 692 Bedienungsanleitung

Gardenline

Gardenline GPHS-26cc Bedienungsanleitung

Beliebte Trimmer Handbücher anderer Marken

MTD

MTD HT 51 E Bedienungsanleitung

McCulloch

McCulloch T22 LS Bedienungsanleitung

COCKRAFT

COCKRAFT PRO HL36-S Bedienungsanleitung

Grizzly

Grizzly CT 1800 Li Bedienungsanleitung

Peco

Peco Z Trimmer ZT-3000 Bedienungsanleitung

Solo

Solo 116 Bedienungsanleitung

Stiga

Stiga ST 1200 Bedienungsanleitung

Echo

Echo GT-225 - 10-09 Bedienungsanleitung

RedMax

RedMax BT17 Bedienungsanleitung

GreenWorks

GreenWorks STA806 Bedienungsanleitung

Parkside

Parkside PHSL 900 A3 Bedienungsanleitung

Gardeo

Gardeo PRO GPTHT2560 Bedienungsanleitung

Park

Park DT-810870 Bedienungsanleitung

Worx

Worx WG209 Bedienungsanleitung

Makita

Makita 3710 Bedienungsanleitung

Champion

Champion 100683 Bedienungsanleitung

Stihl

Stihl FS 311 Bedienungsanleitung

Efco

Efco STARK 38 Handbuch
