GAS ONE GS-3400P Bedienungsanleitung
Model GS-3400P
8 oz. Butane
16.4 oz. Propane

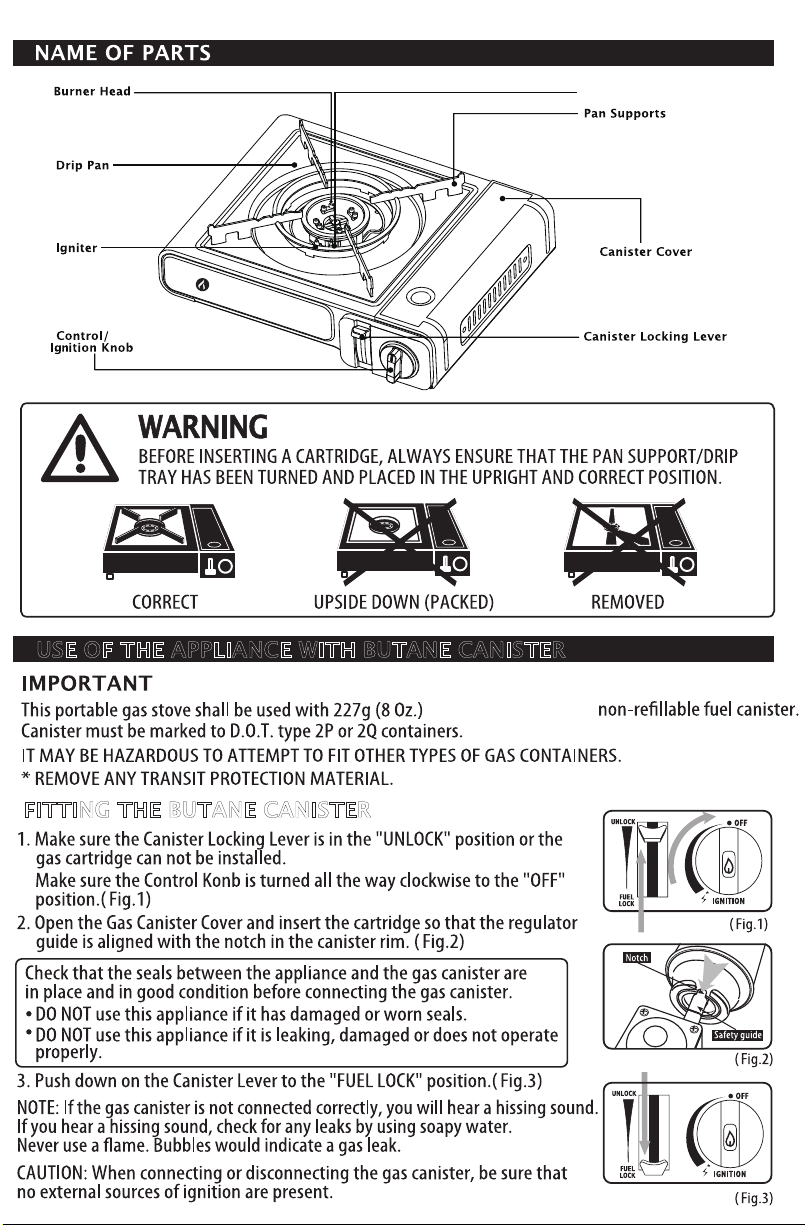

USE OF THE APPLIANCE WITH BUTANE CANISTER
FITTING THE BUTANE CANISTER
GASONE Model GAS-1
Hold the Control Knob in this position for few
seconds prime the ame guard thermocoupe.

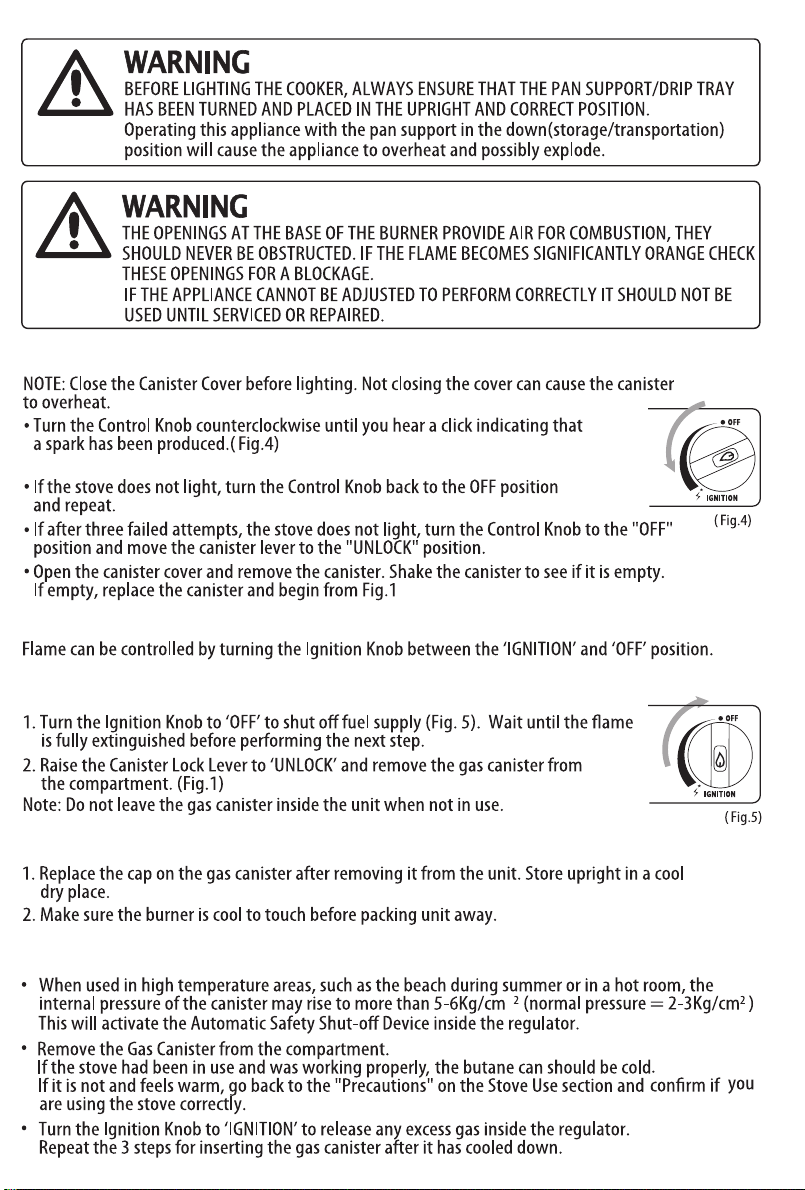

LIGHTING THE STOVE
TO ADJUST HEAT
EXTINGUISHING
AFTER USE
THE AUTOMATIC SAFETY SHUT-OFF DEVICE ACTIVATION
or propane gas only. Do not attempt to
operate this stove at temperatures
below freezing (32 degrees F).
butane

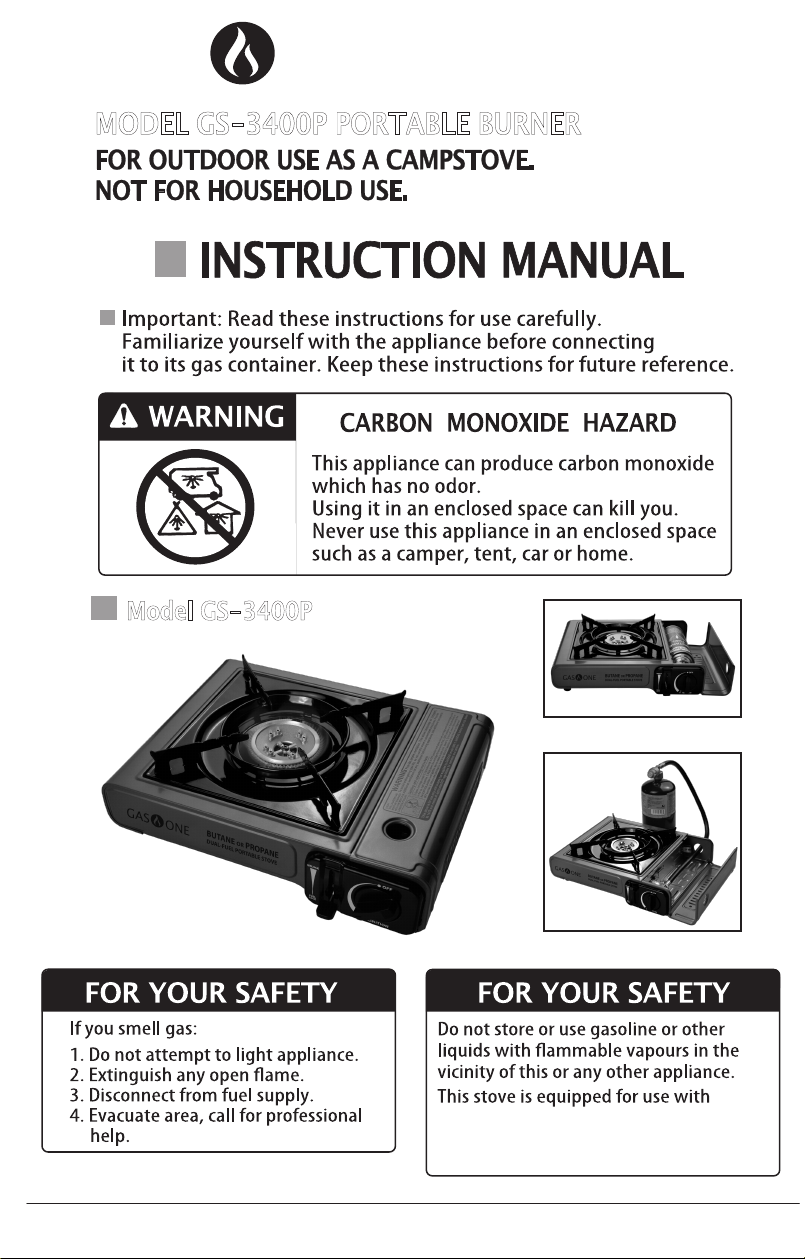

MODEL GS-3400P PORTABLE BURNER
Thermocouple
Manufactured for and distributed by PRICEZONE City of Commerce, CA 90040
GAS ONE
BUTANE
OR
PROPANE
DUAL-FUEL PORTABLE STOVE
GAS ONE
Model GS-3400P
8 oz. Butane
16.4 oz. Propane
USE OF THE APPLIANCE WITH BUTANE CANISTER
FITTING THE BUTANE CANISTER
GASONE Model GAS-1
Hold the Control Knob in this position for few
seconds prime the ame guard thermocoupe.
LIGHTING THE STOVE
TO ADJUST HEAT
EXTINGUISHING
AFTER USE
THE AUTOMATIC SAFETY SHUT-OFF DEVICE ACTIVATION
or propane gas only. Do not attempt to
operate this stove at temperatures
below freezing (32 degrees F).
butane
MODEL GS-3400P PORTABLE BURNER
Thermocouple
Manufactured for and distributed by PRICEZONE City of Commerce, CA 90040
GAS ONE
BUTANE
OR
PROPANE
DUAL-FUEL PORTABLE STOVE
GAS ONE
Model GS-3400P
8 oz. Butane
16.4 oz. Propane
USE OF THE APPLIANCE WITH BUTANE CANISTER
FITTING THE BUTANE CANISTER
GASONE Model GAS-1
Hold the Control Knob in this position for few
seconds prime the ame guard thermocoupe.
LIGHTING THE STOVE
TO ADJUST HEAT
EXTINGUISHING
AFTER USE
THE AUTOMATIC SAFETY SHUT-OFF DEVICE ACTIVATION
or propane gas only. Do not attempt to
operate this stove at temperatures
below freezing (32 degrees F).
butane
MODEL GS-3400P PORTABLE BURNER
Thermocouple
Manufactured for and distributed by PRICEZONE City of Commerce, CA 90040
GAS ONE
BUTANE
OR
PROPANE
DUAL-FUEL PORTABLE STOVE
GAS ONE
USE OF THE APPLIANCE WITH PROPANE CYLINDER
SETUP WITH 16.4 oz DISPOSABLE PROPANE CYLINDER
Hose assembly to be used with propane cylinder ONLY!
1. Make certain the control/ignition knob is in the o position.
2. Remove any butane fuel canister if present.
3. Thread the brass tting of the hose assembly onto the gas inletof the stove. Brass tting should
be snug (hand tighten only). Make sure the hose assembly is connected to the stove rst, then
connect to propane cylinder.
4. Remove plastic cap from top of propane cylinder.
5. Screw propane cylinder into REGULATOR. Make sure hose assembly is securely connected before igniting.
6. Check the connection between the propane cylinder and gas inlet of stove with soapy water.
Bubbles indicate a leak.
7. Make sure stove is placed on a at, sturdy surface before igniting.
8. Close gas canister.
TO LIGHT
1. Turn control knob counterclockwise until you hear the ignition clicking sound. Burner should light up.
2. Adjust ame to the desired heat level with control knob.
TO TURN OFF
1. Turn control knob clockwise to the OFF position.
2. Disconnect hose from the propane cylinder rst, THEN disconnect the hose assembly from the stove.
Hose assembly can be fo lded and stored inside the metal ap.
TO STORE
1. Be sure stove is cool.
2. ALWAYS - remove propane cylinder from regulator before storing stove and replace plastic cap on
cylinder.
Always detach propane cylinder outdoors away from ignition sources. Store stove in a dry, clean and
safe place.
3. Unscrew regulator with gas hose from the gas inlet of the stove.
4. Cylinders must be stored outdoors out of children.
GS-3400P
3.33 lbs
175g/h (8.7Mj/hr)
8,367Btu/Hr-Max
Propane
canister or propane cylinder
butane or propane.
Keep appliance away from ammable materials.
Check that the canister or cylinder is empty before changing it (shake to hear the noise made by the liquid).
Check the seals before connecting new canister or cylinder to the appliance.
Change the gas canister or cylinder outside away from people,
in a well ventilated location,away from any source of ignition,
such as open ames, pilot lights, and electrical res.
Never store any canister, cylinder or hose assembly near a heat source,
open ames, or any source of ignition.
Never store in direct sunlight or space that may exceed temperatures of 110
o
F.
Never remove canister, cylinder, or hose assembly while the stove is lit.
Never try to rell butane canister or propane cylinder.
Avoid any strong impact that might damage the canister, cylinder or
hose assembly.
Keep cap cover on canister or cylinder when not in use.
Do not dispose of the canister or cylinder into a re.
USE OF THE APPLIANCE WITH PROPANE CYLINDER
SETUP WITH 16.4 oz DISPOSABLE PROPANE CYLINDER
Hose assembly to be used with propane cylinder ONLY!
1. Make certain the control/ignition knob is in the o position.
2. Remove any butane fuel canister if present.
3. Thread the brass tting of the hose assembly onto the gas inletof the stove. Brass tting should
be snug (hand tighten only). Make sure the hose assembly is connected to the stove rst, then
connect to propane cylinder.
4. Remove plastic cap from top of propane cylinder.
5. Screw propane cylinder into REGULATOR. Make sure hose assembly is securely connected before igniting.
6. Check the connection between the propane cylinder and gas inlet of stove with soapy water.
Bubbles indicate a leak.
7. Make sure stove is placed on a at, sturdy surface before igniting.
8. Close gas canister.
TO LIGHT
1. Turn control knob counterclockwise until you hear the ignition clicking sound. Burner should light up.
2. Adjust ame to the desired heat level with control knob.
TO TURN OFF
1. Turn control knob clockwise to the OFF position.
2. Disconnect hose from the propane cylinder rst, THEN disconnect the hose assembly from the stove.
Hose assembly can be fo lded and stored inside the metal ap.
TO STORE
1. Be sure stove is cool.
2. ALWAYS - remove propane cylinder from regulator before storing stove and replace plastic cap on
cylinder.
Always detach propane cylinder outdoors away from ignition sources. Store stove in a dry, clean and
safe place.
3. Unscrew regulator with gas hose from the gas inlet of the stove.
4. Cylinders must be stored outdoors out of children.
GS-3400P
3.33 lbs
175g/h (8.7Mj/hr)
8,367Btu/Hr-Max
Propane
canister or propane cylinder
butane or propane.
Keep appliance away from ammable materials.
Check that the canister or cylinder is empty before changing it (shake to hear the noise made by the liquid).
Check the seals before connecting new canister or cylinder to the appliance.
Change the gas canister or cylinder outside away from people,
in a well ventilated location,away from any source of ignition,
such as open ames, pilot lights, and electrical res.
Never store any canister, cylinder or hose assembly near a heat source,
open ames, or any source of ignition.
Never store in direct sunlight or space that may exceed temperatures of 110
o
F.
Never remove canister, cylinder, or hose assembly while the stove is lit.
Never try to rell butane canister or propane cylinder.
Avoid any strong impact that might damage the canister, cylinder or
hose assembly.
Keep cap cover on canister or cylinder when not in use.
Do not dispose of the canister or cylinder into a re.
USE OF THE APPLIANCE WITH PROPANE CYLINDER
SETUP WITH 16.4 oz DISPOSABLE PROPANE CYLINDER
Hose assembly to be used with propane cylinder ONLY!
1. Make certain the control/ignition knob is in the o position.
2. Remove any butane fuel canister if present.
3. Thread the brass tting of the hose assembly onto the gas inletof the stove. Brass tting should
be snug (hand tighten only). Make sure the hose assembly is connected to the stove rst, then
connect to propane cylinder.
4. Remove plastic cap from top of propane cylinder.
5. Screw propane cylinder into REGULATOR. Make sure hose assembly is securely connected before igniting.
6. Check the connection between the propane cylinder and gas inlet of stove with soapy water.
Bubbles indicate a leak.
7. Make sure stove is placed on a at, sturdy surface before igniting.
8. Close gas canister.
TO LIGHT
1. Turn control knob counterclockwise until you hear the ignition clicking sound. Burner should light up.
2. Adjust ame to the desired heat level with control knob.
TO TURN OFF
1. Turn control knob clockwise to the OFF position.
2. Disconnect hose from the propane cylinder rst, THEN disconnect the hose assembly from the stove.
Hose assembly can be fo lded and stored inside the metal ap.
TO STORE
1. Be sure stove is cool.
2. ALWAYS - remove propane cylinder from regulator before storing stove and replace plastic cap on
cylinder.
Always detach propane cylinder outdoors away from ignition sources. Store stove in a dry, clean and
safe place.
3. Unscrew regulator with gas hose from the gas inlet of the stove.
4. Cylinders must be stored outdoors out of children.
GS-3400P
3.33 lbs
175g/h (8.7Mj/hr)
8,367Btu/Hr-Max
Propane
canister or propane cylinder
butane or propane.
Keep appliance away from ammable materials.
Check that the canister or cylinder is empty before changing it (shake to hear the noise made by the liquid).
Check the seals before connecting new canister or cylinder to the appliance.
Change the gas canister or cylinder outside away from people,
in a well ventilated location,away from any source of ignition,
such as open ames, pilot lights, and electrical res.
Never store any canister, cylinder or hose assembly near a heat source,
open ames, or any source of ignition.
Never store in direct sunlight or space that may exceed temperatures of 110
o
F.
Never remove canister, cylinder, or hose assembly while the stove is lit.
Never try to rell butane canister or propane cylinder.
Avoid any strong impact that might damage the canister, cylinder or
hose assembly.
Keep cap cover on canister or cylinder when not in use.
Do not dispose of the canister or cylinder into a re.
