Gas & Flame

Detection System

GTL-200

Instruction Manual

www.gastron.com

02_03

When abnormalities occur after purchasing the product,

please contact the following address.

·Address : 23 Gunpo Advanced Industry 1-ro,

Gunpo-si, Gyeonggi-do

·Tel : 031-490-0800

·Fax : 031-490-0801

·URL : www.gastron.com

·e-mail : [email protected]

Thank you very much for purchasing a product from Gastron Co. Ltd.

Our Gastron Co.Ltd. is a company specialized in Gas Detector & Gas Monitoring System and have been

recognized by many customers for the best quality and use convenience. We always seek to help our

customers to find the product they need and we continuously research to develop gas detectors that

satisfies our customers. From now on, you can solve all problems related to gas detectors with the

products of Gastron. We Gastron will be responsible for your satisfaction.

This user manual describes operation and simple maintenance methods etc. for the gas detector.

Please read carefully and store it in a safe place. Using it as a reference will help a lot when you have a

question during use.

The product and manual are subject to change without a notice for the product's functional improvement and ease

of use.

■ Only an individual specialized in explosion-proof devices and warning lights may disassemble

the device.

■ Please contact our company's technical support, e-mail, or website for inquiries related to

inspection and calibration of the explosion-proof warning light.

Greetings

6. Drawings and Dimensions ········································································· 18

6.1. Combination Type ·············································································· 18

6.2. Sounder Type ·················································································· 19

6.3. Beacon Type ··················································································· 20

7. Precautions during Installation ····································································· 21

Appendix A. Sound Tone Table ······································································ 22

Appendix B Method to Set Tone ······································································ 24

8. Revision History ··················································································· 26

www.gastron.com

04_05

ContentsContents

1. Overview ·························································································· 6

2. Specification ······················································································· 6

2.1. Basic Specifications ··········································································· 6

2.2. Mechanical Specifications ····································································· 7

2.3. Electrical Specifications(DC Type) ······························································ 7

2.4. Electrical Specifications (AC Type) ······························································ 8

2.5. Environmental Specifications··································································· 8

3. Name and description of each part ································································ 9

3.1. Combination Type Components ································································ 10

3.2. Sounder Type Components ···································································· 11

3.3. Beacon Type Components ···································································· 12

4. Installation ························································································· 14

4.1. Detachment of Cover ········································································· 14

4.2. Combination & Sounder Type Terminal Configuration ············································ 15

4.2.1. AC Type Terminal Description ··························································· 15

4.2.1. DC Type Terminal Description ··························································· 15

4.3. Beacon Type Terminal Configuration ··························································· 15

4.3.1. AC Type Terminal Description ··························································· 15

4.3.2. DC Type Terminal Description ··························································· 15

5. Operation Method ················································································· 16

5.1. Operation Status Setting ······································································· 16

5.2. External Contact Point Control ································································· 16

5.2.1. Dry Contact Configuration ······························································· 17

5.2.2. Wet Contact Configuration ······························································ 17

GTL-200

Instruction Manual

www.gastron.com

06_07

2. Specication

GTL-200 explosion-proof warning light uses semi-permanent LED light source and has aluminum housing. It is an

explosion-proof product with excellent durability and safety.

With Gastron's unique lens-type lighting system, it has high emission effect of optical signal. Using built-in switches,

sound type, speaker volume, and rotation speed of reflector can be adjusted, thus they can be changed in

accordance to installation condition.

LED has 4 colors; Red, Yellow, Green, and Blue and the max. volume of the speaker is 120 dB. 64 different sound

tones can be selected and external contact is operated by Dry & Wet Contact Method.

3 types of product are available; combination type with speaker and LED combined together, sounder type with

speaker operation only, and beacon type with LED operation only.

GTL-200 explosion-proof warning light has explosion-proof enclosure and is a product that can be used in

combination of stand-alone beacon, speaker, and combination types, etc.

2.2. Mechanical Specifications

ITEMS SPECIFICATION

Explosion-Proof Type Explosion-Proof Enclosure

Cable Inlet 3/4" PF ( 1/2" or 3/4" NPT )

Mounting Holes Ø 7 ±0.1

Size (Dimension) (mm)

Sounder 164(W) * 139(H) * 322(177)(D)

Beacon 164(W) X 278.5(H) X177(D)

Combination 164(W) * 278.5(H) * 322(177)(D)

Weight

Sounder App. 5.0kg

Beacon App. 5.0kg

Combination App. 6.2kg

Body Material Lamp Cover Explosion-Proof Tempered Glass

Body ALDC12

2.3. Electrical Specifications(DC Type)

ITEMS SPECIFICATION

Input Voltage

※ Customer supplied PSU must meet requirements

IEC1010-1 and CE Marking requirements.

Absolute min:

Nominal:

Absolute max:

Ripple maximum allowed:

18V

24V

30V

0.1V pk-pk

Sounder Wattage Max. wattage:

Max. current:

24W @+24 VDC

1A @+24 VDC

Beacon Wattage Max. wattage:

Max. current:

12W @+24 VDC

0.5A @+24 VDC

Combination Wattage Max. wattage:

Max. current:

36W @+24 VDC

1.5A @+24 VDC

EMC Protection: CE

2. Specication

1. Overview

GTL-200

Instruction Manual

2.1. Basic Specifications

ITEMS SPECIFICATION

Display Method LED light source with a rotating reflector

Display Color Option Red, Yellow, Green, Blue

Sound Maximum output Normal 110dB@1meter(1.2KHz)

Max 120dB@1meter(1.2KHz)

Tone Selection 64 user selectable tones

Approvals Classification Ex dⅡC T4~T6

EN 61000-6-2 , EN 61000-6-4

Ingress Protection IP66

Product Type

Sounder

Beacon

Combination

Warranty 2Year

www.gastron.com

08_09

3. Name and Description of Each Part

3.1. Combination Type Components

[Figure 1. Combination Type Configuration]

2. Specication

GTL-200

Instruction Manual

2.4. Electrical Specifications (AC Type)

ITEMS SPECIFICATION

Input Voltage

※ Customer supplied PSU must meet requirements

IEC1010-1 and CE Marking requirements.

Absolute min:

Nominal:

Absolute max:

Ripple maximum allowed:

210V

220V

230V

0.1V pk-pk

Sounder Wattage Max. wattage:

Max. current:

36W @ AC220 VDC

0.11A @ AC220 VDC

Beacon Wattage Max. wattage:

Max. current:

36W @ AC220 VDC

0.06A @ AC220 VDC

Combination Wattage Max. wattage:

Max. current:

36W @ AC220 VDC

0.17A @ AC220 VDC

EMC Protection: CE

2.5. Environmental Specifications

ITEMS SPECIFICATION

Operation Temperature T5 -40 to 70 ℃

T6 -40 to 60 ℃

Storage Temperature -40 to 70 ℃

Operation Humidity 5 to 99% RH (Non-condensing)

No ITEMS SPECIFICATION

1Case Body Protects internal PCB and other parts by body.

2Case cover Protects internal parts by body.

3Case Glass Cover Protects internal glass and other parts by body.

4Explosion Light Glass It is an explosion-proof case made of glass material and disperse light to outside.

5Case Glass Ring Prevents diversion during explosion light glass fastening.

6Gasket Prevents diversion during explosion light glass fastening.

7O-Ring/1 Inhibits inlet of dust, particles, water, gas

8Reflector Diffracts LED light to emit.

9Reflector troll plate Works as rotating plate that rotates reflector.

10 Motor troll plate Works to deliver rotating speed of motor.

11 Motor Works to rotate reflector.

www.gastron.com

10_11

3.1. Combination Type Components

No NAME DESCRIPTIONS

12 Led assy plate(bracket) Fastens LED Assy to the body.

13 lens Lens for light source that emits LED light.

14 Heat sinking plane Heat-proof body that decreases LED temperature and increases lifetime.

15 Bearing washer Washer for bearing that operates rotating plate to decrease friction.

16 Heat sinking plane-Net Net that fastens heat-proof plate to LED assy plate (bracket)

17 Speaker Cover Protects internal Driver unit and other parts by body

18 Flame Arrester ∮25x2 Prevents entrance of debris and delivers buzzer sound to outside.

19 Driver unit Speaker that emits PCB signal sound.

20 Horn set Horn that enhances output of driver unit and prevents water from entering.

21 Cage Protective mesh for explosion light glass

22 Terminal PCB AC/DC Power Supply

23 Main PCB Operates by receiving signal upon an error in LED/speaker/motor

24 Led PCB PCB with LED

No NAME DESCRIPTIONS

1Case Body Protects internal PCB and other parts by body

2Case cover Protects internal parts by body

3O-Ring/1 Inhibits inlet of dust, particles, water, gas

4Speaker Cover Protects internal Driver unit and other parts by body

5Flame Arrester ∮25x2 Prevents entrance of debris and delivers buzzer sound to outside.

6Driver unit Speaker that emits PCB signal sound.

7Horn set Horn that enhances output of driver unit and prevents water from entering.

8Terminal pcb AC/DC Power Supply

9Main pcb Operates by receiving signal upon an error in LED/speaker/motor

10 Name plate lavel Label for Authentication

[Table 1. Combination Type Configuration Description]

GTL-200

Instruction Manual

3.2. Sounder Type Configuration

[Figure 2. Sounder Type Configuration]

[Table 2. Sounder Type Configuration Description]

3. Name and Description of Each Part3. Name and Description of Each Part

www.gastron.com

12_13

GTL-200

Instruction Manual

[Table 4. Beacon Type Configuration Description]

No NAME DESCRIPTIONS

1Case Body Protects internal PCB and other parts by body

2Case cover Protects internal parts by body

3Case Glass Cover Protects internal Glass and other parts by body

4Explosion Light Glass It is an explosion-proof case made of glass material and disperse light to outside.

5Case Glass Ring Prevents diversion during explosion light glass fastening.

6Gasket Prevents diversion during explosion light glass fastening.

7O-Ring/1 Inhibits inlet of dust, particles, water, gas

8Reflector Diffracts LED light to emit.

9Reflector troll plate Works as rotating plate that rotates reflector.

10 Motor troll plate Works to deliver rotating speed of motor.

11 Motor Works to rotate reflector.

12 Led assy plate(bracket) Fastens LED Assy to the body.

13 lens Lens for light source that emits LED light.

14 Heat sinking plane Heat-proof body that decreases LED temperature and increases lifetime.

15 Bearing washer Washer for bearing that operates rotating plate to decrease friction.

16 Heat sinking plane-Net Net that fastens heat-proof plate to LED assy plate (bracket)

17 Cage Protective mesh for Explosion Light Glass

18 Terminal pcb AC/DC Power Supply

19 Main pcb Operates by receiving signal upon an error in LED/Speaker/Motor

20 Led pcb set PCB with LED

3.3. Beacon Type Components

[Table 3. Beacon Type Configuration]

3. Name and Description of Each Part3. Name and Description of Each Part

www.gastron.com

14_15

4. Install4. Install

GTL-200

Instruction Manual

■

It is prohibited for an individual, other than an approved user or a technician responsible for installation and repair

from the head office, to install an explosion-proof warning light on site or open the cover of the installed warning

light and manipulate it. This may cause serious loss of life and property from fire, explosion, and etc.

■ In addition, please check whether there is any remaining explosive gas or combustible material in the

surroundings. Power must be turned off before performing work.

4.1. Detachment of Cover

■ Turn the slotted set screw (M4) fixing the cover part of main body 3~4 turns counter clockwise (ccw) using a hex

wrench (M2) then turn the cover of gas leak detector ccw to detach the cover.

■ When the bottom cover is detached, terminal board for external wiring appears. Perform cable wiring as shown

in the terminal configuration below.

[Figure 3. Slotted Set Screw Configuration]

No PCB SILK DESCRIPTION NOTE

1L1 AC Power (Live)

2L2 AC Power (Natural)

3S1 External Signal Line 1

Operates upon connecting "COM" terminal to

a desired signal line.

(Only supports Dry Contact Operation)

4S2 External Signal Line 2

5S3 External Signal Line 3

6COM Digital Ground

4.2.1. AC Type Terminal Description

4.2. Combination & Sounder Type Terminal Configuration

No PCB SILK DESCRIPTION NOTE

1 + DC + Power

2 - DC - Power

3S1 External Signal Line 1 For Dry Contact Operation, connect to "DC -"

power to run. For Wet Contact Operation, run

"S1~S3" and "DC-"

4S2 External Signal Line 2

5S3 External Signal Line 3

4.2.2. DC Type Terminal Description

4.3. Beacon Type Terminal Configuration

4.3.1. AC Type Terminal Description

No. PCB SILK DESCRIPTION

1L1 AC Power (Live)

2L1

3L2 AC Power (Natural)

4L2

4.3.2. DC Type Terminal Description

No. PCB SILK DESCRIPTION

1 + DC + Power

2 + DC + Power

3 - DC - Power

4 - DC - Power

5.1. Operation Status Setting

■ By using #1 to #6 internal dip switch, operating tone can be selected. For types of tone, refer to the tone table in

Appendix A.

■ By using #7 to #8 internal dip switch, operating mode can be changed.

5.2.1. Dry Contact Configuration

■ Using COM terminal, control contact status of S1~S3.

www.gastron.com

16_17

GTL-200

Instruction Manual

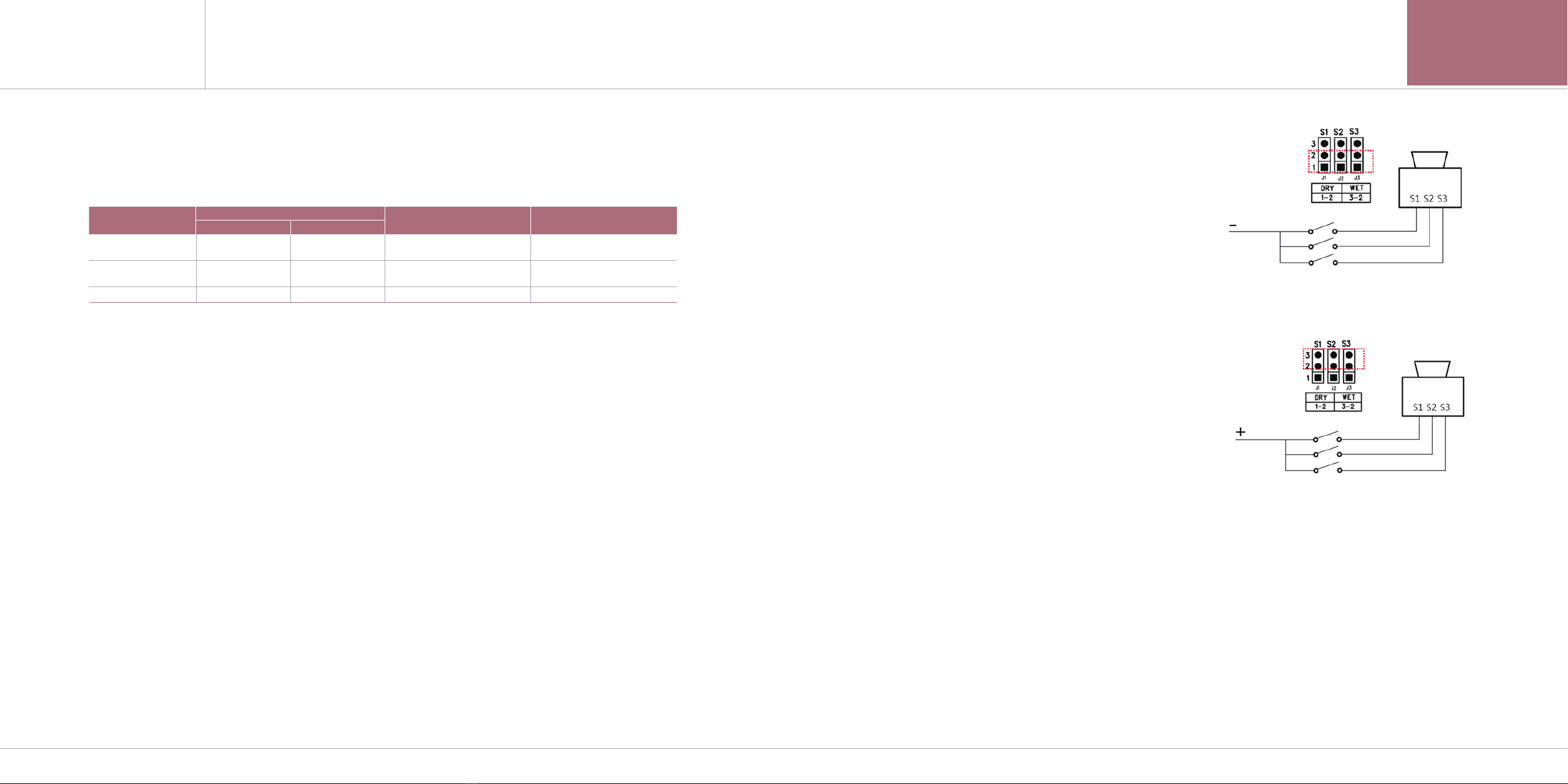

[Figure 4. Dry Contact Configuration]

5.2.2. Wet Contact Configuration

■ Using DC+ power, select S1~S3 signal.

[Figure 5. Wet Contact Configuration]

5.2. External Contact Point Control

■ In order to select product operation and output tone, internal contact points (S1~S3) of warning light must be

controlled.

■ By using applicable contact point, it can control operation status and tone output. Refer to the operation status

setting table above for control mode.

■ For configuration of S1~S3 for tone output, refer to Method for Setting Tone in Appendix B.

■ Contact point control configuration can be set in Dry Contact and Wet Contact. Operation configuration

depending on Contact Type is set to internal Jumper configuration and related items are as follows.

■ For Mode 1, perform basic warning light configuration.

■

For Mode 2, it is used when power is inputted regularly and when it is controlled only using external contact points.

■ For Mode 3, it is a mode to manually stop tone output and used during setting.

[Table 5. Operation Description]

Mode Dip Switch Setting Power On Input External Contact Point

(S1, S2, S3)

#7 #8

Mode1 OFF OFF Beacon operation and

set tone output N/A

Mode2 OFF ON No Operation Beacon operation and

set tone operation

Mode3 ON OFF Beacon Operation Set tone Operation

5. Operation Method5. Operation Method

www.gastron.com

18_19

GTL-200

Instruction Manual

6.1. Combination Type 6.2. Sounder Type

[Figure 6. Combination Type Drawing] [Figure 7. Sounder Type Drawing]

6. Drawings and Dimensions6. Drawings and Dimensions

Inhaltsverzeichnis

Andere GASTRON Sicherheitssensor Handbücher

GASTRON

GASTRON GTD-2000ExW Bedienungsanleitung

Beliebte Sicherheitssensor Handbücher anderer Marken

THORLABS

THORLABS PDA10JT Bedienungsanleitung

Waeco

Waeco UV-DETECT Bedienungsanleitung

Intermatic

Intermatic IOS-DSIMF Bedienungsanleitung

urmet domus

urmet domus 1083 Bedienungsanleitung

Siemens

Siemens AZL66 Series Bedienungsanleitung

BTI

BTI Profiline Multi Finder Bedienungsanleitung

Challenger

Challenger SL01 Bedienungsanleitung

DMP Electronics

DMP Electronics 1122INT Bedienungsanleitung

Rielta

Rielta Ladoga MK-RK Bedienungsanleitung

Mirion Technologies

Mirion Technologies ACCURAD PRD Bedienungsanleitung

Bosch

Bosch DS835 Bedienungsanleitung

DBI SALA

DBI SALA EZ Stop Bedienerhandbuch

Lamptime

Lamptime ST05C Bedienungsanleitung

Ubiquiti

Ubiquiti MFI-MSC Bedienungsanleitung

Subsite

Subsite 910R Montageanleitung

Satel

Satel OPAL Pro Bedienungsanleitung

Aleph

Aleph XC-1XTEU Bedienungsanleitung

Pima

Pima LARIS QUAD Bedienungsanleitung
