Gateway 46-inch Plasma TV
Specifications
Specifications are subject to change without notice or obligation.
Display Panel
Screen size Diagonal 46-inch
Aspect ratio 16:9 wide
Number of pixels 852 (Horizontal, RGB Trio) × 480 (Vertical) pixels
Pixel Pitch 1.182 mm × 1.182 mm
Luminance 570cd/m2, at APL13%
Power Source
Input voltage 100 ~ 240 Vac, 50/60 Hz
Input current 4 A at nominal line
Inrush current 20 A p-p/20 ms Max.
Power consumption 340 ± 10% Watts typical
Stand-by and Power Save 10 Watts Max.
Connector Types
RCA jacks for audio, video, Y/CB/CR, and Y/PB/PR
4-pin Din S-terminal for S-Video
9-pin D-SUB for RS232
15-pin D-SUB for RGB
30-pin DVI
2
Gateway 46-inch Plasma TV Specifications
www.gateway.com
Video/S-Video Signal
Type Analog
Polarity Positive
Amplitude Video 1Vp-p, (priority S-Video) Y=1Vp-p C=0.286Vp-p
Frequency H: 15.734 KHz V: 60 Hz (NTSC)
H: 15.625 KHz V: 50 Hz (PAL)
Input impedance 75 ohms
Y/CB/CRor Y/PB/PRSignal (Component 1 and 2)
Type Analog
Polarity Positive
Amplitude AV: 1Vp-p (with sync)
S-Video: Y: 1Vp-p,C: 0.286Vp-p
Frequency
Y/CB/CR
Y/PB/PR: HDTV
H: 15.734 KHz V: 60 Hz (NTSC)
H: 15.625 KHz V: 50 Hz (PAL)
H: 31 KHz V: 60 Hz (480P)
H: 45 KHz V: 60 Hz (720P)
H: 33 KHz V: 60 Hz (1080I)
RGB Signal
Type Analog
Polarity Positive or Negative
Amplitude RGB: 0.7 Vp-p
Frequency H: support to 31 K~70 KHz
V: support to 50~85 Hz
3
www.gateway.com
DVI Signal
Type Digital
Polarity Positive or Negative
Frequency H: support to 31 K~70 KHz
V: support to 50~85 Hz
Audio Signal
Analog 500 mV rms /more than 22 Kohm
Pin Assignments for D-SUB Connector (In/Loop Out)
Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment
1 RED 6 RED GND 11 GND
2 GREEN 7 GREEN GND 12 SDA
3 BLUE 8 BLUE GND 13 H-SYNC
4 GND 9 NC 14 V-SYNC
5 GND 10 GND 15 SCL
Pin Assignments for 24 Pin DVI Connector (Digital Only)
Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment
1TMDS Data 2- 9TMDS Data 1- 17 TMDS Data 0-
2TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+
3TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield
4TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data 5-
5TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data 5+
6DDC Clock 14 +5V Power 22 TMDS Clock Shield
7DDC Data 15 Ground (For +5V) 23 TMDS Clock +
8NC 16 Hot Plug Detect 24 TMDS Clock -
4
Gateway 46-inch Plasma TV Specifications
www.gateway.com
RGB/DVI For VESA Standard
Mode
No.
Resolution Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
Dot Rate
(MHz)
Remark
1 640 × 400 31.47 70.08 25.17 DOS
2 640 × 400 37.90 85.00 31.5 VESA
3 640 × 480 31.50 60.00 25.18 DOS
4 640 × 480 35.00 67.00 30.24 Mac. (SOG)
5 640× 480 37.00 75.00 31.50 VESA
6 640 × 480 37.86 72.81 31.50 VESA
7 640 × 480 43.30 85.00 36.00 VESA
8 800 × 600 35.16 56.25 36.00 VESA
9 800 × 600 37.90 60.32 40.00 VESA
10 800 × 600 46.90 75.00 49.50 VESA
11 800 × 600 48.08 72.19 50.00 VESA
12 800 × 600 53.70 85.00 56.25 VESA
13 832 × 624 49.00 74.00 57.27 Mac. (SOG)
14 1024 × 768 48.40 60.00 65.00 VESA
15 1024 × 768 56.50 70.00 75.00 VESA
16 1024 × 768 60.00 75.00 78.75 VESA
17 1024 × 768 68.70 85.00 94.50 VESA
RGB/DVI For Apple Standard
Mode
No.
Resolution Refresh
Rate
(Hz)
Horizontal
Frequency
(KHz)
Vertical
Frequency
(Hz)
V-Sync
Polarity
(TTL)
H-Sync
Polarit
y (TTL)
Dot
Rate
(MHz)
24 640 × 480 67 35.00 66.67 - - 30.240
25 832 × 624 75 49.73 74.55 - - 57.283
5
www.gateway.com
Y/PB/PR For Component 1
Mode Resolution Refresh Rate
1 640 × 480P 60
2 1920 × 1080I 60
3 1280 × 720P 60
Maximum Resolution
Up to 1024 × 768
Dimensions Without/Stand With/Stand
Width 44.80 in. (1138 mm) 44.80 in. (1138 mm)
Height 28.39 in. (721 mm) 30.79 in. (782 mm)
Depth 3.86 in. (98 mm) 10.24 in. (260 mm)
Package Dimensions
Width 51.18 in. (1300 mm)
Height 34.65 in. (880 mm)
Depth 12.99in. (330 mm)
Weight
Net weight 82.67 lbs/37.5 Kgs (without stand) 92.15 lbs/ 41.8 Kgs (with stand)
Gross weight 101.4 lbs/46 Kgs
Operating
Temperature 0~40°C (32~104°F)
Relative humidity 20~80%
Pressure 800~1114 hpa
6
Gateway 46-inch Plasma TV Specifications
www.gateway.com
Non-Operating
Temperature -20~60°C
Relative humidity 20~90%
Pressure 700~1114 hpa
Vibration X/Y/Z, 0.5G/10~55 Hz (sweep), 10 minutes
Acoustics
(IHF A-weighted 1 meter) 40 dB Max.
Sound
Residual hum (at volume max) 500 µW Max.
Practical max. Audio output (at 10% THD max.) 1.0 vp-p 1 KHz input 5 W + 5 W Max. /12 ohm
Sound distortion (at 250 mw 1 KHz) 1% Max.
Audio output (input at 1.4VP-P)>=1.0V
P-P
Reliability Requirement
The MTBF is 20000 hours under operation at 25±5°C (Half luminosity, motion picture)
Emissions Requirement
Your plasma TV meets the EMI limits in all screen modes as qualified by FCC class B part 15.
Power Management
Mode H-sync V-sync Video Power dissipation
Normal Pulse Pulse Active Normal power
Stand-by No pulse No pulse No video Less than 10 watts
Power saving Pulse
No pulse
No pulse
Pulse
blanked
blanked
Less than 10 watts
Less than 10 watts
7
www.gateway.com

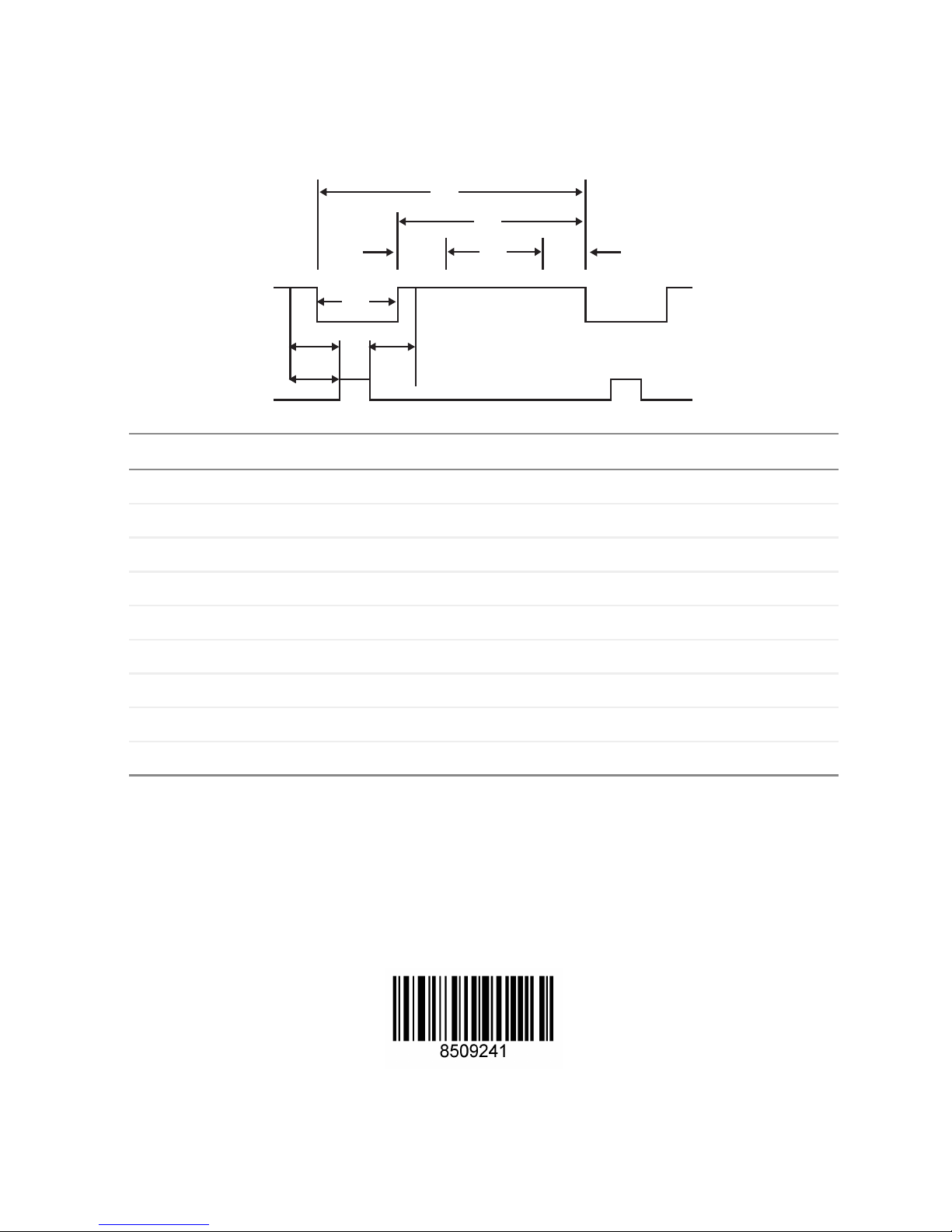

Preset Timing Chart
Many products for Gateway and its subsidiaries are custom engineered by our
suppliers to Gateway specifications and may vary from similarly marketed
products.
Item Description:
A Total time
B Active display area including borders
C Active display area excluding borders
D Left/Top border
E Right/bottom border
F Blanking time
G Front porch
H Sync-width
I Back porch
(Video)
(Sync)
GHI
F
DE
A
B
C
MAN MON 46” PLASMA SPEC R0 6/03
