Product Overview

This product is developed with the latest science and technology to design a

high-definition camcorder. It is collected with all the excellent Car DVR

functions together, and breakthrough a number of high-end configuration.

Its main features are the built-in 256MB memory, the 256 MHz ultra-high-

performance CPU, the fastest 60 frames per second video at 720p, a very

wide angle of 170 degrees and the 2.7-inch 16:9 super-narrow design.

The DVR has a recording resolution of up to 1920 * 1080P and it can also

shoot 5 mega pixel still images. The DVR uses a Micro SD card as a storage

because it is compact, power-saving and easy to carry. The DVR can also use

the HDMI interface to transmit your media directly to a high-definition LCD

TV for high-resolution playback.

Product Features:

170-degree ultra-high definition wide-angle lens.

1920 * 1080P FHD resolution.

Compression technology with advanced H.264 photography.

Digital zoom 4X

2.7-inch 16:9 high-resolution LCD screen.

GPS function

Package Components:

HDDVR360

GPS Surface

Mounting

Bracket

Car Charger

HDDVR360

User Guide

USB to Micro USB

Cable

Mini HDMI to

HDMI Cable

Driver Disk

4GB Micro SD

Card

Reset Pin

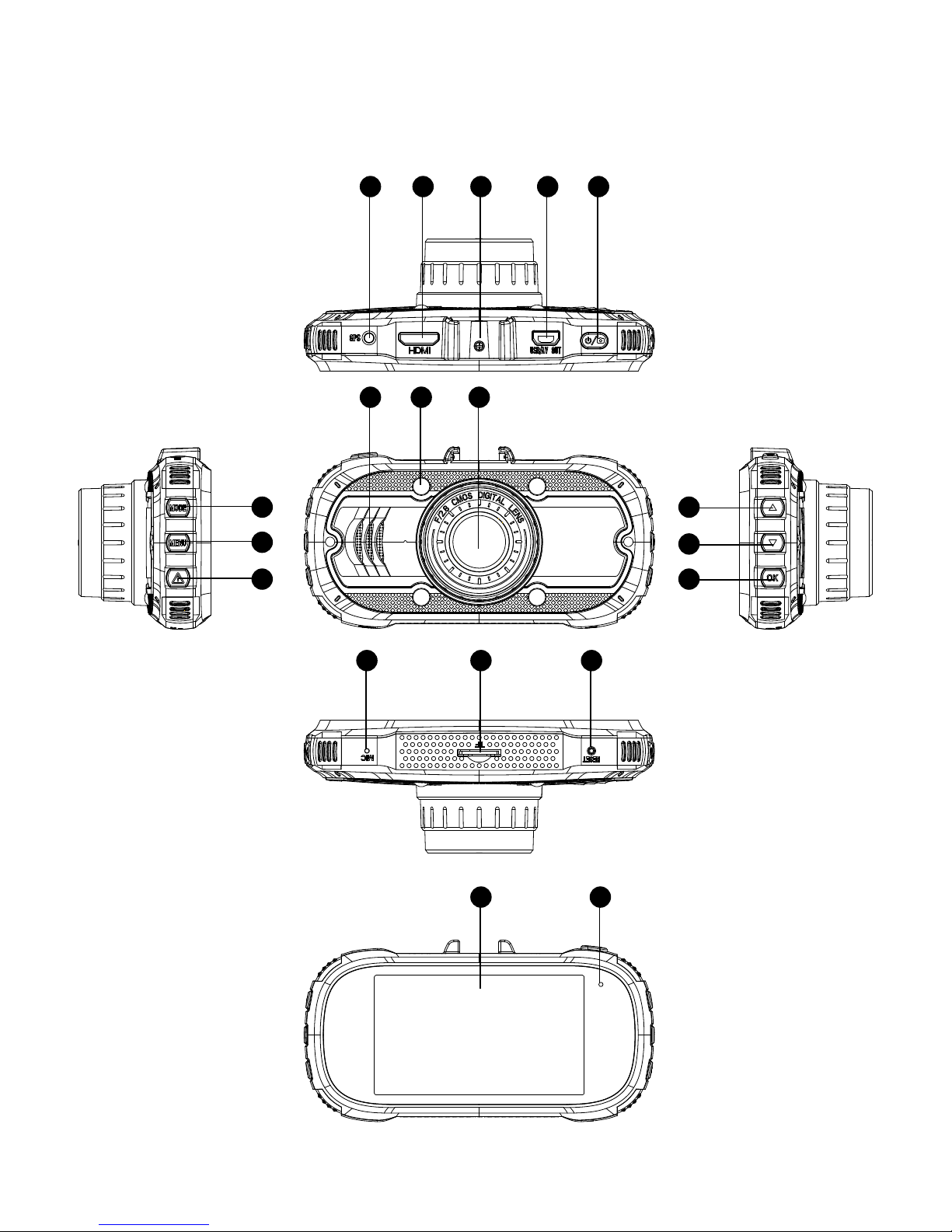

Produ

tructure:

910 11

814

15 16 17

18 19

2 3 4 5

1) GPS

2) HDMI Port

3) Bracket Connection

4) USB Port

5) Power Key

6) Mode Key

7) Menu Key

8) SOS Key

9) Speaker

10) IR Light

11) HD Cameras

12) Up Key

13) Down Key

14) OK Key

15) MIC

16) Micro SD Slot

17) Reset

18) LCD

19) Indication Light

Button Instructions

MENU Key:

Pressing this button once will open the menu. Pressing the menu button again

while in the menu will change to the second settings tab.

Up Key:

The up button is used while in the menu to move the highlighted area for

selecting. The up button can also be used to zoom in under the standby or

shooting mode.

OK Key:

The OK is used to start recording in video mode. Pressing the button again in

video mode will stop the recording. In photo mode, the OK button is used to take

a picture.

The OK button is also used to select a setting in the menu.

Down key:

The down button is used while in the menu to move the highlighted area for

selecting. The down button can also be used to zoom out under the standby or

shooting mode.

MODE key (Mode Switch):

Press the mode button to switch between video mode, photo mode and the file

browser interface. Pressing the mode button while recording will activate or

deactivate file protection (A yellow lock will be present if activated).

HDMI Port:

The HDMI port provides a HD output interface using the mini HDMI to HDMI cable

provided that can be plugged into a HDMI in supported device.

Micro SD Slot:

Where the Micro SD card is inserted (Max size is 32GB).

USB Interface:

The USB port can be used to charge the device or be connected to a computer for

data transmission.

Reset:

To hard reset the device in the case of a system jam or crash.

Power Key:

When the DVR is turned off, press it once to turn it on. While the system is on,

hold down the power button to turn it off. When in video mode, press the power

button once to switch the IR lights between auto, on or off. When in photo mode,

press the power button to take a picture.

Emergency Lock Key:

Pressing the Emergency lock button while recording will activate or deactivate file

protection (A yellow lock will be present if activated).

Power Indication Light:

When the device is turned on, a blue indicator will light up. When the device is

recording the blue indicator will flash blue. When the device is charging, the light

will glow red.

Battery Charging Indication Light:

After connecting with USB, this indication lamp will be light for charging, and

light off for full power.

MIC:

Audio receiver for video recording.

Extra Functions

G-s

sor Function:

The G-sensor function activates in the case of a car accident by determining the

gravitational acceleration (1g = 9.8 meters/second^2). When this function

activates, the DVR will save the accident footage in a non-delectable file in order

to protect the footage. The G-sensor sensitivity can be adjusted to 1, 2, 3, 4, 5, 6,

7, or 8 in the settings menu.

SOS Function:

Press the SOS button while recording in order to lock the currently recording video

file so it is non-delectable file (A yellow lock will be present if activated). Simply

press it again to un-lock during recording.

Auto Power On/Off:

When turned on, once power is connected to the device, like when you start your

car up, the DVR will automatically turn on and start recording. When the power is

disconnected, or car is turned off, the DVR will automatically save the file and

shutdown.

Basic Instructions for video and photo operation

Powering on and off the device:

To turn on the DVR press the power key once, the red indication lamp will be

light up if it is connected to a power source. To turn it off, hold down the

power button and the device will turn off.

WARNING: The device will automatically turn off once the battery hits

critically low levels.

Video Mode

Press the Mode button to switch to video mode if not already. To start

recording in video mode press the OK button to start the recording. You know

it is recording by the rec circle indicator on the top left corner of the LCD.

Photo Mode

Press the Mode button to switch to photo mode. There is a camera icon the top

left corner of the LCD to signify you are on photo mode. To take a photo, press

either the power button or the OK button. The screen will flash and make a camera

sound when a picture is taken.

Video/Photo Playback

Press the mode button until you get to a screen with two options, ‘SD Card’ and

‘Nand Flash’. These two options represent storage locations. SD card represents

files stored on an inserted SD card. Nand Flash represents the internal memory of

the DVR. (NOTE: If you have an SD card inserted, then the files are most likely

stored on there. If you don’t have SD card inserted then most likely any recorded

footage is saved on Nand Flash) To select an option, use the Up/Down buttons to

select an option press the OK button to confirm. Once in selected storage location,

use the Up/Down keys to select a file and press OK to play it. Press the Mode

button again to view the videos/pictures in thumbnail format. Pressing the Menu

button will give you the option to either delete or copy the file. Press the Mode

button again to exit playback mode.

Menu Settings

Press the Menu button to get into the menu settings. You can navigate the

settings menu by using the Up/Down buttons. To change or edit a selected

setting, press the OK button.

Press the menu button again to get out of the menu settings.

Time Settings

To edit the date and time, press the menu button twice to get to the spanner

and screwdriver tab. Use the up/down buttons to navigate to the date setting

and then press the OK button. The year will be highlighted letting you know

that it can be changed with the up/down buttons. Press OK to move on to the

month. Use the up/down buttons to set the month and then press the OK

button to do the same thing to the day. Once finished, press the OK button

again so there is no highlighted numbers. This means the date has been

configured. The same applies to the clock setting (Note: The clock time is

formatted in 24 hour time).

USB Mode

When connecting a USB cable with the PC, the USB options menu will

automatically pop up with a few options to choose from:

MSC –Allow you access the DVRs storage of both the SD card and the

internally memory. This mode will allow you to copy video and photo

files over to your computer.

Charge - The DVR will enter a charging state.

Open –The DVR will open and operate as it would normally.

Battery Instructions

Please see below illustration for battery the capacity indications.

When the DVR is charging, a red indicator on the DVR glows red. The DVR

takes about 3 hours to fully charge. When the DVR hits full charge, the red

indicator will turn off.

The DVR can be charged multiple ways:

1. Using the power adapter for charging.

2. Using the provided micro USB cable to connect to a USB interface for

charging.

3. Using the provided car charger

Full Power

Medium

Power

Low Power

Critical

Power
