GBC Fusion 5000L Bedienungsanleitung

FUSION

™5000L

A3 LAMINATORS

start here

démarrez ici

starten sie hier

iniziare qui

GB instruction manual 4

F manuel d’utilisation 10

D bedienungsanleitung 16

I manuale d’istruzioni 22

FUSION

™5000L

A3 LAMINATORS

4register this product online at www.accobrands.com

professional finish… automatically!

Welcome to the new GBC 5000L laminator which allows

lamination to be completed quickly and simply with GBC

quality lamination output. Perfect for novice users choosing

automatic self setting to expert users with multiple pouch

thicknesses and document sizes.

For best lamination results and performance, use only GBC

branded pouches.

Please take a little time to study these instructions to ensure

you get the best results out of your machine.

Electrical shock hazard.

Do not open. No user

serviceable parts inside.



service personnel.

WARNING

The following warning is found on the

product in several languages.

This safety message means that you

could be seriously hurt or killed if you

open the product and expose yourself

to hazardous voltage.

safety instructions

Your safety as well as the safety of others is important to ACCO® Brands. In this

instruction manual and on the product are important safety messages. Read these

messages carefully.

The safety alert symbol precedes each safety message in this instruction manual.

This symbol indicates a potential personal safety hazard that could hurt you or others,

as well as cause product damage or property damage.

Electrical

220-240V AC / 50Hz-60Hz /

6.5A / 1520W

Machine Dimensions 570x193x132mm

Machine Weight 4.6kg

Maximum Pouch Width A4: 241mm

A3: 303mm

Maximum Pouch

Thickness

2x250micron (total 500)

Maximum Thru-put

Thickness

1.0mm

Warm-Up Time Approximately 1 minute

Speed Variable (max.: 1000mm/min.)

technical specifications

service

Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and contact an

authorised GBC service representative for any required repairs.

FUSION™5000L A3 LAMINATORS 5

points to note

• Use this unit only for its intended use of laminating documents

• Only use 75mic, 125mic, 175mic or 250mic pouches with this laminator

• Do not laminate an empty pouch

• The unit must be connect to a supply voltage corresponding to the electrical rating shown

on the unit

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• Ensure the machine is clear of pouches prior to starting the next pouch

• Clear the lamination rollers on a regular basis

• Maximum A3 document pouch 426x303mm on GBC Fusion 5000L A3 Laminator

• Active anti jam feature may not detect issue on smaller items

• Failure to comply will result in damage and invalidate guarantee

6register this product online at www.accobrands.com

getting ready to laminate

Easy Set Up

1 Remove the plastic exit tray from the box and place into the two holes on the back of the

laminator and extend to use. Ensure that there is sucient space behind the laminator for the

item to be removed.

2 Take the electrical plug and place in an appropriate power source, which is near the table you

intend to use.

3 The laminator will briey ash the GBC logo on the control panel and will make an audible beep.

Interactive User Display

4 To use the laminator gently tap the ‘power on’ button. A sequence of lights will cross the control

panel.

NOTE: Your new laminator may emit

a slight odour during the initial

operation. Its is normal and will

diminish after a few hours of

operation.

5 If 75mic is not the pouch thickness you want to select, using the arrows scroll until the required

pouch thickness setting is shown and press “Enter”.

Intelligent Pouch Select

6 Using the ‘Auto’ setting allows the user to use any thickness of pouch and the laminator

will automatically measure the thickness of the pouch and document and self set to the

appropriate speed.

NOTE: During warm up a circle will be

formed on the control panel and a

red indicator will ash in the centre

of the circle until ready ( ).

When ready a series of three beeps

are heard and the ( ) will show

on the display. The machine will not

take any pouch during warm up.

loading the pouch

1 Take your item to be laminated and place into the laminating pouch. Ensuring it is rmly placed

along the sealed edge of the pouch. This is to help ensure that you get optimal quality output.

Before laminating important or unique documents, always run a test pouch through

the laminator using a similar type document.

SEALED EDGE

A3, A4, A5, etc. Irregular shaped item

SEALED EDGE

NOTE: Do not cut pouches prior to

lamination.

FUSION™5000L A3 LAMINATORS 7

8register this product online at www.accobrands.com

laminating

NOTE:

On Power O there will continue to be a noise emitted from the unit for approximately

30 seconds this is for cooling purposes

2 Feed the sealed edge of the pouch, into the laminator between the guides. The laminator will

grip the pouch and guide it through to the exit tray.

NOTE: Do not force guides

against pouch

3Do not force guides tightly against pouch. Move guides to an appropriate setting to allow pouch

to be fed in without touching guides.

4When you are nished laminating tap the ‘power’ button and if required remove the tray, unplug

and store accordingly.

Upon exiting remove your

laminated item immediately

and lay on a at surface to

ensure optimal quality.

1 On the front of the laminator there are adjustable guides to help you feed your pouch accurately.

Move the guides to appropriate line which matches your pouch/ item to be laminated.

Accurate

Feed Guides

cleaning

mWARNING: UNPLUG THIS PRODUCT BEFORE CLEANING THE EXTERIOR.

WIPE EXTERIOR ONLY WITH A DAMP CLOTH AND DO NOT USE

DETERGENTS OR SOLVENTS.

Regularly feed a cleaning card or sheet of paper through the laminator to clean the

rollers. Cleaning sheet order code: EK50000.

guarantee

Operation of this machine is guaranteed for two years from date of purchase, subject to normal

use. Within the guarantee period, ACCO Brands Europe will at its own discretion either repair

or replace the defective machine free of charge. Defects due to misuse or use for inappropriate

purposes are not covered under the guarantee. Proof of date of purchase will be required.

Repairs or alterations made by persons not authorised by ACCO Brands Europe will invalidate

the guarantee. It is our aim to ensure that our products perform to the specications stated.

This guarantee does not aect the legal rights which consumers have under applicable national

legislation governing the sale of goods.

additional features



For added safety and environmental reasons the laminator will automatically go into

sleep mode after 30 minutes of inactivity. You will hear a single beep before this occurs

Intelligent Status Alert

If pouch misfeeds or jam starts to occur a series of beeps will be heard - and the laminator will

automatically reverse the document out ( ).

NOTE: Never reuse a misfed or jammed

pouch

Intelligent Pouch Reverse

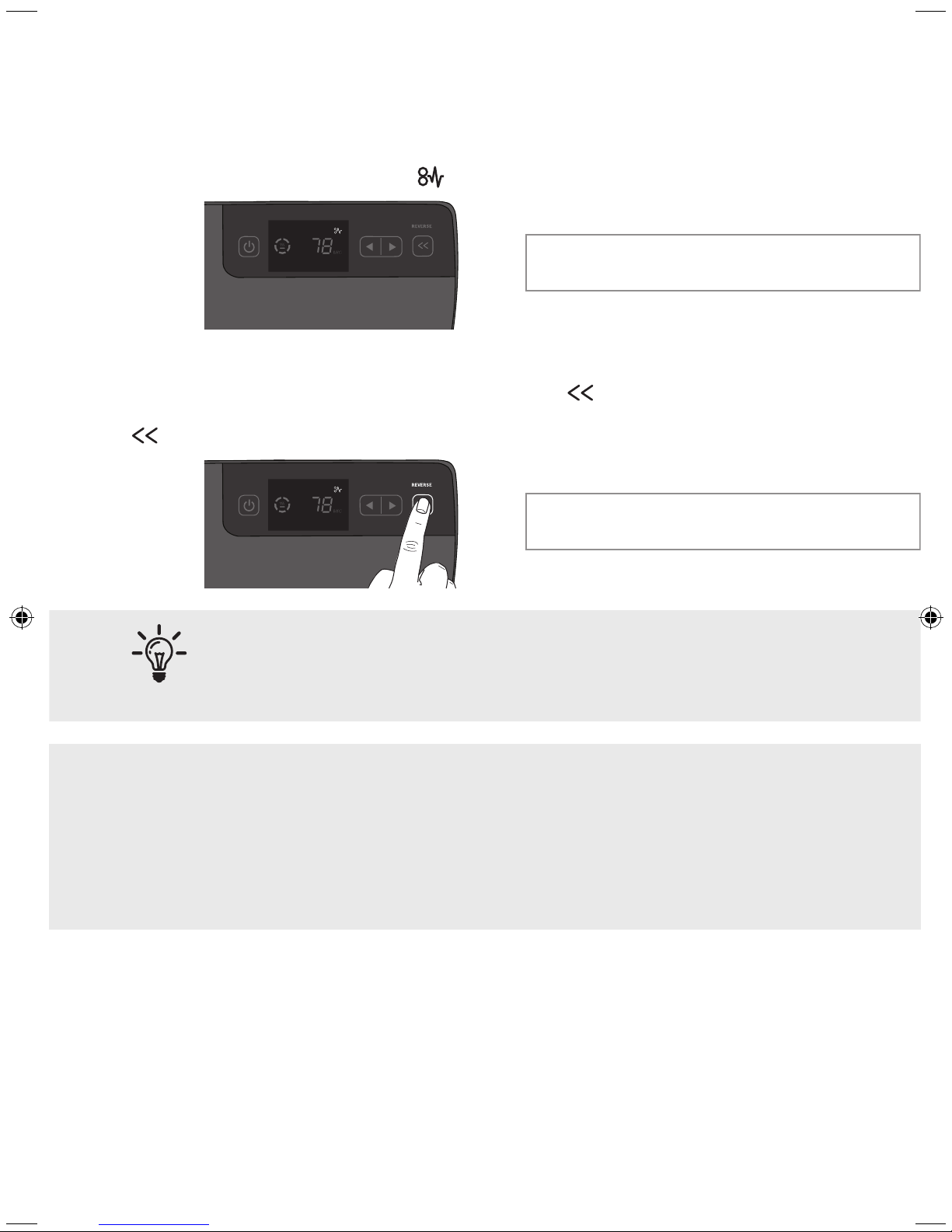

To recover a partially fed pouch press and hold the “Reverse” ( ) button and the pouch will be

quickly reversed out of the laminator. You will hear a series of single beeps until Reverse button

( ) is released.

NOTE: Do not put partially laminated

items back into the laminator.

FUSION™5000L A3 LAMINATORS 9

plastification professionnelle…

…automatiquement !

Merci d’avoir choisi la nouvelle plastieuse GBC Fusion

5000L au fonctionnement simple et rapide, qui ore la qualité

de plastication supérieure associée à la marque GBC.

Idéale tant pour les utilisateurs novices grâce aux réglages

automatiques que pour les utilisateurs expérimentés qui

peuvent choisir entre de nombreux formats et épaisseurs.

Pour optimiser la performance et les résultats de

plastication, utilisez uniquement les pochettes de

plastication GBC.

Veuillez consacrer quelques instants à la lecture de ces

instructions pour tirer le maximum de votre appareil.

10 enregistrez ce produit en ligne à www.accobrands.com

Risque de choc électrique. Ne

pas ouvrir. Aucune des pièces se

trouvant à l’intérieur ne peut être

réparée par l’utilisateur. En cas de

panne, s’adresser à du personnel



AVERTISSEMENT

L’avertissement suivant gure sur le

produit dans plusieurs langues.

Ce message d’avertissement signie que

vous risquez de vous blesser gravement

ou de vous tuer si vous ouvrez le produit et

vous exposez à une tension dangereuse.

consignes de sécurité

ACCO® Brands Europe se soucie de votre sécurité ainsi que de celle d’autrui. Des

messages de sécurité importants sont donnés dans ce manuel d’instructions et sur le

produit. Veuillez les lire attentivement.

Ce symbole d’avertissement précède chaque message de sécurité donné dans ce

manuel.

Il indique un danger potentiel susceptible de provoquer des blessures personnelles

ainsi que des dommages au produit ou à d’autres biens matériels.
