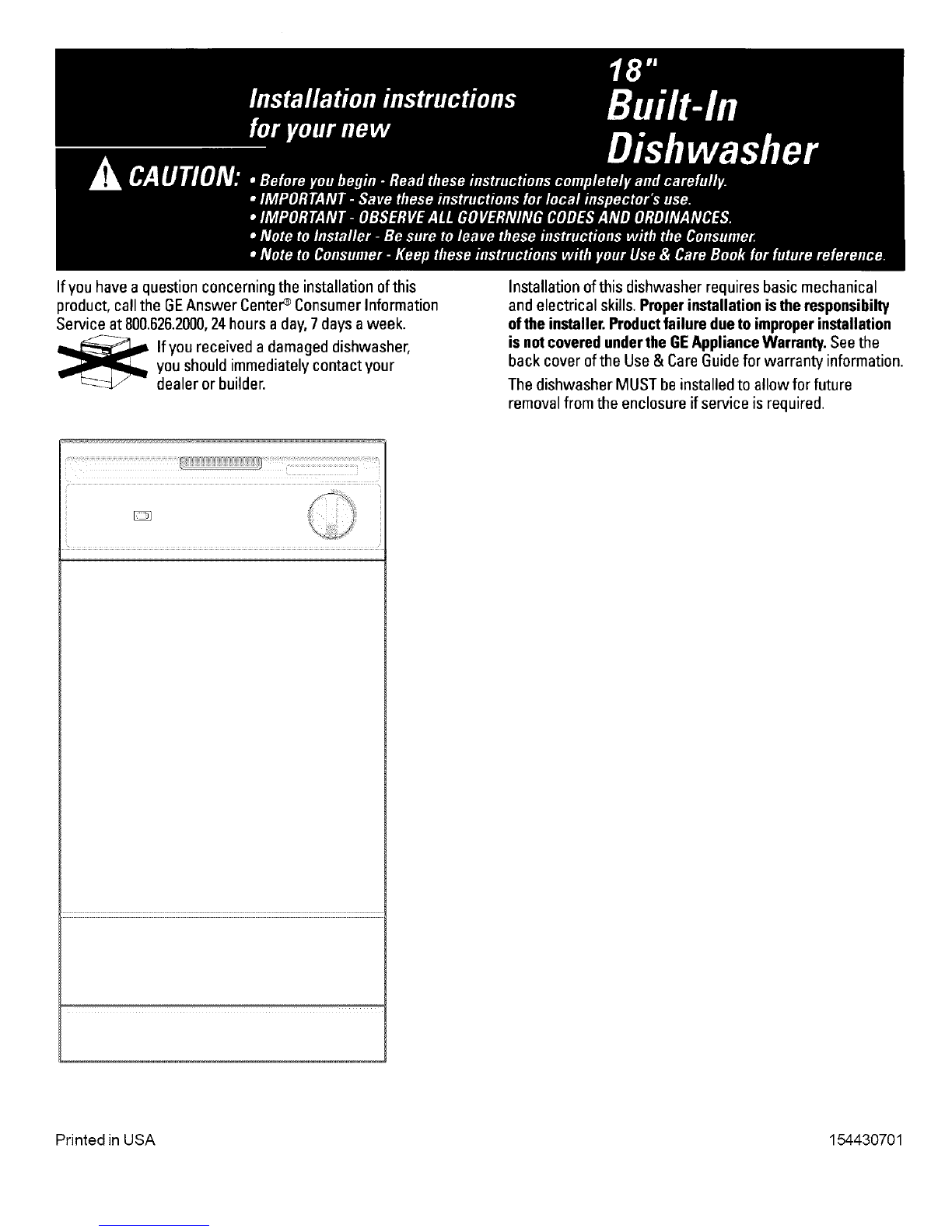

If you have a question concerning the installation ofthis

product, callthe BEAnswer Center_ Consumer Information

Service at 800.626.2000,24 hours a day, 7 days a week.

If you received a damaged dishwasher,

you should immediately contact your

dealer or builder.

Installation of this dishwasher requires basic mechanical

and electrical skills.Properinstallation istheresponsibilty

ofthe installer.Productfailure dueto improperinstallation

is notcoveredunderthe GEApplianceWarranty. See the

back coverofthe Use & CareGuidefor warranty information.

The dishwasherMUST beinstalledto allow forfuture

removal from the enclosureifservice isrequired.

Printed in USA 154430701

Before You Begin

DO NOT INSTALL DISHWASHER

UNTIL YOU HAVE READ ALL

INSTRUCTIONS.

Electrical Shock Hazard

Discon nect electrical power at the

fuse box or circuit breaker box

before installing dishwasher.

Failure to do so can result in death

or electrical shock.

Please read this book completely before you begin. These instructions will help you anticipate water,

electrical, and drain connections, and will help you select the best location for your dishwasher. Installation tips

are located on page 3.

NOTE: Observe all local codes and ordinances for electrical and plumbing connections when

installing your new dishwasher. All electrical and plumbing work should be performed by qualified

persons.

Plan the Installation

Locate the dishwasher where there is easy access to existing water, drain, and electrical lines. Be sure the

water inlet valve will be protected from freezing temperatures. If the valve freezes, flooding may occur.

The best location for your dishwasher is on either side of the kitchen sink. This position should provide

easy access to existing plumbing and wilt be convenient for loading items into the dishwasher once your

dishwasher is installed.

Tools You Will Need

Level Wire Stripper _ _ Flaring Tool

or Knife (for copper

tubing)

Measuring _

Tape Pipe Joint compound _ Tube Cutter

(for iron pipe _ (for copper tubing)

plumbing)

Electric Drill 1_

Keyhole Saw or

1"1 " 2"

/2, 1/2,and

Hole Cutters

/16, 14,and5he"

Socket or Nut Driver

Teflon® Tape

(for iron pipe

plumbing)

Slotted and Phillips _._.._

Screwdrivers

(magnetic tip _

preferred)

2 Pipe Wrenches

(for iron pipe

plumbing)

2 Adjustable

Wrenches

(for copper tubing)

Pliers

Items You Will Need (Not Included)

Drain Hose Clamp -1 1/4" Inner Diameter (ID)

90 ° Elbow -3/8" National Pipe Thread

Strain Relief Bushing

Wire Nuts (2)

Installation Tips

Read all instructions prior to installation

• Water, electric, and drain connections are not the same for all age, brand, or models of

dishwashers. Check and compare the location and length of your current utilities so you can

plan your new installation (refer to pages 4 and 7).

Each home installation is different and some parts may be needed to meet your individual

installation needs.You will needa 3/s"National Pipe Thread "Street I" or compatible right

angle fittings (not included) to make the final water connections to the dishwasher valve (refer

to page 8).

Clean dishes require an adequate supply of hot water. The water temperature must be

between 120°F (49°C) and 150°F (66°C). A minimum water supply line of 3/8" (outside

diameter) coppertubing is recommended. Reasonable water pressure is needed (20-120

PSI [pounds-per-square-inch]) flow rate minimum (2 gallons/minute) (refer to page 8).

• A separate 15-20 amp, grounded 120V AC electrical supply is required for your new

dishwasher. You may need a strain relief bushing and wire nuts or suitable connectors

(not included) for connecting house wiring to the dishwasher.

• If the dishwasher drain hose is connected to a garbage disposer for the first time,

remember to knock out the plug in the disposer inlet. This plug is inside the inlet and you may

not see the plug from the outside (refer to page 7).

• The dishwasher drain hose to the house drain must have a 32" loop above the floor or a

suitable air gap must be used to prevent water from siphoning out of the dishwasher and

causing washing problems (refer to page 6).

• Kinked water or drain lines can cause problems. Run lines with generous curves. Make sure

lines are long enough to allow for generous curves.

• Flush the water line prior to making final connections. A bunched towel over the end of the

line can help prevent splashing. Let water drain into a bucket or pan. This will prevent

premature clogging of the filter screen in the inlet valve.

The dishwasher will look, sound, and work better if it is properly leveled. Take time to

adjust the leveling legs so that all of them touch the floor and the dishwasher is level. Use #8

x %" Phillips head screws (supplied) to anchor dishwasher to countertop (refer to pages 9

and 13).

Location and Rough-In

34=1/4" Min.

j 24"

of tub 7"

Electrical, drain and

water supply line

entrances must

be confined to

shaded areas to

avoid interference

with components.

1=1/2 Hot Water EUectricaU

Line Wiring

!8" Min,

1=1/2 "

Figure 1

Most of the installation work should be done before

the dishwasher is moved into place. First, select a

location as close to the sink as possible for ready

access to water and drain lines. For proper operation

and appearance of the dishwasher, the cabinet

opening should be square and have dimensions as

shown in Figure 1. If the dishwasher is to be installed

in a corner, there must be sufficient clearance to open

the door as shown in Figure 2. A minimum clearance

of 2" is recommended.

Rough-in the water, electrical, and drain lines before

proceeding with the installation. The lines should run

straight to their connections on the dishwasher.

Note: Make sure that the lines do not cross in

front of the dishwasher motor or its legs.

Dishwasher

Door

Countertop

Figure 2

Preparing for Installation

1. Remove access panel assembly by opening door

all the way and removing two (2) screws on top of

access trim (see Figure 3).

2. Close door. Remove two (2) bottom attach screws

in access panel assembly.

3. The access panel assembly can now be removed

by pulling it forward.

,Install a 90 °elbow (not included) into the water

valve. Use Teflon ®tape or joint compound to seal

the elbow into the valve fitting. Valve fitting is s/g

National Pipe Thread.

Figure 3

Access Trim Screws

Access Panel _ Adjustable

Assembly .'_. Toeplate (not

._> Xshown)

Bottom Attach Screws\ _--

Adjusting Door Spring

Tension

The door springs are set at the factory to the proper

tension. To adjust spring tension, hook the springs in

a frame hole to the back of their original settings (see

Figure 4).

Door spring tension is correct when the door remains

horizontal in the fully opened position, yet rises to a

close with the slight lift of a finger. Front of

Dishwasher

Figure 4

Spring

"-- Frame Holes

Move spring to rear of dishwasher

to increase tension

Side Panel Kit

The dishwasher is not provided with a complete

enclosure. If the dishwasher is to be installed at the

end of a cabinet line, be certain that the sides and the

back are fully enclosed (see Figure 5). Side panel

kits are available from your dealer or distributor.

Figure 5

Locating Drain, Water, and Electrical Supplies

Before you begin, review this section in detail. Check your location to make sure you have the right drain,

water, and electrical supplies to make these connections.

Refer to the dimensional details in Figure 6 to help you decide where to run the drain, water, and electrical

lines. All connections must be made in the shaded area as shown in Figure 1 on page 4.

NOTE: Make sure that no lines cross in front of the dishwasher's motor or legs.

Left Side View Front View Right Side View

241/2" 173/4" 477/8"

18"

Center Line of

WaterValve

35"

Max.

= O

Center of

Water Valve

21"

From rear to Electrical

Junction Box.

Door in Open 221/2"

Position To Tub Flange

FloorLine

of Motor

Figure 6

Drain

Review Figures 7 and 8 to determine where you will connect the dishwasher to the drain system. Cut a 2"

diameter drain hose hole in the shaded area shown in Figure 1 on page 4. Check both sides of the area

BEFORE cutting to avoid interference. If the cabinet walt is wooden, sand the edges of the hole until it is

smooth and rounded. If the cabinet wall is metal, all sharp edges MUSTbe covered by a protective material

such as electrical tape or duct tape to avoid cutting the drain hose.

Local codes may require the drain line to be connected to house plumbing with a drain air gap. If the drain hose

is to be connected to a separate drain trap, the trap must be vented with a drain air gap to prevent siphoning.

A drain loop must be fixed (with a suitable clamp or support) at a minimum height of 32" from the floor. When

routing the drain hose, be sure there are no sharp bends or kinks that might restrict drain flow. Proceed as

follows:

1. Route the hose from the dishwasher cabinet through the 2" drain hose hole you have cut for it.

2. Support or clamp the drain hose so that the loop is at a minimum height of 32".

3. Use a drain hose clamp (not included) to connect the hose to the sink drain or disposer. Do not

connect the hose to the horizontal pipe between the sink drain and the garbage disposer. Entry

into sink drain must be above trap. Be careful not to over tighten the clamp or you may damage the

end of the hose.

• If you connect to a sink drain, using the "Y" Branch Tailpiece and Connector Kit, available at plumbing and

hardware stores, will make this connection easier. The kit includes all of the necessary fittings and

complete installation instructions.

• If you connect to a disposer, use the larger end of the corrugated hose which has been designed to fit the

disposer without any special connectors (see inset of Figure 7).

NOTE: Be sure to remove the knockout plug from inside the disposer inlet fitting before attaching the

drain hose.

If the drain hose is to be routed through the floor to a separate trap, the trap must be vented to prevent

siphoning. To provide proper venting, install the Air Gap Kit, available at plumbing and hardware stores, into

the countertop. Route the drain hose up to the inlet side of the air gap. Continue drain line from outlet side of air

gap down through floor to separate trap (see Figure 8).

Do not cut the corrugated drain hose. Excess corrugated hose should be placed flat on the floor in the

dishwasher cabinet. Make sure the hose does not come into contact with any sharp edges.

Connecting to a Sink Drain Entry Must be

Above Trap

Figure 7 "Y" Branch

Tailpiece

Sink at Left

rh,dzkz

Es_d

Connecting to a Disposer

Sink at Right

2" Drain Hose Hole

Drain AirGap

Figure 8

Alternate

Drain Through

Floor into

Separate Trap

_J_ Plug in

Sink at Left

Sink at Right

2" Drain Hose Hole

Water

Determine where you will connect the dishwasher to the hot water supply. Review Figure 6 on page 6 and note

the location of the water valve. Water temperature limits are 120°F minimum and 150°F maximum (49°C -

66°C).

The dishwasher water inlet valve has a 3/8"National Pipe Thread female fitting. Determine how much copper

tubing wilt be required. Copper tubing must have a minimum outside diameter of 318".High-pressure rated

plastic tubing with a minimum inner diameter of V4" may be used where local plumbing codes permit.

It is recommended that a shut-off valve be installed outside the dishwasher cabinet. Water pressure should be

between 20 and 120 PSI (pound per square inch).

Cut the water access hole in the shaded area as shown in Figure 1 on page 4. Complete the plumbing rough-in

before putting the dishwasher into place.

Note: The furnished drain hose must not be used as a water supply line. Do not use a rubber garden

hose for water supply line. Either one of these hoses will burst.

Electrical Power Supply

The dishwasher operates on a 120VAC 60Hz fused electrical supply. Provide a separate circuit with a fuse or

circuit breaker rated for at least 15 amps, 20 amps if connected with disposer, but not more than 20 amps.

Fire Hazard

Do not use an extension cord.

Failure to do so can result in death,

or electrical shock.

Electrical Shock Hazard

Electrically ground dishwasher.

Connect grounding wire to

green grounding nut in

terminal box.

Failure to do so can result in

death or electrical shock.

Grounding Instructions

This appliance must be connected to a grounded metal fixture or to a permanent wiring system, or an equip-

ment grounding conductor must be run with the circuit conductors and connected to the equipment grounding

terminal or lead on the appliance. Do not connect the dishwasher to the electrical supply until the appliance is

permanently grounded. Grounding must be in accordance with the National Electrical Code and local codes

and ordinances.

Note: This unit is provided with stranded copper wire with coating to prevent corrosion. Connect with

copper wire only.

Determine where you will connect to the electrical supply. Note the location of the electrical junction box in

Figure 6 on page 6. Cut the access hole in the shaded area shown in Figure 1 on page 4. Pull electrical cable

through into the cabinet area through the access hole.

After the dishwasher has been positioned inside the cabinet, the electrical connections can be made.

Position, Align, and

Level the Dishwasher

Before moving the dishwasher into the opening:

• Adjust the front levelers so the top of the machine

is %" below the underside of the countertop

(see Figure 9).

• Using a hex end wrench or 3/_e,,socket, adjust

rear levelers to level the dishwasher from front to

back.

You can now move the dishwasher into the opening

and align it with the cabinets. Use caution when

moving the appliance to prevent damage to floor

coverings and adjacent cabinets.

• Align the front of the dishwasher as flush as

possible with front of the cabinets.

• Align the dishwasher so that the amount of space

is the same on each side and the same from top

to bottom.

NOTE: Double check the levelers to make sure

they set firmly against the floor. Leveling is

necessary for proper function of the dishwasher.

You are now ready to proceed with the final drain,

water, and electrical connections.

Drain Hose Routing

Be sure the hose is routed behind the dishwasher

motor and legs (see Figure 10). Place the excess

hose flat on the floor in the dishwasher opening.

NOTE: Be sure there are no sharp bends, kinks,

or twists in the drain hose.

Electrical Shock Hazard

Disconnect electrical power at the fuse

box or circuit breaker box before installing

dishwasher.

Make sure that the water supply line, drain

hose, and wiring do not touch any

exposed terminals of the dishwasher

wiring.

Failure to follow these instructions could

result in death or serious injury.

Motor

Tip Over Hazard

Do not use dishwasher until completely

installed.

Do not push down on open door.

Doing so can result in serious injury or

cuts.

Hex End Wrench or

3/16" Socket

Figure 9

Drain Hose

Dishwasher Leg

Figure 10

Water Line Connection

Route the water pipe or tubing as shown (see Figure

11), straight forward from the back to the inlet valve.

Pipe or tubing must not be kinked. It must be free of

scales, chips, lubricants, etc. before it is connected to

the inlet valve. Flush the water line before

connecting it to the valve.

If the water valve clogs with foreign material, turn off

the water supply, then remove the four (4) screws at

the inlet end of the valve for access to the filter

screen.

Note: Do not solder too close to the water valve.

Overheating of the valve will damage plastic parts

in the valve.

Use care that no sealer, dirt, or foreign material

can enter valve.

The furnished drain hose must not be used as a

water supply line.

Be sure the dishwasher is placed where the water

valve is protected from freezing temperatures. If

the valve freezes, flooding may occur.

Install accessible

in-line shutoff valve.

Through

Wall

Floor

Through Cabinet

Figure 11

Install Power Cord C.henused

For power cord installation only,

Skip this step if dishwasher will be directly wired,

Remove the junction box cover and install strain relief

and power cord. The power cord and connections

must comply with the National Electrical Code,

Section 422 and/or local codes and ordinances. The

cord must be no longer than 6 ft. from the junction box

to the receptacle.

Locate the two dishwasher wires (white and black)

with the stripped ends. Using UL Listed wire nuts of

appropriate size, connect incoming white to white and

black to black. Connect the ground wire to green

grounding screw. Replace the junction box cover.

Check that wires are not pinched under cover.

Junction

Box

Strain Relief Connector

Green Grounding

and Screw

Black Wire to Black

Wire (Hot)

Relief Bushing

White Wire to White Wire (Neutral)

Junction Box Cover Figure 12

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GE Spülmaschine Handbücher

GE GSD570 Bedienungsanleitung

GE GSD3300D00WW Bedienungsanleitung

GE Monogram ZBD1850NII Bedienungsanleitung

GE PDWF800RBB - Profile 24 in. Dishwasher Handbuch

GE GLD4660NSS Handbuch

GE Monogram ZBD1850NII Bedienungsanleitung

GE monogram ZBD6900V00II Bedienungsanleitung

GE GD 565 Series Bedienungsanleitung

GE 165D4700P138 Bedienungsanleitung

GE GE Profile PDW7700J Bedienungsanleitung

GE 49-5301-1 Montageanleitung

GE ADT521PGF4WS Bedienungsanleitung

GE GE Profile PDW8800JBB Gebrauchsanweisung

GE GSD1120R Bedienungsanleitung

GE Potscrubber GSC462 Betriebsanleitung

GE Profile CDW9000 Series Bedienungsanleitung

GE Monogram ZDT975SIJII Bedienungsanleitung

GE GSC950W Bedienungsanleitung

GE Monogram ZBD9900R00II Bedienungsanleitung

GE GSS1800H Series Bedienungsanleitung

GE HDA2030 Montageanleitung

GE GPT225SGLWW Bedienungsanleitung

GE GLD6500LWW/CC/BB Bedienungsanleitung

GE GSD3400G20BB Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung

Siemens

Siemens SN 56N591 Bedienungsanleitung
