AJHS08DCB – GE®230/208 Volt Built-In Heat Pump

GE Appliances

15-5/8

16-7/8

Wall Case Dimensions (in inches)

Note: When installing slide-out chassis units in through-the-wall

applications, keep louvers free. Do not restrict air flow areas.

Specification Created 11/03

390102

Total capacity and E.E.R.

ratings are calculated

based on the Association

of Home Appliance

Manufacturers’ standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE®appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

230/208V

20 Amp

Perpendicular

GE Appliances

AJHS08DCB – GE®230/208 Volt Built-In Heat Pump

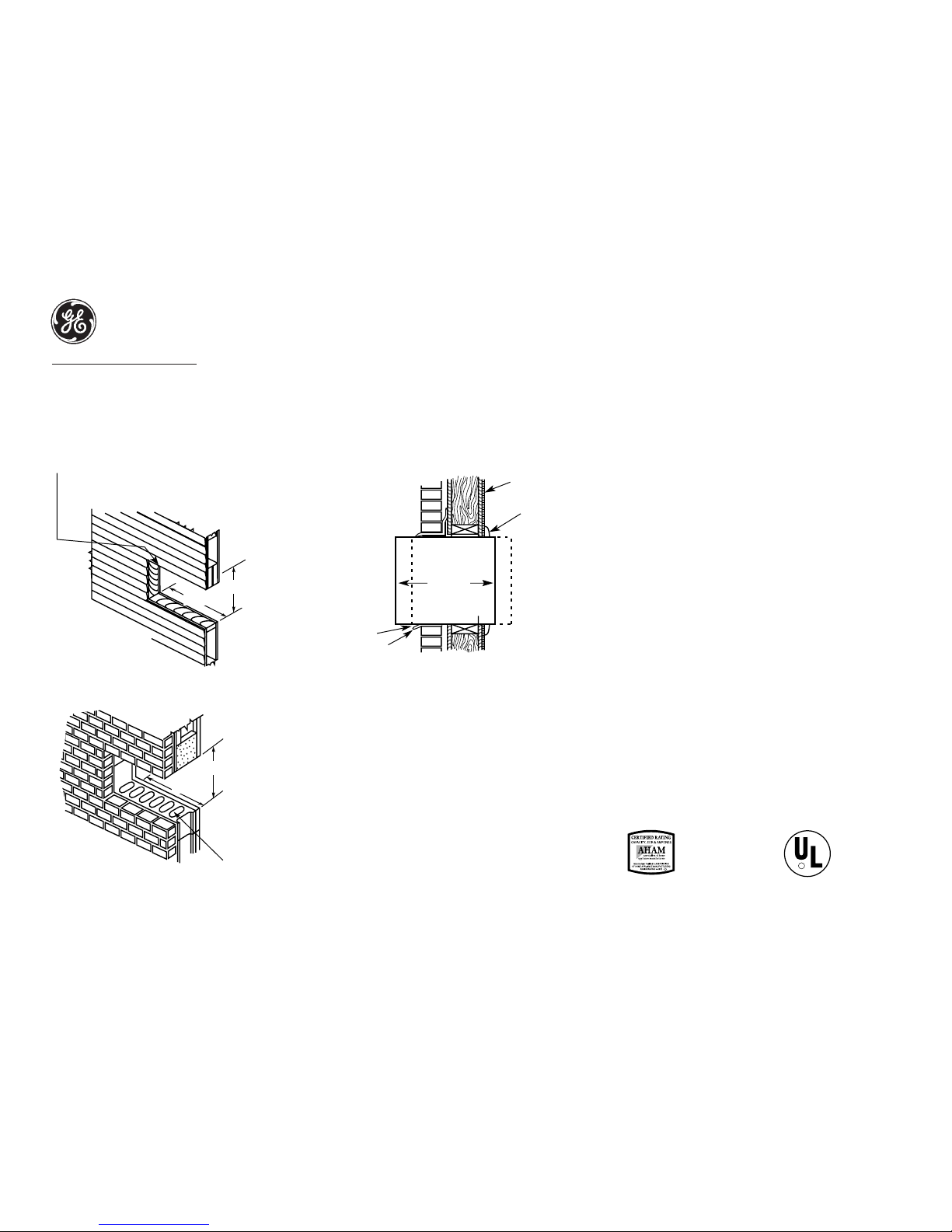

Dimensions (in inches)

Installation Information: A finished opening of 26-1/8" x 15-3/4"

clear of intrusions is required. Keep clearance of 4" from side

walls. Brick veneer or frame walls should have wood studding

surrounding case to provide firm anchoring with screws. Case

can be fastened directly to brick or block walls with screws sunk

in lead expansion shields.

Note: Units should be caulked on all four sides of case to the

building exterior to assure building integrity.

Two Wall Cases for Tenant Option Installation

When the air conditioner is offered as a tenant option, these

wall cases provide protection against outside elements.

RAB47 – includes wall case, exterior grille and steel

closure panels.

RAB48 – includes wall case, exterior grille, steel closure panel

and two layers of insulation.

Standard Wall Case RAB46

Solid-sided wall case fabricated of galvanized steel with baked

enamel finish. Welded areas are coated with a sealing compound

to help resist rust and corrosion. Polymer gasket surrounds opening

to assure tight weather seal. Aluminum grille (RAG13) is included.

Panels on interior and between case and grille provide weather

protection prior to installation of chassis.provide firm anchoring

with screws. Case can be fastened directly to brick or block

walls with screws sunk in lead expansion shields.

Brick Block and Brick

Frame Construction

Fill open cells

with mortar

or insulation

15-3/4

26-1/8

Lintel

Make frame if desired or caulk

between case and siding

15-3/4

26-1/8

Frame Construction

Lintel

OUTSIDE INSIDE

16-7/8

Caulking

Drip Rail

Trim Molding

(if desired)

Plaster Line

Flexible Mounting Position

Specification Created 11/03

390102

Total capacity and E.E.R.

ratings are calculated

based on the Association

of Home Appliance

Manufacturers’ standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE®appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

GE Appliances

AJHS08DCB – GE®230/208 Volt Built-In Heat Pump

Features and Benefits

•8000/7000 BTU

• 7700/7500 BTU pump

• 11,600/9500 BTU strip

•9.5/9.5 E.E.R

•230/208 Volts

• Mechanical controls

• Variable position thermostat

• Four-way air direction

• Up-front, washable air filter

• 2 Cool/2 heat/2 fan only speeds

•Model AJHS08DCB – Cameo White

Specification Created 11/03

390102
