Illustrated Parts List

MODEL

040315-0

7000 Watt

Home Generator System

Rev. D

IPL No. 206234 12/23/2010

Not for

Reproduction

Not for

Reproduction

Table Of Contents

Torque Specification Chart ............................................................................................ Inside Back Cover

PRODUCT COMPONENTS PAGES

Main Unit .............................................................................................................................................................. 4

Alternator .............................................................................................................................................................. 6

Control Panel ....................................................................................................................................................... 7

Enclosure ............................................................................................................................................................. 9

Not for

Reproduction

loded View - Main Unit

NOTE: Unless noted otherwise, use the

standard hardware torque

specification chart.

0002.t

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.

Not for

Reproduction

Part No. Descri

tionRef.

Parts List - Main Unit

Footnotes:

Part No. Descri

tionRef.

CRADLE1 B191860GS

DUCT2 194568GS

TRAY, Oil Drain3 193536GS

ADAPTER, Engine4 191793GS

ALTERNATOR ASSEMBLY5 -----

KIT, Hardware Adapter6 194728GS

BOLT7 B4300GS

WASHER8 96796GS

SEAL9 208103GS

TAPTITE10 2830598SM

CAPSCREW, Hex head, 5/16-24 x 9.8411 187365HGS

DEFLECTOR, Muffler12 207270GS

DEFLECTOR13 193475GS

BRACKET, Muffler14 206856GS

GASKET15 692236

TAPTITE16 83512GS

MUFFLER17 207059GS

SCREW18 698941

PIPE, Exhaust19 194159GS

KIT, Hardware Deflector20 195008GS

KIT, Vibration Mount21 194209GS

CLIP22 192940GS

SCREW23 86494GS

COLLAR, Air Inlet24 192853GS

TAPTITE26 74908GS

HOSE, Fuel27 206817GS

ARRESTOR, Spark29 194221GS

PLATE, Temp Switch30 206047GS

SWITCH31 206045GS

WASHER32 27772GS

* SCREW, Phillips Head, 4-40 x 1/433 -----

* - Items without part numbers are common fasteners and are available at your local hardware store.

** Contact Engine Manufacturer

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.

Not for

Reproduction

loded View - Main Unit

NOTE: Unless noted otherwise, use the

standard hardware torque

specification chart.

0002.t

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.

Not for

Reproduction

Part No. Descri

tionRef.

Parts List - Main Unit

Footnotes:

Part No. Descri

tionRef.

COVER, Rear Bearing34 192906GS

HOSE, Oil Drain35 1723165SM

WIRE48 15253621GS

WARMER, Oil49 01916

CLAMP50 57822GS

** ENGINE900 -----

MANUAL, Operator's (Not Illustrated)-- 207985GS

MANUAL, Install (Not Illustrated)-- 209431GS

MANUAL, Engine (Not Illustrated)-- 277766TRI

KIT, Manual ACC (Not Illustrated)-- 208193GS

FLEX HOSE (Not Illustrated)-- 202295GS

PAINT, Touch-Up, Silver (Not Illustrated)-- 198811GS

KIT, LED Remote (Not Illustrated)-- 207337GS

FILTER, Cartridge (Not Illustrated)-- 790263

FILTER, Oil (Not Illustrated)-- 492392B

KIT, LP Conversion (Not Illustrated)-- 195069GS

BIT, Screw (Not Illustrated)-- 196731BGS

WARMER, Battery (Optional Accessory)-- 01915

KIT, Maintenance (Optional Accessory)-- 6034

PAINT, Spray Silver (Optional Accessory)-- 199475GS

* - Items without part numbers are common fasteners and are available at your local hardware store.

** Contact Engine Manufacturer

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.

Not for

Reproduction

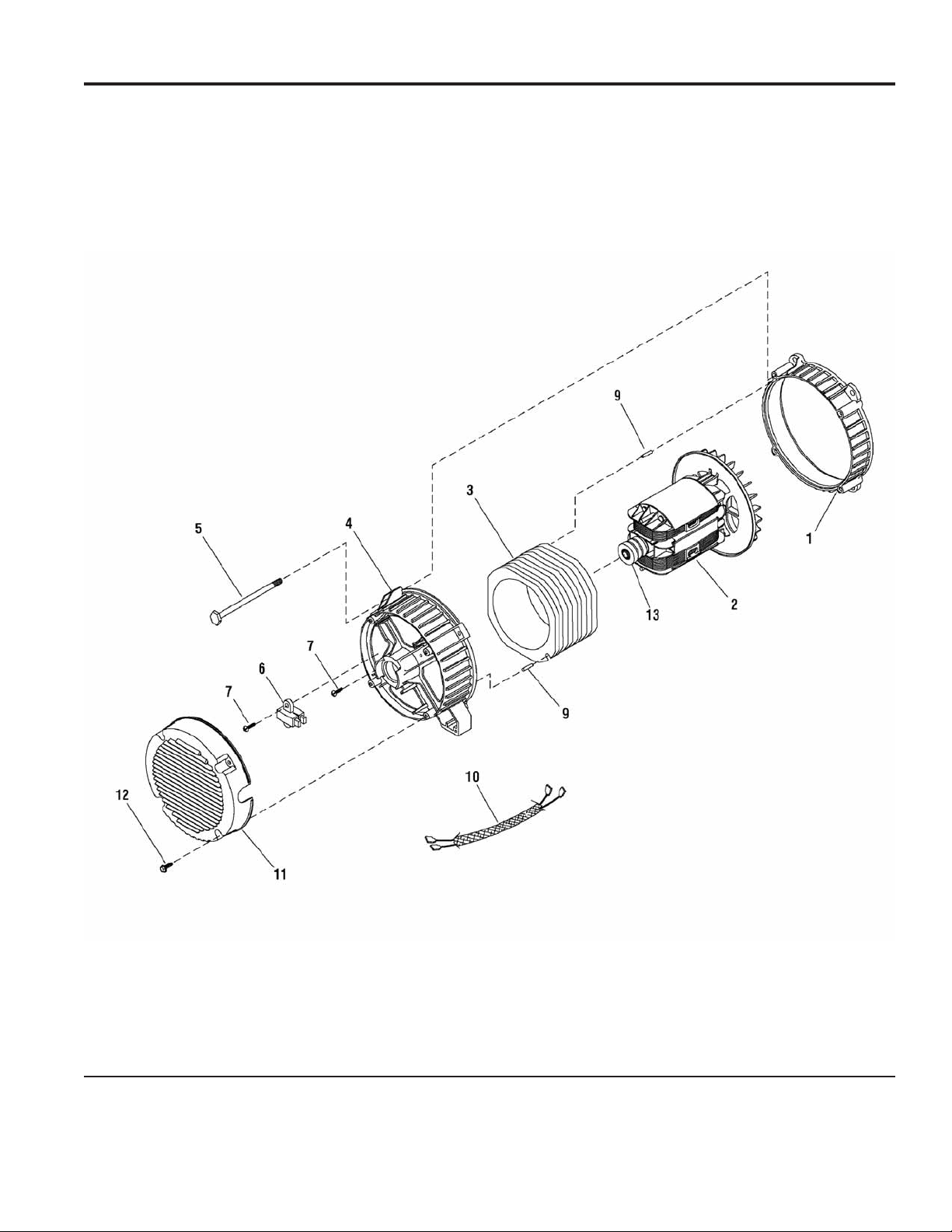

loded View - Alternator

NOTE: Unless noted otherwise, use the

standard hardware torque

specification chart.

206480

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.

Not for

Reproduction

Part No. Descri

tionRef.

Parts List - Alternator

Footnotes:

Part No. Descri

tionRef.

ADAPTER, Alternator1 209599GS

ROTOR2 195430GS

STATOR3 206542GS

RBC (with O-Ring p/n 189197GS)4 193336GS

BOLT5 86308BGS

BRUSH ASSEMBLY6 66386GS

TAPTITE7 66849GS

PIN9 81917GS

HARNESS, Wiring10 193472GS

COVER, Rear Bearing11 192906GS

TAPTITE12 74908GS

BEARING13 65791GS

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.

Not for

Reproduction

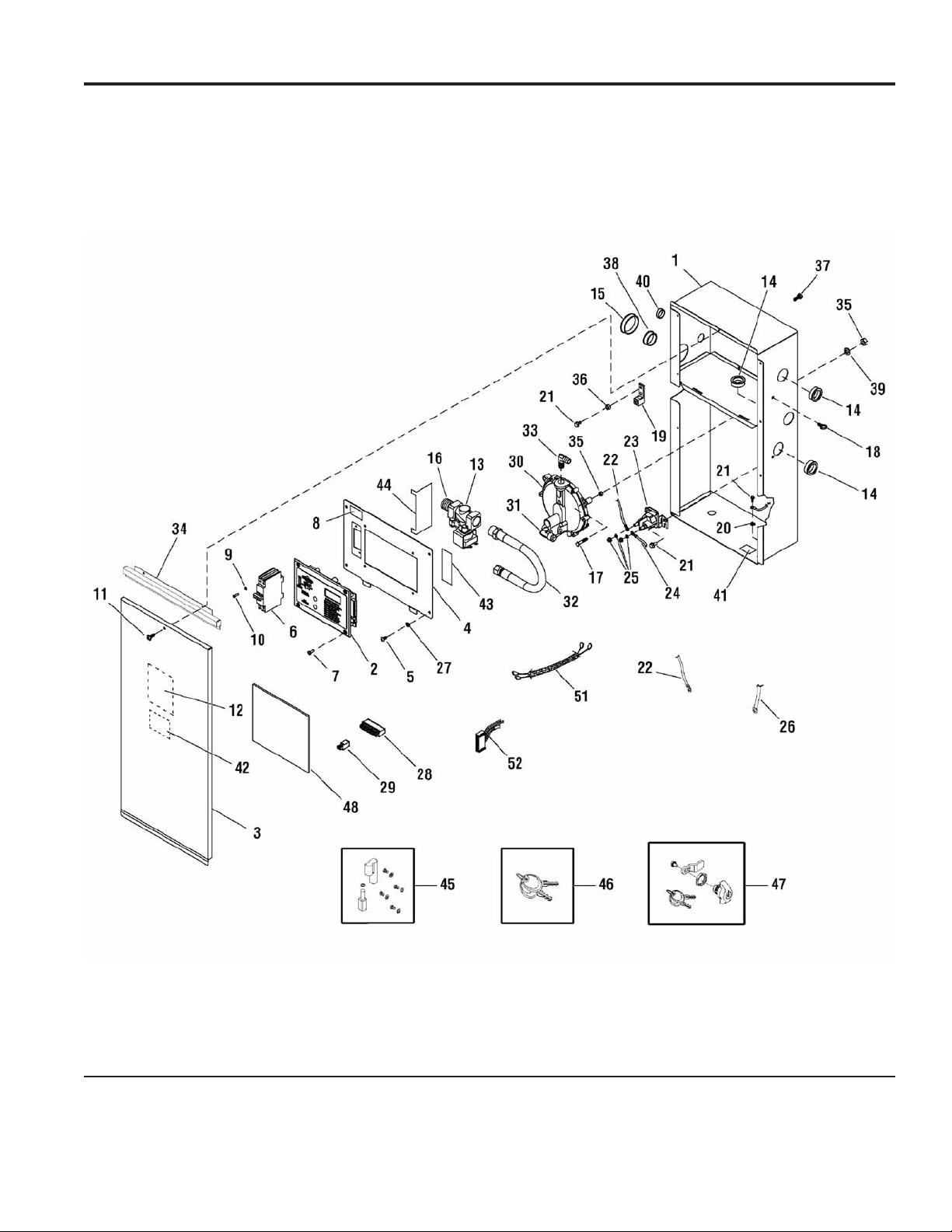

loded View - Control Panel

NOTE: Unless noted otherwise, use the

standard hardware torque

specification chart.

208189

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Products Group, LLC

2010

040315-0 - 7,000 Watt Home Generator System

206234IPL No.
