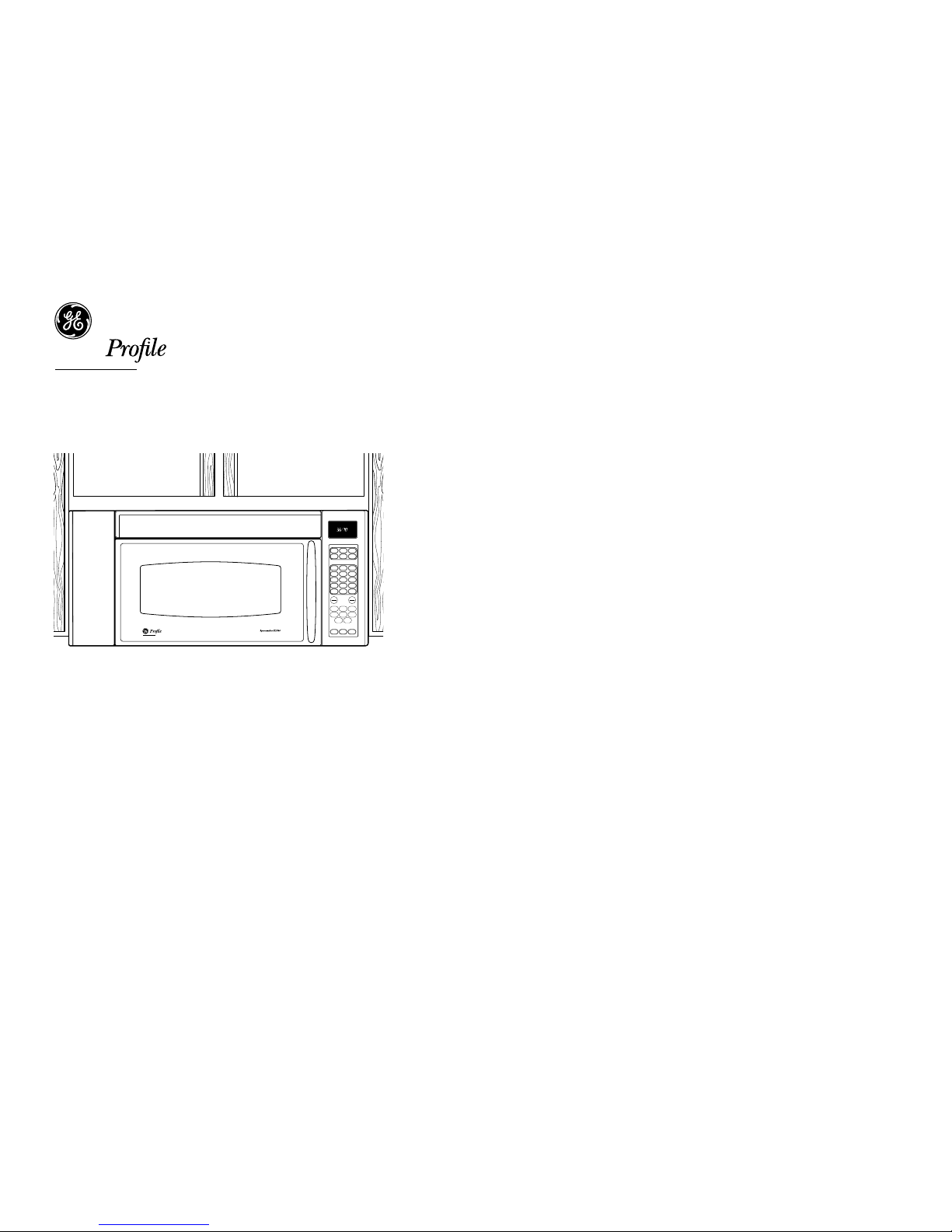

JVM3670BF/CF/SF/WF – GE Profile™36" Spacemaker®1.8 Cu. Ft. Over-the-Range Microwave Oven
Dimensions (in inches)
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.
Important Information: When installing the Spacemaker microwave
oven over a range, allow minimum of 2" from bottom of Spacemaker
microwave oven to top of range backguard to allow for removal of
light covers.
Installation Information: This information is not intended to be used
for installing unit described. Before installing, consult installation
instructions packed with product/kit for current dimensional data.
21-3/4"
Door open 16-13/32
66" MIN.
Mounting
height
from floor
36" MIN.
width required
MAX.
Exhaust outlet
connects to
3-1/4" X 10" duct
12"
15-3/4
15
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Specification Created 7/02
TM
JVM3670BF/CF/SF/WF –GE Profile™36" Spacemaker®1.8 Cu. Ft. Over-the-Range Microwave Oven
Optional Accessories (Available at additional cost)
Filter Kits
JX81B–Recirculating
Charcoal Filter Kit
To be used when
the Spacemaker
microwave oven
cannot be vented
to the outside.
R
Listed by
Underwriters
Laboratories
HOOD EXHAUST DUCT: Outside ventilation requires a HOOD EXHAUST DUCT. Read the
following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard
3-1/4”x 10”rectangular duct.If a round duct is required, a rectangular-to-round transition adaptor
must be used. Do not use less than a 6”diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust
with space between studs,or wall should be prepared at the time it is constructed by leaving enough
space between the wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4”x 10”
rectangular or 6”diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow
and are equivalent to a section of straight duct which is longer than their actual physical size. When
calculating the total duct length, add the equivalent length of all transitions and adaptors plus the
lengths of all straight duct sections. The chart below shows the approximate feet of equivalent
length of some typical ducts.
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Duct Equivalent Feet
A.Rectangular-To-round 5 ft.
Transition Adaptor
B. Wall Cap 40 ft.
C.90°Elbow 10 ft.
D.45°Elbow 5 ft.
E.90°Elbow 25 ft.
F.45°Elbow 5 ft.
G. Roof Cap 24 ft.
Specification Created 7/02
TM
Specification Created 7/02
JVM3670BF/CF/SF/WF –GE Profile™36" Spacemaker®1.8 Cu. Ft. Over-the-Range Microwave Oven
POPCORN
BEVERAGE
TIME
COOK
POWER
LEVEL
VENTFAN VENTFAN
BOOST SURFACE
LIGHT
ADD
30SEC
1
AUTO/TIME
DEFROST
1lb. QUICK
DEFROST
POTATO CHICKEN/
FISH
VEGETABLE REHEAT
ONETOUCH SENSOR
EXPRESSCOOK 2
EXPRESSCOOK 3
EXPRESSCOOK
4
EXPRESSCOOK 5
EXPRESSCOOK 6
EXPRESSCOOK
7 8
0
9
CLEAR
OFF START
PAUSE
CUSTOM
OPTIONS
TIMER REMINDER
TURNTABLE
DELAY
START
CLOCK
AM/PM
HELP
Features and Benefits
•1.8 cu. ft. Cavity/Powerful 1100 Watts*
•New GE Profile™Appearance with Sculptured Handle
•Electronic Touch Controls
•Custom Pads and One Touch Sensor Cooking Controls for Chicken, Fish,
Beverage, Popcorn, Potatoes, Reheat and Vegetables
•Recessed Turntable (On/Off) and Removable Cooking Rack
•SmartControl System with Interactive Electric Scrolling Digital Display
•Three Speed, High-Capacity Exhaust Fan with Boost (300 CFM)/Halogen Cooktop
Lighting and Halogen Cavity Light
•Auto Defrost/Time Defrost/1 lb. Quick Defrost
•Display On/Off (Bilingual)
•Express Cook (1-6 mins.) with Instant-On Controls
•CircuWave™1100 with 10 Power Levels
•Clock and AM/PM Pad
•Complete Cooking Reminder with Beeper Volume Control
•Easy Mount Installation
•Bright View Window
•Model JVM3670WF –White on white
•Model JVM3670BF –Black on black
•Model JVM3670CF –Bisque on bisque
•Model JVM3670SF –Stainless steel
*IEC-705 Test Procedure
