GE Profile Advantium PSA2200R Benutzerhandbuch
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Dimension Information (in inches)
Installation Information: This information is not
intended to be used for installing unit described.
Before installing, consult installation instructions
packed with product/kit for current dimensional data.
IMPORTANT: PLEASE READ CAREFULLY. FOR PERSONAL
SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED
TO AVOID SEVERE OR FATAL SHOCK.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT, DEFORM,
OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT
USE WITH AN EXTENSION CORD.
NEMA 14-30R Wall Receptacle
Insure proper ground
exists before use.
Specification Created 4/10 240449
Listed by
Underwriters
Laboratories
PSA2200R/2201R
Advantium™Above-the-Cooktop Oven
Above-the-cooktop Advantium oven
Dimensions (in inches)
66" MIN.
Mounting
height
from floor
30" MIN.
width required
Exhaust outlet
connects to
3-1/4" X 10" duct
16-3/8 max
(Rear)
16 max
25-1/2
16 max
30 max
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
13"
MAX.
12"
MIN.
(without
obstruction)
100˚
Door open
Cabinet Front
SIDE VIEW A-A
Cabinet Bottom Shelf
Filler Block
Self-Aligning Screw
Oven Top
Equivalent
to Depth of
Cabinet Recess
This distance can
NOT exceed 2” to
ensure proper
installation with
the provided
screws.
240V and 120V outlets
need to be spaced on
the side if the desire is
to setup with top
exhaust.
A
A
Note: Outside venting is optional. Vent (duct) can be horizontal or vertical.
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Dimension Information (in inches)
Hood Exhaust Duct
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a standard 3-1/4” x 10”
rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must be used.
Do not use less than a 6” diameter duct.
REAR EXHAUST:
If a rear or horizontal exhaust is to be used, care should be taken to align exhaust
with the space between studs, or wall should be prepared at the time it is constructed
by leaving enough space between the wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length of
3-1/4” x 10” rectangular or 6” diameter round duct should
not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their
actual physical size. When calculating the total duct length,
add the equivalent length of all transitions and adaptors plus
the length of all straight duct sections. The chart below
shows the approximate feet of equivalent length of some
typical ducts.
Specification Created 4/10
Listed by
Underwriters
Laboratories

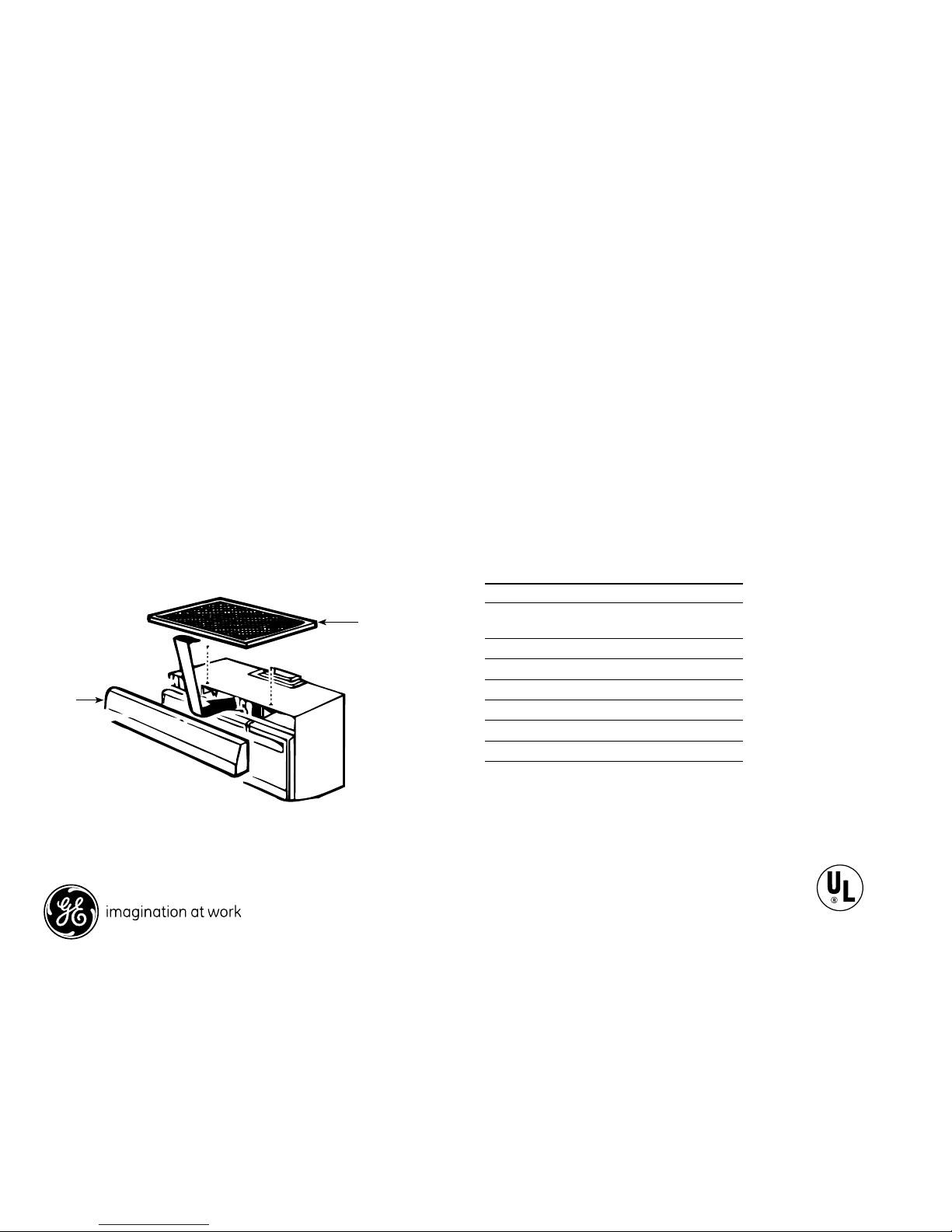

Grille
Filter Kit Accessory
Filter Kit
JX81D–Recirculating
Charcoal Filter Kit
To be used when
the Advantium oven
cannot be vented
to the outside.
Duct Equivalent
A. Rectangular-To-Round 5 Ft.
Transition Adaptor
B. Wall Cap 40 Ft.
C. 90° Round Elbow 10 Ft.
D. 45° Round Elbow 5 Ft.
E. 90° Rectangular Elbow 25 Ft.
F. 45° Rectangular Elbow 5 Ft.
G. Roof Cap 24 Ft.
240449
PSA2200R/2201R
Advantium™Above-the-Cooktop Oven
Features and Benefits
• Speedcooktechnology-Cooksupto8timesfasterthana
conventional oven
• 4OvensIn1ToMeetYourCookingNeeds-Speedcook,True
European Convection, Warming/Proofing, Sensor Microwave
• Optimizescooktimeforconsistentresults
• Savesvaluabletimebyeliminatingpreheating
• Over175preprogrammedrecipes
• Includesspeedcookinggrilltrayforpreparingmeats
• 2full-widthovenracksformulti-levelcooking
• Model PSA2200RWW - White on white
• Model PSA2200RBB - Black on black
• Model PSA2201RSS – Stainless steel
PSA2200RWW
PSA2200RBB
CLEAR
OFF
START
PAUSE
MICRO
WAVE
CONV
BAKE
SPEED
COOK
MICRO
30 SECS
COOKING
OPTIONS
SETTINGS
VENT
SURFACE
LIGHT
TIMER
ON/OFF
BACK
HELP
6:30 PM
T
U
R
N
T
O
S
E
L
E
C
T
P
R
E
S
S
T
O
E
N
T
E
R
Specification Created 4/10 240449
PSA2200R/2201R
Advantium™Above-the-Cooktop Oven
