Dimensional Information (in inches)
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
IMPORTANT: PLEASE READ CAREFULLY. FOR PERSONAL
SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED
TO AVOID SEVERE OR FATAL SHOCK.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT, DEFORM,
OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT
USE WITH AN EXTENSION CORD.
NEMA 14-30R Wall Receptacle
Insure proper ground
exists before use.
Note: Outside venting is optional. Vent (duct) can be horizontal or vertical.
Dimensions (in inches)
66" MIN.
Mounting
height from
floor
30"
MIN.
width
required
Exhaust outlet
connects to
3-1/4" X 10" duct
16-13/32
(Rear)
15-1/4
16
29-7/8
12"
MIN.
30 amp
Disconnect Switch
NEMA 14-30R
Wall Receptacle
SCA2001KSS – Above-the-Cooktop Advantium™ Oven
Specification Created 9/05
240435
TM
Hood Exhaust Duct
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following
carefully.
EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a standard 3-1/4" x 10"
rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must
be used. Do not use less than a 6" diameter duct.
REAR EXHAUST:
If a rear or horizontal exhaust is to be used, care should be taken to align
exhaust with the space between studs, or wall should be prepared at the
time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.

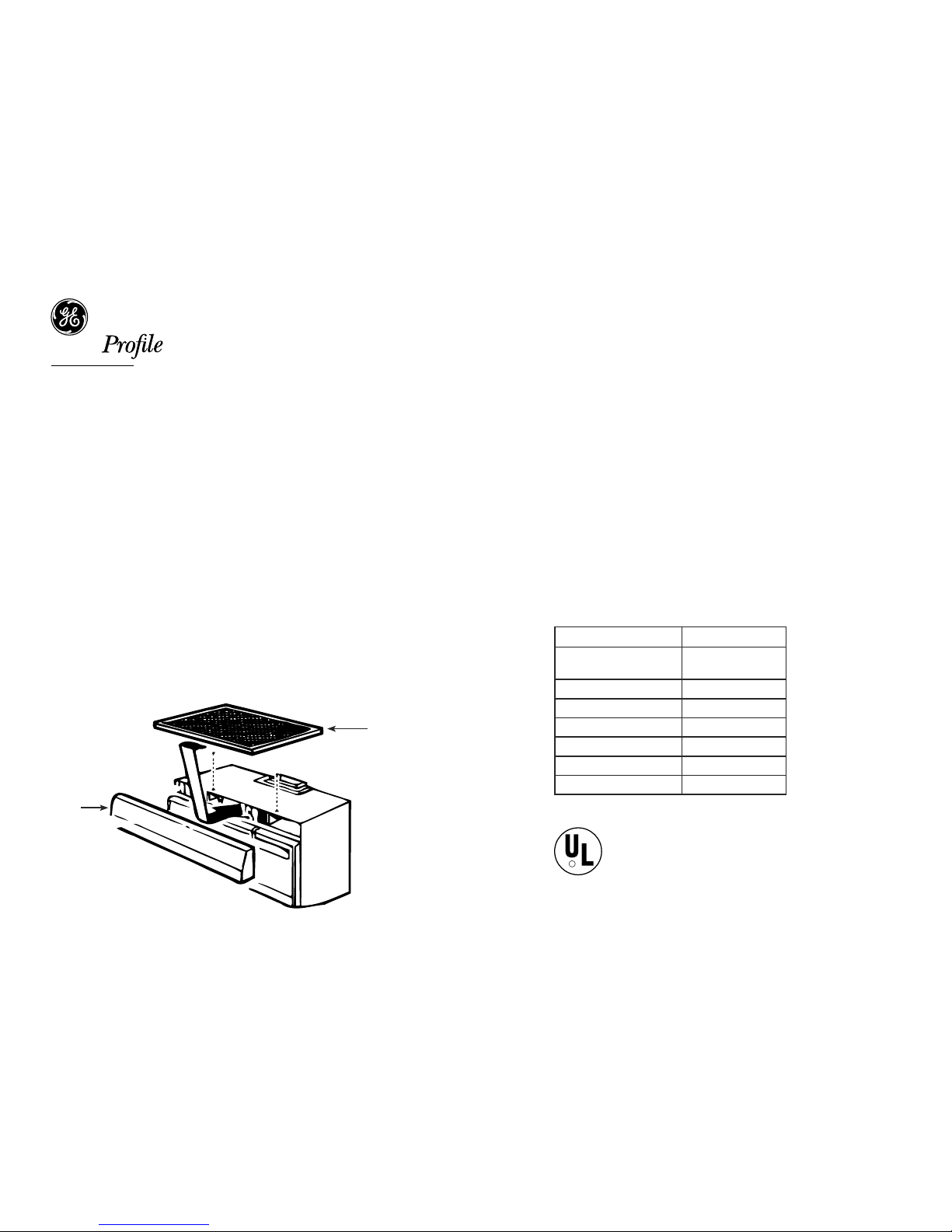

Grille
Filter Kit Accessory
Filter Kit
JX81A–Recirculating
Charcoal Filter Kit
To be used when
the Advantium oven
cannot be vented
to the outside.
MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length of 3-1/4" x 10"
rectangular or 6" diameter round duct should not exceed
140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc., present additional
resistance to airflow and are equivalent to a section of straight duct
which is longer than their actual physical size. When calculating the
total duct length, add the equivalent length of all transitions and
adaptors plus the length of all straight duct sections. The chart below
shows the approximate feet of equivalent length of some typical ducts.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Duct Equivalent Feet
A. Rectangular-To-round
Transition Adaptor
5 ft.
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
SCA2001KSS – Above-the-Cooktop Advantium™ Oven
Specification Created 9/05
240435
TM
Features and Benefits
• Revolutionary Speedcook Technology Cooks Oven-Quaility Food
Up To Eight Times Faster Than a Convection Oven
• Over 100 Pre-Programmed Menu Items, Repeat Last, Help and Demo Modes
• Bakes, Browns, Broils, Grills and Roasts—All with No Preheating
• Converts to a Fully Functional 950 Watt Sensor Microwave Oven
• Family-Size Oven with Stainless Steel Interior
• Microwave Oven Features Humidity Sensor and Auto Defrost/Time Defrost
• Cooking Complete Reminder
• Interior Oven Light
• Child-Lock-Out
• Two-Speed, High Capacity Exhaust Fan
• Full View Cooktop Lighting with Night Light
• Sculptured Handle
• Frameless Glass Oven Door with Window
• Cookbook and Pan Set Included
• Model SCA2001KSS – Stainless steel
SCA2001FSS
Speedcook
Manual Cook
Repeat Last
Recipe
Oven Light
T
u
r
n
T
o
S
e
l
e
c
t
P
u
s
h
T
o
E
n
t
e
r
Start
Pause
Clear
Off
Vent Fan Reminder Options Help Surface Light
Power Level Delay Start Timer Microwave Micro Express
Select CHICKEN type:
WHOLE
CHICKEN
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
LOCKED SELECT REM NITE MUTE TIMER
SCA2001KSS – Above-the-Cooktop Advantium™ Oven
Specification Created 9/05
240435
