GE GCG1500 BB Bedienungsanleitung

Installation

Instructions

15” Built-In Compactors

GCG1580 SS

GCG1500 BB

GCG1500 WW

GCG1700 II*

ZCGS150 SS

ZCGP150 II*

*For ZCGP150 II and GCG1700 II,

also refer to the instructions

provided on the template packed

with those models.

Safety Information

CAUTION:

For personal safety, remove house fuse or

oven circuit breaker before beginning

installation to avoid severe or fatal

shock injury.

BEFORE YOU BEGIN

Read these instructions completely and

carefully.

• IMPORTANT – Save these instructions for

local inspector’s use.

• IMPORTANT – Observe all governing codes

and ordinances.

•Note to Installer – Be sure to leave these

instructions with the Consumer.

•Note to Consumer – Keep these instructions with

your Owner’s Manual for future reference.

•Skill Level – Installation of this appliance requires

basic mechanical and electrical skills.

•Completion time – 1 hour.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty. See Owner’s Manual

for warranty information.

IMPORTANT

• Use this compactor only for its intended purpose.

• This compactor is designed for BUILT-IN

installations ONLY.

CONTENTS

Design Information

Models Available .............................................................. 3

Product Dimensions and Clearances............................ 3

Tools Required .................................................................. 3

Parts Supplied .................................................................. 3

Advance Planning

Clearances ........................................................................ 4

Models with a Custom Drawer Panel .......................... 4

Installation Preparation

Electrical Requirements ................................................ 5

Grounding Requirements ................................................ 5

Unpacking the Compactor .............................................. 6

Leveling the Compactor .................................................. 7

Adjusting the Retaining Bracket .................................... 7

Adjusting the Base Toekick ............................................ 7

Installation Instructions

Position the Compactor under the Countertop............ 8

Attach the Compactor to the Countertop .................... 8

Reinstall the Compactor Drawer.................................... 9

Installation of the Trash Bag Caddy .............................. 9

Finalize Installation .......................................................... 9

WARNING!

Do not allow items to fall or collect behind

the compactor. Failure to follow this

instruction could result in a fire.

MODELS AVAILABLE

GCG1580 SS

GCG1500 BB

GCG1500 WW

GCG1700 II*

ZCGS150 SS

ZCGP150 II*

*For ZCGP150 II and GCG1700 II, also refer

to the instructions provided on the template

packed with those models.

Design Information

PRODUCT DIMENSIONS AND CLEARANCES

TOOLS REQUIRED

• Level

• Phillips Screwdriver

• Pliers

• Gloves

• Measuring Tape

PARTS SUPPLIED

• 6 mounting screws (located in the literature package)

• 2 countertop retaining brackets

• 2 side mounting clips

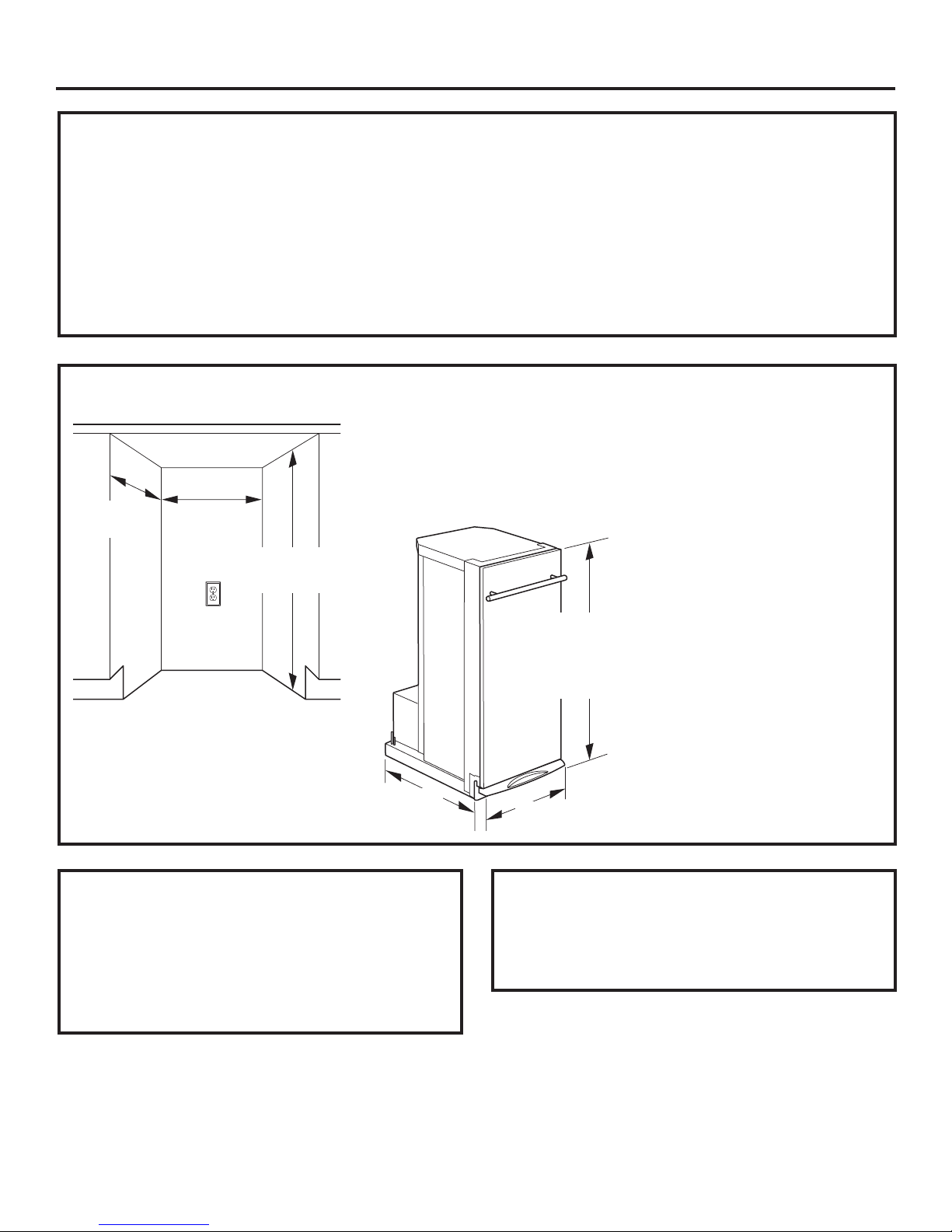

34″(86.4 cm)

35″ (88.9 cm)

15-1/8″

(38.4 cm)

min

24″ (61 cm)

min

Locate the outlet 18” (45.7 cm) min

from the floor, 3” (7.6 cm) min from

either side

33-3/4″

(85.8 cm)

min.

35″(88.9 cm)

max.

14-7/8″ (37.8 cm)

23″ (58.4 cm)

• Allow 23″(58.4 cm)

clearance at the front for

a full drawer opening.

• Allow 6″(15.2 cm)

clearance on the right

side to the nearest

vertical wall or cabinet

for bag removal.

•Note: This compactor is

designed for built-in

applications only.

ADVANCE PLANNING

MODELS WITH A CUSTOM

DRAWER PANEL

Models ZCGP150 II and GCG1700 II

The custom drawer panel and custom handle of your

choice should be secured to the compactor before

installation begins. A template with instructions and

installation hardware is provided with those models.

For planning purposes, you may order the template in

advance. Order Pub. No. 31-30597. Complete panel

installation instructions are included on the template.

CUSTOM PANEL SIZE REQUIREMENTS:

Maximum panel weight is 12 LBS (5.4 kg).

CLEARANCES

• You should be able to fully open the compactor

drawer. Six inches (15.2 cm) is required on the right

side of the compactor for bag removal.

• Allow 23 inches (58.4 cm) in front of the compactor

to remove the drawer.

• This compactor is designed as a built-in

appliance only. It may be located in any

convenient space under a countertop.

DO NOT OPERATE FREE-STANDING.

• The compactor may be installed beneath

countertops of stone or other materials that will

not accept screws. No trim kit is required.

The compactor must be securely installed in a cabinet

that is firmly attached to the house structure. Weight

on the compactor drawer could cause the compactor

to tip and result in injury. Never allow anyone to

climb, sit or hang on the compactor drawer.

29-5/16″

(74.5 cm)

14-7/8″

(37.8 cm)

3/4″

(1.9 cm)

Thick

Custom

Panel

Installation Preparation

ELECTRICAL REQUIREMENTS

WARNING!

FOR PERSONAL SAFETY: Remove house

fuse or open circuit breaker before

beginning installation. Do not use an

extension cord or adapter plug with

this appliance.

• The power supply cord and plug should be brought

to a separate 15 or 20 ampere branch circuit single

grounded receptacle. The outlet box should be

located within reach of the 36" (91.4 cm) power cord.

• This appliance must be supplied with 120V, 60Hz

and connected to an individual properly grounded

branch circuit, protected by a 15 or 20 ampere

circuit breaker or time delay fuse.

• If the electrical supply does not meet the above

requirements, call a licensed electrician before

proceeding.

IMPORTANT: Observe all governing codes and

ordinances.

GROUNDING REQUIREMENTS

WARNING!

The improper connection of the equipment

grounding conductor can result in a risk of

electric shock. Check with a qualified

electrician or service representative if you

are in doubt that the appliance is properly

grounded.

• Electrical Ground is REQUIRED on this compactor.

• DO NOT ground to a gas pipe.

• DO NOT change the power supply cord plug. If it

does not fit the outlet, have a proper outlet installed

by a qualified electrician.

• DO NOT have a fuse in the neutral or grounding

circuit. A fuse in the neutral or grounding circuit

could result in an electrical shock.

• DO NOT use an extension cord with this compactor.

Failure to follow these instructions could result in

death or serious injury.

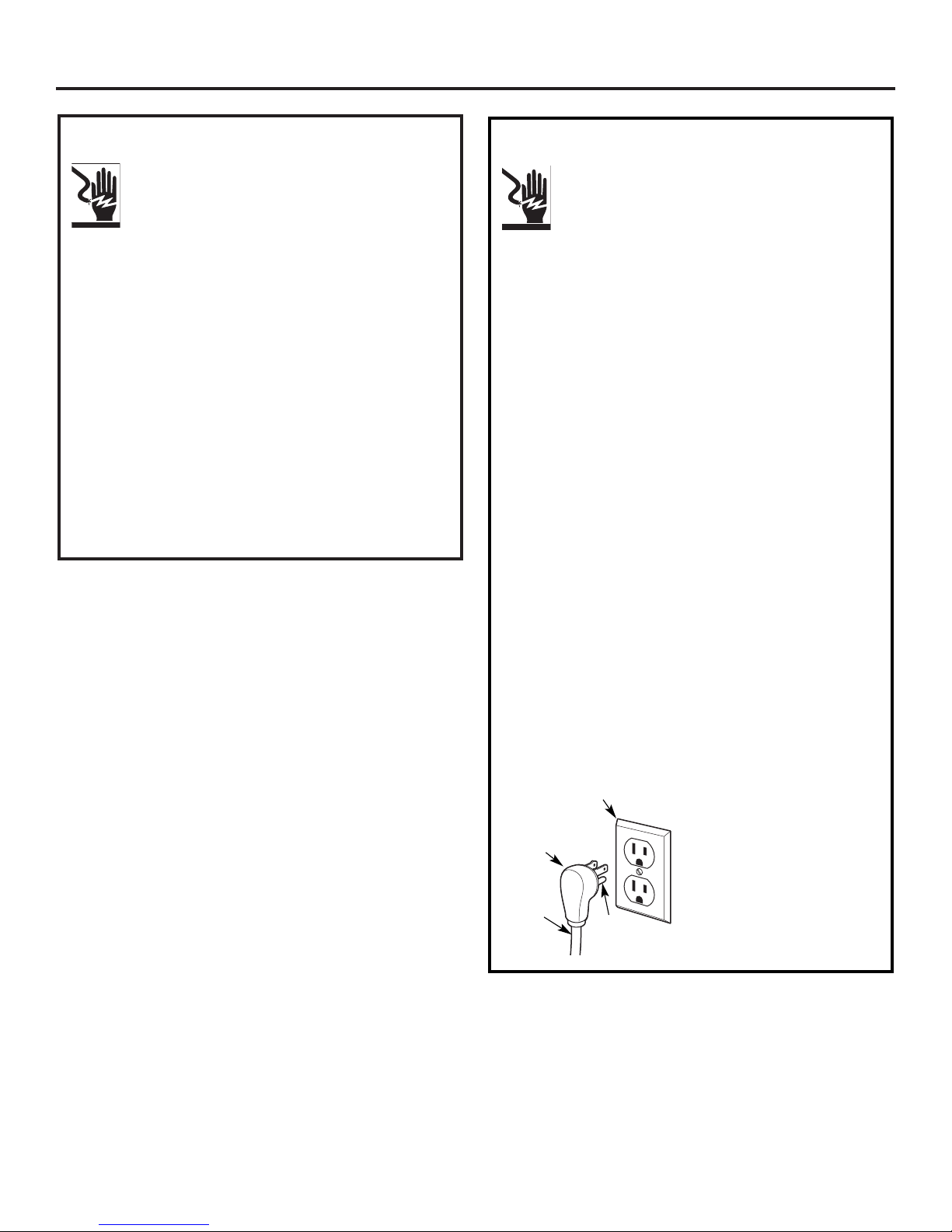

Recommended Grounding Method:

For your personal safety, this appliance must be grounded.

This appliance is equipped with a power supply cord having

a 3-prong grounding plug. To minimize possible shock

hazard, the cord must be plugged into a mating 3-prong

grounding type wall receptacle, grounded in accordance

with the National Electrical Code ANSI/NFPA70—latest

edition* and all local codes and ordinances. If a mating wall

receptacle is not available, it is the personal responsibility

and obligation of the customer to have a properly grounded

3-prong wall receptacle installed by a qualified electrician.

3-prong grounding-type

wall receptacle

3-prong

grounding

plug

Grounding

plug

Power

supply

cord

Copies of the standards

listed may be obtained from:

* National Fire

Protection Association

Batterymarch Park,

Quincy, MA 02260

Installation Preparation

UNPACKING THE COMPACTOR

• Move the compactor close to the installation

location.

• Use a section of the shipping carton to protect the

finished floor.

• Do not use the handle to lift the compactor.

• Remove all protective packaging materials such as

tape or shipping pads. Remove waxy residue caused

by shipping material with a mild solution of liquid

household cleaner and water.

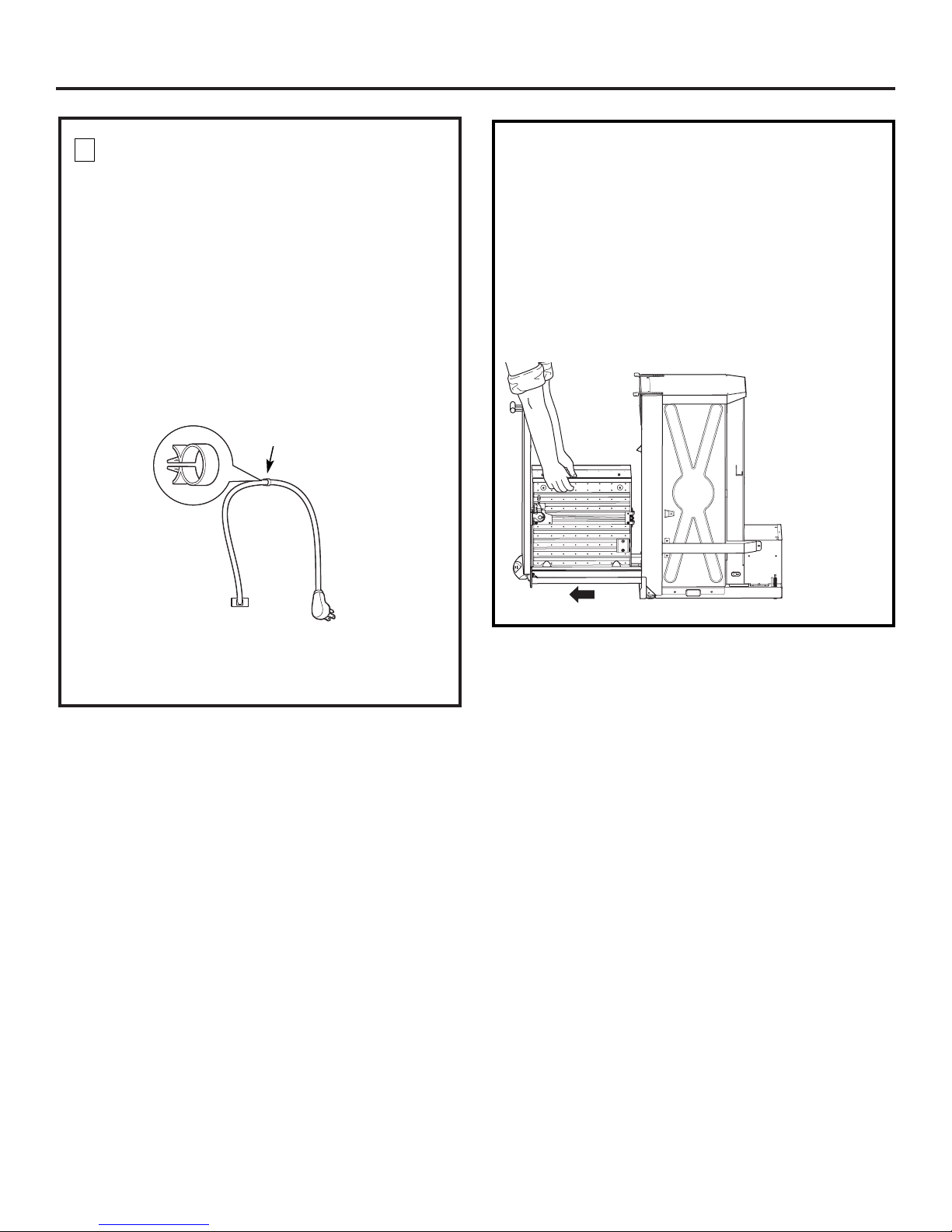

• Check that the power supply cord is attached to the

cord clip on the rear of the compactor.

IMPORTANT: Use the shipping carton as a pad.

Do not slide the compactor across a finished floor.

Damage will occur.

Cord clip

UNPACKING THE COMPACTOR

(CONT.)

• Open the compactor drawer and remove any

shipping materials or other items shipped in the

drawer.

• Do not remove the compactor bag (if installed).

• Grasp the sides of the drawer and lift it out of the

compactor. Place the drawer on a protected surface.

The drawer can scratch a finished floor.

Installation Preparation

LEVELING THE COMPACTOR

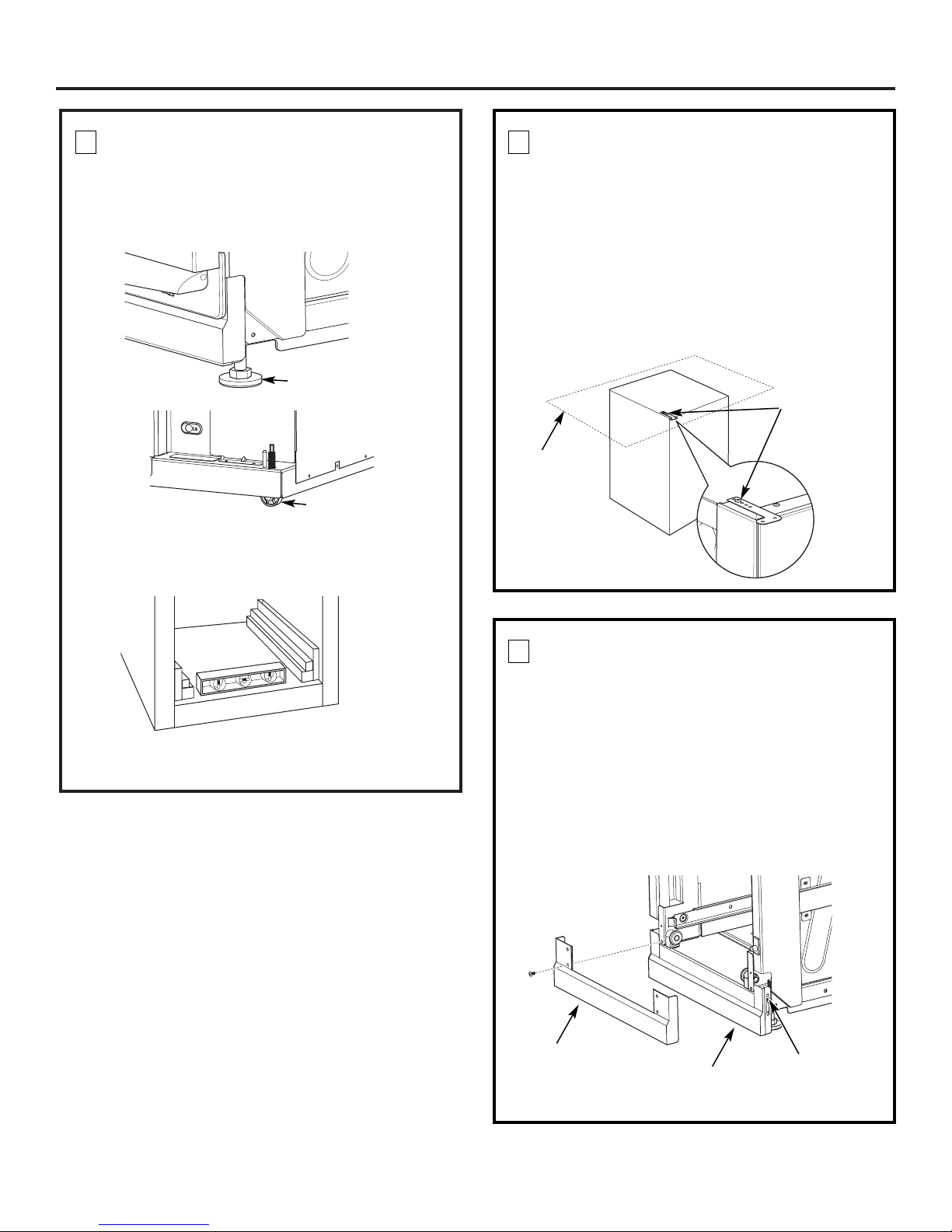

• The top of the compactor should be at least 1/8″

(3 mm) from the top of the cabinet opening. You can

adjust the height of the compactor by turning the

screws on the front leveling legs and rear wheels.

• Place a level inside the compactor on the floor

of the cabinet.

• Use the leveling legs to adjust level front to back and

side to side.

Front leveling legs

Rear wheels

ADJUST THE RETAINING

BRACKET

• Determine installation depth of the compactor

beneath the countertop.

• Adjust the position of the retaining brackets so that

the screws can meet the underside of the

countertop.

• Mounting clips are provided for stone or other hard

countertops that will not accept screws.

Retaining

bracket

Countertop

ADJUSTING THE BASE TOEKICK

A toekick extension is supplied. It can be used to cover

any gaps from the bottom of the compactor to the floor.

• Remove the top toekick screws as shown. Lift off top

toekick piece.

• Loosen the base toekick screws, adjust to touch the

floor and tighten the screws.

• Reinstall the top toekick piece with the original

screws.

Loosen screw

on each side

Top toekick

Adjustable

lower toekick

• Use two #8-18 x 1/2″(45.7 cm x 1.3 cm) mounting

screws to fasten the retaining brackets at the top

of the compactor to the underside of the countertop.

• If the brackets cannot be attached to the underside

of the countertop, attach mounting clips to the

bracket. Fasten the compactor to the cabinet front

with mounting screws through the mounting clips.

Installation

POSITION COMPACTOR UNDER

THE COUNTERTOP

WARNING!

When moving the compactor, use gloves to

protect and cushion your hands.

To protect the finished flooring, use a dolly

to move the compactor near the installation

location.

Failure to follow these instructions could

result in injury.

• Plug the power cord into a properly grounded

receptacle.

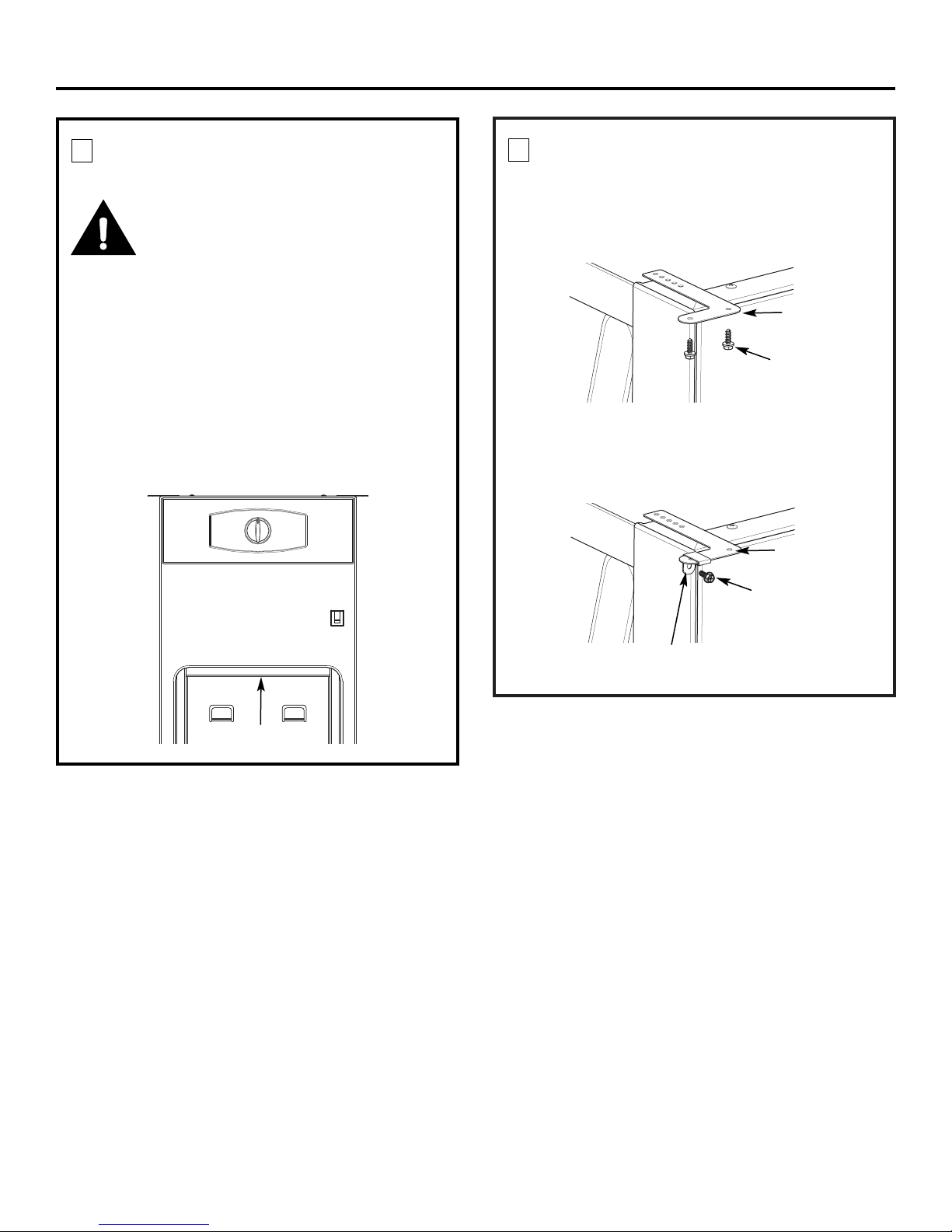

• Carefully lift the front of the compactor slightly and

roll the unit into the cabinet opening until the

retaining brackets stop.

Lift here

ATTACH THE COMPACTOR TO

THE COUNTERTOP

Mounting

screws

Retaining

bracket

Mounting

screw

Retaining

bracket

Mounting

clip

Installation

• Grasp the sides of the drawer. Carefully slide the

drawer into the compactor.

REINSTALL THE COMPACTOR

DRAWER

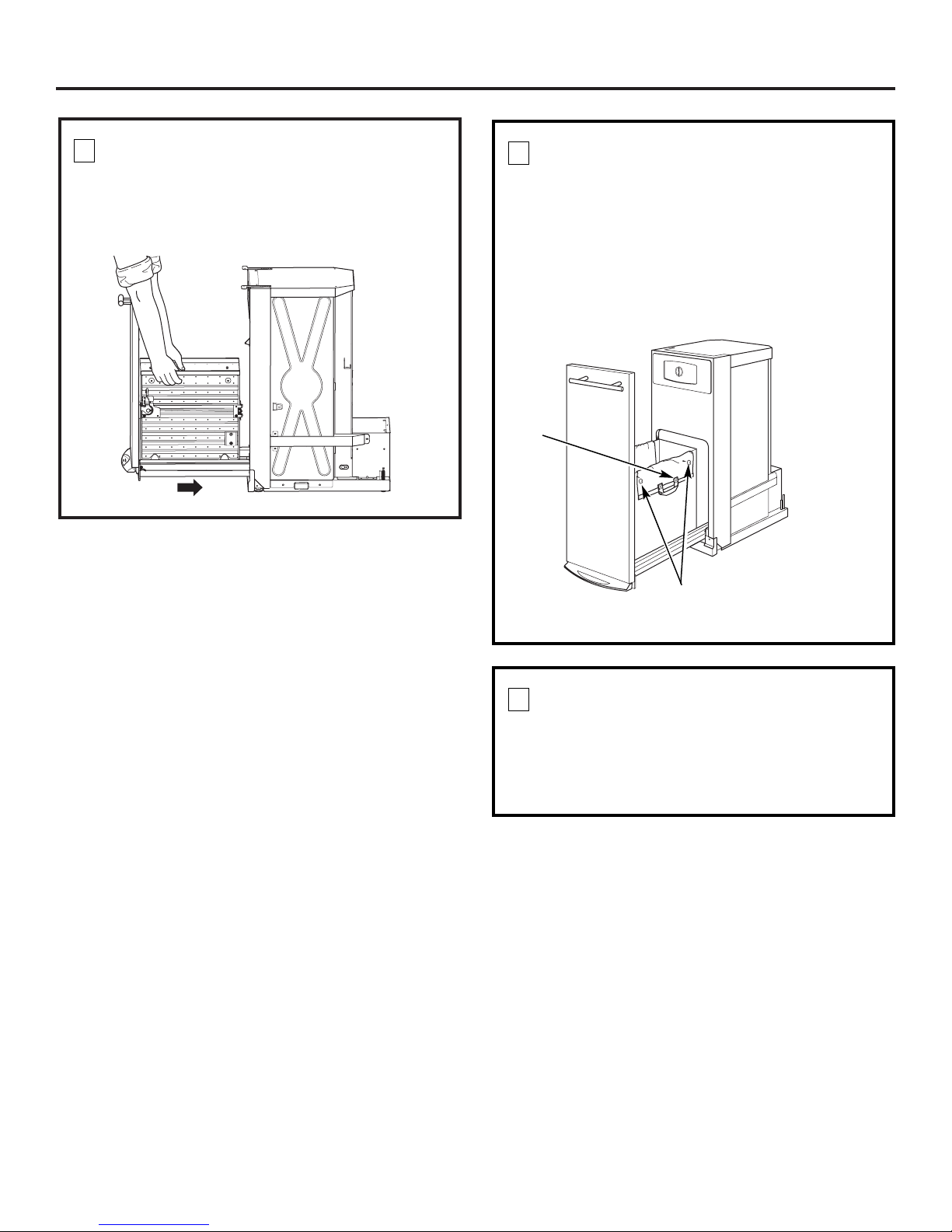

• Set the bag caddy into the drawer and hook the

pre-punched holes in the caddy on the drawer

buttons.

• Set the trash bag into the bag caddy and fold over.

• Hook the holes in the bag over the drawer buttons.

INSTALLATION OF THE TRASH

BAG CADDY (on some models)

Drawer

buttons

Trash

bag

caddy

• Turn power on at the source.

• Refer to your Owner’s Manual for operating

instructions.

FINALIZE THE INSTALLATION

Notes

Andere Handbücher für GCG1500 BB

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere GE Müllpresse Handbücher

GE GCG1200 Bedienungsanleitung

GE UCG1600 Series Bedienungsanleitung

GE GCG1520 Sicherheitsleitfaden

GE UCG1510N0II Bedienungsanleitung

GE Monogram ZCGP150 Bedienungsanleitung

GE ZCGP150 II Bedienungsanleitung

GE GCG1520 Sicherheitsleitfaden

GE GCG1500P Bedienungsanleitung

GE GCG1580PSS - ProfileTM 15" Compactor0 Handbuch

GE UCG1500 Series Bedienungsanleitung

GE GCG1700P Handbuch

GE UCG1500N0BB Bedienungsanleitung

GE GCG17 - Profile 1.4 cu. Ft. Compactor Handbuch

GE GCG1580RSS Handbuch

GE Profile GCG1580L Bedienungsanleitung

GE ZCGP150 II Bedienungsanleitung

GE GE PROFILETM GCG1500L Handbuch

GE UCG1680 Bedienungsanleitung

GE GCG1580P Bedienungsanleitung

GE Monogram ZCG3100VBB Bedienungsanleitung

GE Monogram Compactor Bedienungsanleitung

GE Monogram ZCGS150PSS Bedienungsanleitung

GE MONOGRAM ZCG3300 WW Bedienungsanleitung

GE GCG1700II Bedienungsanleitung

Beliebte Müllpresse Handbücher anderer Marken

NuTone

NuTone 1050 Bedienungsanleitung

Rousseau

Rousseau R1C-SE19S Bedienungsanleitung

Kenmore

Kenmore 665.1361 Series Bedienungsanleitung

Newstripe

Newstripe Pack-Master Air Bedienungsanleitung

KitchenAid

KitchenAid KCCC151 Bedienungsanleitung

KitchenAid

KitchenAid KUCK03ITBL0 Bedienungsanleitung

Whirlpool

Whirlpool GX900QPLQ - 15" Trash Compactor Bedienungsanleitung

Vestil

Vestil FM-T-DUMP Bedienungsanleitung

Euro Shatal

Euro Shatal RP4014-50 Bedienungsanleitung

third coast equipment

third coast equipment SP3410 Bedienungsanleitung

Cucine Oggi

Cucine Oggi EKKO CUBE 40 9000 Bedienungsanleitung

Viking

Viking Designer Series Bedienungsanleitung

Centro

Centro 85-1066-6 (A01001 Kurzanleitung

Whirlpool

Whirlpool 9872208 Bedienungsanleitung

Jenn-Air

Jenn-Air TC607X2 Bedienungsanleitung

Displays2go

Displays2go “THANK YOU” DUAL Bedienungsanleitung

Jenn-Air

Jenn-Air TC507B1 Bedienungsanleitung

Whirlpool

Whirlpool 800 SERIES Bedienungsanleitung
