GE Monogram ZVC48LSS Benutzerhandbuch

ZVC48LSS

GE Monogram®48" Custom Hood Insert

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Created 10/06 130670

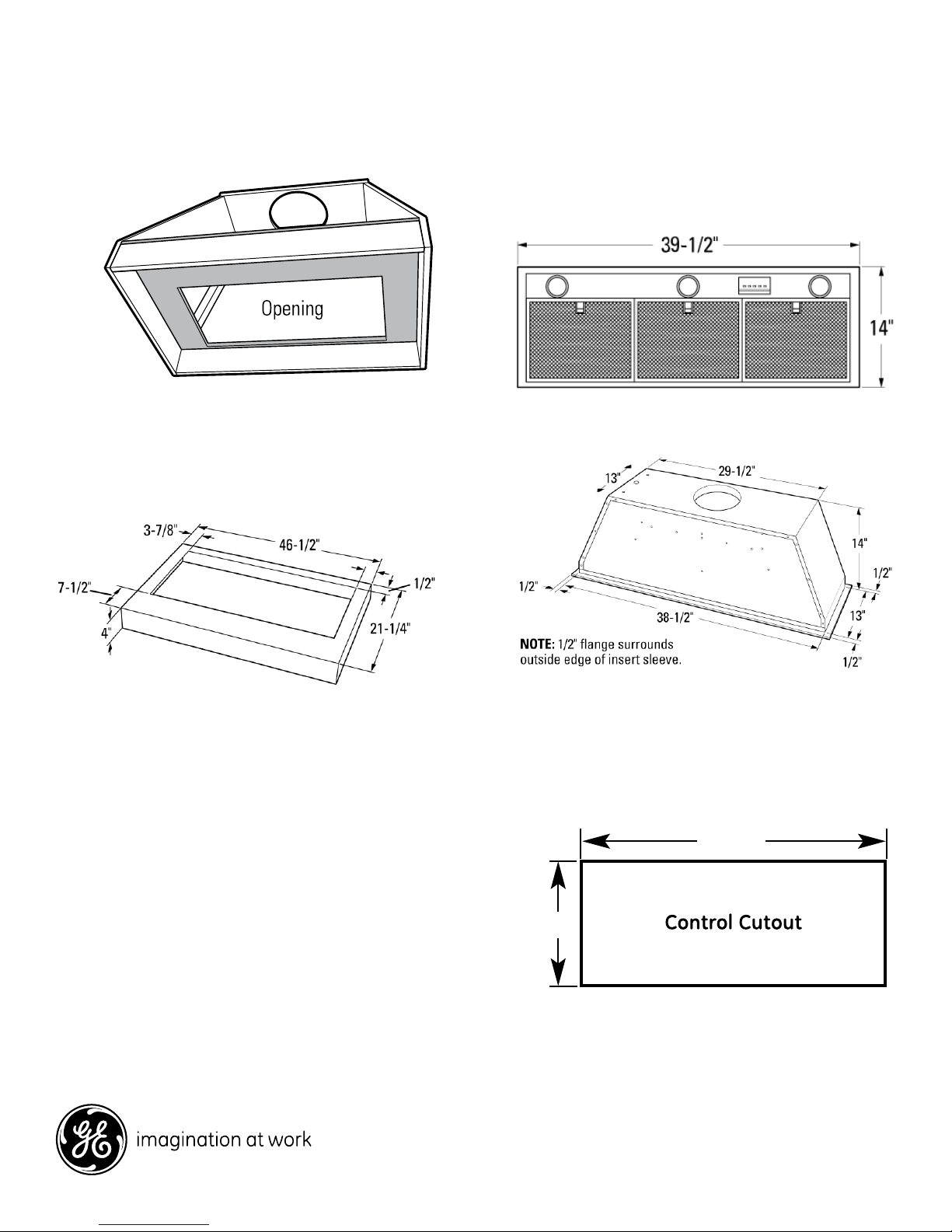

Dimensions and Specifications (in inches)

Outside Dimensions

Custom Insert Liner

The custom canopy must be sized to ﬁt the insert sleeve.

Construct the canopy with an opening that is:

38-3/4"W x 13-3/16"D

The opening must be constructed of 3/4" thick material to

allow the sleeve locking clips to engage.

The Insert Sleeve

The Supplied Liner

A stainless steel liner is shipped with each hood insert. This

non-combustible liner protects the underside of the canopy.

Custom Liner

If you are not using the supplied liner, you may construct a

custom non-combustible liner. Use the supplied liner as a

template. The opening must be 38-3/4"W x 13-3/16"D.

3/4" thick material must surround the opening to allow the

sleeve locking clips to engage. The insert sleeve inside the

cabinet should be positioned 1/2" from the rear wall so that

the center of the 8" duct is 5-1/2" from the rear wall.

Remote Location for the Control

The control may be removed from the hood and installed

into a wall or countertop. A 30-ft length of wire is supplied to

accommodate most installations. A blanking plate covers the

opening when the controls are removed. The overall size of

the control is 4-1/4" wide and 2-1/4" deep.

1-11/16"

3-11/16"

We recommend that the cutout in granite or other hard

surfaces be made before the countertop is installed.

ZVC48LSS

GE Monogram®48" Custom Hood Insert

Specification Created 10/06 130670

ZVC48

Features and Benefits

• Patented Installation Process - Makes the insert

ideally suited to a wide variety of custom hood

applications; with easy and secure connection

to the ventilation duct

• Dual-Blower Ventilation with 1200 CFM and 4

Fan Speeds - Provides the power necessary

to capture the smoke and fumes produced by

high-performance cooking equipment

• Control with ADA Compliant Remote-Mount

Option - Can be removed and relocated to a

more convenient location, such as a wall

or countertop

• Blower, Liner and Filters Included - No additional

components or accessory kits required

• Three Halogen Lights - Provide four levels of

illumination over the cooking surface

• Three Stainless Steel Mesh Filters - Trap airborne

grease particles and can be easily removed for

safe cleaning in your dishwasher

• Model ZVC48LSS – 48" Wide Stainless Steel

Hood Insert
