GearMo GM-HU34CA-DW Bedienungsanleitung
i
Contents
- Introduction .................................................................................................................. 1
- System Requirements .......................................................................................... 1
- Package Contents .................................................................................................... 1
- Hub Layout .................................................................................................................... 2
- Installation ..................................................................................................................... 2
- DIN Rail Mounting ...................................................................................................... 3
- Surface / Wall Mounting ....................................................................................... 4
- Specications .............................................................................................................. 5
gearmo.com/support
1
gearmo.com/support
Introduction
System Requirements
Package Contents
Thank you for purchasing Gearmo’s 4-Port USB 3.2 Gen 2 Type-C & A Industrial
Surface & DIN-Rail Mount Hub w/ ESD Surge Protection! Please read the manual
in detail rst before you begin using this hub. The specications are subject to change
without notice.
Desktop or Notebook Computer with an Available USB Type-A or USB Type-C Port
Windows 11 (64-bit), 10 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit)
Mac OSX Lowest or Latest Versions
Industrial 4-Port USB 3.2 Gen 2 Type-C & A Industrial Hub
User Manual
Power Adapter with DC Barrel Connector
USB Type-C to Type-C Screw-Locking Cable
DIN-Rail & Wall Mounting Kit
3-Pin Terminal Block
Screw Package
2 3
gearmo.com/support gearmo.com/support
Hub Layout
Installation
1. Power
- The USB 3.2 Gen 1 Hub requires a 9~24V DC external power source to work.
- Power up the USB Hub through either the Included DC Power Jack Adapter or 3-Pin
Terminal Block.
2. 3-Pin Terminal Block
- Plug the included terminal block to the hub’s terminal block connector.
3. Hardware
- Mount your hub on the Wall, Surface or Din Rail, if needed.
Downstream Port
USB Type-C
Downstream Port
USB Type-A
Single Screw-Lock
Dual Screw-LockLED Indicators
DC Power Jack
Upstream Port
USB Type-C Terminal Block
DIN Rail Mounting
Use the included screws to install the DIN Rail Clip to the hub.
Insert the top of the DIN Rail Clip onto the DIN Rail Track, then gently push the bottom
of the hub to secure it to the DIN Rail Track.
4 5
gearmo.com/support gearmo.com/support

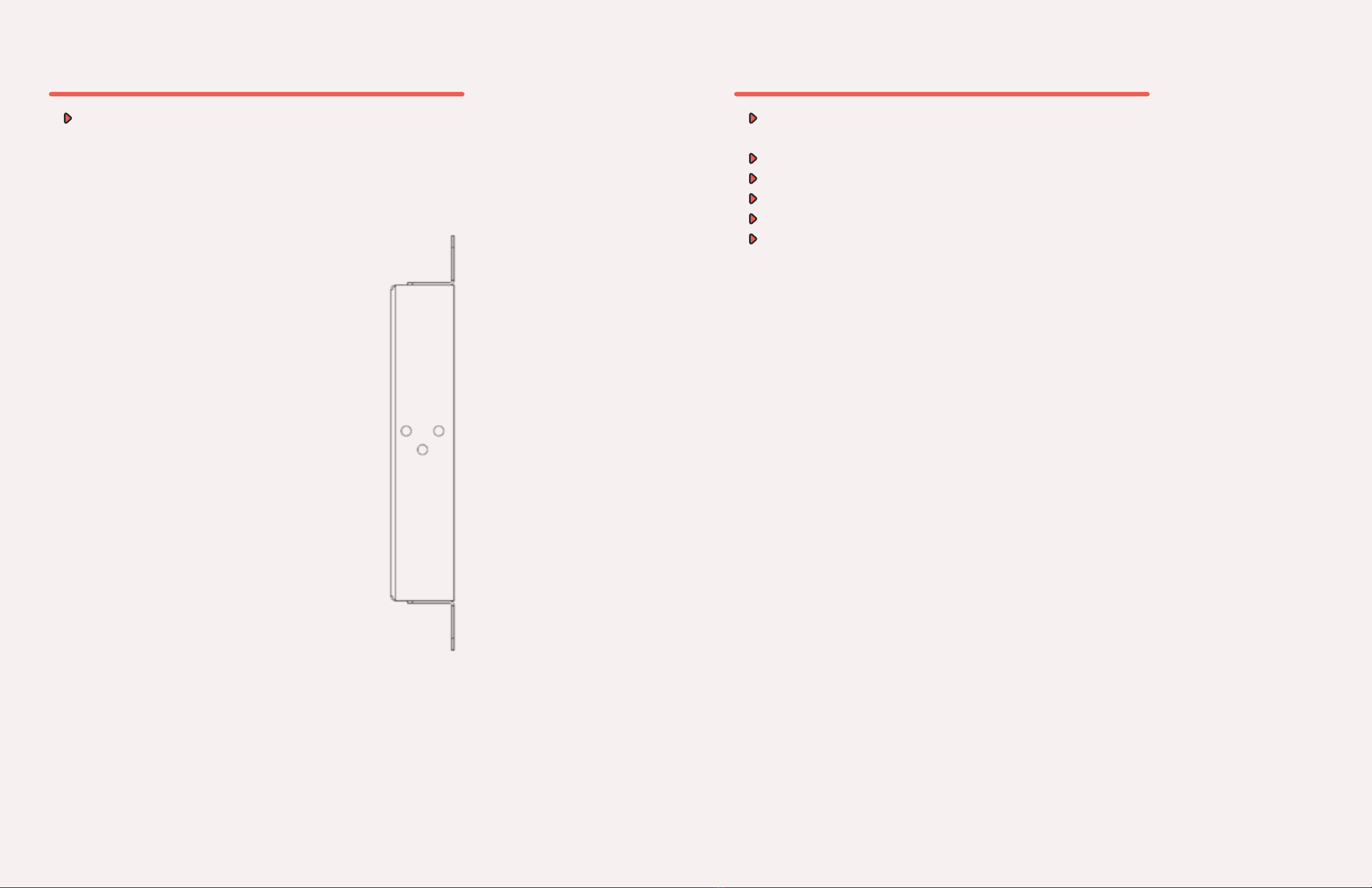

Surface / Wall Mounting
Use the included screws to ax the surface mounting anges to the hub. Use surface
mounting screws attach hub to the wall or smooth surface (surface mounting screws not
included).
Specications
Adds 3 3.2 Gen 2 compliant USB Type-C ports & 1 USB Type-A port supporting
up to 10Gbps data transfer rate
Rugged metal chassis with surface & DIN Rail mount support
9~24V DC power input with an included DC Barrel power supply
LED indicators for each port to show connection conrmation
Upstream USB Type-C port
15kV ESD protection for all USB ports
