Table of Contents

1. Important Safety Information 5

1.1 Safety Warnings 5

OVERLOAD HAZARD 6

INACCURATE TORQUE SETTINGS 6

EXPLOSION AND FIRE HAZARD 6

TEMPERATURE CONDITIONS 7

RISK OF ELECTROCUTION 7

1.2 Personal Protective Gear 7

1.3 Intended Use 8

1.4 Handling 8

1.5 Work Environment 9

2. Product Description 10

2.1 Scope of Delivery 11

3. Using the Torque Tester 11

3.1 Terms Used 12

3.2 Mounting the Torque Tester 12

3.3 Activating / Deactivating 13

3.3.1 Activating 14

3.3.2 Deactivating 14

3.4 Taring the Torque Tester 14

3.5 Switching the Units of Measurement 15

3.6 RS232 Interface and Connection to a Computer 15

3.7 Testing a Torque Wrench with the Torque Tester 16

3.8 Electronic overload notification 19

4. Maintenance 19

4.1 Testing and Calibrating 19

4.2 Care and Storage 21

5. Accessories and Parts 21

6. Environmentally Friendly Disposal 21

7. Manufacturer 21

8. Technical Data 22

1. Important Safety Information

Read and understand these Operating Instructions before

using the torque tester. SERIOUS INJURY or DEATH can

result from incorrect use.

These Operating Instructions are part of the torque tester.

They must be kept in a safe place for later use and be passed

along with the torque tester if it is sold, loaned, or otherwise

transferred.

The torque tester should only be used by TRAINED

PERSONNEL who have been taught how to safely use and

handle the torque tester. Using the torque tester without

training may result in SERIOUS INJURY or DEATH.

Employers purchasing this torque tester MUST ensure

employees using the torque tester have read and understood

the Operating Instructions prior to using the torque tester. The

Operating Instructions MUST be available to the employees

for reference at all times.

1.1 Safety Warnings

Throughout this operating manual WARNING, CAUTION,

NOTICE and the safety alert symbol will be used.

WARNING Indicates a hazardous situation that,

if not avoided, could result in death or

serious injury.

CAUTION Indicates a hazardous situation that,

if not avoided, could result in minor or

moderate injury.

NOTICE.

Addresses practices not related to

personal injury, but are related to

property damage or in damage to the

torque wrench.

This is the safety alert symbol. It is

used to alert you to potential personal

injury hazards. Obey all safety

messages that follow this symbol to

avoid possible injury or death.

WARNING

OVERLOAD HAZARD

The torque tester can be overloaded during use and break

causing SERIOUS INJURY or DEATH.

ALWAYS use only original accessory parts. Accessory parts

not approved by Gedore may not bear the loads or cause the

torque tester to overload.

ALWAYS inspect the torque tester for damage BEFORE use.

NEVER use a damaged torque tester.

NEVER use the torque tester if it has been dropped, if it has

been used to strike other objects, or if anything has fallen on

it.

WARNING

INACCURATE TORQUE SETTINGS

An out-of-calibration torque tester can result in the failure of

the screw connections, the torque wrench, or the accessories.

This could cause SERIOUS INJURY or DEATH.

An out-of-calibration torque tester may cause the torque

wrench settings to be over- or under- torque, resulting in

SERIOUS INJURY or DEATH.

ALWAYS use tested and calibrated torque testers ONLY

(see Section 4.1 Testing and Calibrating).

WARNING

EXPLOSION AND FIRE HAZARD

Sparks can occur when using the torque tester, which can

cause an explosion or a fire and could cause SERIOUS

INJURY or DEATH.

NEVER use the torque wrench in areas where sparks can

cause explosions or fires.

WARNING

TEMPERATURE CONDITIONS

When the torque tester is exposed to temperatures less than

64°F (18°C) or above 82°F (28°C) or high levels of humidity

(above 90%), it may cause inaccurate torque settings.

ALWAYS check the torque tester with approved torque

measuring equipment before use in extreme climatic

conditions.

WARNING

RISK OF ELECTROCUTION

NEVER use the torque tester in areas with high

electromagnetic or ionizing radiation.

NEVER use the torque tester in the open or in damp spaces.

NEVER touch the power unit or plug and socket connections

with wet hands.

ALWAYS use the torque tester with the power unit provided.

ONLY connect the power unit to the power network if the

power unit voltage and power unit frequency specified agree

with the supply voltage and supply frequency of the power

network.

ONLY connect undamaged power units and supply lines to

the torque tester.

NEVER cover power units that are connected.

1.2 Personal Protective Gear

ALWAYS wear the following personal protective equipment

when using the torque tester. The torque wrench can slip or

break, causing SERIOUS INJURY or DEATH:

EYE PROTECTION designed to protect you from flying

objects (see ANSI/ISEA Z87.1) must be worn when using the

torque tester.

 Flying objects can cause SERIOUS INJURY to your

eyes.

SAFETY GLOVES must be worn when using the torque

tester.

 The torque wrench can slip or break causing SERIOUS

INJURY to your fingers and hands.

SAFETY SHOES with slip-resistant soles and steel toe caps

(see ASTM F2413-05) must be worn when using the torque

tester.

 Falling parts can cause SERIOUS INJURY to feet and

toes.

1.3 Intended Use

The torque tester is designed to test clockwise releasing

torque wrenches.

 DO NOT use the torque tester for any other purpose.

 MISUSE can lead to SERIOUS INJURY or DEATH.

 DO NOT allow children to use the torque tester.

1.4 Handling

WARNING

Unsafe use and improper handling can cause SERIOUS

INJURY or DEATH. Take the following safety precautions to

prevent injuries and property damage:

 ALWAYS check the torque tester, particularly the

adaptor and the housing, as well as the accessory parts,

for visible damage prior to use.

 NEVER use a damaged torque tester.

 NEVER use a torque tester and accessory parts that

have been modified.

 NEVER modify a torque tester and accessory parts.

 ALWAYS apply the torque tester in the direction of

rotation specified. Follow the direction of the rotation

arrow.

 ALWAYS use standard accessory parts or parts

approved by the manufacturer.

 ALWAYS transport the torque tester in shockproof

packaging materials.

1.5 Work Environment

ALWAYS use the torque tester in a safe work environment.

 Keep the work area clean and tidy.

 Use the torque tester in a large and secured area.

 The work area must be free of high dust concentration.

 NEVER use the torque tester in the open or in damp

spaces.

 NEVER use the torque tester in areas with high

electromagnetic or ionizing radiation.

2. Product Description

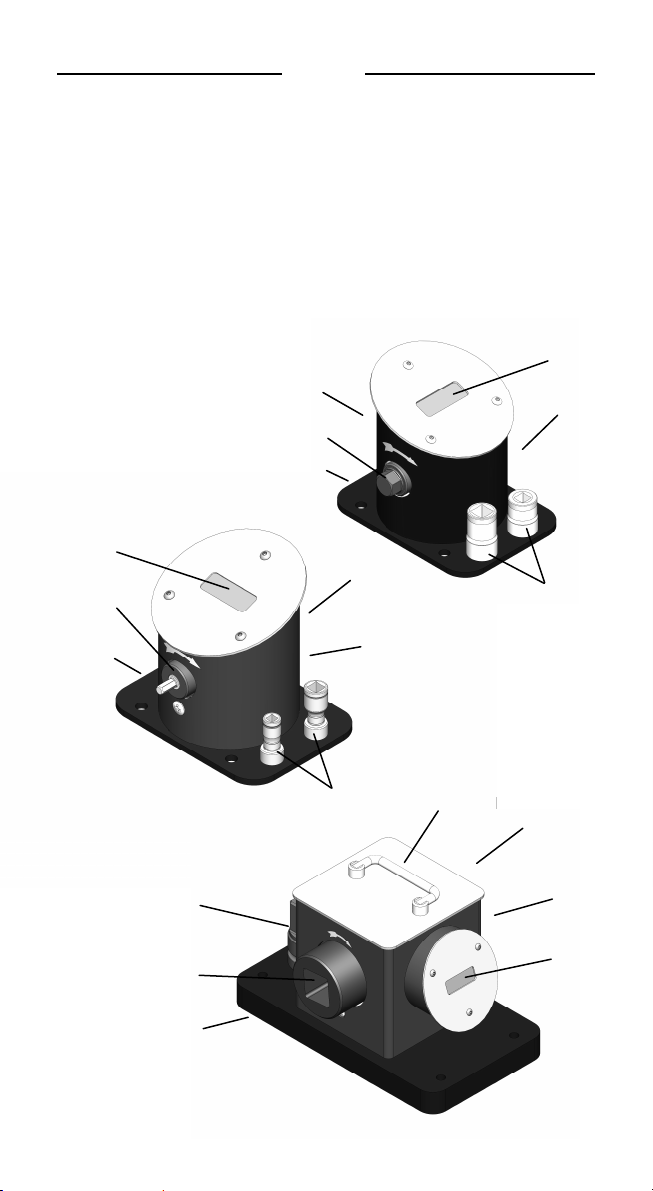

1. Base Plate

2. Drive

3. Display

4. Plug and Socket Connection/Power Supply

5. RS232 Interface

6. Wrench Socket

7. Extension Piece

8. Transport Handle

(8612-3150 only)
