Gefen DVI Splitter Bedienungsanleitung

DVI Splitter

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday PST

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

[email protected]

www.gefen.com

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

DVI Splitter is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction1.

1x2 DVI Splitter Features2.

1x2 DVI Splitter Panel Descriptions3.

1x4 DVI Splitter Features4.

1x4 DVI Splitter Panel Descriptions5.

1x6 DVI Splitter Features6.

1x6 DVI Splitter Panel Descriptions7.

Connecting and Operating the DVI Splitter8.

Speciﬁcations9.

Warranty10.

Gefen's DVI Splitter is a stackable distribution hub that sends the same DVI

graphics source to two or more DVI digital displays (ﬂat panels or projectors). It

is a ﬂexible solution that accommodates multiple digital video displays, and when

multiple DVI Splitters are connected together, they can be used to create a 1:4

or a 1:6 distribution (one DVI input / multiple DVI display outputs). When multiple

units are stacked you can switch between all the inputs into all the outputs with the

RMT-16 remote. The conﬁguration of stacking multiple units must be done by Gefen

professionals.

How It Works

The DVI Splitter is connected with a DVI (male to male) cable from the DVI graphic

source to the DVI Splitter input. There are two DVI outputs in each module. DVI

output one is the primary connection and is used for the main display. DVI output

two follows the main display. The DVI Splitter is using a unique DVI Bus technology

to connect multiple splitters without sacriﬁcing a DVI output connection.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE DVI SPLITTER

Display information (EDID) is sent from the display connected to DVI output• 1. The source will be outputting a resolution based on this EDID, therefore all

other displays connected to the DVI Splitter must be capable of displaying the

resolution and timings output by the source

• The DVI splitter will only accept and output a DVI-D (digital) signal. It will not

accept or output a DVI-A (analog) signal. A DVI-I cable can be connected to the

unit but will only pass the digital portion of that signal.

OPERATION NOTES

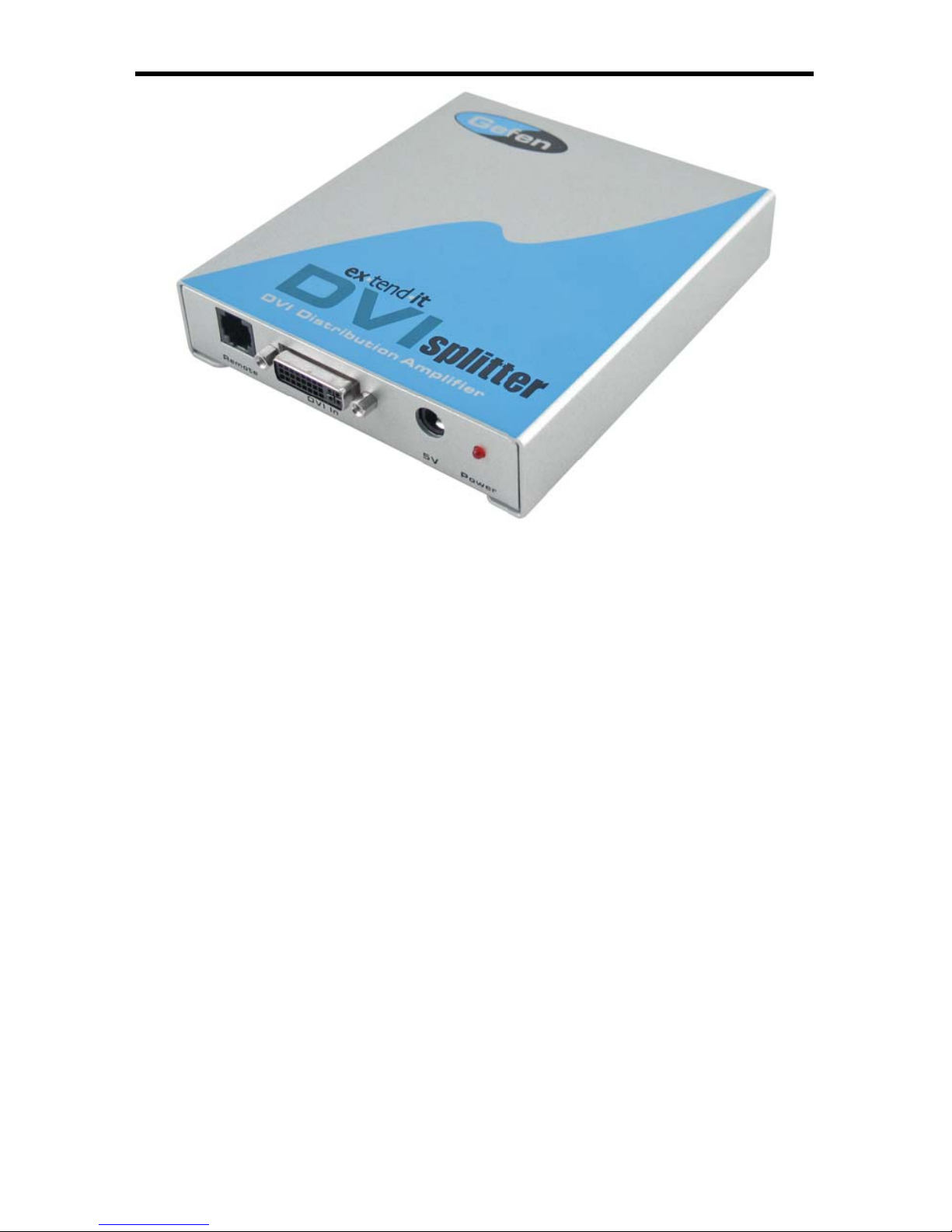

1x2 DVI SPLITTER FEATURES

Features

• Connects computers with DVI graphics cards to two DVI compatible monitors

• Can be conﬁgured as a DVI Switcher with multiple outputs

• Allows up to two DVI displays or projectors to be connected to one DVI source

• Maintains highest DVI single link video resolution 1920 x 1200

• Supports DDWG standard for DVI compliant monitors

• Simultaneous display at local and remote locations

• DVI cables are used to connect the DVI input and the computers output

• Installs in seconds

Includes:

(1) 6’ DVI cable (m-m)

(1) 5VDC Power Supply

(1) DVI Splitter

(1) User Manual

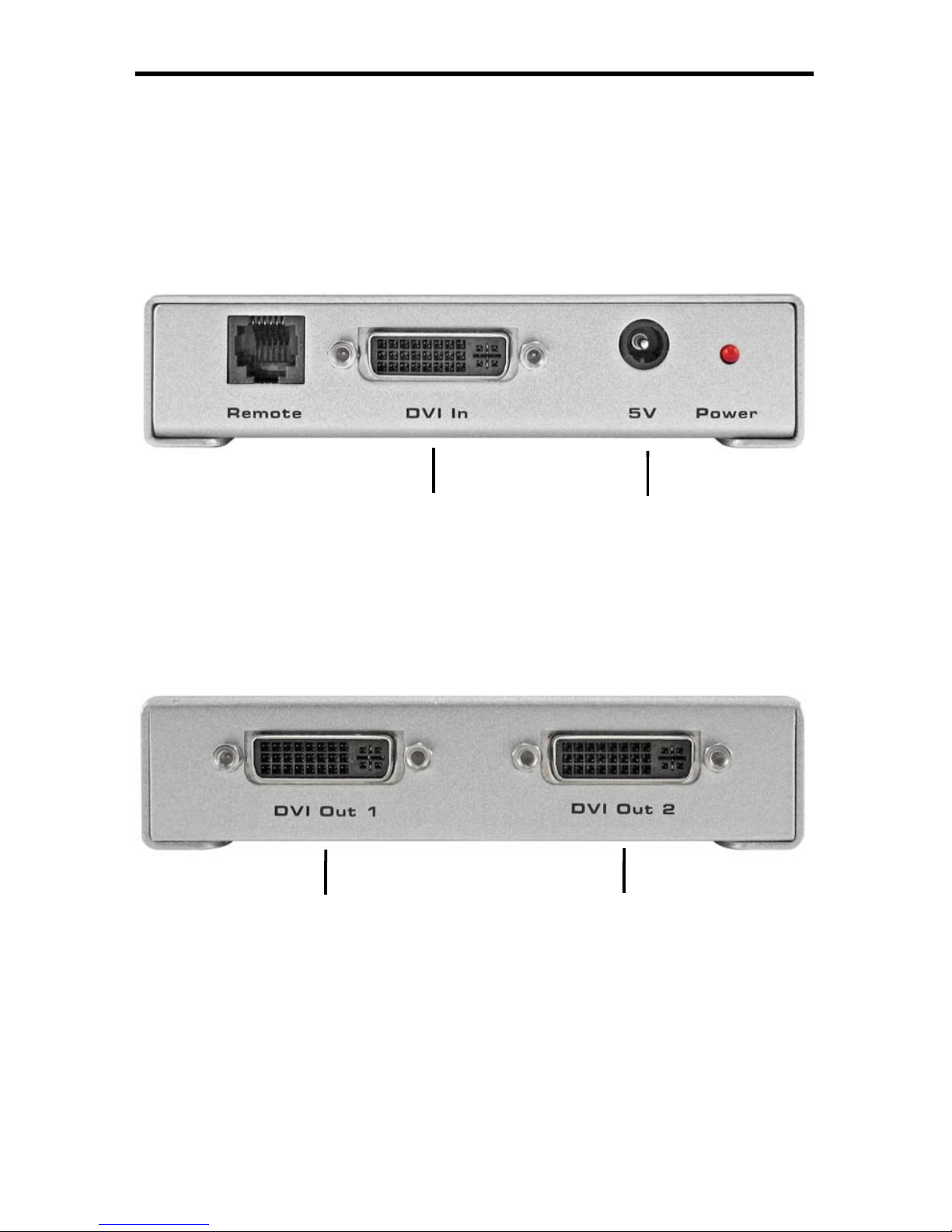

1x2 DVI SPLITTER PANEL DESCRIPTIONS

DVI In 5v Power

Input

DVI Out 1 DVI Out 2

1X4 DVI SPLITTER FEATURES

Features

• Connects computers with DVI graphics cards to four DVI compatible monitors

• Can be conﬁgured as a DVI Switcher with two inputs

• Allows up to four DVI displays or projectors to be connected to one DVI source

• Maintains highest DVI single link video resolution 1920 x 1200

• Supports DDWG standard for DVI compliant monitors

• Simultaneous display at local and remote locations

• DVI cables are used to connect the DVI inputs and the computers output

• Installs in seconds

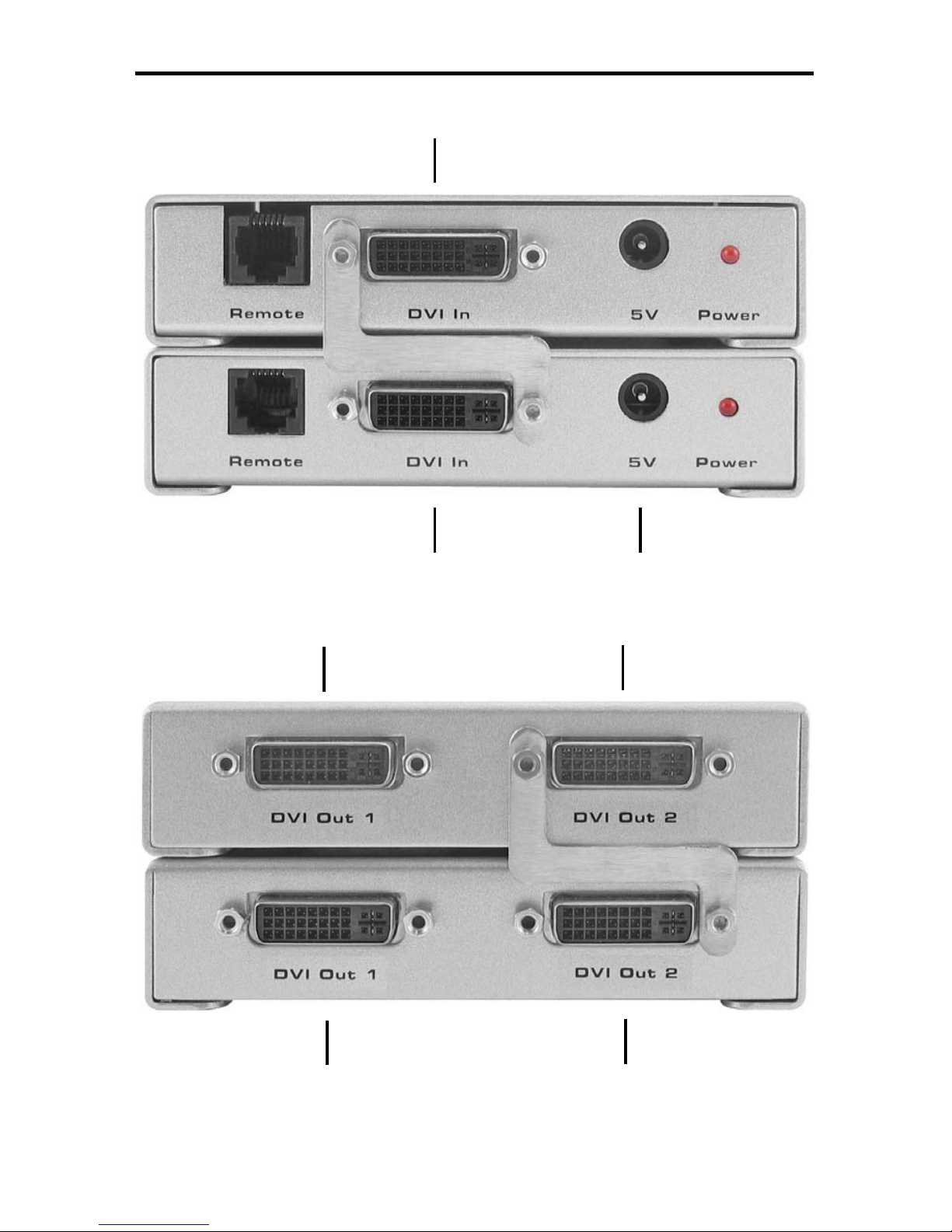

1X4 DVI SPLITTER PANEL DESCRIPTIONS

DVI In 1 5v Power

Input

DVI Out 1 DVI Out 2

DVI Out 3 DVI Out 4

DVI In 2

1X6 SPLITTER FEATURES

Features

• Connects computers with DVI graphics cards to six DVI compatible monitors

• Can be conﬁgured as a DVI Switcher with three inputs

• Allows up to six DVI displays or projectors to be connected to one DVI source

• Maintains highest DVI single link video resolution 1920 x 1200

• Supports DDWG standard for DVI compliant monitors

• Simultaneous display at local and remote locations

• DVI cables are used to connect the DVI inputs and the computers output

• Installs in seconds

DVI In 2

DVI In 1

DVI In 3

5v Power

Input

DVI Out 3 DVI Out 4

DVI Out

1 & 2

DVI Out

5 & 6

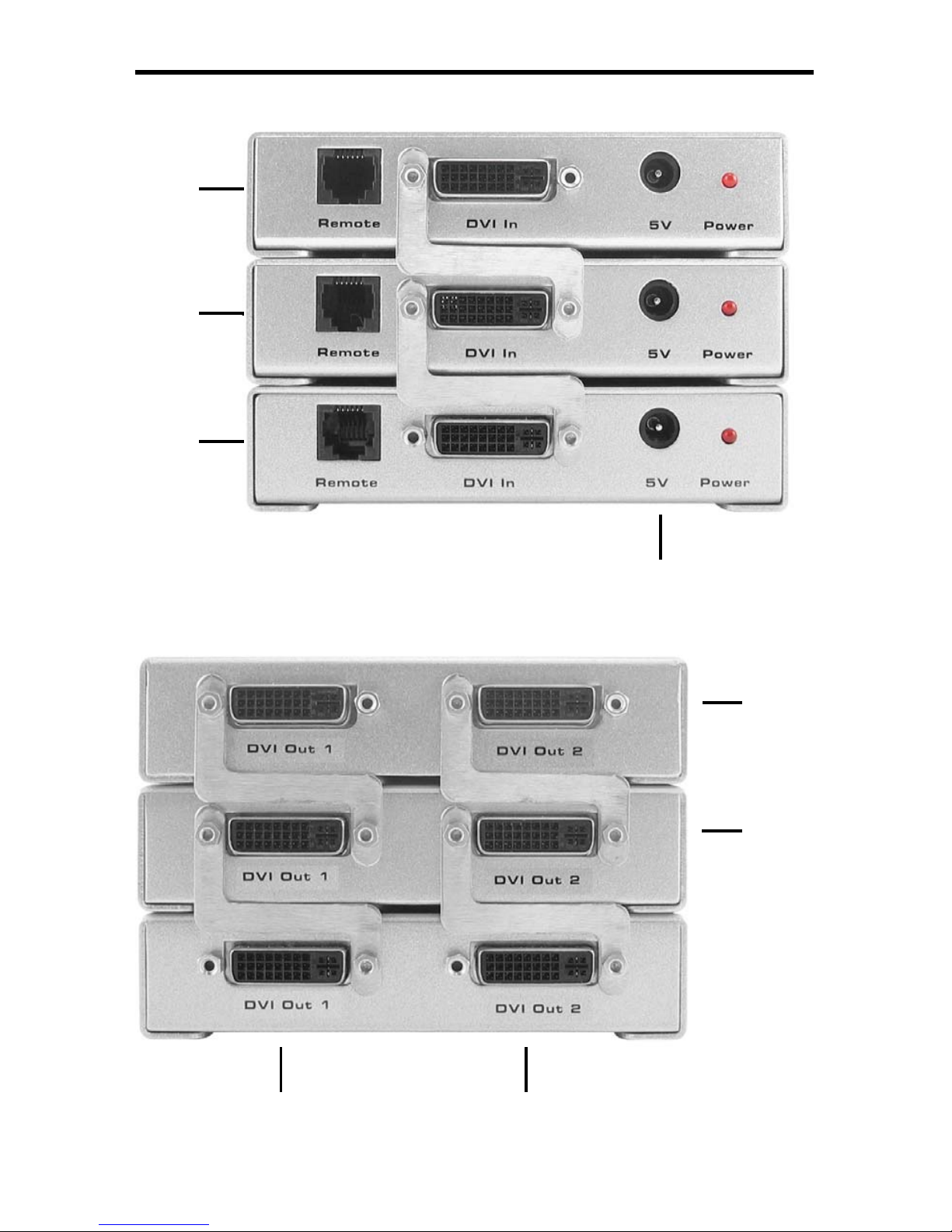

1X6 SPLITTER PANEL DESCRIPTIONS
