Genelec 5040A Bedienungsanleitung

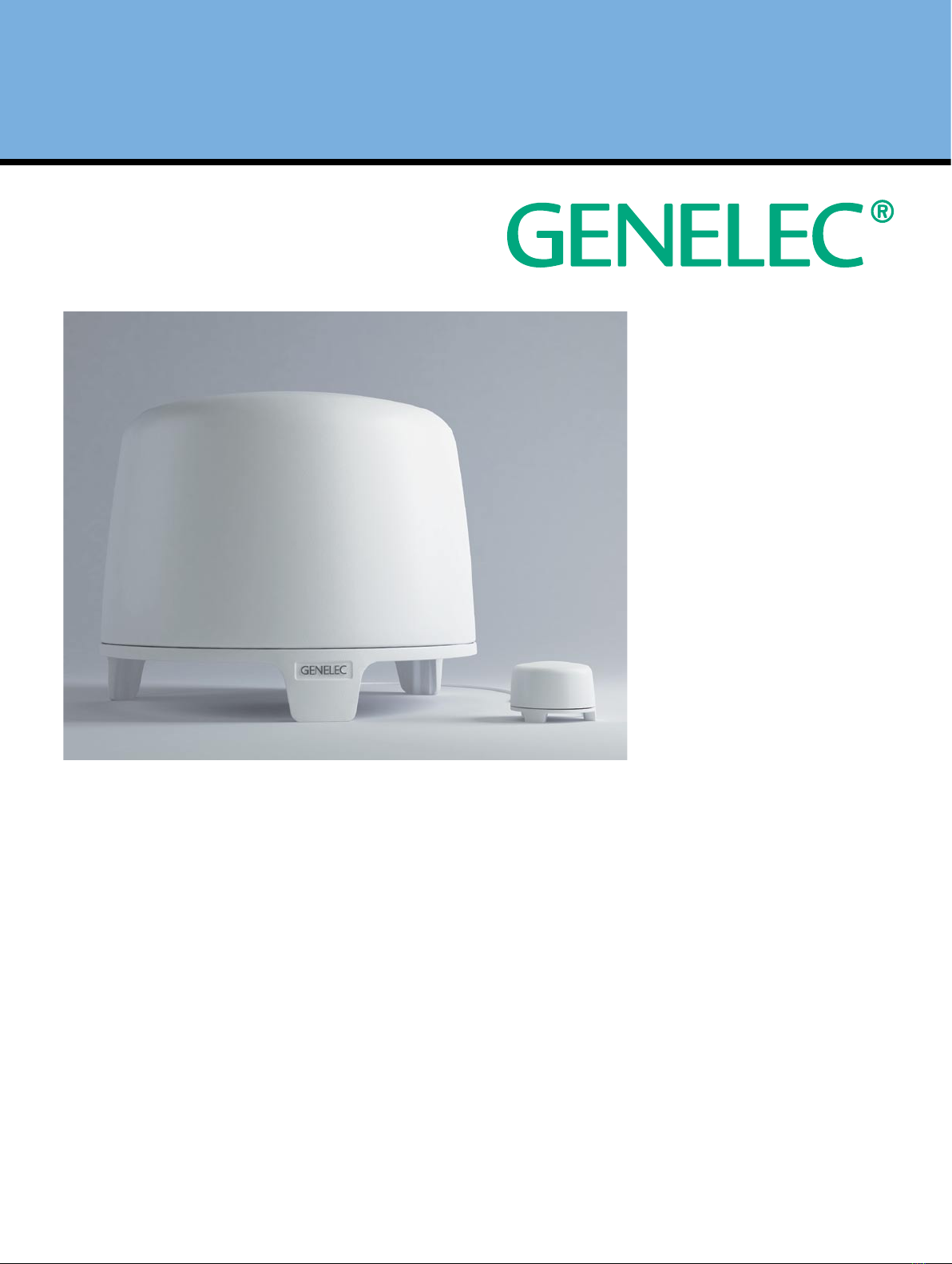

The Genelec 5040A is a very compact

active subwoofer designed to complement

up to ﬁve Genelec 6010A active loud-

speakers or a pair of the slightly bigger

6020A’s. The 5040A extends

the system’s

bass response down to 35 Hz

and inte-

grates perfectly with the 6010A’s in any

environment. The playback level for the

whole system is conveniently controlled

by the remote volume control provided

with the 5040A subwoofer.

The 5040A features a magnetically

shielded downward ﬁring 61/2” bass driver

attached to a die-cast aluminium base plate.

The base plate also serves as the chassis

for the 40 Watt ampliﬁer and 5.1-channel

crossover ﬁlter circuitry

The 5040A packs

a respectable punch of 96 dB maximum

SPL.

The built-in crossover unit features six

RCA input connectors for ﬁve main chan-

nels and LFE channel and ﬁve RCA output

connectors for the 6010A loudspeakers.

The main channels have a ﬁxed high pass

ﬁlter to work with with Genelec 6010A

loudspeakers.The LFE channel can repro-

duce signals up to 120 Hz. In addition to

the RCA connectors, a 3.5 mm stereo jack

input connector is provided for convenient

connection to portable audio players or

computers.

Adjustable input sensitivity in combi-

nation with adjustable crossover phase

allows a seamless integration between

the subwoofer and the main loudspeakers.

Bass roll-off rate and input sensitivity can

also be adjusted to suit different acoustical

environments and subwoofer positioning.

Finding the correct place for the sub-

woofer is easy due to the compact size

and versatile acoustical adjustments of

the 5040A.

A combination of the 5040A and ﬁve

6010A’s can create a dynamic and

detailed soundstage like no other loud-

speaker system of the same size category.

Contact your local Genelec dealer for an

audition.

Genelec 5040A

Active Subwoofer

Data Sheet

5040A

5040A Data Sheet

Genelec Document BBA0078001. Copyright Genelec Oy 1.2008. All data subject to change without prior notice

International enquiries:

Genelec, Olvitie 5

FIN-74100, Iisalmi, Finland

Phone +358 17 83881

Fax +358 17 812 267

Email [email protected]

In the U.S. please contact:

Genelec, Inc., 7 Tech Circle

Natick, MA 01760, U.S.A.

Phone +1 508 652 0900

Fax +1 508 652 0909

Email [email protected]

In China please contact:

Genelec China Representative Office

SOHO New Town, 88 Jianguo Road

D-1504, Chaoyang District

Beijing 100022, China

Phone +86 10 8580 2180

Fax +86 10 8580 2181

Amplifier Section

connectorS

SyStem SpecificAtionS

5040A

Free ﬁeld frequency response (± 3 dB) Main 35 Hz...85 Hz

LFE 35 Hz...120 Hz

Maximum short term sine wave SPL output

averaged from 40 to 85 Hz, measured in half

space at 1 meter

98 dB

Self generated noise level in half space at 1 m

on axis (A-weighted)

≤15 dB SPL

Driver, magnetically shielded 165 mm (61/2")

Weight 6.3 kg (13.9 lb)

Dimensions

Height

Diameter

251 mm (97/8”)

305 mm (12”)

5040A

Ampliﬁer short term output power

(Long term output power is limited by driver

unit protection circuitry)

40 W

Ampliﬁer system THD at nominal output ≤0.05 %

Mains voltage 100, 120 or 230 V

Power consumption (average)

Idle

Full output

7 VA

70 VA

5040A

Main channels IN/OUT, LFE channel IN and

LINK OUT unbalanced female RCA

connectors

ring

gnd

Stereo IN 3.5 mm Jack female connector

Sleeve

Tip

Ring

gnd

Left channel

Right channel

Input impedance 10 kOhm balanced

Main channel OUT gain referred to IN 0 dB

croSSoVer Section

5040A

Subsonic ﬁlter (18 dB/octave) below 35 Hz

Crossover frequency, (sub/main channels) 85 Hz

LFE channel cutoff frequency 120 Hz

Midband rejection >400 Hz >50 dB

Sensitivity adjustment range -9 dBu for 90 dB SPL

Bass Roll-Off control operating range

in 2 dB steps

From 0 to -6 dB @ 35 Hz

Phase matching control in 90° steps From 0 to -270° @ 85 Hz

www.genelec.com

In Sweden please contact

Genelec Sverige

Ellipsvägen 10B

P.O. Box 5521, S-141 05 Huddinge

Phone +46 8 449 5220

Fax +46 8 708 7071

Email [email protected]
