“Stacker 200” Woodbox (WBX-200) Assembly Instructions

STACKER 200

Woodbox

How-To Assemble Your

All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards.

Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product

depends on correctness of installation and extent of usage. All metal components are subject to normal rust and corrosion.

GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY

ANY IMPLIED WARRANTIES ARE HEREBY DISCLAIMED AND ARE EXPRESSLY EXCLUDED.

PART NO. WBX-200

DIFFICULTY NOVICE

APPROX. DIM. 3'W x 2'D x 3'8H

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

APPROX. WEIGHT 2,485 lbs.

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Materials included with your outdoor kit.

(15)

(26)

(1)

(18)

Block “A” (4"x 8"x 16")

Block “B” (4"x 8"x 12")

Bullnose Block “B3” (4"x 6 3/4"x 14")

Block “C” (4"x 8"x 8")

(4) Block “D” (4"x 8"x 4")

(2)

(1)

(5)

Block “E” (4"x 4"x 11 1/4")

Block “G” (4"x 6 3/4"x 12")

Block "H" (4"x 4 1/4"x 8")

Bullnose Block "B1" (4"x 8"x 14")

(1) Bullnose Block "B2"(4"x 4 1/2"x 14")

(1)

(2)

Bullnose Block "B4"(4"x 8"x 8")

Bullnose Corner Block "B5"

Bullnose Block "B6"(4"x 5"x 8")

(2) Block Lintel (4"x 8"x 27")

(1) Cement Board (12"x 27")

(1)

Decorative Arriscra Tile Insert (7 5/8" x 19 1/4")

in Set Mix Bag

Additional materials required to install your kit.

Concrete or Gravel (for setting base)

Level

Tape Measure

Small Trowel

Note: Actual components may vary slightly. Some cutting may be required.

NOTE: is unit is designed for outdoor use only. is unit is not designed to be used on

wood decks or under roof enclosures. Locate unit reasonable distance from any combustible

materials. Comply with local building code(s) and burning permits as applicable. Retain these

instructions with unit.

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

5 gal. Mixing Bucket

Note: You may also use landscape adhesive (available separately) in place of supplied thin set mix.

Block “F” (4"x 3 1/8"x 12")

(2)

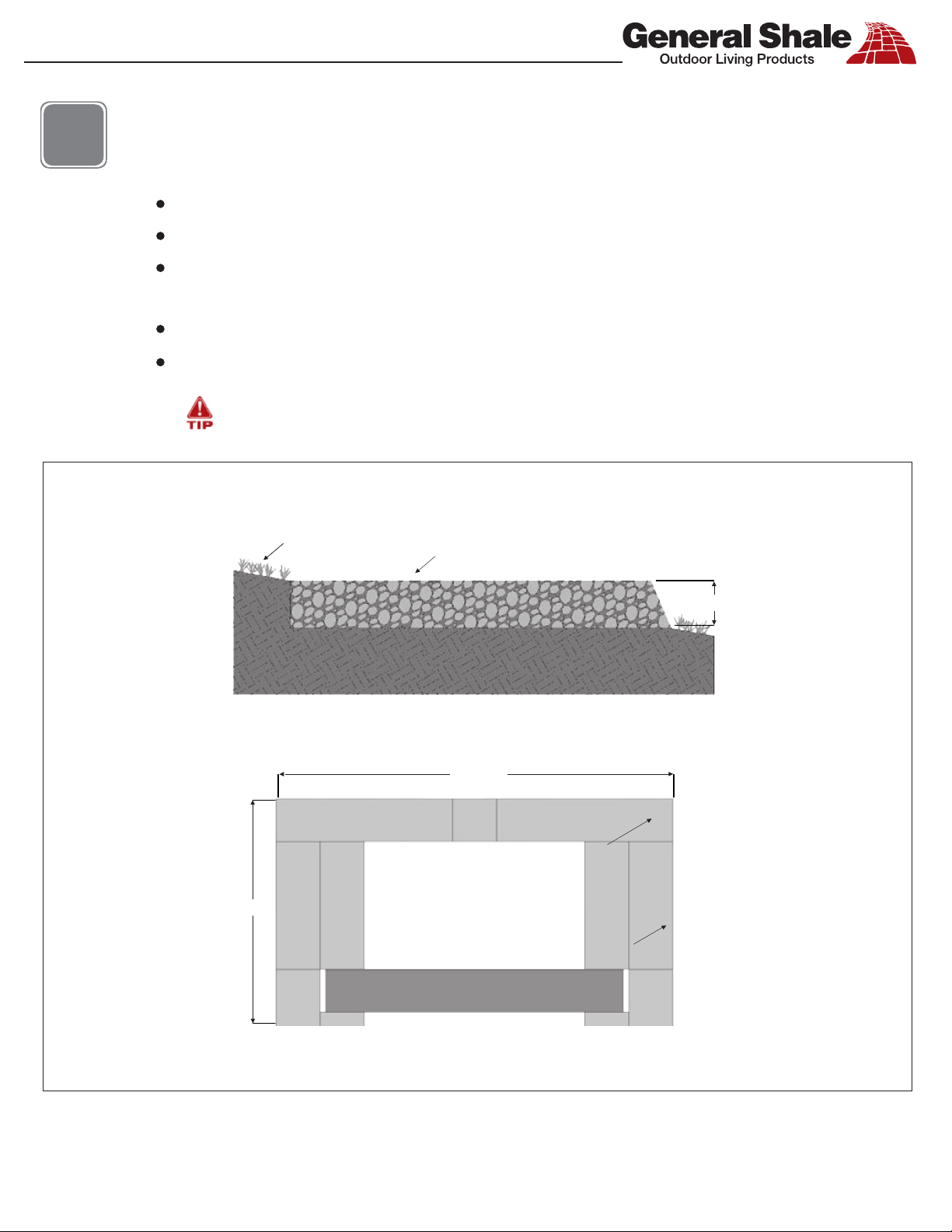

Step

1Create a level base using Crusher Run Stone to accommodate the overall footprint

of the woodbox kit.

Prepare an area 3'6"wide x 2'6"deep.

Remove sod and vegetation.

Excavate/remove so soil as required to provide level stone surface at a

minimum of 4"deep.

If soil under sod is hard, soil can be leveled out and used as a base material.

If required, use landscape blocks to retain stone base.

If installing optional hearth/knee wall, extend base as required.

(Base Section View)

Reference diagrams for creating a level base.

Undisturbed Ground

Existing Ground Screed Stone Base Level

4"min. Crusher Run Stone

3'6"

2'6"

NOTE: All outdoor living kits can be installed directly on a properly prepared stone base. However,

for best performance and appearance, a concrete pad is recommended.

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Woodbox Outline

3'x 2'

(Base Plan View)

FRONT

3'6" x 2'6"

Crusher Run Base

(4" min. thickness)

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Step

2Build the woodbox (courses 1 and 2).

Assemble the woodbox on a level setting base.

Apply thin set to the inside of block to prevent excess from squeezing out

onto the face of the mailbox.

Apply thin set layer with small trowel to bond courses.

Aer laying the rst course, check to make sure it is level before proceeding.

Course 1

(9) Block “B” (4"x 8"x 12")

Course 2

(6) Block “A” (4"x 8"x 16")

(2) Block “E” (4"x 4"x 11 1/4")

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Step

3Build the woodbox (courses 3 and 4).

Apply thin set to the inside of block to prevent excess from squeezing out

onto the face of the woodbox.

Use supplied thin set between all courses and all block.Use supplied thin set between all courses and all block.

Course 3

(3) Block “A” (4"x 8"x 16")

(3) Block “B” (4"x 8"x 12")

(6) Block “C” (4"x 8"x 8")

(1) Block “H” (4"x 4 1/4"x 8")

(2) Bullnose Block “B1” (4"x 8"x 14")

(1) Bullnose Block “B2” (4"x 4 1/2"x 14")

CBC

A A

A H

B1 B2 B1

Course 4

(2) Block “A” (4"x 8"x 16")

(4) Block “B” (4"x 8"x 12")

(4) Block “C” (4"x 8"x 8")

(1) Block “D” (4"x 8"x 4")

A D A

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

C C

NOTE: All block shown in light gray use the 8"dimension as the

height and all dark gray block use the 4"dimension as the height.

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Step

4Build the woodbox (courses 5 and 6).

Apply thin set to the inside of block to prevent excess from squeezing out

onto the face of the woodbox.

Use supplied thin set between all courses and all block.Use supplied thin set between all courses and all block.

Course 6 (Before Cement Board)

(2) Block “A” (4"x 8"x 16")

(2) Block “B” (4"x 8"x 12")

(2) Block “C” (4"x 8"x 8")

(3) Block “D” (4"x 8"x 4")

Course 5

(2) Block “A” (4"x 8"x 16")

(3) Block “B” (4"x 8"x 12")

(6) Block “C” (4"x 8"x 8")

CBC

C C

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

F F

4" x 8" x 27" Cast Lintel (2)

4" x 8" x 27" Cast Lintel (1)

(2) Block “F” (4"x 3 1/8"x 12")

(2) Lintels (4"x 8"x 27")

(1) Cement Board (12"x 27")

NOTE: Lintel 1 sits on top of course 5; Lintel

2 sits on top of “F” blocks.

Cement Board installs on top of Lintel (2) below.

Course 6 (Aer Cement Board Installed)

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Step

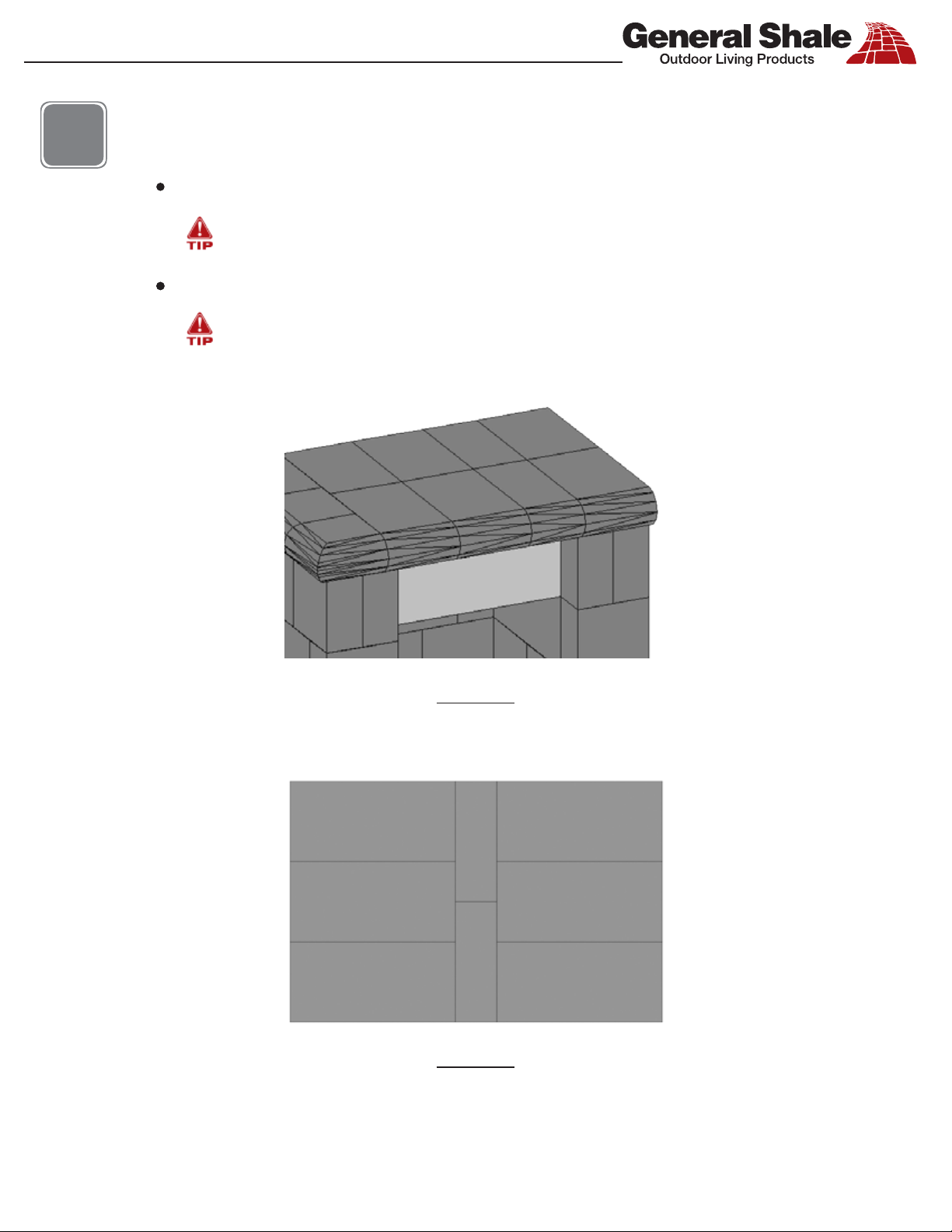

5Build the woodbox cap (course 7).

Apply thin set to the inside of block to prevent excess from squeezing out

onto the face of the woodbox.

Use supplied thin set between all courses and all block.Use supplied thin set between all courses and all block.

Course 7 (Cap)

(3) Block “B” (4"x 8"x 12")

(3) Bullnose Block “B1” (4"x 8"x 14")

(1) Bullnose Corner Block

(1) Bullnose Block “B4” (4"x 8"x 8")

(2) Bullnose Block “B6” (4"x 5"x 8")

(1) Bullnose Block “B3” (4"x 6 3/4"x 14")

(1) Block “G” (4"x 6 3/4"x 12")

B4, B5 and B6 blocks can be ipped over and used on the right side of the

woodbox to use the woodbox on the right side of the replace.

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

B B G B

B1 B1 B3 B1

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Step

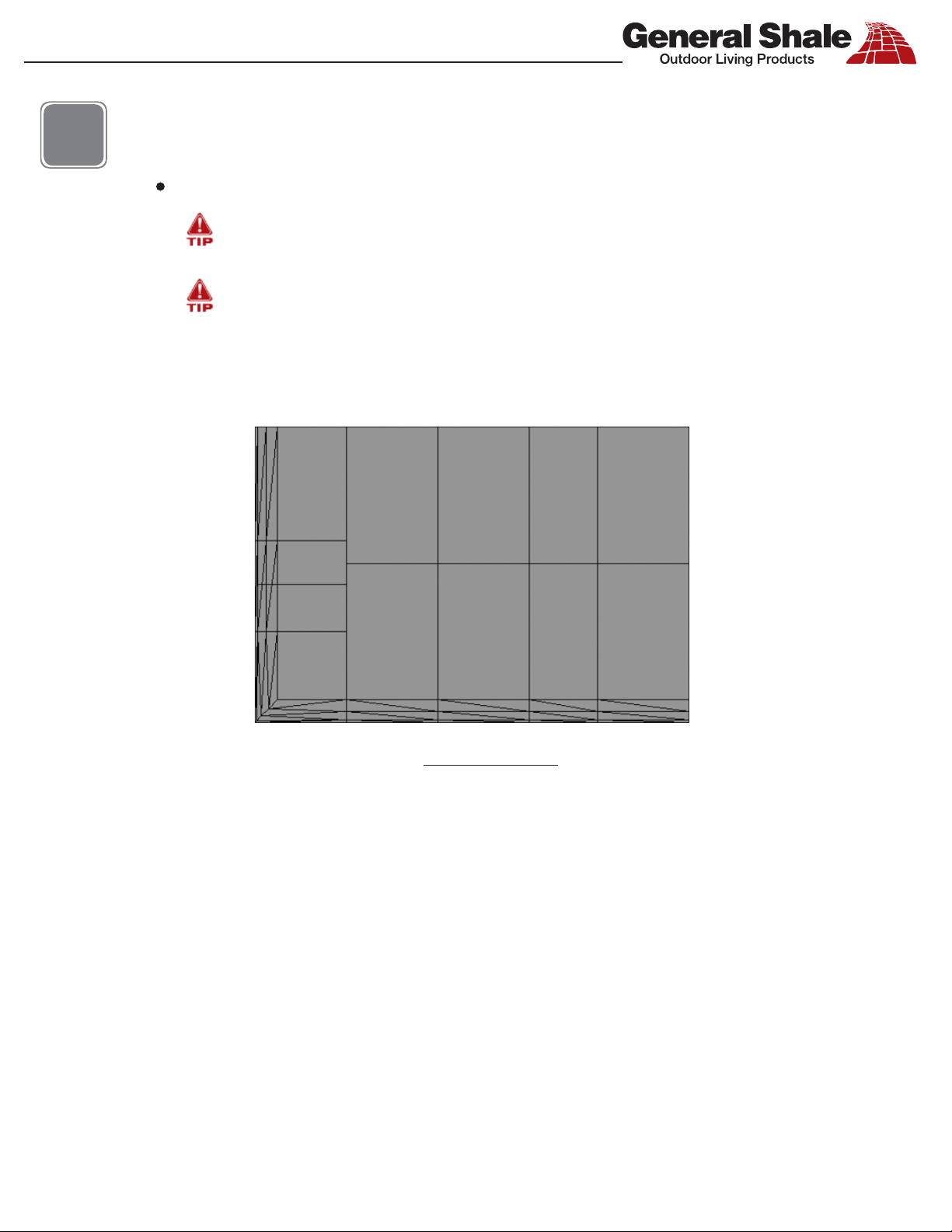

6Install decorative tile insert.

Install supplied tile on exposed block lintel with thin set.

“Stacker 200” Woodbox (WBX-200) Assembly Instructions

Decorative Arriscra Tile Insert

OL-BRO 0045-0415
